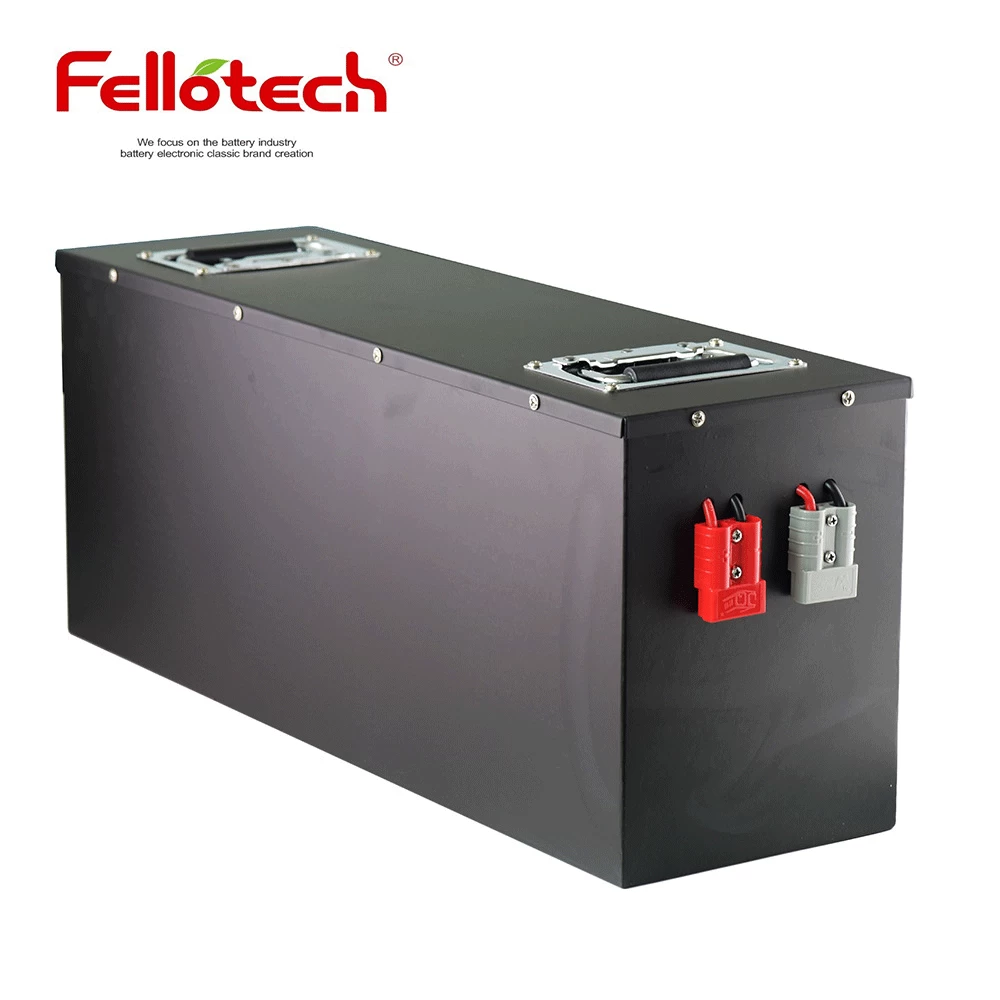

FT4850E 48V 50Ah LiFePO4 battery pack for solar storage system
|
S/N
|
Details
|
Parameters
|
Remarks
|
|
1
|
Nominal
voltage
|
51.2V
|
Mean Operation Voltage
|
|
2
|
Rated capacity
|
Typical
|
50Ah
|
Standard discharge（0.2C）
after standard charge
|
|
Minimum
|
49Ah
|
|
3
|
Charge
|
Charge
voltage
|
58.4±0.2V
|
|
Charge
Moe
|
0.2C to 58.4V, then 58.4V to 0.02C (CC/CV)
|
|
Standard Charge
current
|
10A
|
|
Max charge current
|
25A
|
|
Charge cut-off voltage
|
58.4±0.2V
|
|
Recommended float charge voltage ( for standby use)
|
55.2±0.1V
|
|
4
|
Discharge
|
Standard discharge current
|
10A
|
|
Max continuous discharge current
|
30A
|
|
Max. Pulse current
|
50 (＜30S)
|
|
Discharge Cut-off voltage
|
32V
|
|
5
|
Cycle life
|
≥ 2000
cycles
|
0.2C 100% DOD
|
|
6
|
Operation Temperature
Range
|
Charge：0~45℃
|
60±25%R.H. Bare Cell
|
|
Discharge：-20~60℃
|
|
7
|
Storage Temperature
Range
|
0~35℃
|
60±25%R.H. at the shipment state
|
|
8
|
Weight
|
Approx: 25kg
|
|
|
9
|
Size
|
420 x 130 x 320mm
|
|
|
10
|
Plastic Case
|
ABS
|
|
