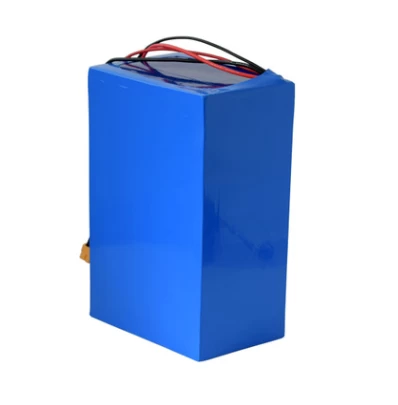

FT7230E 72V30Ah Motorcycle battery li-ion battery pack
|
S/N
|
Details
|
Parameters
|
Remarks
|
|
1
|
Nominal
voltage
|
72V
|
Mean Operation Voltage
|
|
2
|
Rated capacity
|
Typical
|
30Ah
|
Standard discharge（0.2C）
after standard charge
|
|
Minimum
|
30Ah
|
|
3
|
Charge
|
Charge
voltage
|
84±0.2V
|
|
Charge
Moe
|
0.2C to 84V, then 84V to 0.02C (CC/CV)
|
|
Standard Charge
current
|
6A
|
|
Max charge current
|
15A
|
|
Charge cut-off voltage
|
84±0.2V
|
|
4
|
Discharge
|
Standard discharge current
|
6A
|
|
Max continuous discharge current
|
30A
|
|
Max. Pulse current
|
50A (＜3S)
|
|
Discharge Cut-off voltage
|
60V
|
|
5
|
Cycle life
|
≥ 500 cycles
|
0.2C 100% DOD
|
|
6
|
Operation Temperature Range
|
Charge：0~45℃
|
60±25%R.H. Bare Cell
|
|
Discharge：-20~60℃
|
|
7
|
Storage Temperature
Range
|
0~35℃
|
60±25%R.H. at the shipment state
|
|
8
|
Weight
|
Approx：kg
|
|
|
9
|
Size
|
Customized
|
|
|
10
|
PVC Wrapped
|
|
|
