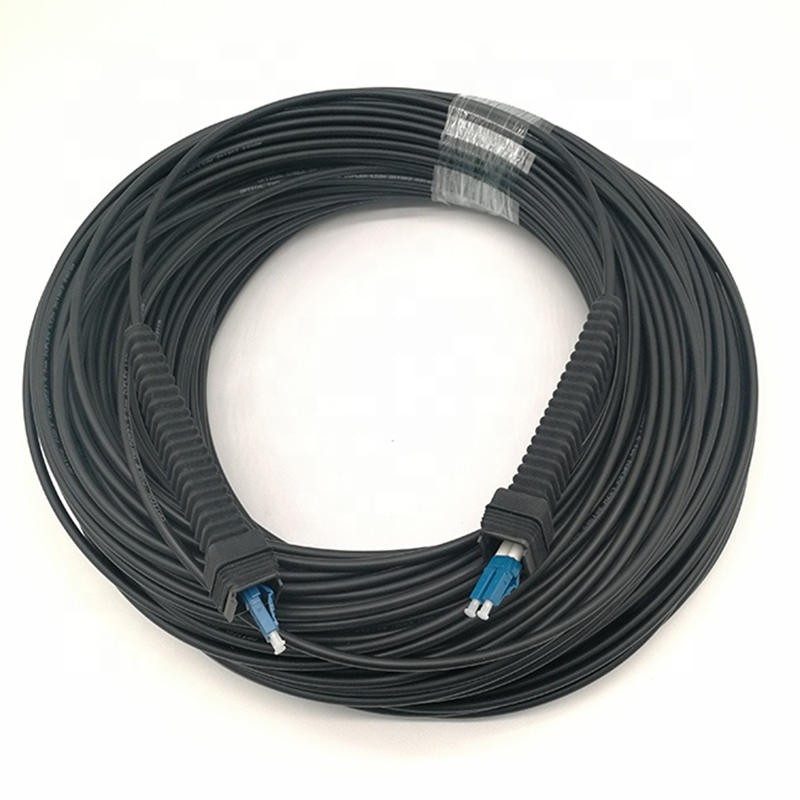

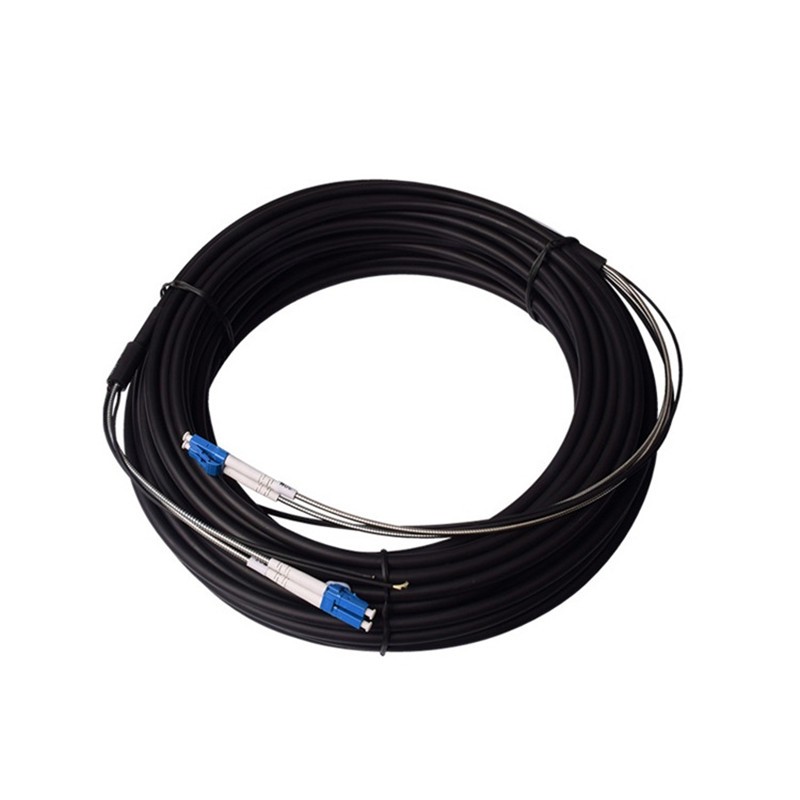

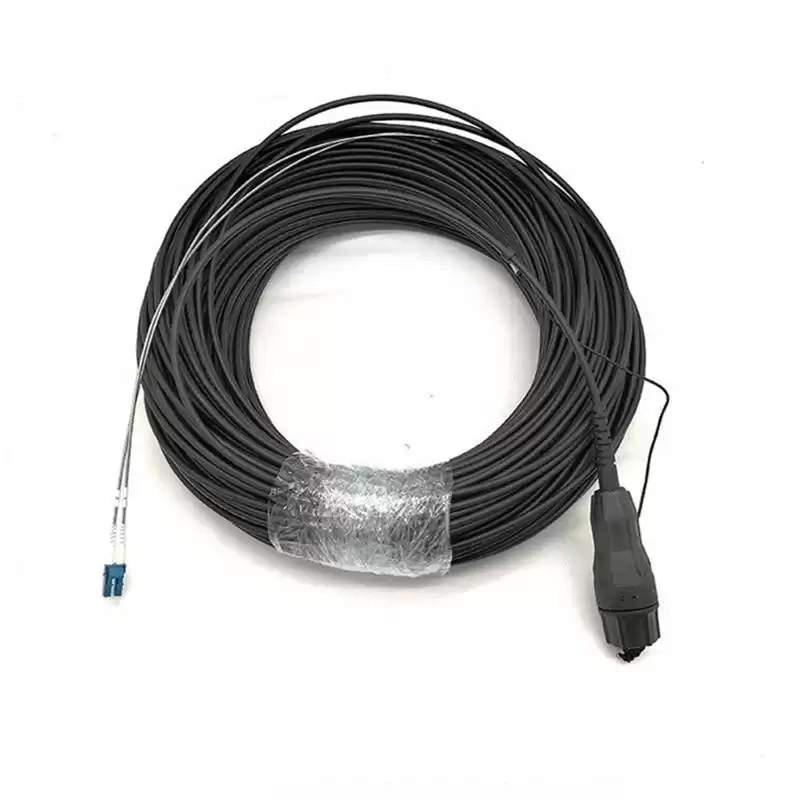

FTTA Fiber Optic Patch Cord Huawei Nokia Ericsson SM OM1 OM2 OM3 OM4 OM5
CPRI fiber patch

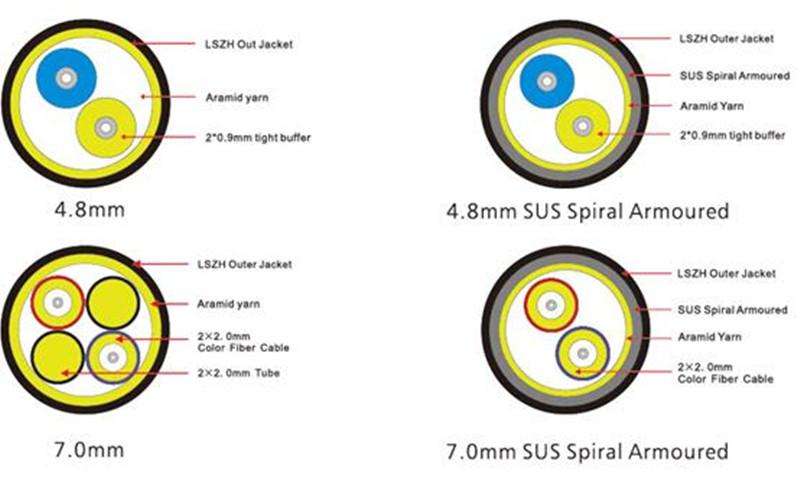

cable is the ideal design for outdoor fiber cable applications. The cable can
be with or w/o armoured structure,such cable meets the FTTA program
requirements for outdoor environment conditions. Especially in the 3G, 4G, 5G,Base
station (BBU to RRU). CPRI fiber patch cable are becoming the standard
connector interface.For more information,please reach us for
details.
Application:
Telecommunication System
Testing Equipment
LAN System
Outdoor FTTA
Feature:
Moisture
and dust proof
Low
insertion loss
Excellent mechanical
performance
Good Durability
Package:
Each piece in a small PE bag,then some pcs in a bigger bag,finally put into a carton box.
Specification:
|
Connector Type
|
Performance Data
|
|
Connector
|
Polishing Mode
|
IL(dB)
|
RL(dB)
|
|
SC/LC/FC/ST/MU/E2000
|
SM
|
UPC
|
≤0.3
|
≥50
|
|
APC
|
≤0.3
|
≥60
|
|
MM
|
PC
|
≤0.3
|
≥35
|
|
MTRJ
|
SM
|
PC
|
≤0.5
|
≥50
|
|
MM
|
PC
|
≤0.5
|
≥35
|
