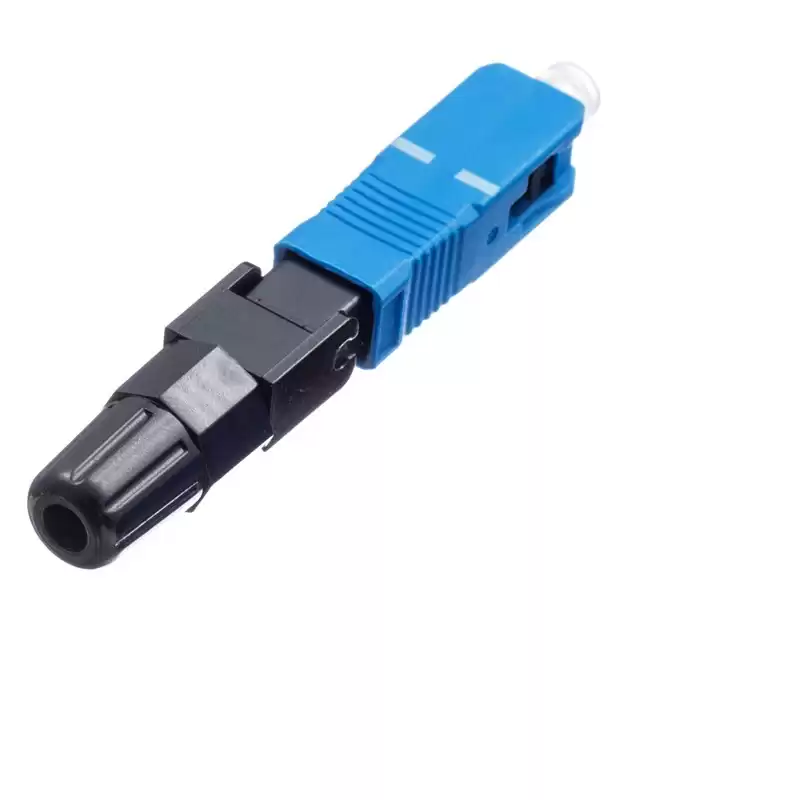

FTTH Field Assembly Fast Connector SC/UPC

SC/UPC Fast Connector,also known as Field installation connector SC/UPC,or Fast assembly connector SC/UPC, is a new kind of connector that can be used in FTTH project scene. They don’t need polishing, no epoxy. They could be installed in the field and make connection less than two minutes. Furthermore, it doesn’t need the fused fiber. Only need some simple tools,by this way,it can save time and cost.SZOPT can offer you different models for options,please reach us for details.

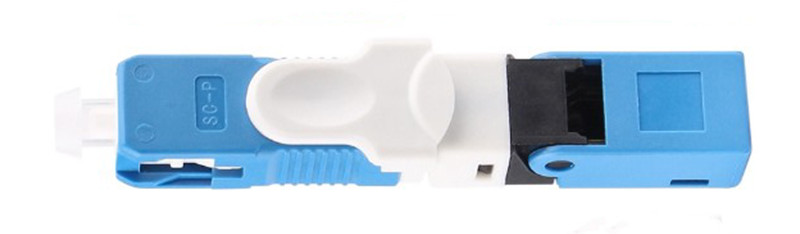

FTTH Field Assembly Fast Connector SC/UPC

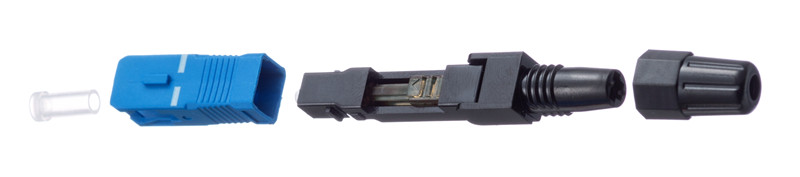

The SC/UPC fast connector are SZOPT factory pre-polished, field-installable connectors that completely eliminate the need for hand polishing in the field. Proven mechanical splice technology ensuring precision fiber alignment, a factory pre-cleaved fiber stub and a proprietary index-matching gel combine to offer an immediate low loss termination to either single-mode or multimode optical fibers according to customers’ requirement.

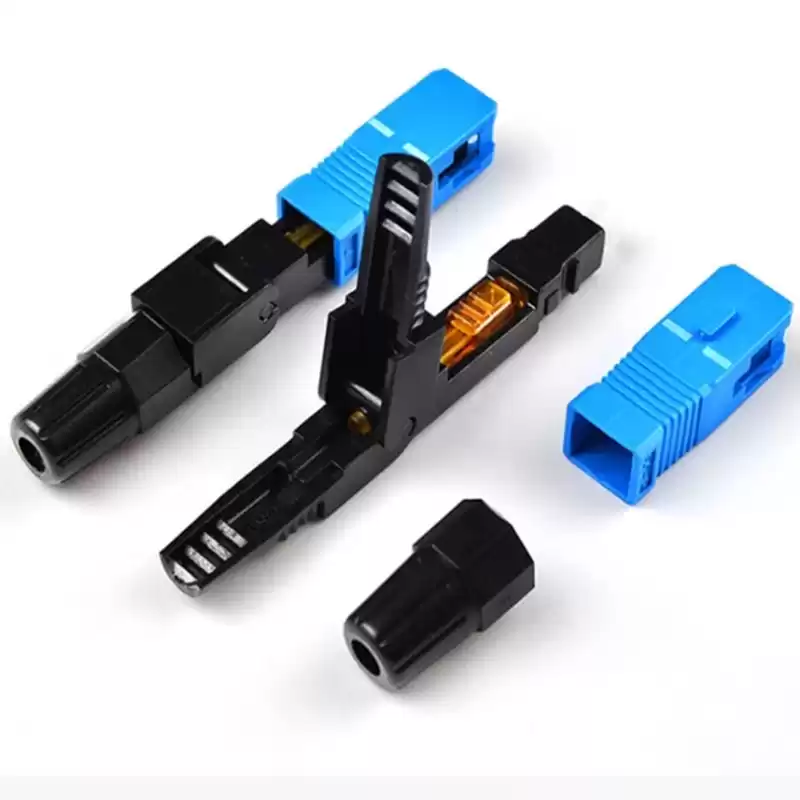

FTTH Field Assembly Fast Connector SC/UPC

FTTH Field Assembly Fast Connector SC/UPC

FTTH Field Assembly Fast Connector SC/UPC



Application:

Telecommunication System

Testing Equipment

CATV System

LAN System



Feature:

Precision mechanical alignment

No epoxy required

Low Insertion Loss

Pre-embedded, factory-polished ferrule


Package:

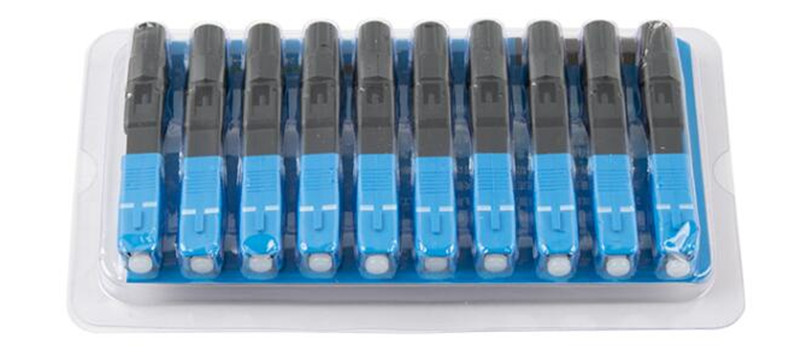

100pcs in a blister box,then put into a carton box.

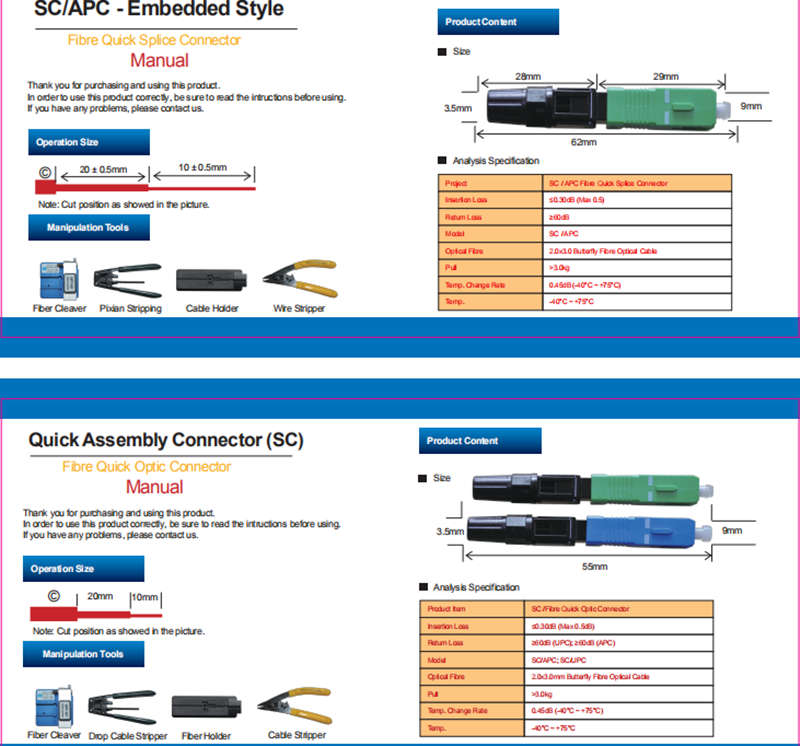

Specification:

Item

SM

MM

Polish

UPC

APC

PC

Insertion Loss

Typical ≤0.2dB Maximum ≤0.3dB

≤0.25dB

Return Loss

≥50dB

≥65dB

≥35dB

Interchangeability

≤0.2dB

Repeatability

≤0.1dB

Durability

≤0.2dB (1000 times mating)

Tensile Strengh

> 10kg

Temperature

≤0.2dB (-40+85 sustain 100 hours)

Humidity

≤0.2dB  (+25+65 93 R.H.100 hours)
