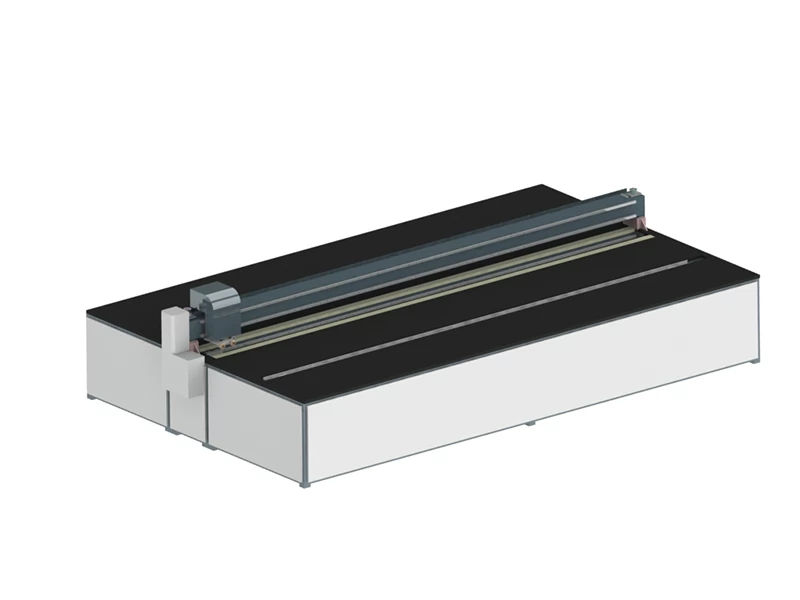

This machine is a new generation of fully automatic laminated glass cutting equipment developed by our company in recent years. It has the characteristics of simple operation, high adaptability and high cutting precision.
Machine Structure
The machine frame is welded by the national standard square tube, channel steel and square tube. Large-scale gantry milling after annealing of important parts. High stability and high strength. It is a combination of four sections and gantry system. The first and second sections are the loading and conveying sections of the automatic loading table, equipped with an automatic positioning system and a grid positioning system. Between the third and second sections is the gantry system with cutting system. The third section is equipped with a stretching and breaking system. The fourth paragraph of the outgoing section system.
Electrical element
Taiwan Delta PLC access control, Microsoft Windows interface.
Servo system: Japan Yaskawa Servo Motor
Control system： Designed by Ruilong
Inverter: Taiwan Delta brand.
Pneumatic components: SMC, Japan and Yadak, Taiwan
Voltage：380V/50HZ，Equipment with voltage stabilizer
Parameter
Cutting thickness∶3+3～8+8mm
Cutting accuracy∶≤±0.5mm /m
Gantry cutting system∶0~120m/min.（adjustable）
Table height：910±20mm
Maximum cutting size：3880*2660mm
Dimension：5500*4400*1300mm；
Weight: 3000KG
Table Size：4000*2800mm.
Drive system： Japan Yaskawa servo motor and KHK precision tooth row device
Cutter holder∶ The pressure is combined with the spring, and the blade head rotates 360 degrees, cutting up and down. Cut glass of any shape.
Oil supply: automatic oil injection device. The oil pressure can be adjusted by a fool.
Conveyer: synchronous automatic transmission device, convenient glass transmission.
Positioning device: photoelectric scanning positioning system.
Operator: understand the basic knowledge of glass cutting, understand simple computer operation
Mechanical configuration
Main Bearing， Japan NSK
Conveyor belt/pulley: Barbary, Italy
Platen: Imported high-density waterproof/fireproof board (flatness ≤±0.20mm/m )
Rack: Japan imported KHK
Guide rail: HiWin (Taiwan)
Cutter : Bole, German Brand.
Conveying device: with automatic induction transmission device (four automatic transmission belts and two proximity switches for automatic transmission and automatic transmission. Reduce the workload of staff)
Air flotation system：4KW*2High pressure vortex fan
Heating system: infrared heating tube
Software
Ruilong designed cutting software (used in the PLC operating interface).
Operation input: Chinese/English dialogue interface
It has automatic knife adjustment function to ensure the best cutting effect.
Cutter head pressing pressure and crotch pressure: artificial setting (SMC proportional valve control)
Action flow description
Set the cutting length
Put glass to the flip frame
Flip glass to cutting table (by automatic loading machine)
Start Fan
Moving glass to automatic positioning point
Stop Fun
The cutter head is returned to zero and the cylinders on both sides are pressed.
Move to cutting position
Pneumatic lower knife
Up the knife after the cutting
The lower processing wheel starts the pressing piece
The lower beam moving and breaking
Heating rod start heating
The secondary gantry moving
The secondary gantry moving tab
The cutting of the breaking is completed
Glass is transferred to the next station.
