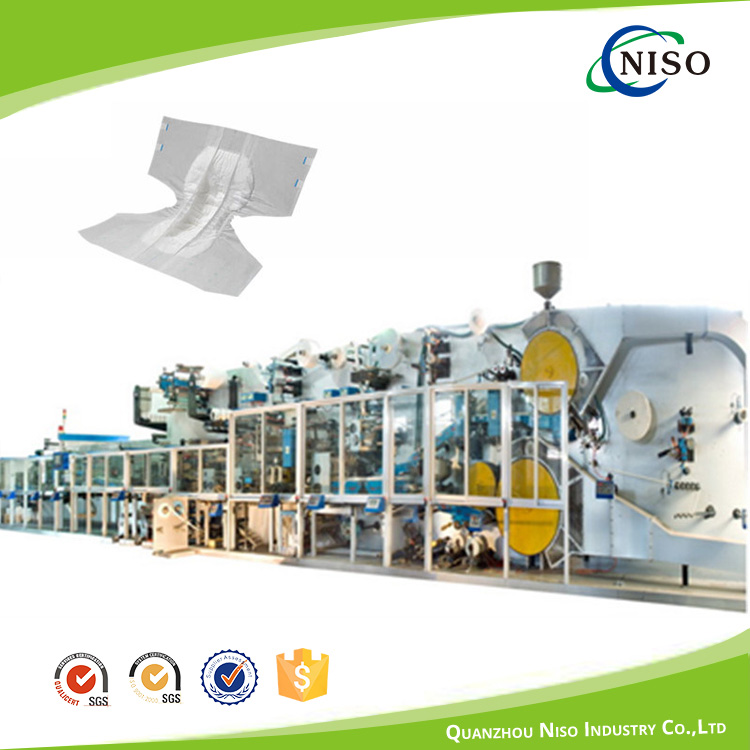

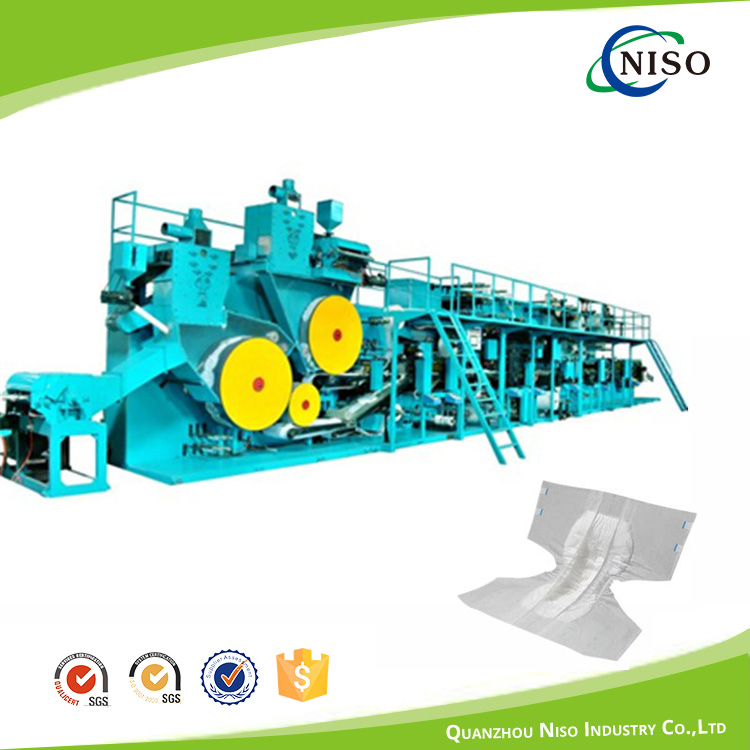

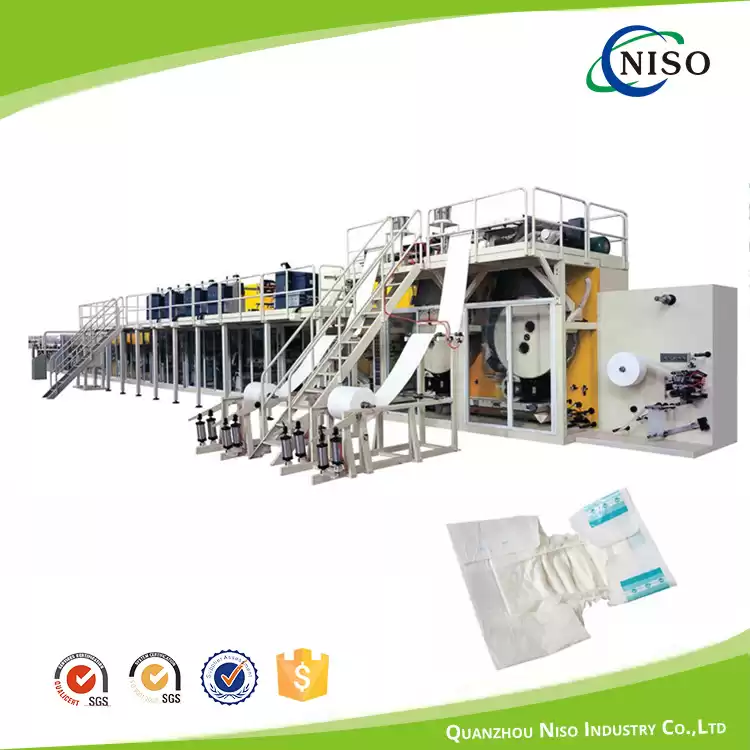

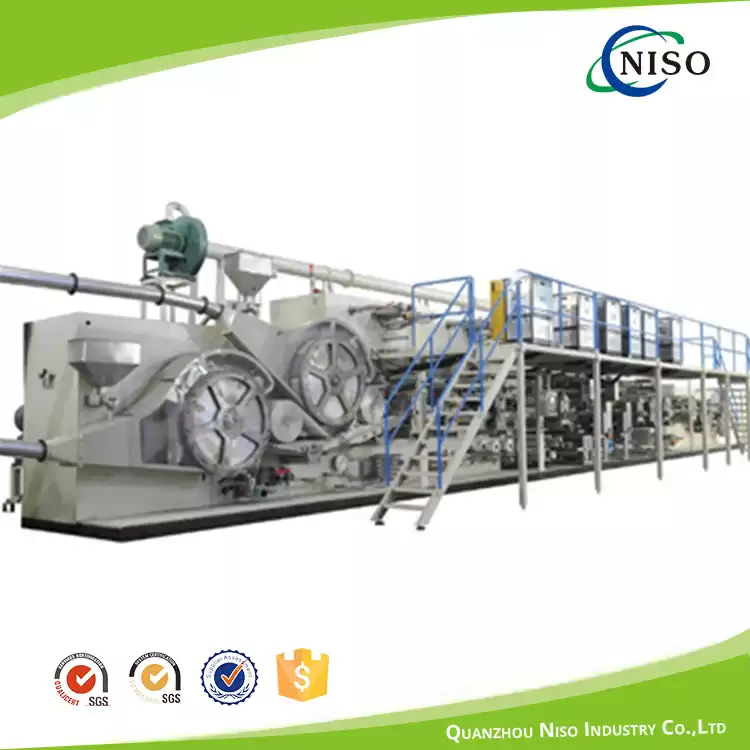

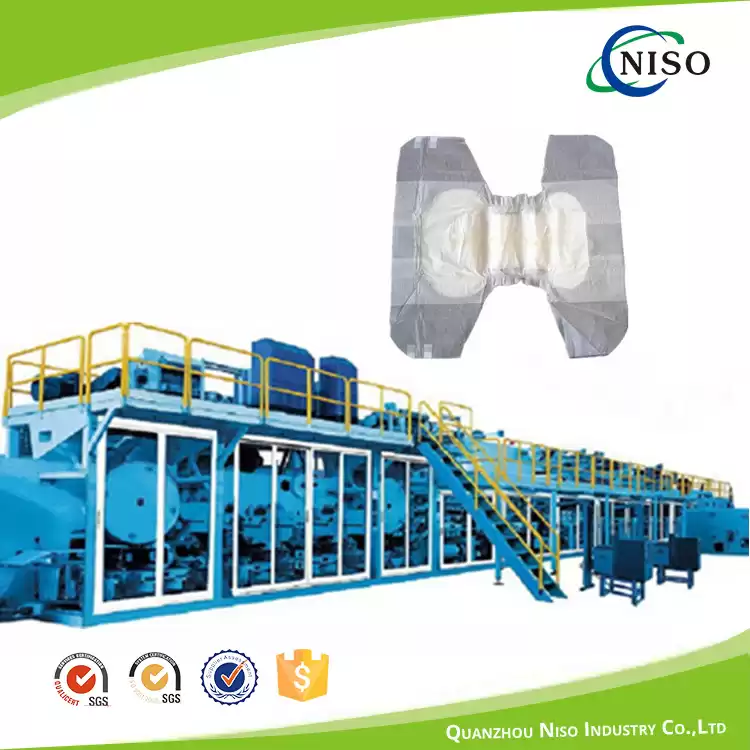

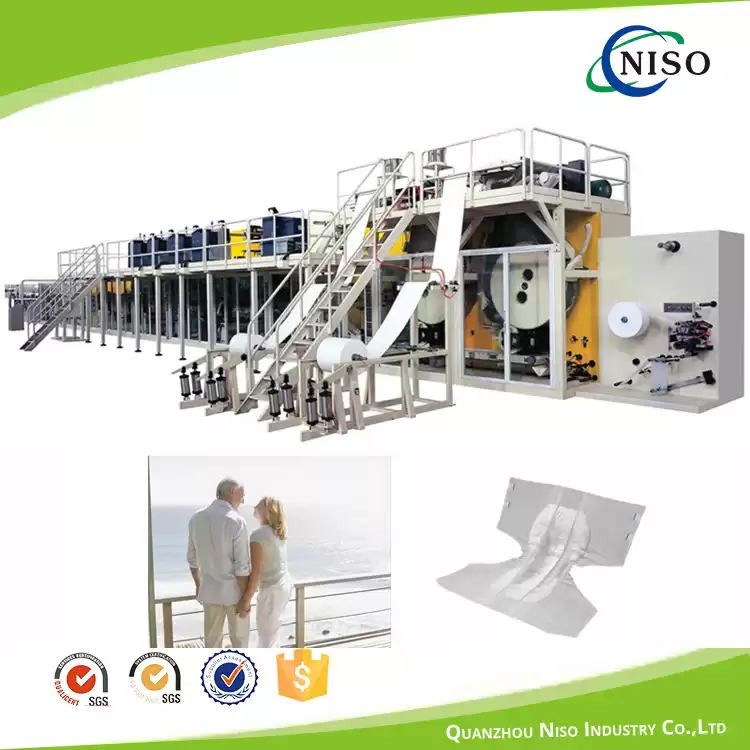

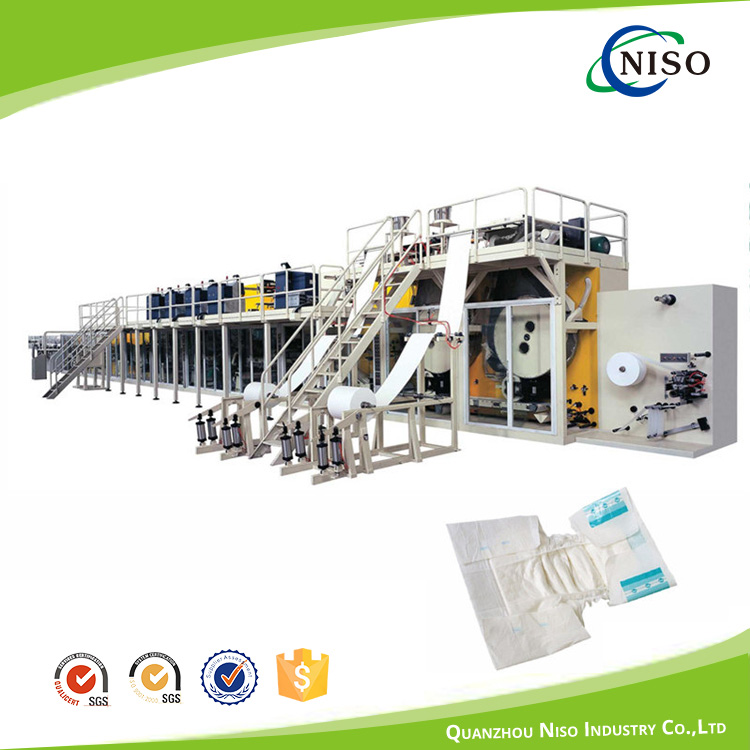

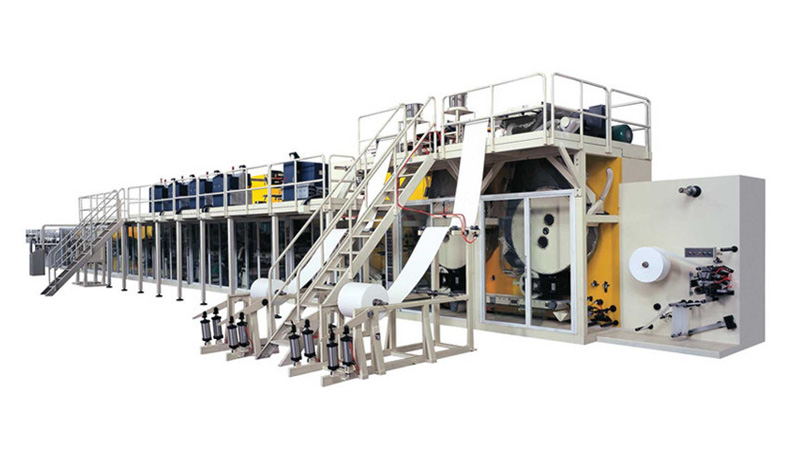

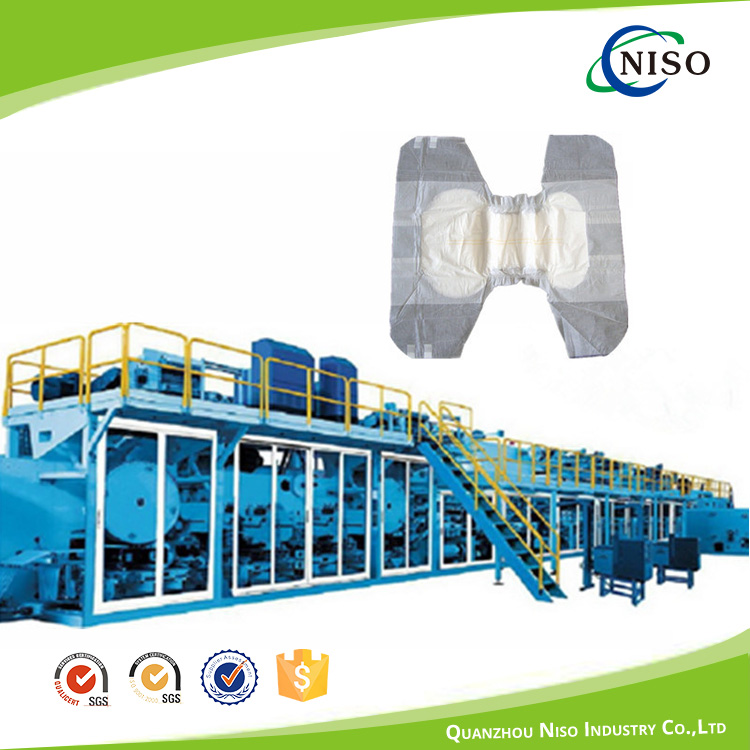

Full-Automatic Adult Diaper Machine (CNK300-SV)
Machine parameter
|
Condition
|
Used
|
|
Year
|
2007 year
|
|
Product Type
|
Diaper Machine
|
|
Processing Type
|
Full-automatic frequency Baby Diaper Machine (YNK400-FC)
|
|
Place of Origin
|
Fujian, China (Mainland)
|
|
Model Number
|
YNK400-FC
|
|
Certification
|
CE,ISO certificates
|
|
Warranty
|
1 year
|
|
After-sales Service Provided
|
Engineers available to service machinery overseas
|
|
Stable:
|
yes
|
|
Size of diaper:
|
S, M, L, XL
|
|
Finished product:
|
baby diaper
|
|
Control system
|
full-automatic for baby diaper machine
|
|
Waste rate
|
less than 2%
|
|
Operators
|
6-8 operators including packing baby diaper
|
Main Technical Parameter
|
Designed production speed
|
450 pieces/min for baby diaper machine
|
|
Stable production speed
|
400 pieces/min(or as per customers designed)
|
|
Machine power
|
three-phase five-wire(380V, 50HZ)
|
|
Machine capacity
|
about 250-300KW(exclude hot melt applicators and air compressor)
|
|
Machine size
|
30.0m*7.0m*3.5m(L*W*H)( (Can be customized)
|
|
Machine weight
|
about 50 Ttons(whole production line)
|
|
Air pressure
|
0.6-0.8Mpa
|
Main Function Features
1. Produce regular baby diaper,economic baby diaper and high grade baby diaper
2.Produce 4 sizes of I shape and T shape baby diaper.
3. Materials of stereo-protection complex and molded on full-servo automatic baby diaper manufacturing machine.
4. Waistband,frontal tape and side tape are cut automatically
5. Extension of rubber band can be regulated
6. The quantity of SAP and fluff pulp can be adjusted freely
7. Raw materials automatic unwinding system,automatic tension control system,automatic splicing units,automatic rejection units,automatic web guard system.
8.Frontal tape and side tape out-set from the main machine to make it convenient to change raw material
9. Machine attached with fully automatic packing machine(stacker),make packing simpler and save labor force
10. Full-servo automatic baby diaper manufacturing machine equipped with production door
11.Touchable Screen:Machine switch on/off,running speed,time,counting pieces,parameter setting,alarm,error display,error enquiry(functions setting appear on screen are different according to different machine type)
Optional device:
1:Perfume spraying unit
2:Wetness display function
Packaging & Delivery
Packaging Details: wooden cases and plastic film for full automatic baby diaper machine
Delivery Details: within 120days Baby Diaper Machine
Model
|
Model
|
Driven mode
|
Speed(PCS/MIN)
|
Weight(T)
|
Capacity
|
Machine size(L*W*H)
|
|
YNK500SV
|
full servo driving
|
500-600
|
60
|
330kw
|
31*8*5.5m
|
|
YNK450HSV
|
semi-servo driving
|
400-450
|
60
|
240kw
|
27*8*5.5m
|
|
YNK400FC
|
inverter driving
|
400-450
|
60
|
190kw
|
27*8*5.5m
|
Why Choose us?
Profession design
Our factory has in machinery industrials for 15 years,improve andinnovate technology from Japan Italy all the time.
Quality
All the spare parts used according to the contract, original German & Japan & Italy & USA brand.
Processing
CNC processing, special surface processing, anti-glue processing.
Commitment
We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.
About NISO
NISO is a professional raw materials and machine supplier for making baby diaper, adult diaper, feminine sanitary napkin,under pad and so on.
NISO covers an area of 5000 square meters, gets CE, ISO, SGS.
NISO exports more than1000 containers to Asia, Mid-east, Europe, South America, Africa countries.
NISO will be your consultancy and partner to reach win-win career together.
Quanzhou Niso Industry Co.,Ltd is your best choice for baby diaper machine, adult diaper machine, sanitary napkin machine and under pad machine in China.
