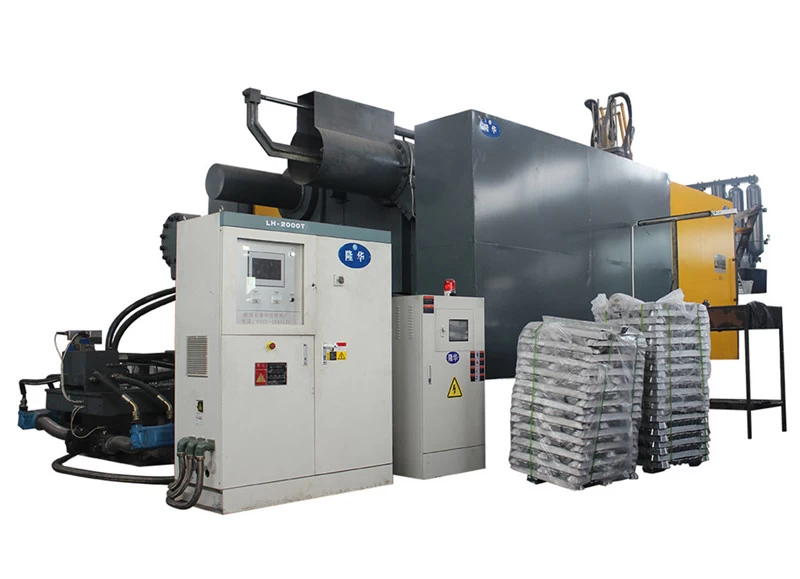

Full Automatic Pressure Die Casting Machine To Produce Auto Parts(LH-2000T)
Product Description
This die casting machine adopt Double proportional control (electric regulation of pressure and flow, with a multi-level pressure and speed control as well as low pressure die close protection functions).
LH SERIES OF STANDARD PARAMETER TABLE (LH-2000 T)
|
ITEMS
|
UNIT
|
SPECIFICATION
|
|
HYDRAULIC WORKING PRESSURE
|
MPA
|
16
|
|
CLAMPING FORCE
|
KN
|
20000
|
|
SPACE BETWEEN TIE BARS
|
MM
|
1350*1350
|
|
TIE BAR DIAMETER
|
MM
|
￠280
|
|
DIE OPENING STROKE
|
MM
|
1400
|
|
INJECTION FORCE(INTENSIFY)
|
KN
|
1500
|
|
PLUNGER LAUNCH DISTANCE
|
MM
|
400
|
|
INJECTION POSITION
|
MM
|
--175 --350
|
|
PLUNGER DIAMETER
|
MM
|
￠130----￠170
|
|
INJECTION STROKE
|
MM
|
1000
|
|
CASTING PRESSURE (INTENSIFY)
|
MPA
|
113---66
|
|
CASTING FIANGE PROTRUSION
|
MM
|
30
|
|
CASTING FIANGE DIAMETER
|
MM
|
260
|
|
MAX CASTING AREA UNDER 40MPA
|
CM2
|
5000
|
|
INJECTION WEIGHT(AL)
|
KG
|
41
|
|
DIE HEIGHT(MIN--MAX)
|
MM
|
650～1600
|
|
EJECTOR FORCE
|
KN
|
650
|
|
EJECTOR STROKE
|
MM
|
300
|
|
MOTOR CAPACITY
|
KW
|
55*2
|
|
MACHINE DIMENSIONS (L*W*H)
|
M
|
13*4.7*4.8
|
|
REFERENTIAL MACHINE WEIGHT FOR UPLIFTING
|
T
|
135
|
|
OIL TANK CAPACITY
|
L
|
3300
|
PS：WE RESERVE THE RIGHT TO MAKE ANY TECHNICAL IMPROVEMENT WITHOUT FURTHER NOTICE
Distribution Cabinet
This die casting machine's control system is equipped with color display screen to make the operation of the machine simple and direct.
Electric Furnace
The electric furnace with die casting machine adopts German technology, which can save more than 30% electricity than traditional electric furnace.
Peripheral robots
Die casting machine peripheral robot can help you achieve automatic production.
Packaging & Shipping
We have a professional hoisting team to ensure that the die casting machine can enter the container smoothly and safely and reach your factory.
After-Sales Service
After the sale, when thedie casting machinearrives at your port, you send invitations, and our engineers go to your country to install and debug machines. Training the operator until you learn so far.
