Brief Introduction

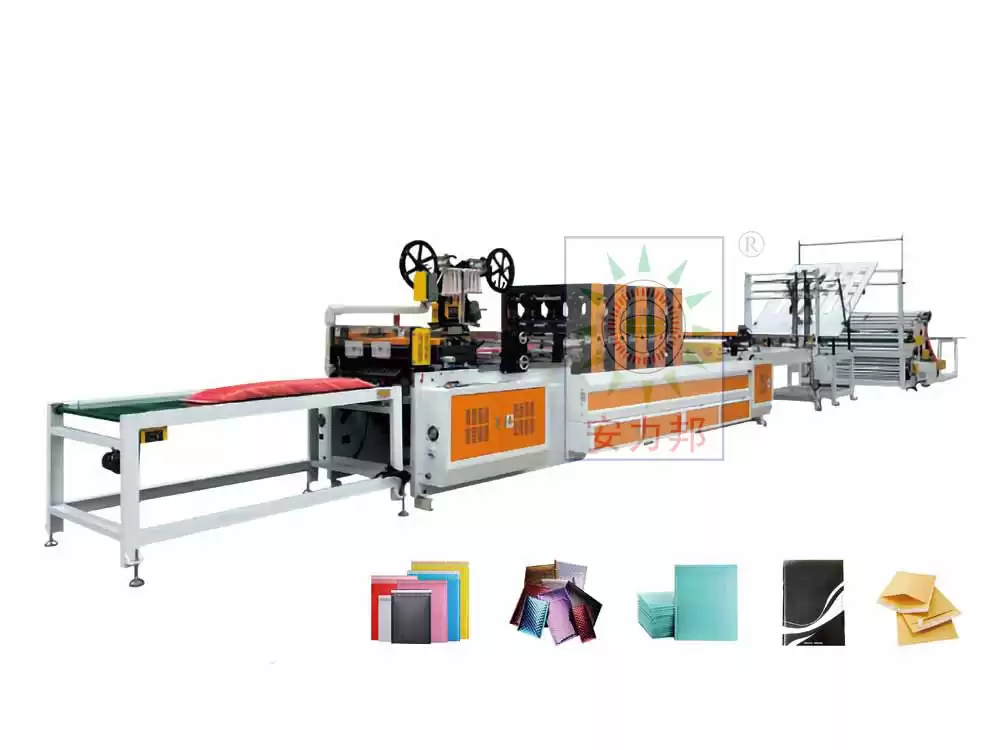

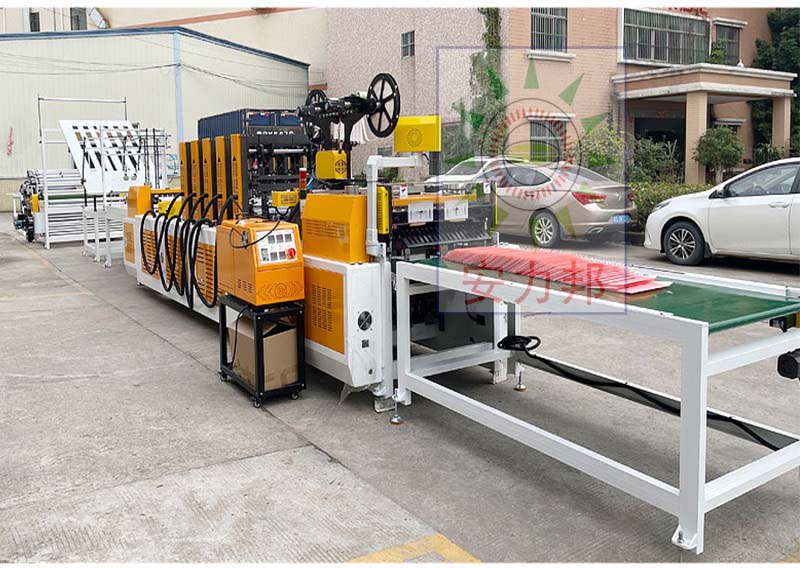

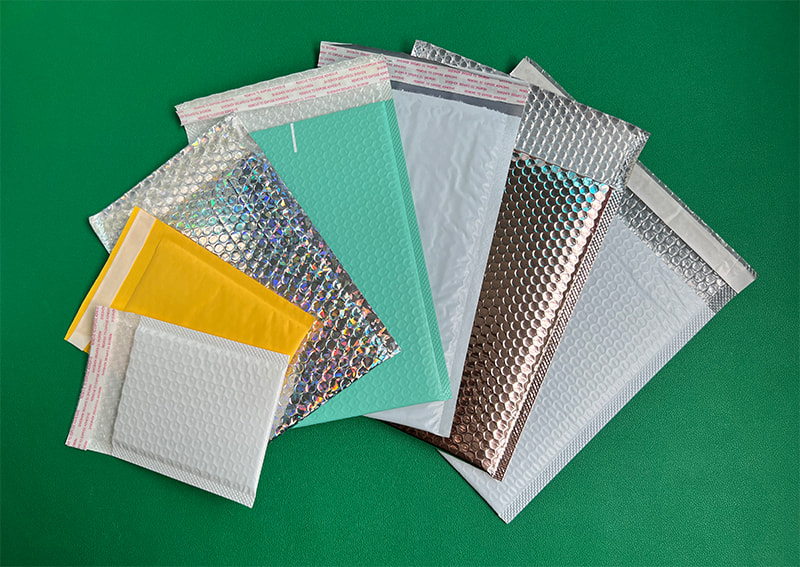

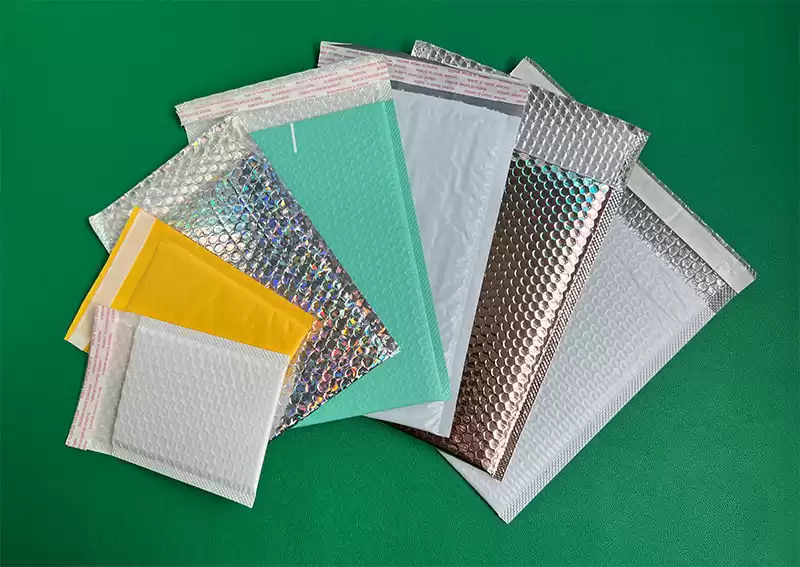

The Bubble Envelope/Mailer making machine is specially designed for Kraft paper bubble shock- proof bag making machine, with based on the advanced foreign machinery using motion controller, 4-axis servo linkage technology, professional Automation, upgrade in innovation then the on-line composite Kraft paper bubble material or the off-line composite arch extrusion film bubble material is folded in half through the folding forming device and then through the needle exhaust gas, hot pressing horizontal sealing molding, on-line heat transfer glue spraying cover with release liner , and then cutting in the standard Laminated bubble envelope/mailer bag. The equipment adopts advanced mechanical , electrical , gas, photocell tracing, spraying glue etc. integrated control technology. From sheet material unwinding to cutting & forming out in bag, there are conveyor belt stacking and sending, all the processes are controlled by computer. The finished bag is smooth and beautiful, edges bonded firmly. The machine is easy to operation, and it is a high-quality special bag-making equipment.
Features
Just enter the sealing spacing data, one-click all the sealing tools automatically arranged in place, the machine starts immediately. All sealing tools are automatically aligned according to the printing length, and the size of the sealing edge is automatically adjusted. Hot Pressure is done by up and down sealing knife separate and then press, It can well control the stretching of the co-extruded film. Material Feeding goes on after reaching the set hot pressing stay time. There will not happen blocking, lack of material , and when temperature error of ±2℃ (degree can be set) ,the machine will automatically alarm and stop. The Release Liner holder for the envelope flap with automatic correction function, and the glue spraying will not deviate, effectively avoiding the trouble of cleaning glue after bag making.
Technical Parameters
| Machine Name |
Laminated Bubble Zipper bag making machine |
Touch screen interface |
10 inches KT-Taiwan color screen |
| Max bag-making width |
For Type-800: Max bag width -780mm |
Machine Dimensions |
Front conveyor belt 200W |
| Max bag-making length |
700mm |
Feeding inverter |
0.75KW |
| Effective unwinding width |
Bubble film 1500mm |
Bag making speed |
10~150pcs/min |
| Voltage |
Three phase four wire 380V 50~60HZ |
Weight |
6200KGS |
| Total power |
380KW |
Dimensions |
22000x2900x2950(mm) |
Machine Characteristics
01. Responsive, automatic correction
Double photocell tracing feeding, automatic constant tensions, control AC frequency conversion constant speed automatic feeding.

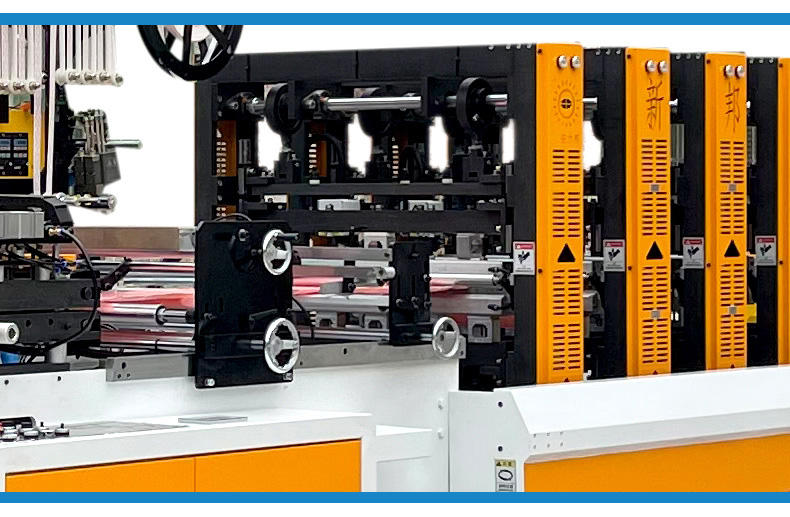

02. Firmly Bonding, sealing device
The sealing knife moves forward and backward, 800 width copper hot sealing knife, 20 mm width knife touch surface, up and down total in 6sets,1pc exhaust pin board set, 1pc cold sealing set

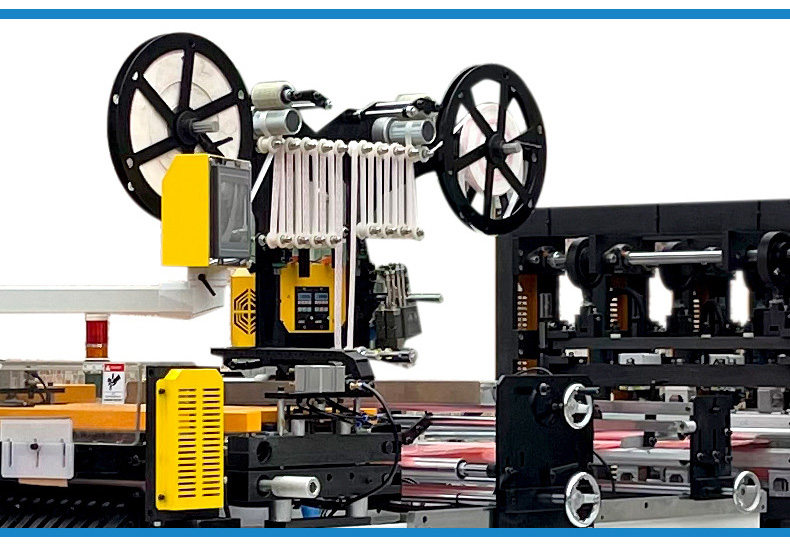

03. Single and double station of release liner and glue spray are available
With motion control technology, from sheet material unwinding to cutting & forming out in bag, the series action controlled by computer. The finished bag is smooth and beautiful, edges bonded firmly, and accurate edge correction.

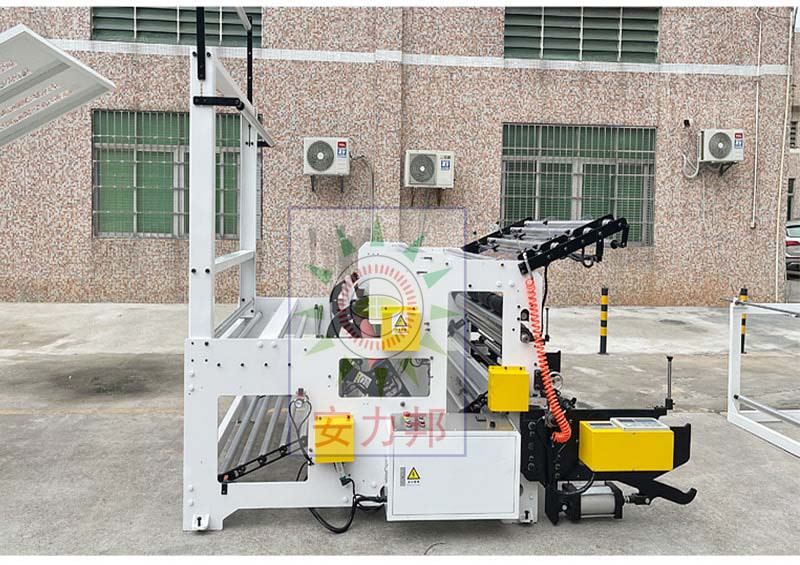

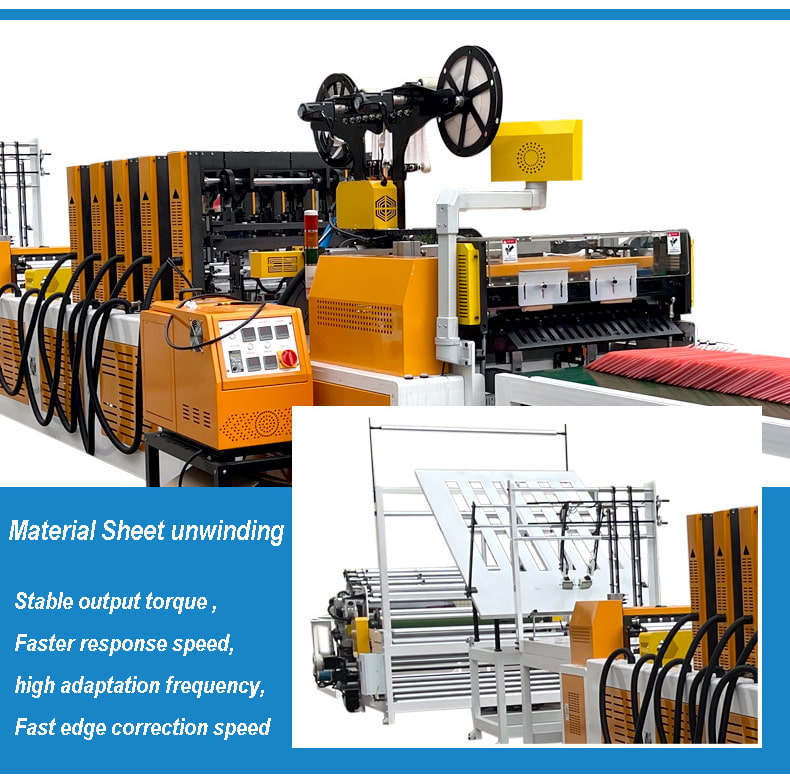

04. Material Sheet unwinding
Stable output torque, faster response speed, high adaptation frequency, fast edge correction speed.
