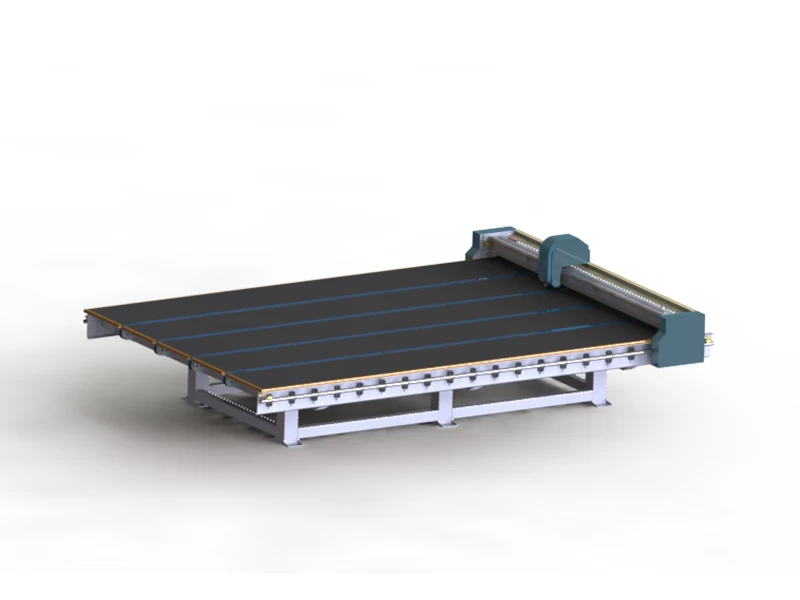

Equipment specifications
Maximum glass cutting size: 4200*2800mm (Special size could do custom table)
Workbench table: 900±30mm.
Machine weight: 2.5T.
Cutting thickness: 3~19mm
Cutting parameters
Straight line parallelism: ≤±0.25mm/m
Diagonal accuracy: ≤±0.30mm/m（The above precision is subject to the cutting line accuracy）
Cutter speed: 0~180m/min.（adjustable）
Cutter acceleration ≥3.0m/s²
Cutter holder speed ≥180m/min
Cutter holder acceleration ≥6.0m/s²
The Speed of the conveyor belt ≥40m/min
Cutting head positioning accuracy error ≤±0.2 mm
Voltage Power
Installed Power requirements: 380V/50HZ （or customized）
The actual power of the equipment: 8KW
Compressed air: 0.6MPA
Equipment performance
Equipment frame: equipment after aging treatment to ensure that the table is not deformed, as well as the accuracy of parallelism.

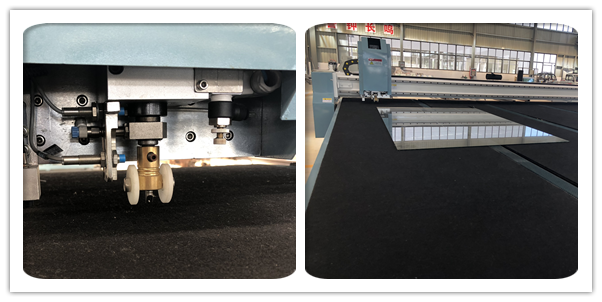

Cutting knife seat: the knife can be rotated 360 degrees, up and down cutting (can accurately cut any straight line and a variety of shaped glass)
Table: the use of imported high-density waterproof panel. Can be effective moisture.
Felt: imported industrial felt (fiber and wool composition) is smooth, and anti-static, reduce glass scratches.
Oil supply: pneumatic automatic filling, and the next knife synchronization. Double oil control, can be used simultaneously kerosene and cutting oil.
Conveyor: Automatic belt conveyor.
