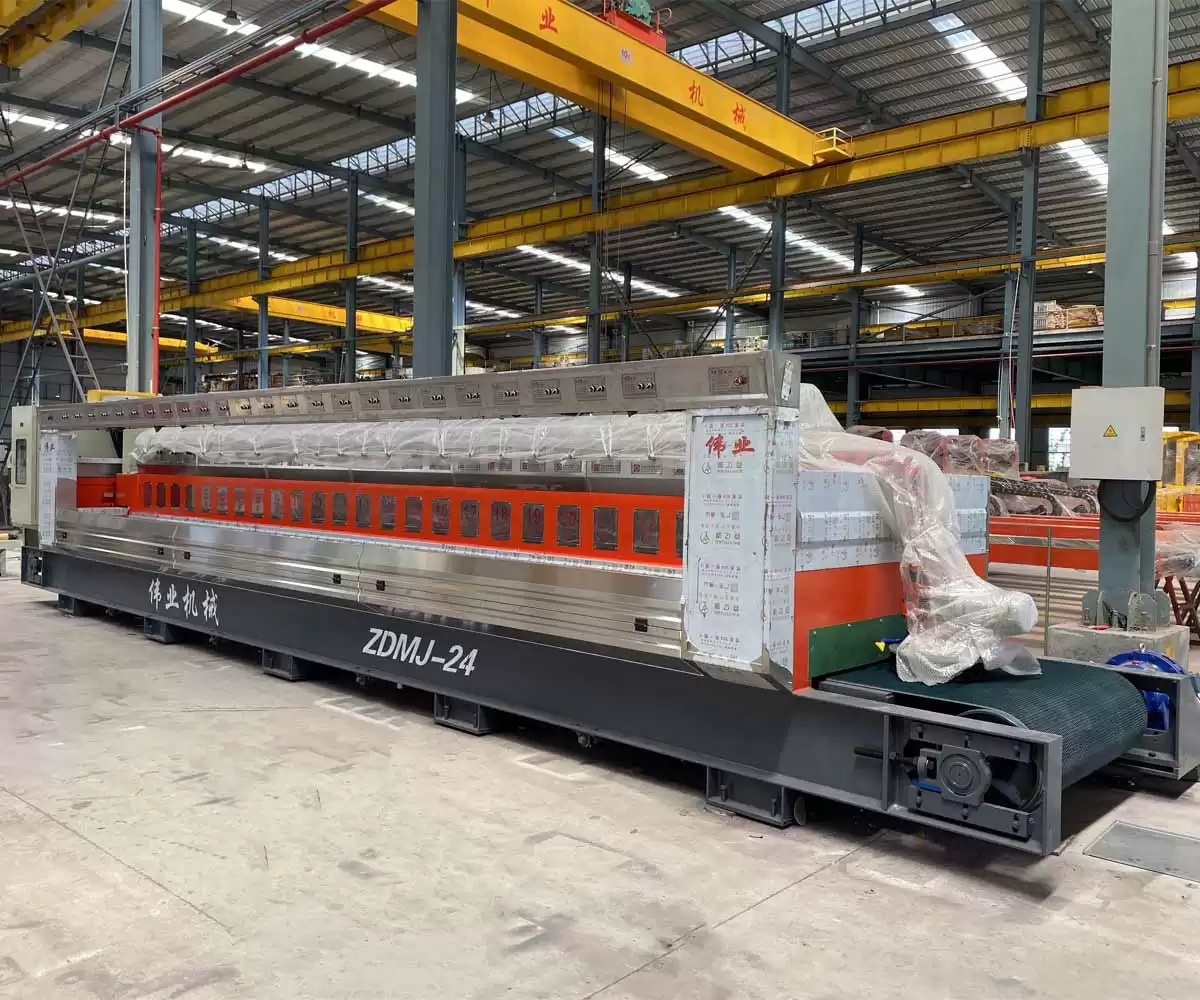

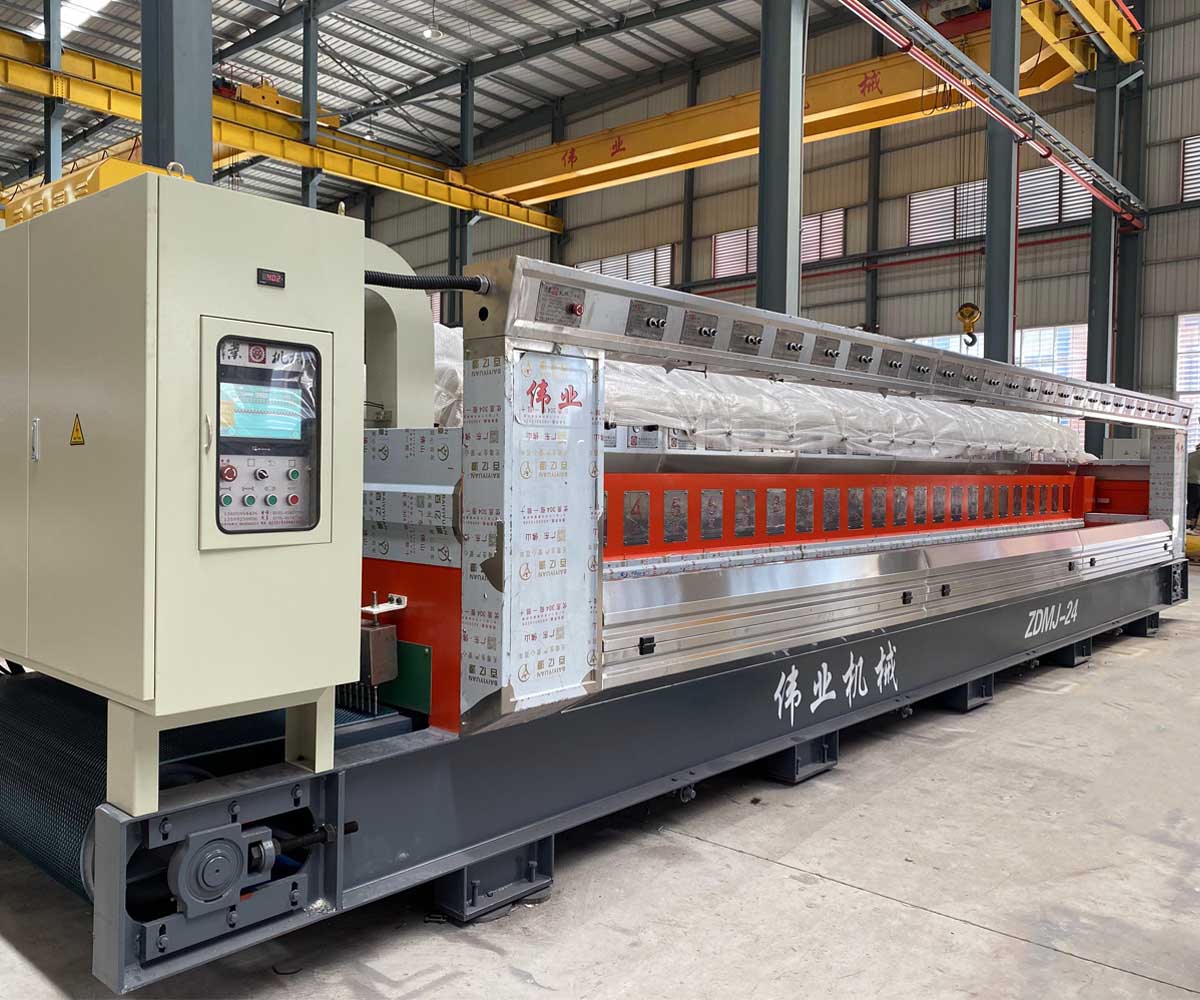

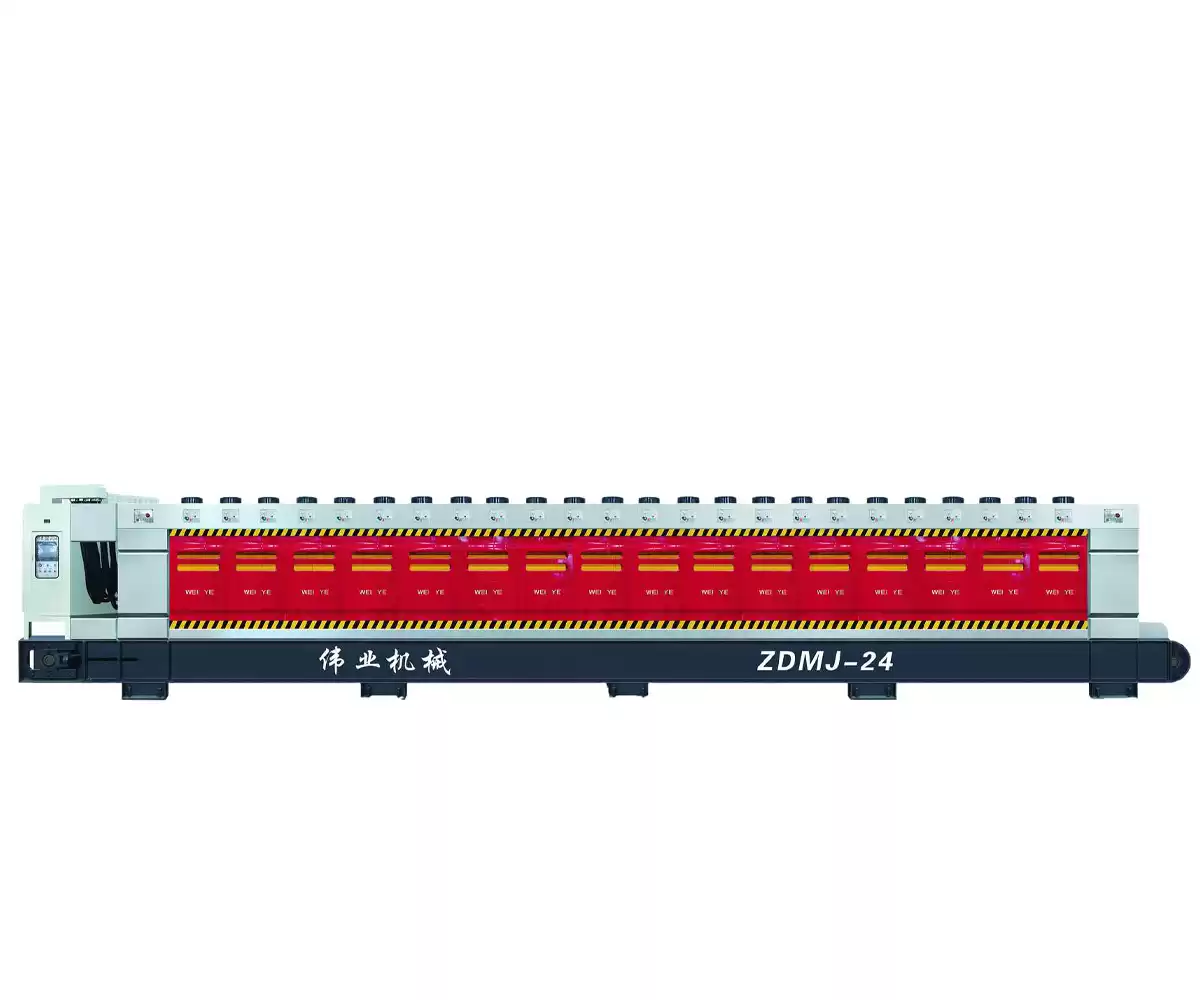

Product Name:Full Automatic Disk Granite Line Polishing Machine
Product Specifications
|
Description
|
Unit
|
ZDMJ-12
|
ZDMJ-16
|
ZDMJ-20
|
ZDMJ-24
|
|
Number of polishing head(optional)
|
PCS
|
12
|
16
|
20
|
24
|
|
Processing width（Optional)
|
MM
|
300-1300
|
300-1300
|
300-1300
|
300-1300
|
|
Processing height（Optional)
|
MM
|
10-60
|
10-60
|
10-60
|
10-60
|
|
Conveyor belt running speed
|
M/MIN
|
0-4
|
0-4
|
0-4
|
0-4
|
|
Water consumption
|
M³/H
|
12
|
16
|
20
|
24
|
|
Power of main motor
|
KW
|
7.5
|
7.5
|
7.5
|
7.5
|
|
Total power
|
KW
|
106
|
136
|
173
|
203
|
|
Dimension(L×W×H）
|
MM
|
6700*2200*2100
|
7900*220*2100
|
9100*2200*2100
|
10300*2200*2100
|
|
Weight of machine
|
KGS
|
12000
|
14500
|
17000
|
20500
|
Note:Customers can choose the number of polishing heads and polishing height according to their requirements
Product Features
Machine structures
|
|
|
|
|
|
|
Basement with interchangeable plates
|
Drive unit
|
Processing group
|
1)The base of WEIYE granite disk line polishing machine is made by high-strength steel,and is processed by large CNC machine center,to reduce the vibration and polishing noise,get better operation experience and polishing quality in a long using life.

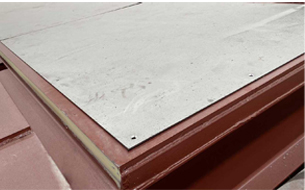

2)After a long time wear,machines table is extremely vulnerable to damage by conveyor belt long time sliding.In order to avoid this situation,WEIYE adopts special interchangeable iron plates to reinforced tables surface.
|

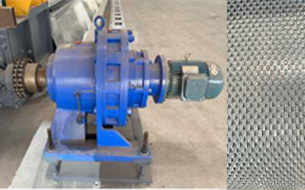

Machie drive unit is consist of an external gear motor and a set of multi-layer adhesive conveyor belt.Gear motor with large-capacity gearbox,ensure the gear movement is perfectly transmitted to the conveyor belt.The special belt for granite,with design of anti-slip teeth,reverse arrangement to prevent the slabs slipping.
|
1)Polishing group is made of one single piece of electrical-welded steel.Spindle of housing is special steel what compressed by 1200 tons of pressure ,reduce the material gap, make the spindle more wear-resistant.

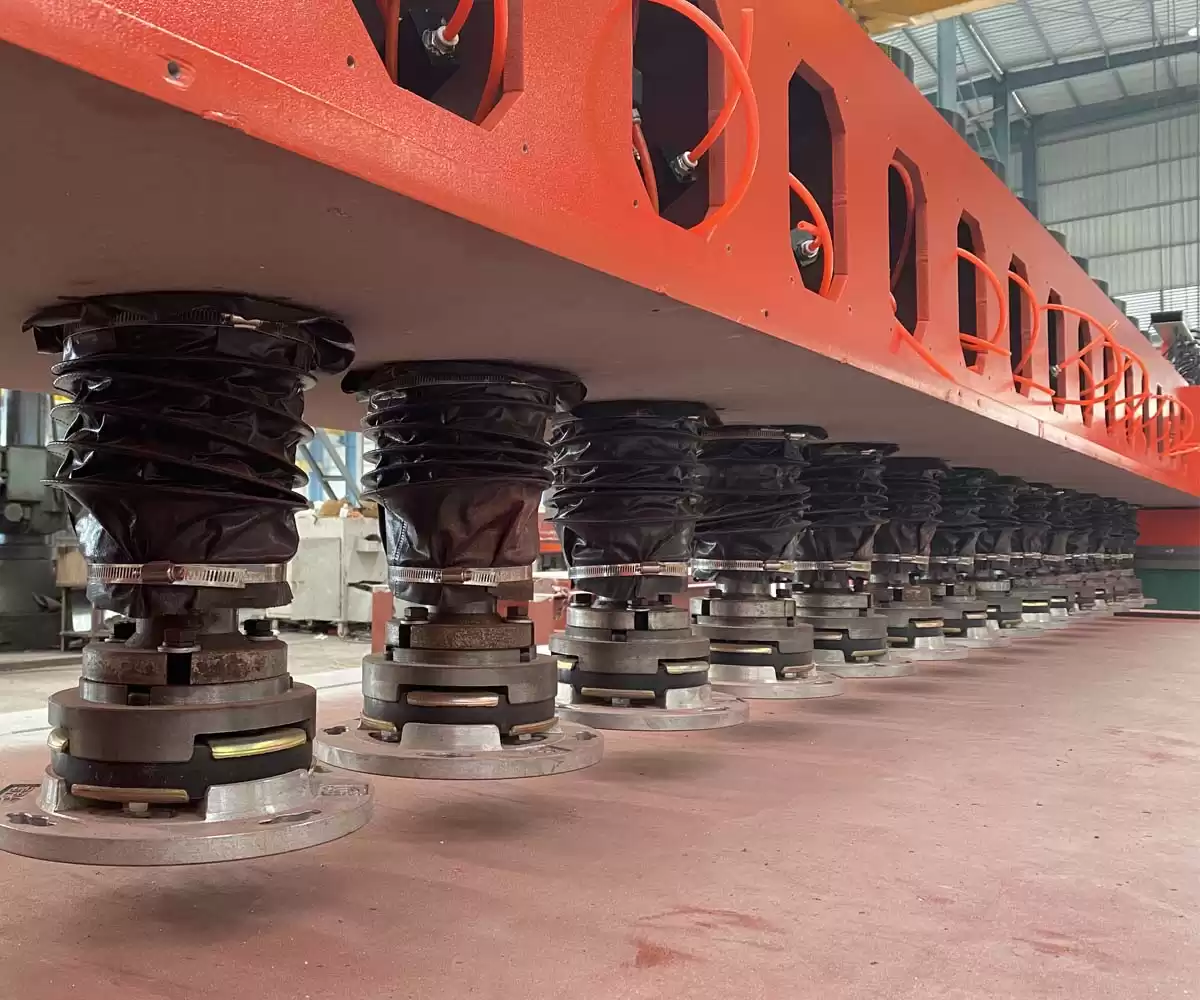

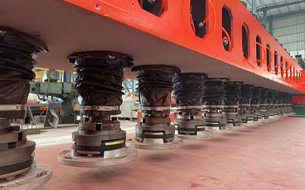

2)Equipped with great flexibility disk polishing heads, top of heads is casting material with aluminum bottom,and equipped with a whole reinforced phase rubber pad in the middle.
Reasonable collocation can reduce the polishing cost and increase the output while ensuring the polishing quality.
|
Electrical configuration
|
|
|
|
|
|
Power panel
|
Operator interface
|
Control panel
|
|

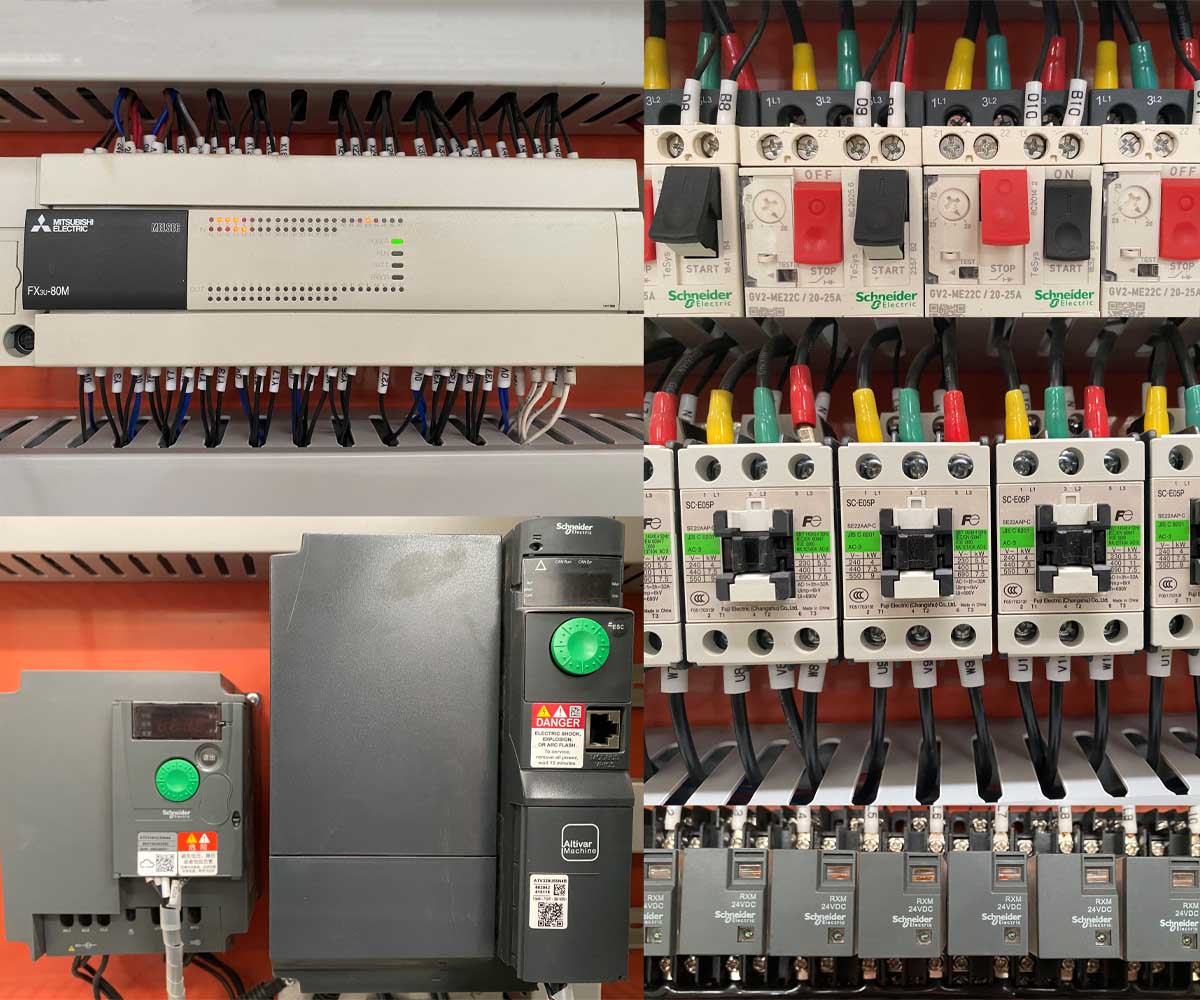

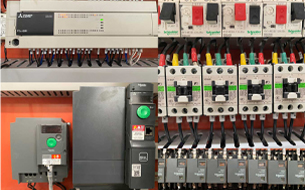

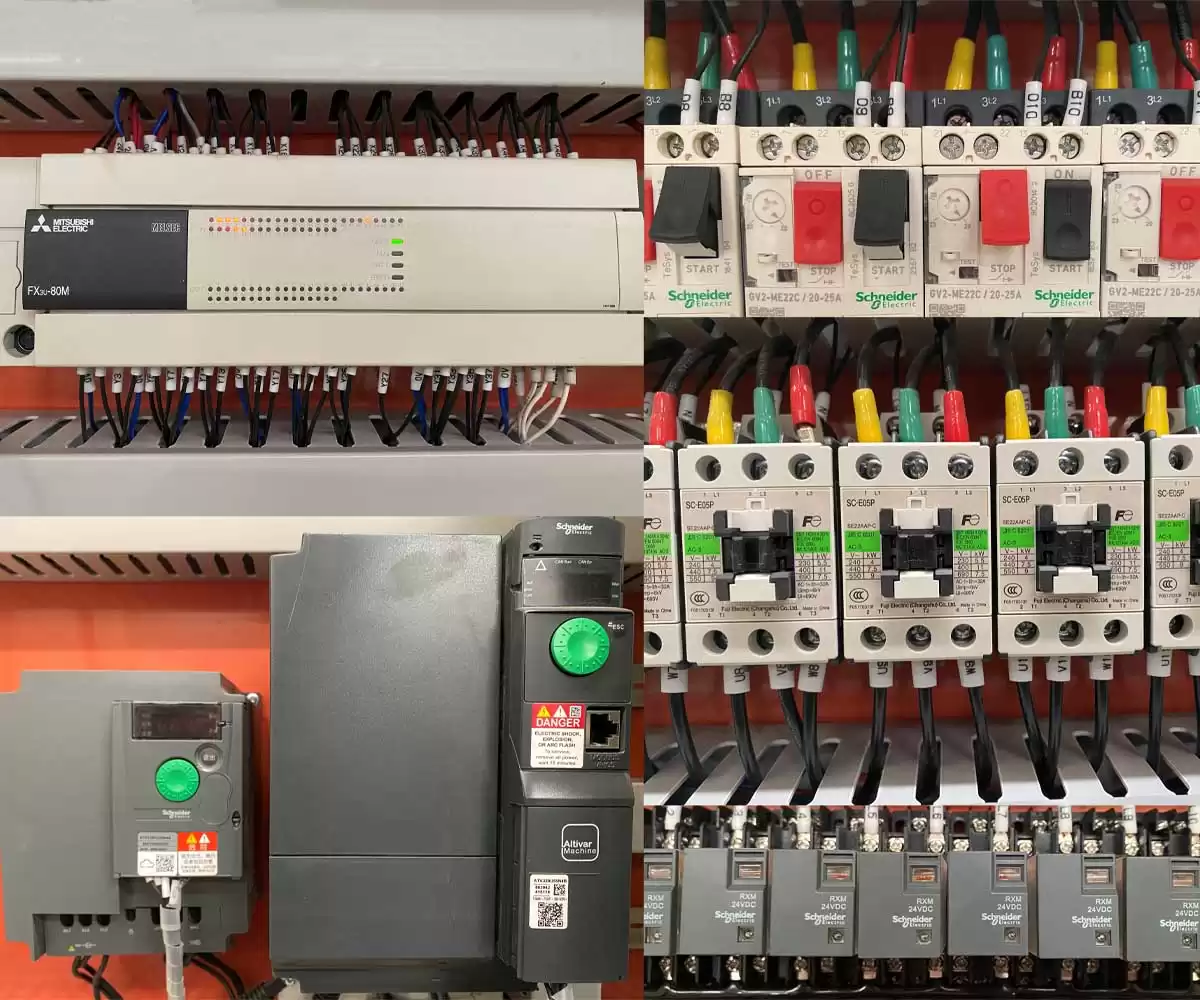

Power panel is the soul of whole machine,it gives vitality to the machine.So the quality of the machine is closely related to the quality of electronic control accessories,WEIYE attaches great importance to the quality of electrical spare parts.Consistent for decades,all kinds of WEIYE machines are equipped with the international first class accessories,such as Schneider,Fuji and Mitsubishi etc.
|
The software is specifically researched by WEIYE founder,it can offer a high degree of supervise and adjustment of the process.
While assisting the machine perfectly, the WEIYE system makes the system as easy to operate as possible, be more kind to the user.
|

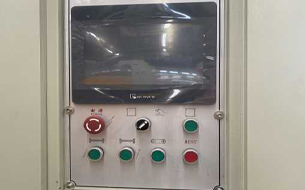

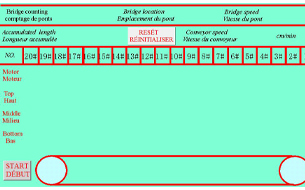

WEIYE automatic polishing machine is equipped with a touch screen control panel,with user friendly interface,which the operator can interact in an extremely intuitive way by using clear screens which represent the machine or a portion of it. All the work parameters of the machine can be consulted in real time.
|
Our Advantage
1)We are the first manufacturer of full automatic disk granite line polishing machine ;
2)Most annual output and sale of granite line polishing machines in china at present;
Quality Service
We provide free installation service and one year warranty time to our customers.
Packaging and shipment
Waterproof plastic film, well fixed in container suitable for long transportation.
FAQ
Q: When will you ship my order ?
A: Normally 25-35 days after deposit received, If urgent, it can be negotiated further.
Q: Does this machine pass CE certificate?
A: Yes, this machine passed European CE certificate and meet safety standard.
Q: How to get the most suitable model with competitive price?
A: Please let me know:
1) what material you want to process? , what’s the max size?
2)the mainly functions or processed effect you need?
3)If possible, show us your sample pictures for reference.
With your idea, we will recommend you the proper model with right functions and capability.
