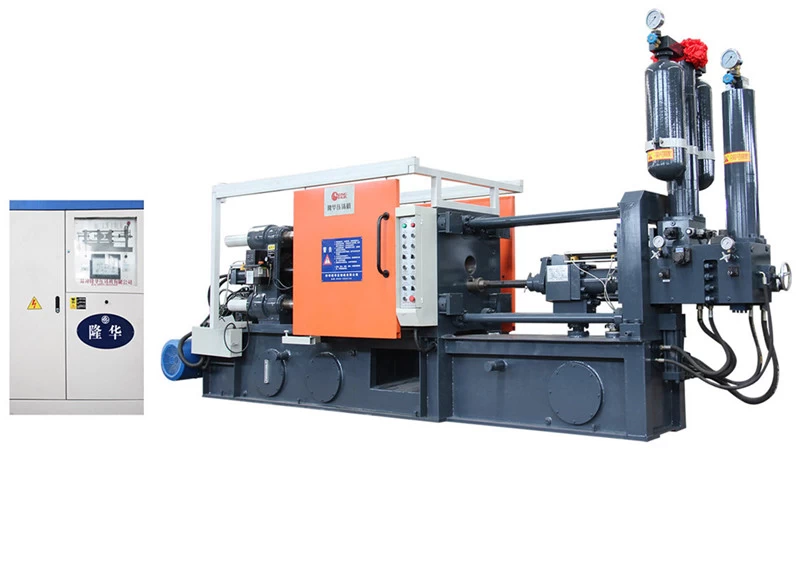

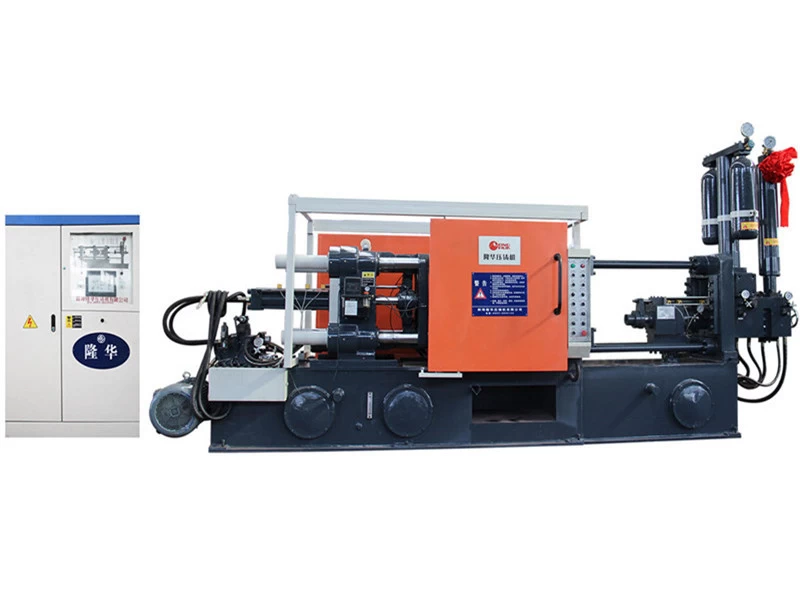

Full automatic high pressure die casting machine for making Furniture hardwares(LH-180T )
Product Description
The injection system of the die casting machine adopts European pull rod structure, there are many choices of central and eccentric injection position, easy adjustment, high precision, suitable for all kinds of complicated molds.
LH SERIES OF STANDARD PARAMETER TABLE (LH-180T)
|
ITEMS
|
UNIT
|
SPECIFICATION
|
|
HYDRAULIC WORKING PRESSURE
|
MPA
|
14
|
|
CLAMPING FORCE
|
KN
|
1800
|
|
SPACE BETWEEN TIE BARS
|
MM
|
480*450
|
|
TIE BAR DIAMETER
|
MM
|
￠85
|
|
DIE OPENING STROKE
|
MM
|
380
|
|
INJECTION FORCE(INTENSIFY)
|
KN
|
270
|
|
PLUNGER LAUNCH DISTANCE
|
MM
|
130
|
|
INJECTION POSITION
|
MM
|
0 -- 140
|
|
PLUNGER DIAMETER
|
MM
|
￠50----￠70
|
|
INJECTION STROKE
|
MM
|
350
|
|
CASTING PRESSURE (INTENSIFY)
|
MPA
|
112/78/57
|
|
CASTING FIANGE PROTRUSION
|
MM
|
10
|
|
CASTING FIANGE DIAMETER
|
MM
|
110
|
|
MAX CASTING AREA UNDER 40MPA
|
CM2
|
450
|
|
LNJECTION WEIGHT(AL)
|
KG
|
2.4
|
|
DIE HEIGHT(MIN--MAX)
|
MM
|
200～550
|
|
EJECTOR FORCE
|
KN
|
110
|
|
EJECTOR STROKE
|
MM
|
80
|
|
MOTOR CAPACITY
|
KW
|
15
|
|
MACHINE DIMENSIONS (L*W*H)
|
M
|
5.22*1.4*2.35
|
|
REFERENTIAL MACHINE WEIGHT FOR UPLIFTING
|
T
|
6.7
|
|
OIL TANK CAPACITY
|
L
|
600
|
PS：WE RESERVE THE RIGHT TO MAKE ANY TECHNICAL IMPROVEMENT WITHOUT FURTHER NOTICE
Die cast products

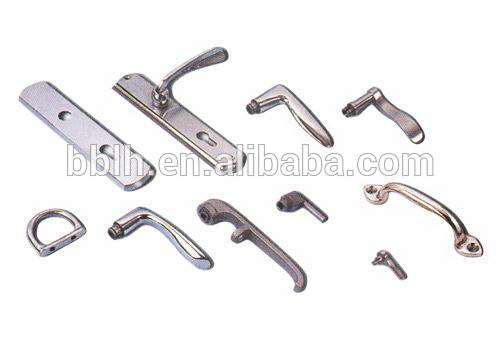

The die casting machine can die casting various zinc alloy products, such as door handles, car shells, auto parts, etc
Packaging & Shipping

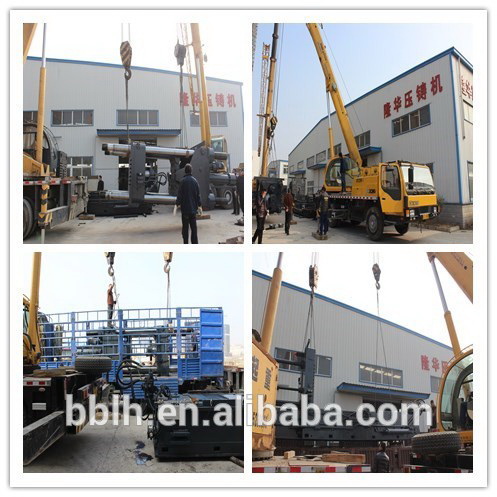

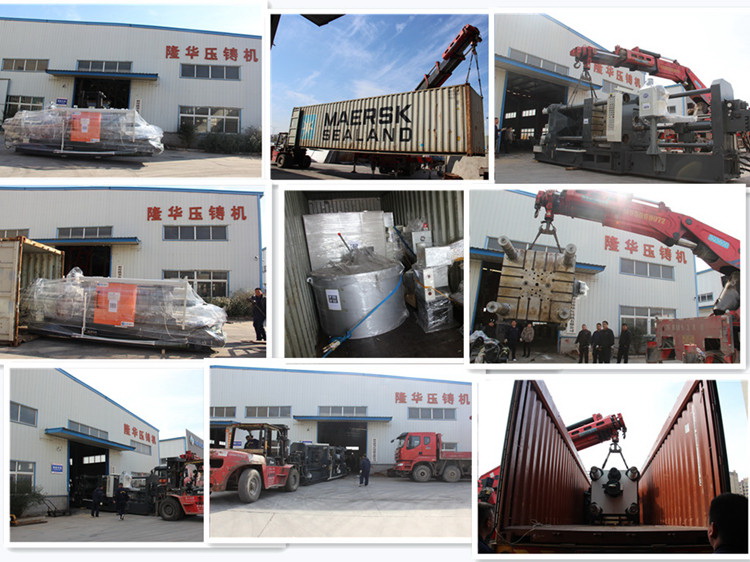

We have a professional hoisting team to ensure that the die casting machine can safely and smoothly enter the container to your factory.
After-Sales Service
After the sale, when the die casting machine arrives at your port, you send invitations, and our engineers go to your country to install and debug machines. Training the operator until you learn so far.
Our Customers
We have customers all over the world.
