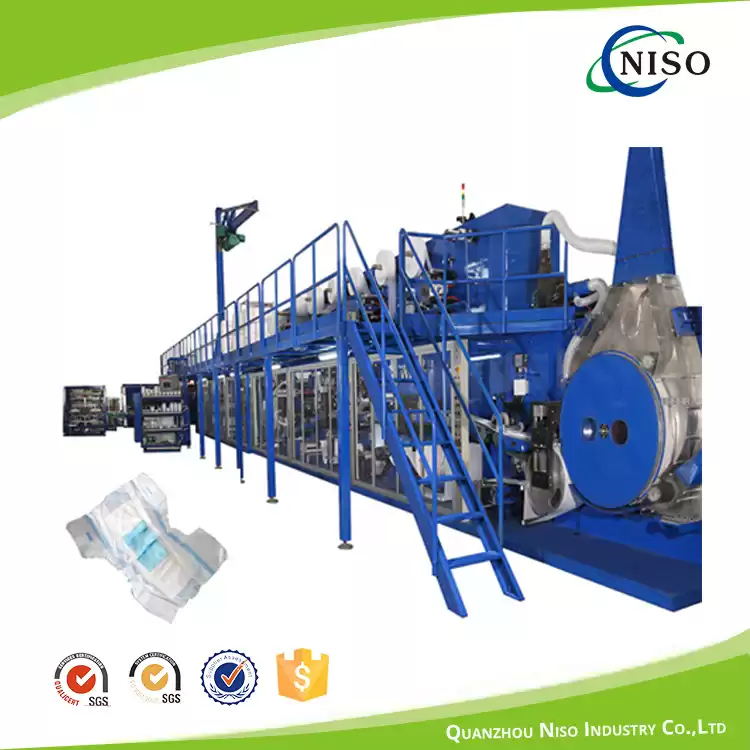

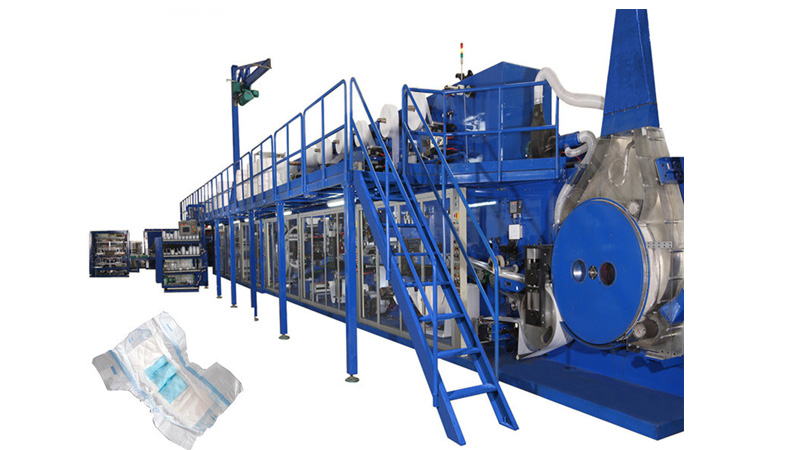

Full-Automatic High Speed Baby Diaper Making Machine
Parameter of baby diaper machine
|
model
|
driven mode
|
speed(PCS/MIN)
|
weight(T)
|
capacity
|
machine size(L*W*H)
|
|
YNK500SV
|
full servo driving
|
500-600
|
105
|
330kw
|
31*8*5.5m
|
|
YNK450HSV
|
semi-servo driving
|
400-450
|
79
|
240kw
|
27*8*5.5m
|
|
YNK400FC
|
inverter driving
|
400-450
|
62
|
190kw
|
27*8*5.5m
|
Functions and features of baby diaper machine:
1)The machine can produce 4 sizes of I shape, T shape baby diapers.

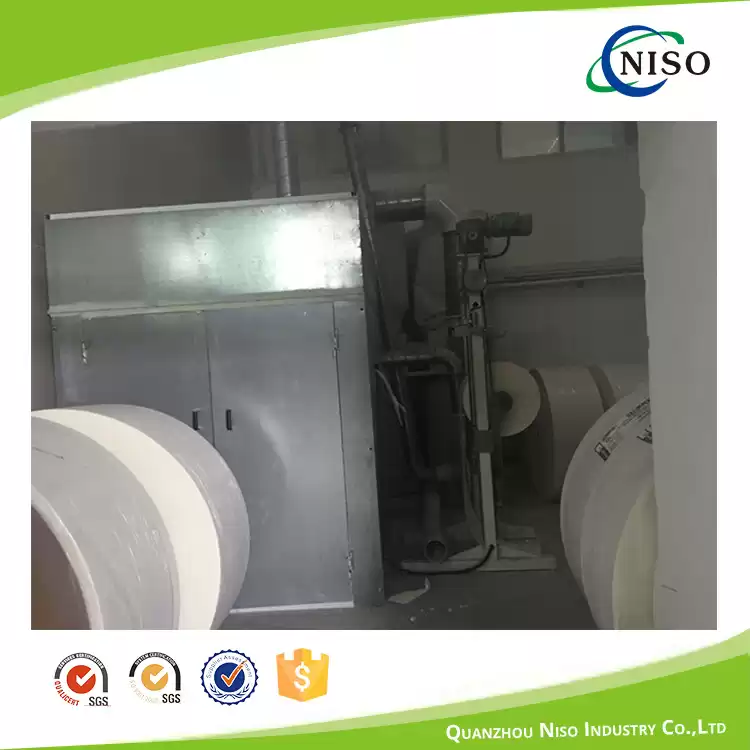

2)Crusher system adopts hard alloySaw blade head, can crush all kinds of fluff pulp, crushing capacity can up to 600-1000KGS/Hour.
3) Double fluff core drum forming system ,with long fiber and better absorbent capacity.
4) SAP feeding adopts frequency converter controlling system. Parameter of grams can be set on the touchable screen.
5)The machine produce I shape or T shape type baby diapers, which include the following devices:
a) Fluff pulp wrapping and continuous pressing unit.
b) Top sheet non-woven feeding system

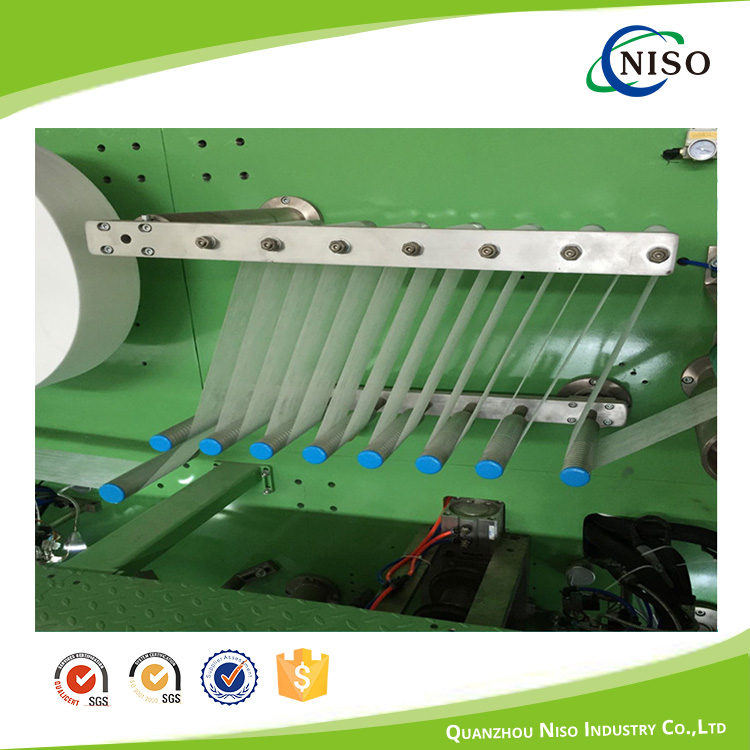

c) Leg cuff system
d) Bottom film feeding system
e) Frontal tape feeding and side tape feeding system
f)Side tape inner-folding system
g)Arc shape cutting system
h)Product vertical folding and product final cutting system
i) Product arranging-out.
Optional device:
1:Perfume spraying unit
2:Wetness display function
Main technical parameters of baby diaper machine
1) Model: YNK450-HSV
2) speed: 400-450m/min
3) capacity: 330KW (380V 50Hz)
5) Breaker Capacity: 400A
6) Electric wire:3x70mm2+1x25 mm2+1x16mm2
7) Machine size:(31*8*5.5)M(L×W×H)
8) Machine weight:28.5T
9) Air compressor:1.5m3/min
10) Product size: S, M, L,XL,
11)Container:2x40HQ
Why Choose us?
Profession design
Our factory has in machinery industrials for 15 years,improve andinnovate technology from Japan Italy all the time.
Quality
All the spare parts used according to the contract, original German & Japan & Italy & USA brand.
Processing
CNC processing, special surface processing, anti-glue processing.
Commitment
We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.
About NISO
NISO is a professional raw materials and machine supplier for making baby diaper, adult diaper, feminine sanitary napkin,under pad and so on.
NISO covers an area of 5000 square meters, gets CE, ISO, SGS.
NISO exports more than1000 containers to Asia, Mid-east, Europe, South America, Africa countries.
NISO will be your consultancy and partner to reach win-win career together.
Quanzhou Niso Industry Co.,Ltd is your best choice for baby diaper machine, adult diaper machine, sanitary napkin machine and under pad machine in China.
