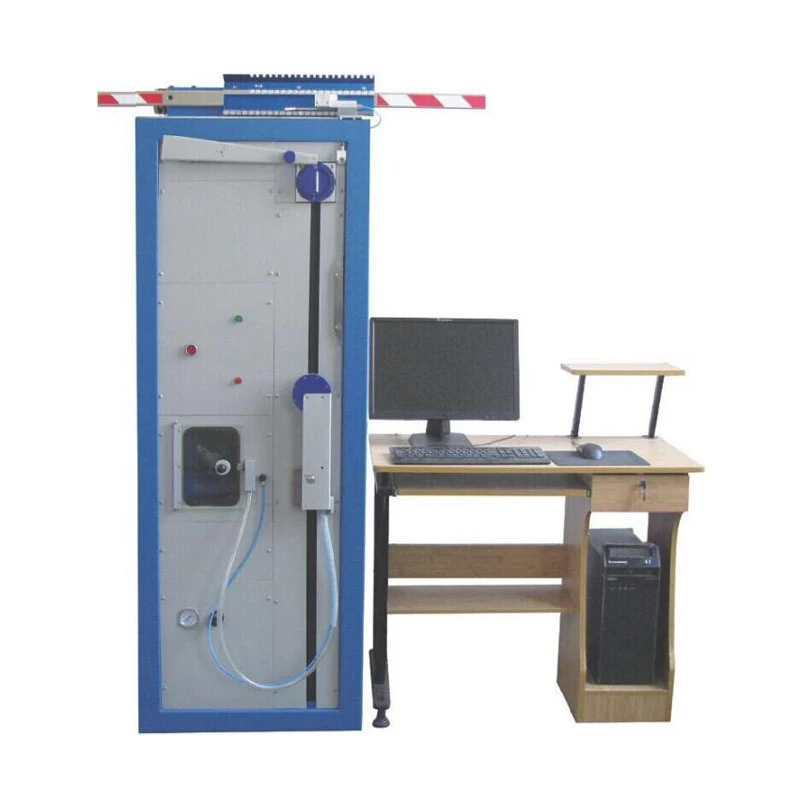

AY06B-Full-automatic Single Yarn Strength Tester
Application Of Full-automatic Single Yarn Strength Tester
Full-automatic Single Yarn Strength Tester is used for testing the breaking strength and elongation of a single yarn and fiber pure yarn or blended yarn of cotton, wool, hemp, silk, chemical fiber and core yarn.
Features Of Full-automatic Single Yarn Strength Tester
-
With the functions of abnormal data automatic rejection, time stretching, data saving and query.
-
Can be connected to the computer for fully automatic analysis, and automatic statistics, analysis, printer print data and charts.
-
No need to add pre-tension weights, the computer will automatically controls the pre-tension.
-
Fast automatic powerful correction button, just press once to fully automatic zero correction.
-
The internal circuit design adopts an independent functional system circuit board to reduce the time for maintenance and repair.
-
According to the needs of different yarns, set the percentage of elongation (%).
-
The upper and lower limit of strength and elongation can be set, if there's ultralimit action, it will automatically stop the test, or follow the set instructions.
-
The reference intensity and elongation point can be set, then the date will be automatically printed out.
Standards Of Full-automatic Single Yarn Strength Tester
ISO2062, ASTM D2256, GB/T14344, GB/T3916
Key Specification Of Full-automatic Single Yarn Strength Tester
|
Model
|
AY06B-Full-automatic
Single Yarn Strength Tester
|
|
Test
position
|
Can test 20
tubes sample at same time
|
|
Max
capacity
|
100N
|
|
Force
value accuracy
|
≤±0.5%
|
|
Clamping
distance range
|
10~500mm, ±0.01mm
(Stepless
adjustable, digital setting, automatic positioning)
|
|
Extension
test range
|
900mm
(When the
clip distance is 500mm, the elongation is 400mm)
|
|
Stretching
speed
|
20~5000mm/min, ±2%
(Stepless
speed change, arbitrary setting)
|
|
Clamping
method
|
Pneumatic
(0.5 ~ 0.8Mpa)
|
|
Test
times of each batch
|
≤ 300 (times × tube)
|
|
Compressed air
|
Pressure 0.5
~ 0.8Mpa
|
|
Power
supply
|
AC220V 50/60Hz
|
|
Dimensions
|
Main box: 110×630×177cm
Yarn stand:
120×16×50cm
|
|
Weight
|
300kg
|
Accessories Of Full-automatic Single Yarn Strength Tester
|
Standard
Accessories
|
Manual clamp
|
1set
|
|
Operate
software
|
1set
|
|
Power line
|
1pc
|
|
Printer
|
1set
|
|
Table top
computer
|
1set
|
