Full automatic Tissue Paraffin/Wax Microtome

Full automatic Tissue Paraffin/Wax Microtome

With the model number: RD-355AT

It has two models for section: Automatic model and manual model.

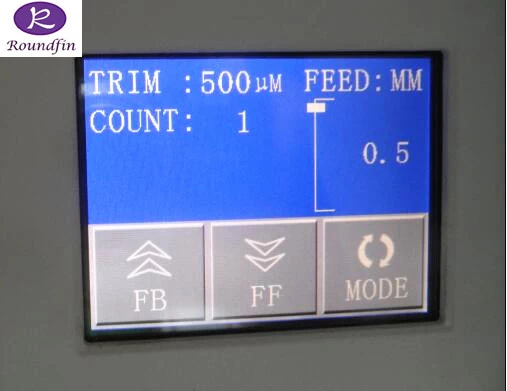

     3: When it is in automatic function, the user can release his hands and to do others.

The section speed is 0-350mm/s adjustable



Facebook Twitter Pinterest LinkedIn 分享

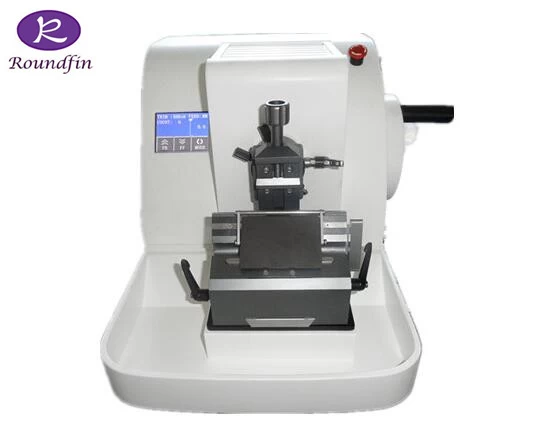

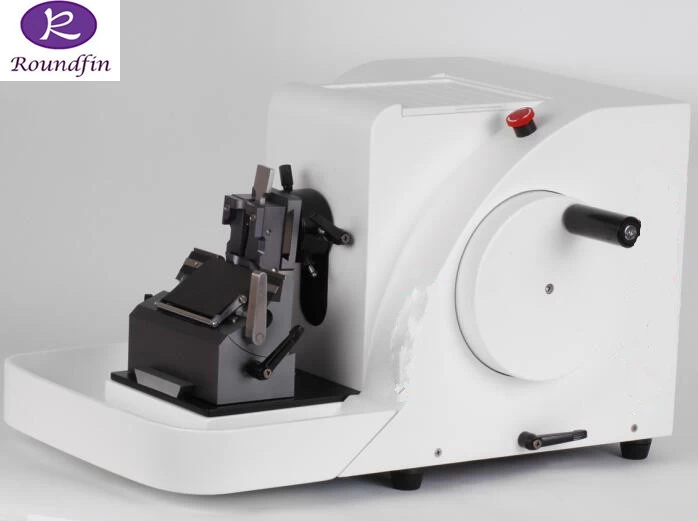

Full Automatic Tissue Paraffin/Wax Microtome:

Model Number: RD-355AT;



Full automatic Tissue ParaffinWax Microtome



Full automatic Tissue ParaffinWax Microtome RD-355AT


Features:



     1: RD-355AT Automatic Microtome is a full automatic microtome which is made in China.
     2: It has two models for section: Automatic model and manual model.
     3: When it is in automatic function, the user can release his hands and to do others.
It can simplify the technical difficulties of the section,    And reduce the operator labor intensity and make the work more efficiency.
     4:  Manual or automatic section model can quickly switch.
     5:  Switch arbitrarily between section and trimming.

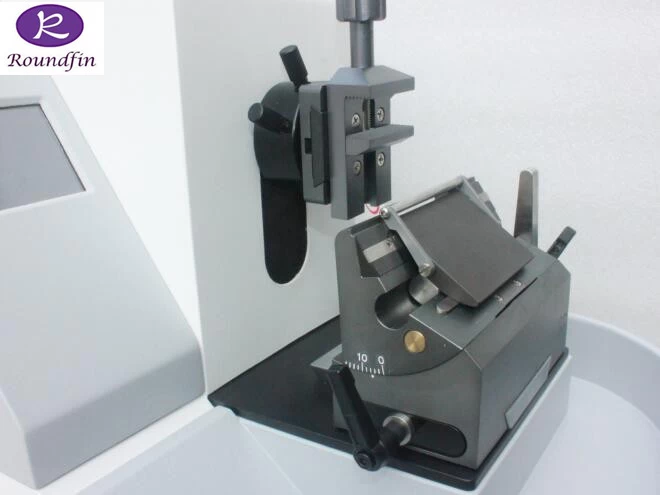

     6:  Precise orientation of the specimen clamp.
     7: All kinds of specimen clamp can be Exchanged freely.
     8: Alarm system for horizontal and vertical stock limit , protection system for overload and Auto sleep.

    9: The large waste tray can be disassembled easily.


Technical specification:


---- Slice thickness range : 0.5-100μm
  Setting value:   From 0.5-2 μm in 0.5μm increment.
                            From 2-10 μm in 1μm increment .
                            From 10-20 μm in 2 μm increment .
                            From 20-100 μm in 5 μm increment .
----Trimming section range : 0.5-999μm.
  ----Speed of section : 0-350mm/s adjustable
---- Horizontal specimen stroke : 28mm
 ---- Vertical specimen stroke: 60mm
---- Slip precision : ±5%
----Speed of fast-forward and back-forward : 1 mm /s
 ----Orientation of the specimen head: Axes X and Y 8°， axis Z 360°.
----Voltage and power: AC220V/50Hz、or 110V/60Hz.
---- Dimension : 500mm ( L) X 320mm (W) X 500 mm ( H)
---- Net weight : 35 kg
