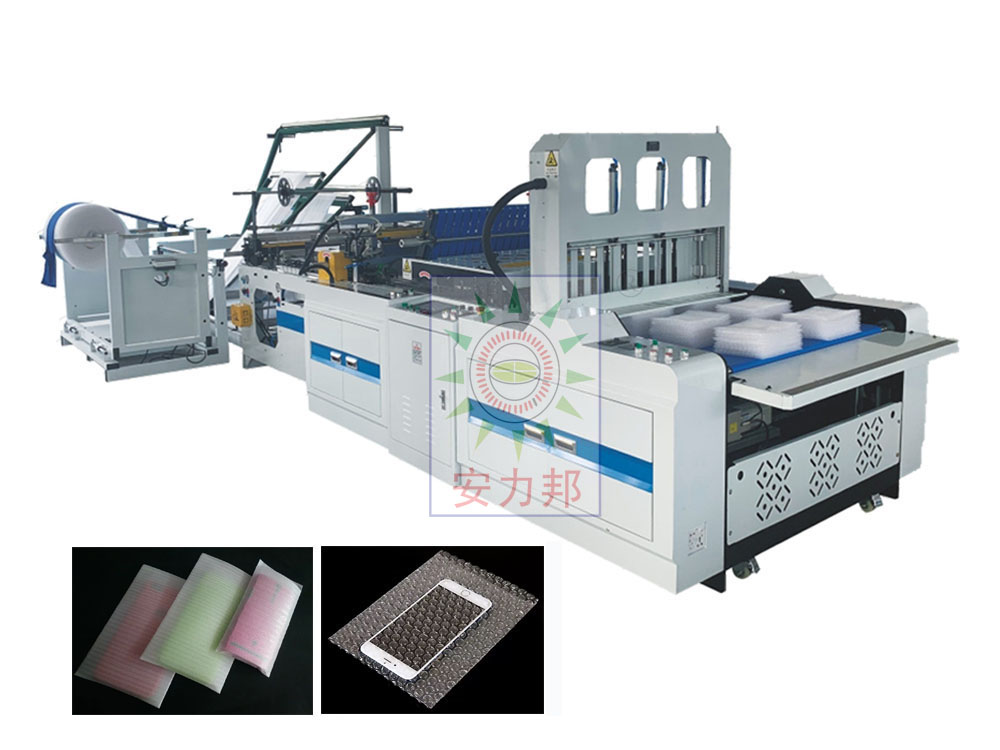

Machine Characteristics

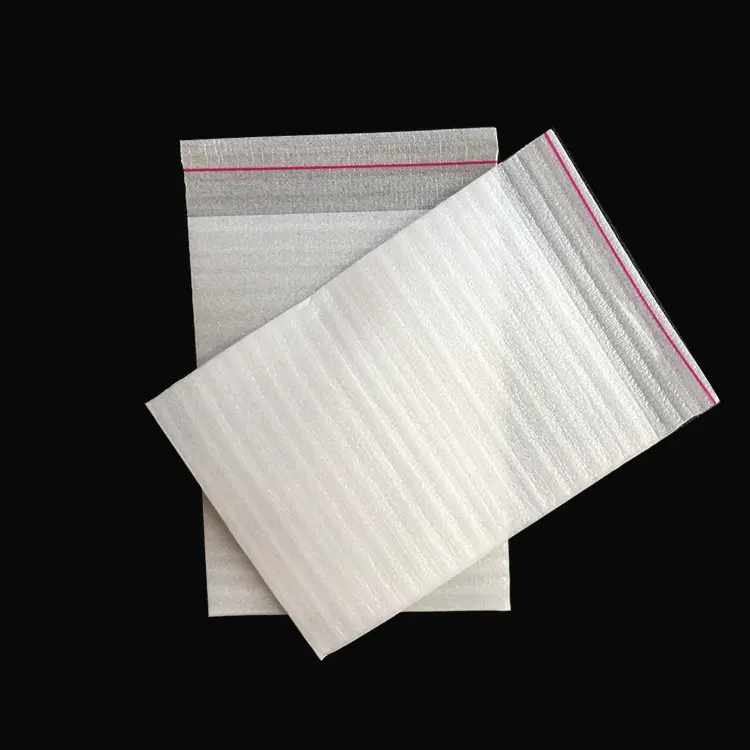

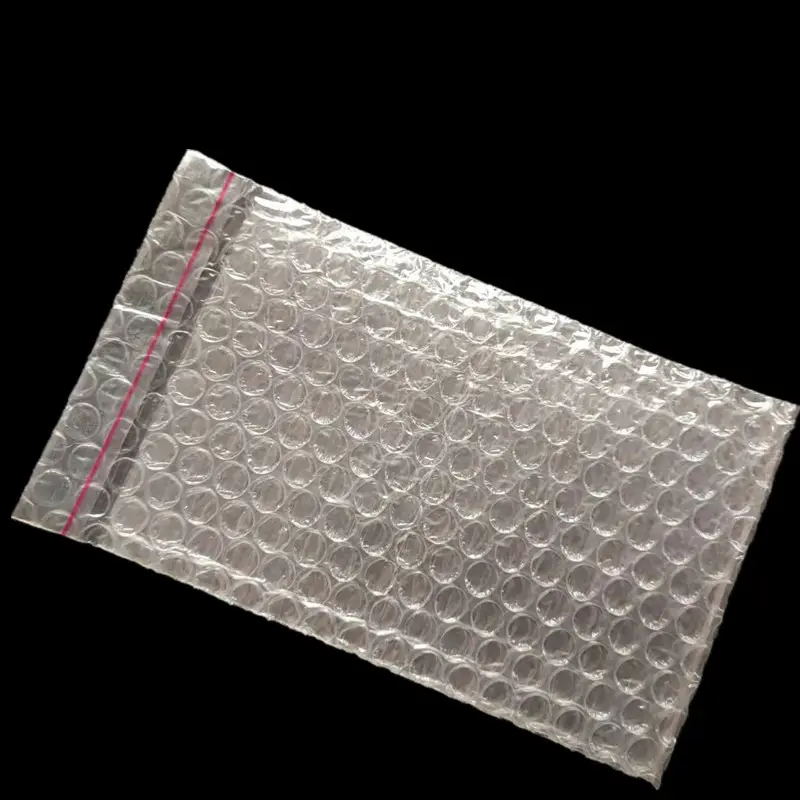

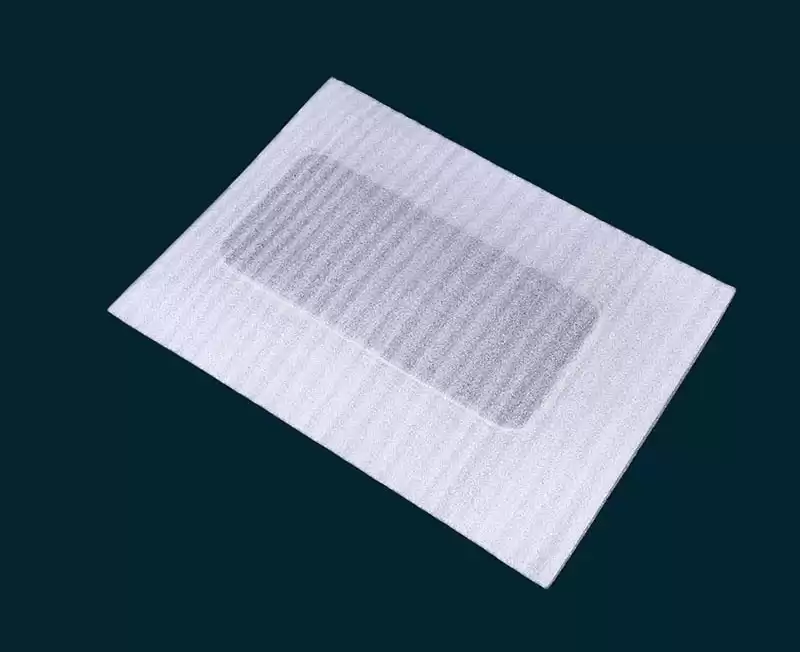

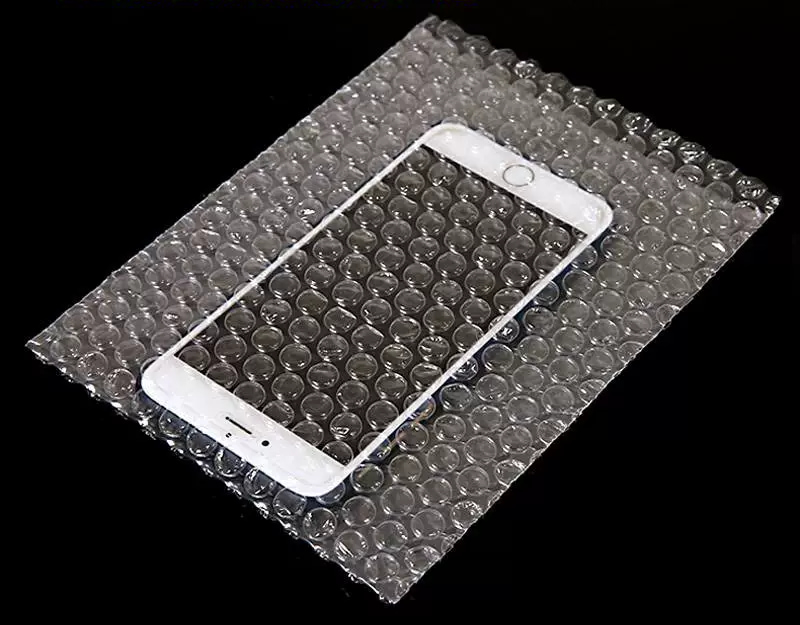

- This machine is specially used for processing laminating & non-laminating PE Foam in bags , it can also be used for heat sealing and cutting Bubble film. It is an ideal equipment for making cushioning package bags of electronic component bags, wooden handicraft bags, LCD screen, etc.
- Computer color chasing, arbitrary fixed length, step-size photoelectric tracking, with punching holding frame. MicroComputer control, automatic counting & a counting alarm can be set..
- Automatic thermostatic heat sealing, the sealing edge is firm and smooth.
- Automatic lifting and discharging of finished bags.
Technical Parameters
| Model |
Voltage |
Speed (min) |
Sealing Cutting Width (mm) |
Sealing Cutting Thickness (mm) |
Sealing Knife Width (mm) |
| EPE Foam Bag |
Air Bubble Bag |
| 30" |
220V |
30-160PCS |
700 |
0.5-1.5MM |
25-80g |
770 |
| 40" |
220V |
30-150PCS |
950 |
0.5-1.5MM |
25-80g |
1020 |
| 50" |
220V |
30-140PCS |
1200 |
0.5-1.5MM |
25-80g |
1270 |
| 60" |
220V |
30-120PCS |
1400 |
0.5-1.5MM |
25-60g |
1530 |
| 65" |
220V |
30-120PCS |
1600 |
0.5-1.5MM |
25-60g |
1680 |
| 75" |
380V |
30-120PCS |
1800 |
0.5-1.5MM |
25-60g |
1880 |
Details Show

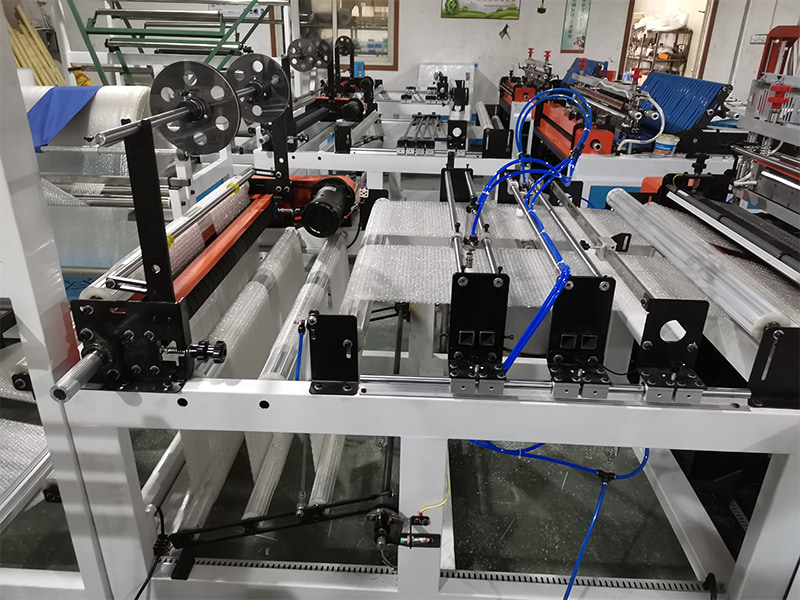

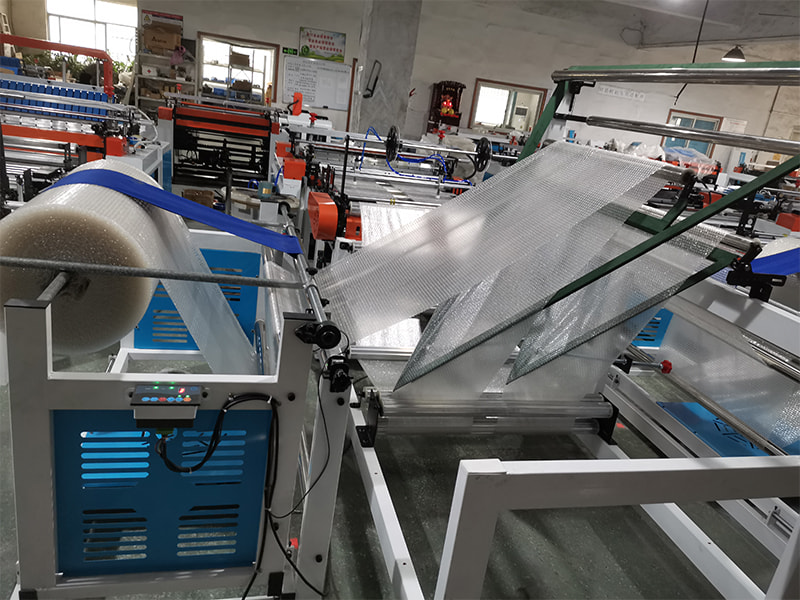

Material feeding unwinder with automatic edge corrector and tension control

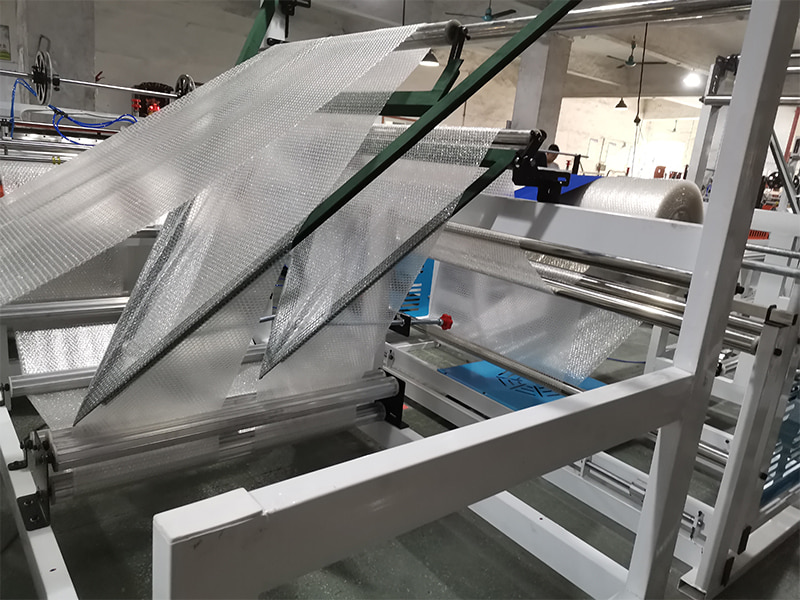

Triangle folding device

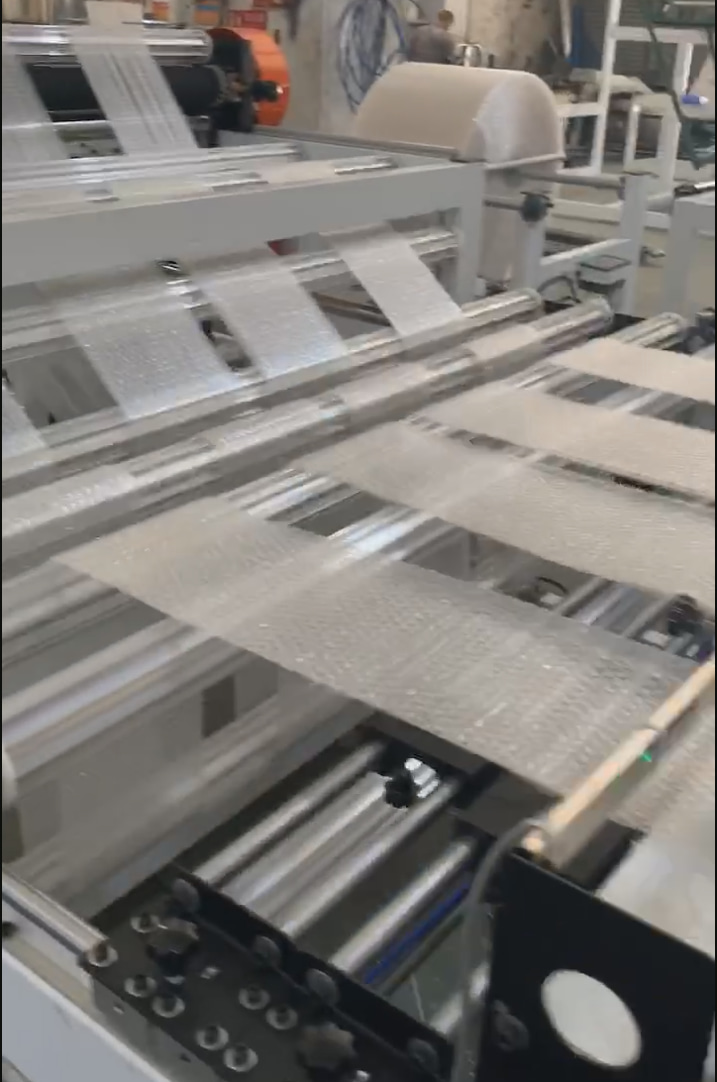

Standard: 2 sets of feeding(2 pcs bags output in one cutting)
Optional : 4 Feeding Rolls (4 pcs bags output in one cutting)
Bag sealing tape feeding device

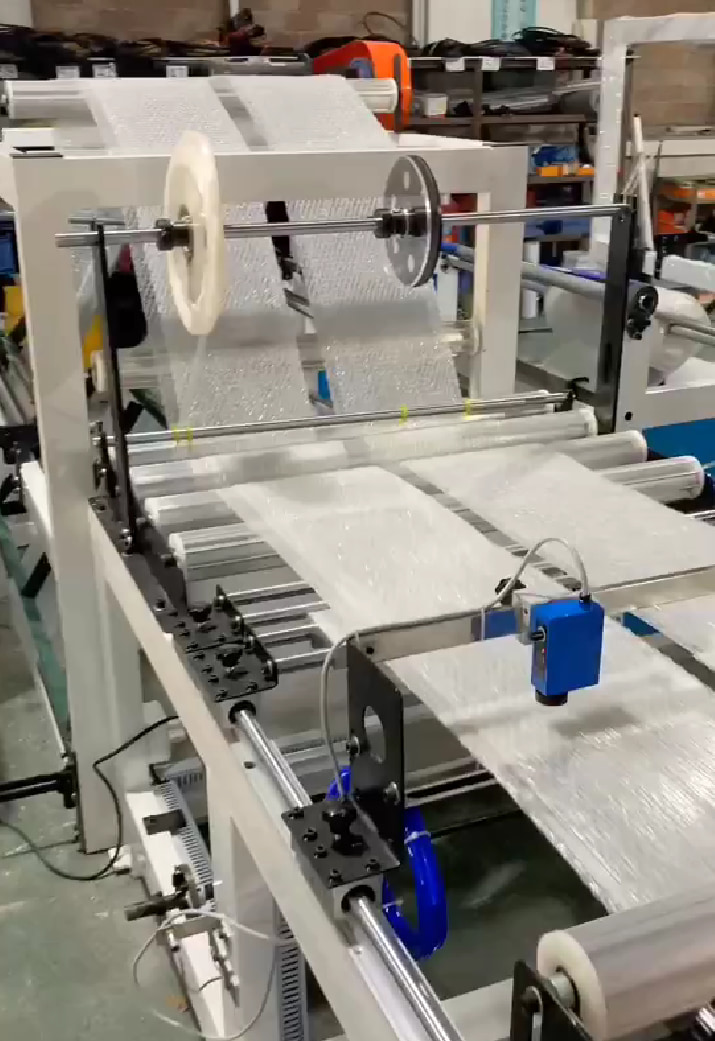

Photocell sensor device for printing bag
Multi-hole puncher for banana Packaging

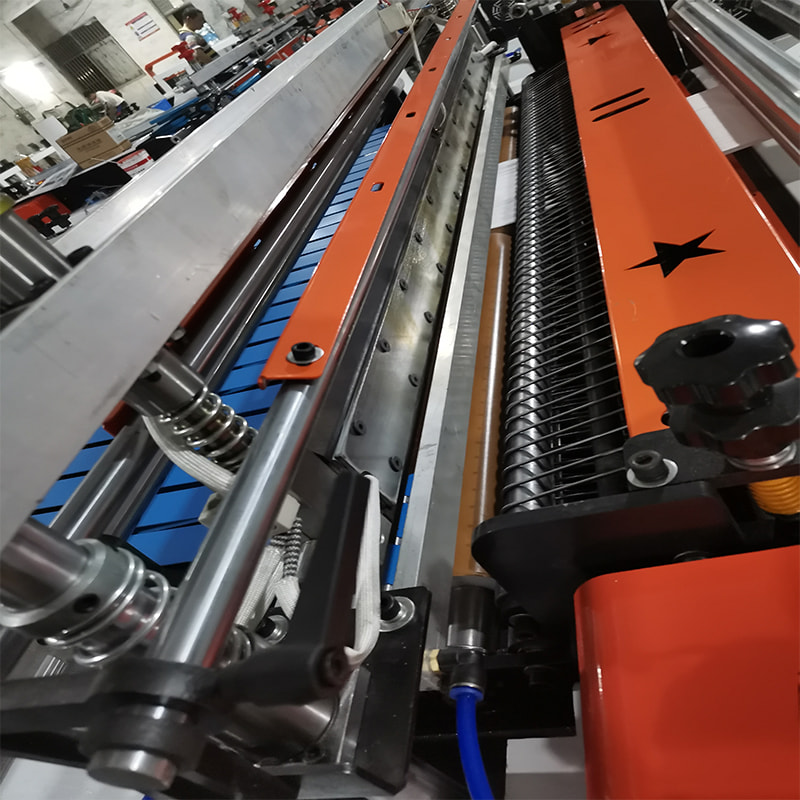

Sealing & cutting knife (The knife with two sides, one for EPE foam and the other side for bubble film)

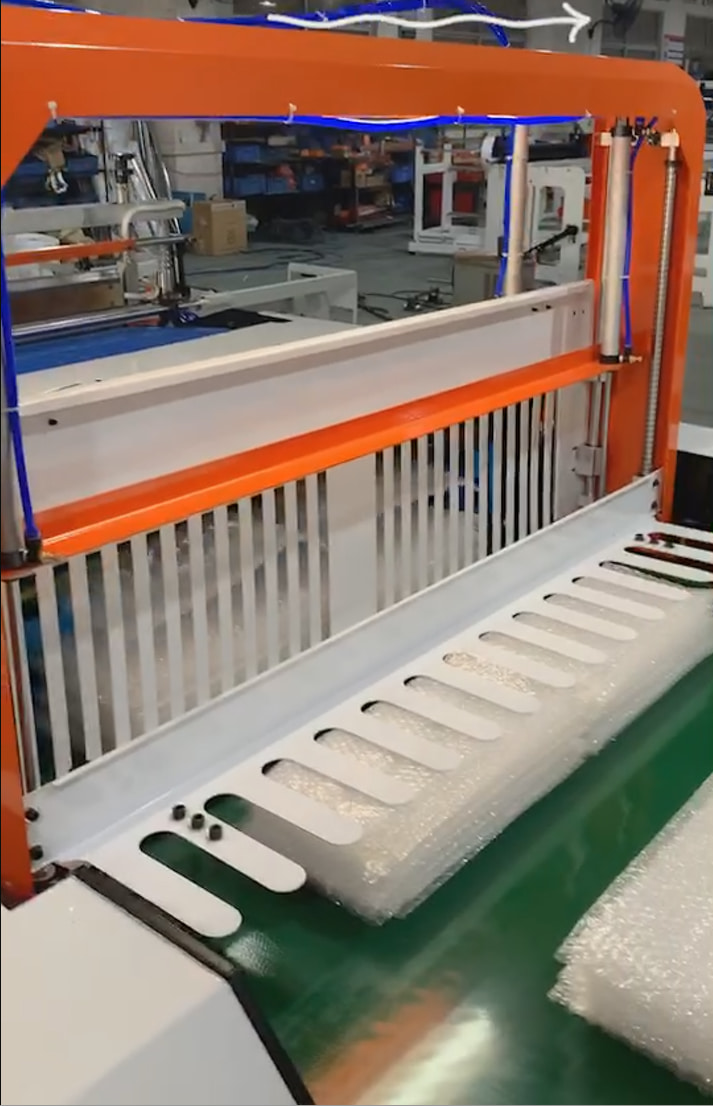

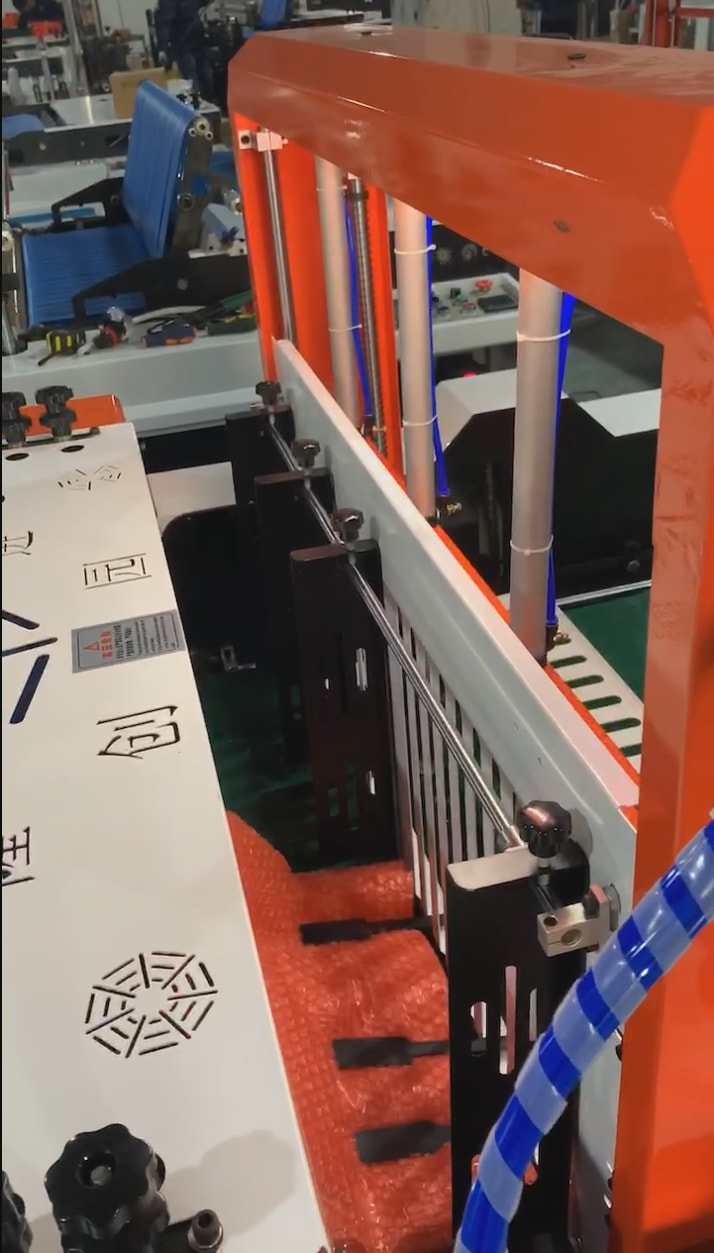

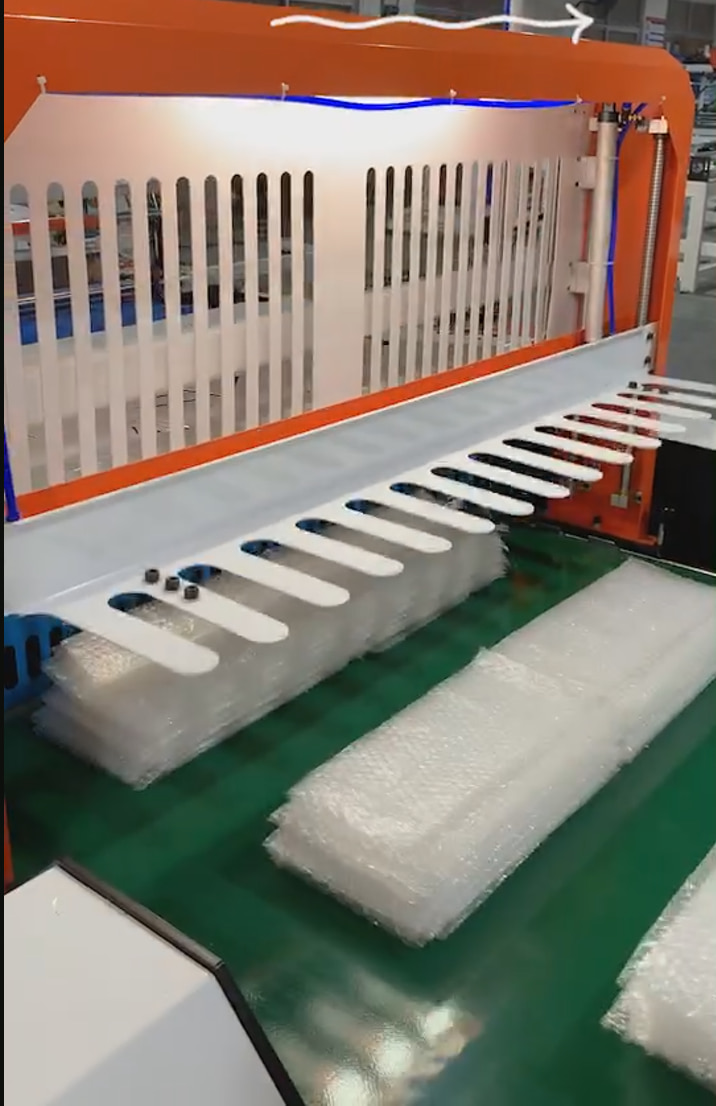

Automatic lifting discharge platform
Main Function: Automatically stack the finished bags to the set number, clamp and then send out by the conveyor belt.
