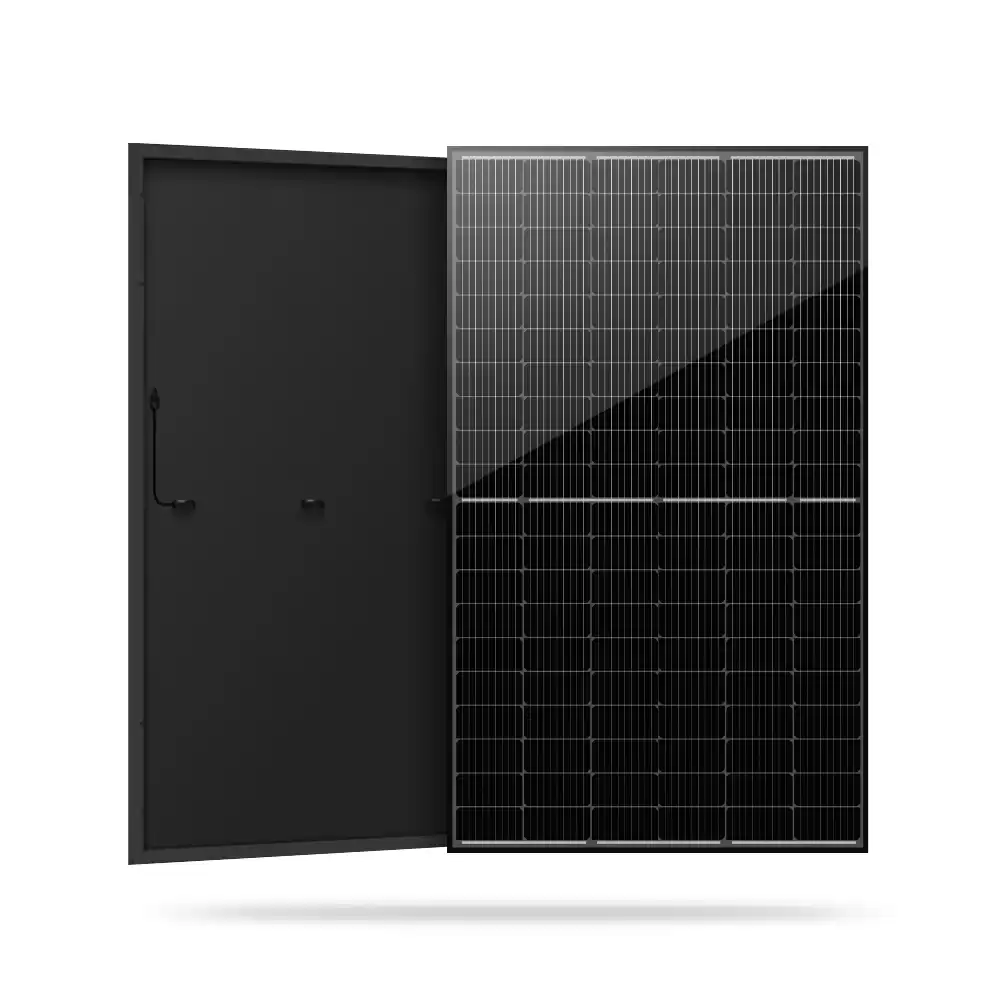

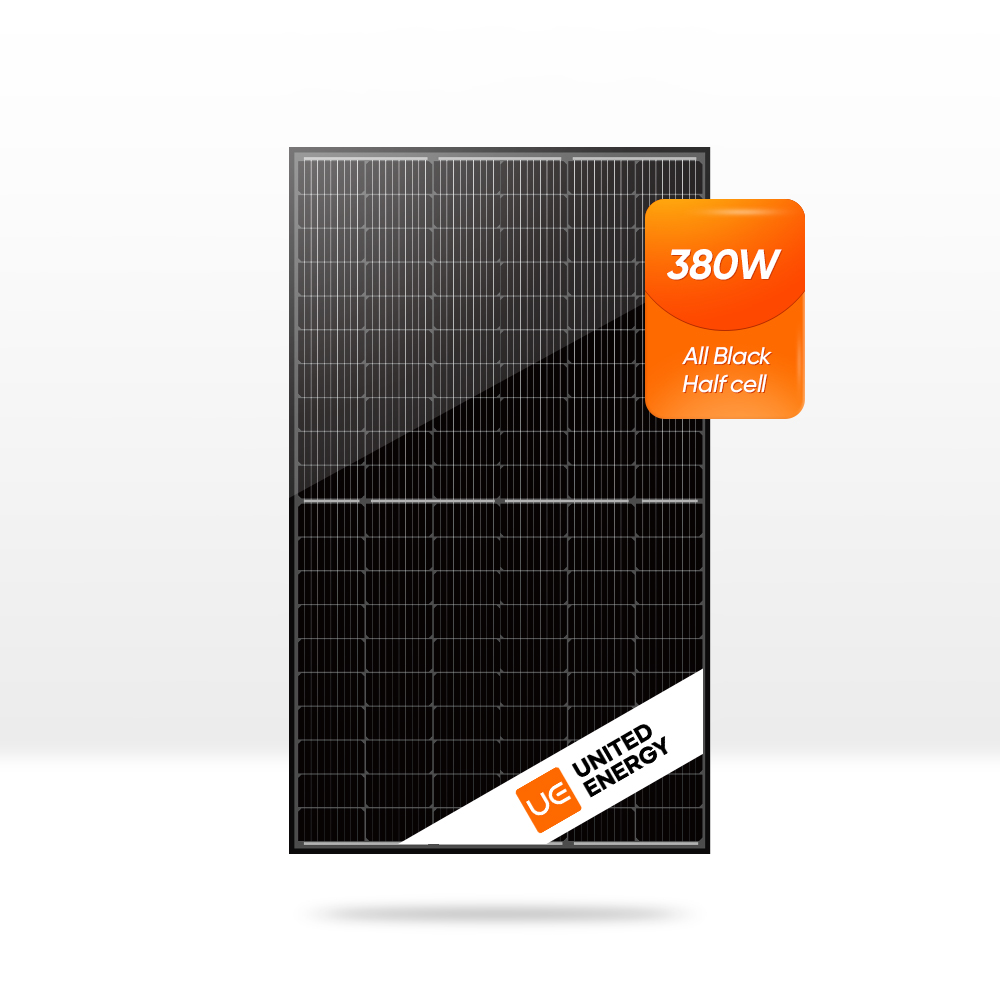

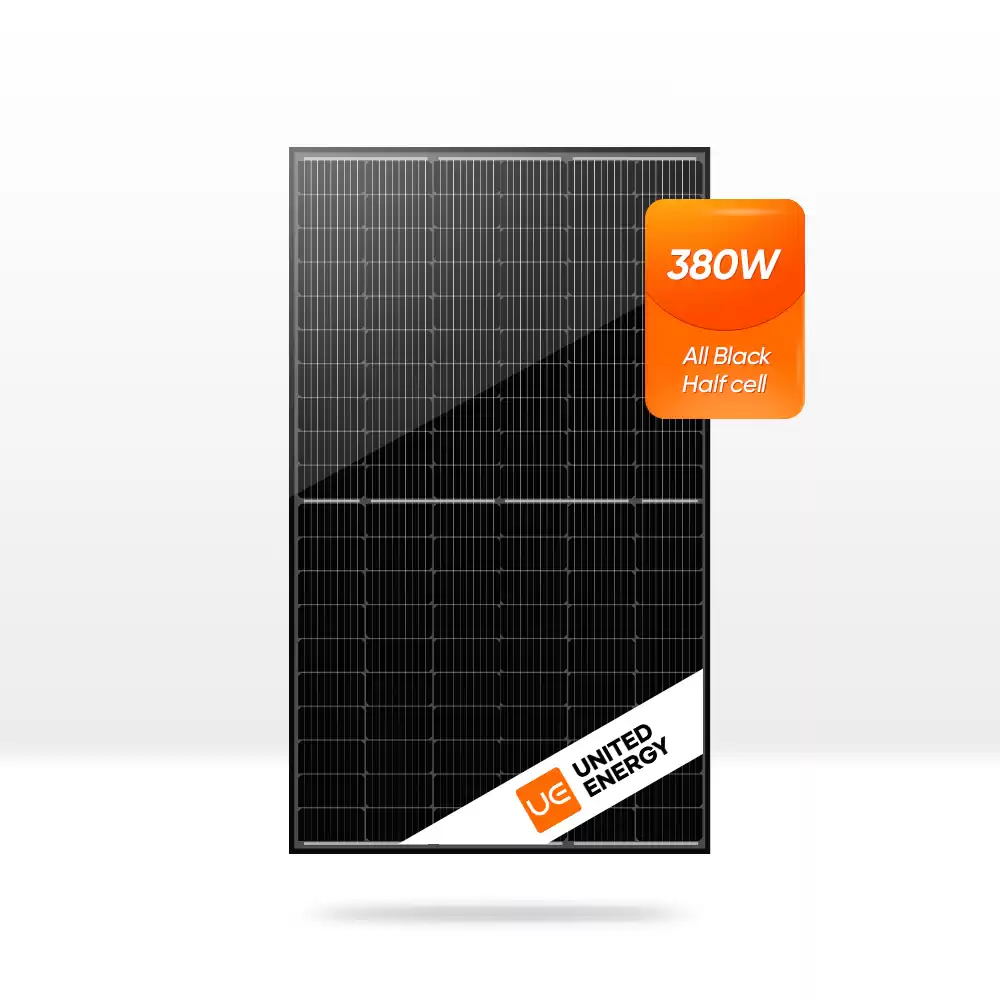

Full Black Solar Panel 380W 390W Solar Cell Panel 166mm

UNI 4 Series 120 Half  Solar Cell Panel 380W 390W Solar Panel 166mm

PERC Technology photovoltaic Solar PV Module IEC UL CEC full certificates Dual Glass Panel Bifacical PV Module optional



United Energy founded in 2009, National high-tech enterprise,focus on solar panel R&D obtained more than 100 patents.

Quality is the Company Culture of UNITED ENERGY!

1. By using half-cells, the electrical current ( i ) flowing in each busbar is halved.Therefore, the amount of internal losses in a half-cut module is 1/4 of a full sized cell module

2. Positive power tolerance (0 +5W) guaranteed

3. High module conversion efficiency (up to 21.2%)

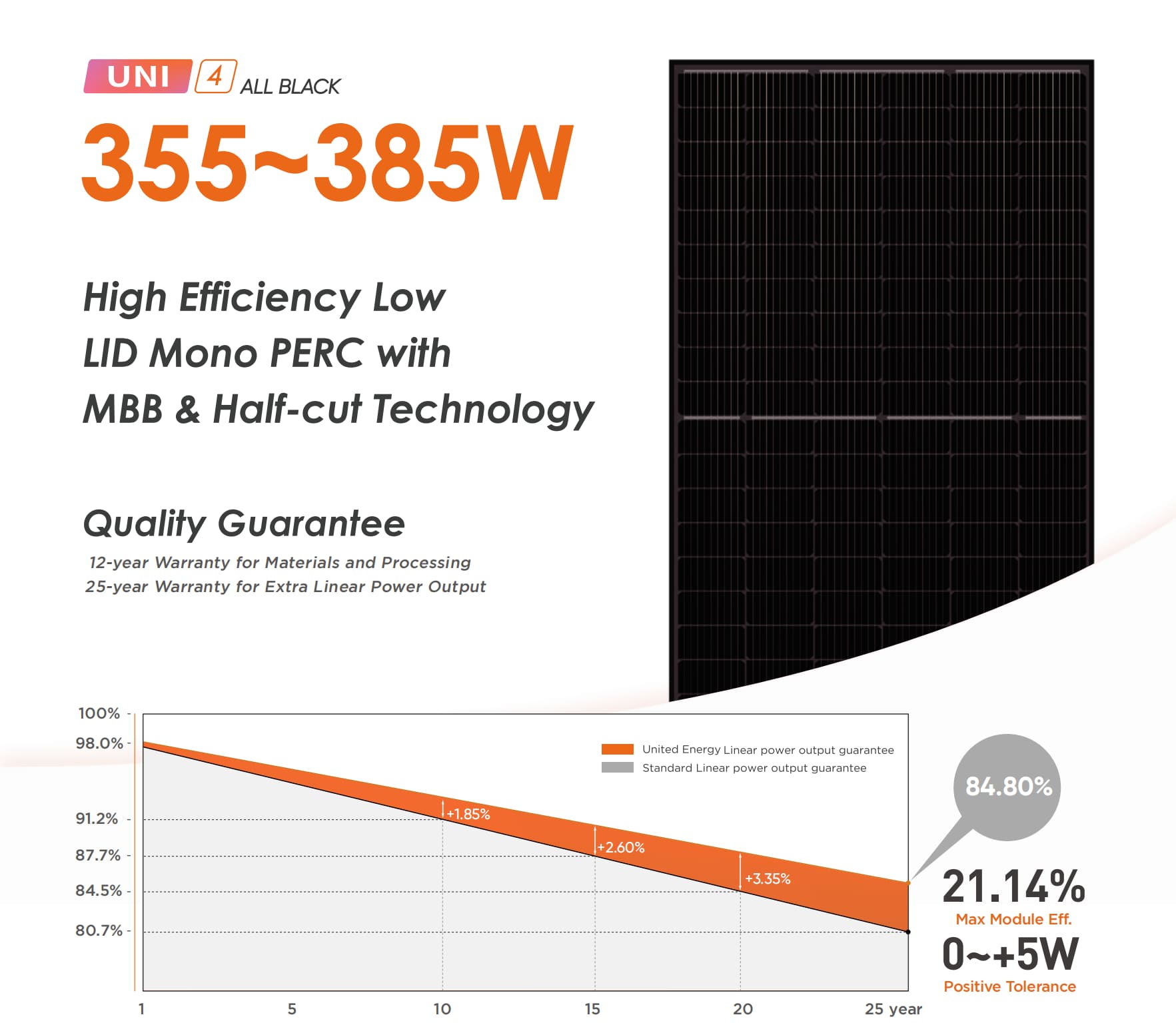

4. Slower power degradation enabled by Low LID Mono PERC technology: first year <2%,0.55% year 2-25

5. Solid PID resistance ensured by solar cell process optimization and careful module BOM selection

6. Higher energy yield with lower operating temperature

7. Reduced hot spot risk with optimized electrical design and lower operating current



Electrical Specification

Maximum Power (Pmax/W)

370

375

380

385

390

395

400

Maximum Power Voltage (Vmp/V)

34.75

35.05

35.42

35.72

36.05

36.41

36.75

Maximum Power Current (Imp/A)

10.65

10.70

10.73

10.78

10.82

10.85

10.89

Open Circuit Voltage (Voc/V)

41.22

41.50

41.79

42.07

42.35

42.63

42.91

Short Circuit Current (Isc/A)

11.32

11.36

11.40

11.44

11.48

11.52

11.56

Module Efficiency (%)

20.3

20.6

20.9

21.1

21.4

21.7

22.0

Power Output Tolerance (W)

0~+5W

Temperature Coefficient of Isc

+0.05%/°C

Temperature Coefficient of Voc

-0.28%/°C

Temperature Coefficient of Pmax

-0.36%/°C



Advantage of United Energy Solar Panel:

1. High power output Multi busbar technology combined with half-cut mono PERC cells for up to 390 W front power and 22.0% module efficiency

2. Reduced BOS costs with higher power bins and 1,500V system voltage

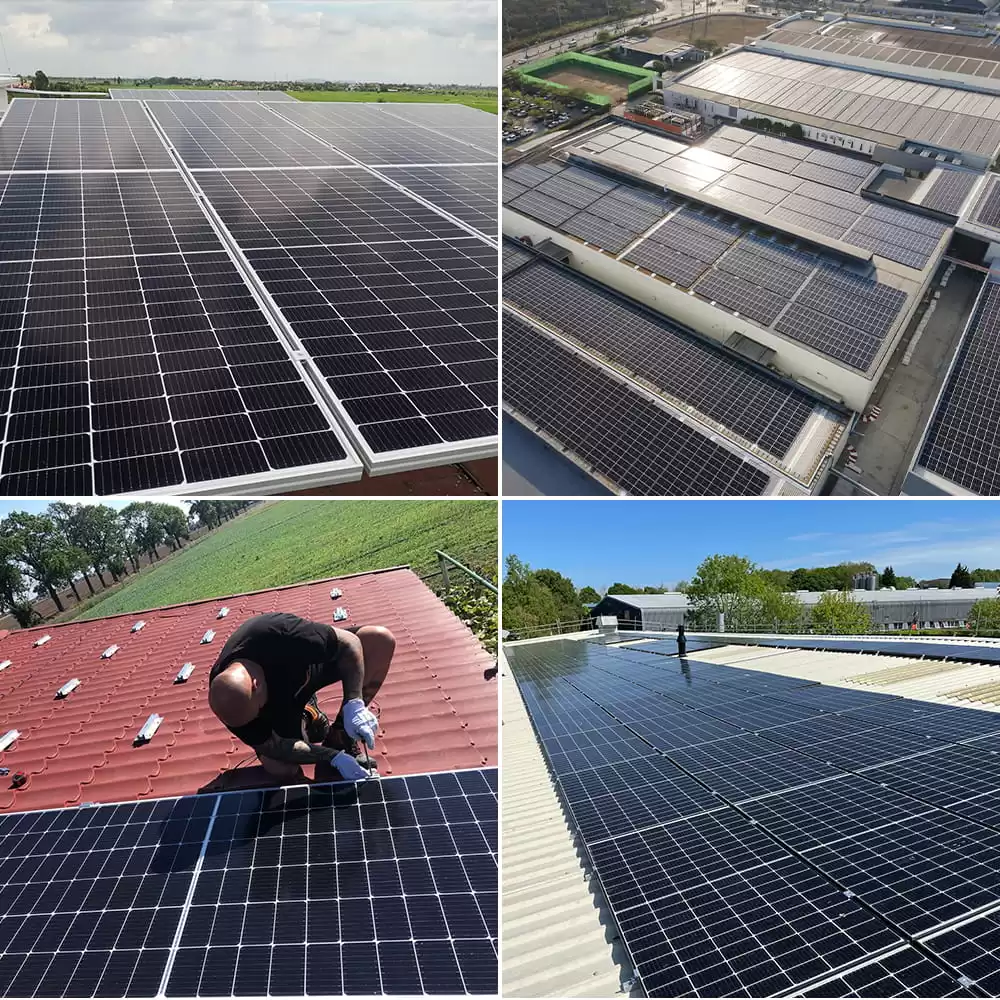

3. Great for residential rooftop application Maximize limited space with up to 210 W/m2 power density Ultra-thin, virtually invisible busbars

4. Cooperating With Tier 1 World Famous Solar Cells Manufacturer.

5.Excellent wind load 2400Pa & snow load 5400Pa under certain installation method

6. Full set of safety certification and regulation, meet certificate requirements in most of the countries.



FAQ:

What watts of this panel?

Mono 360w 370w 380w 390w high efficiency solar panel.



What dimension of this panel?

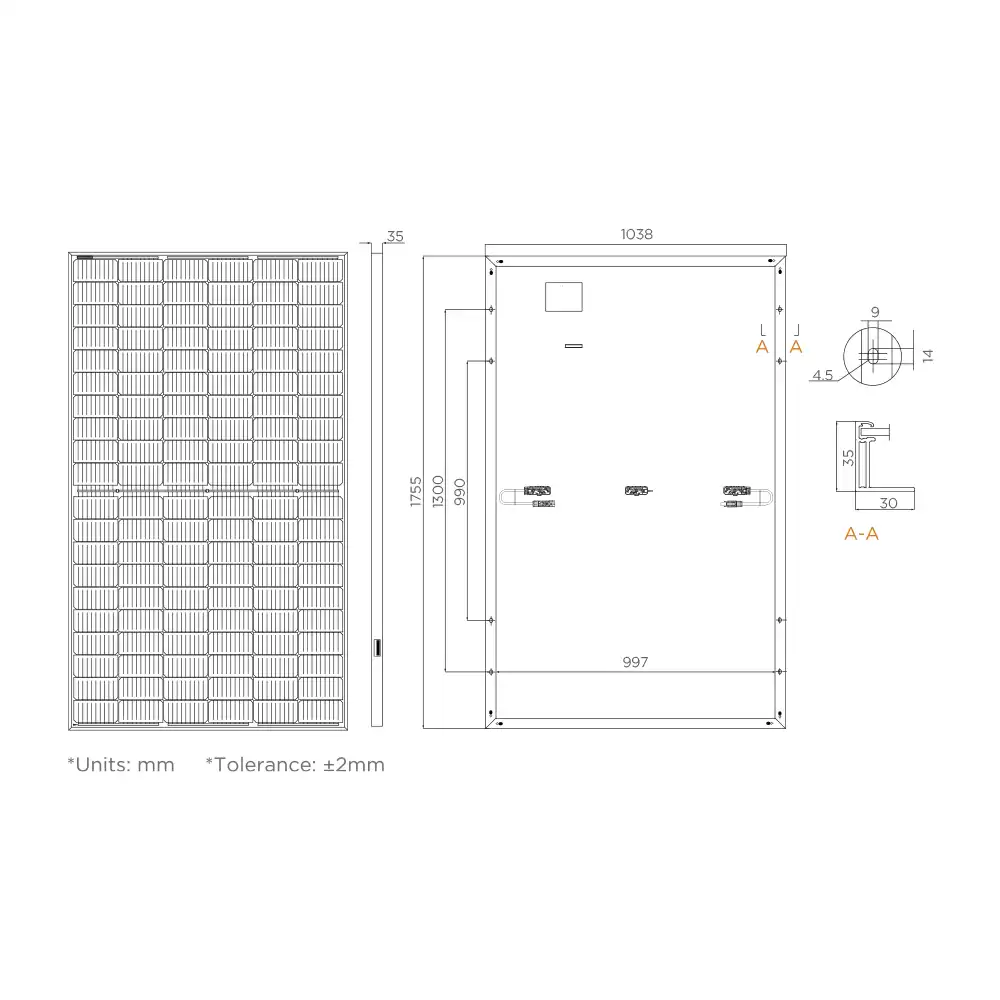

1755×1038×35mm



How much is the loading quantity and shipping method?

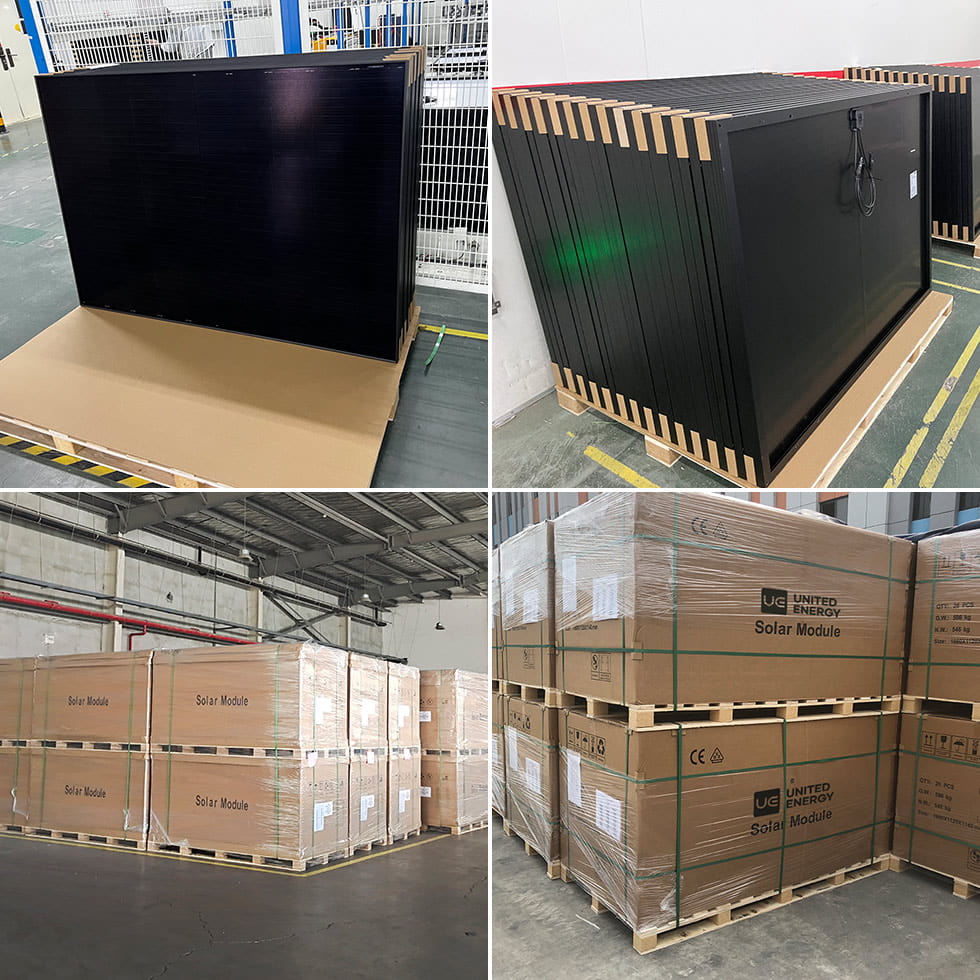

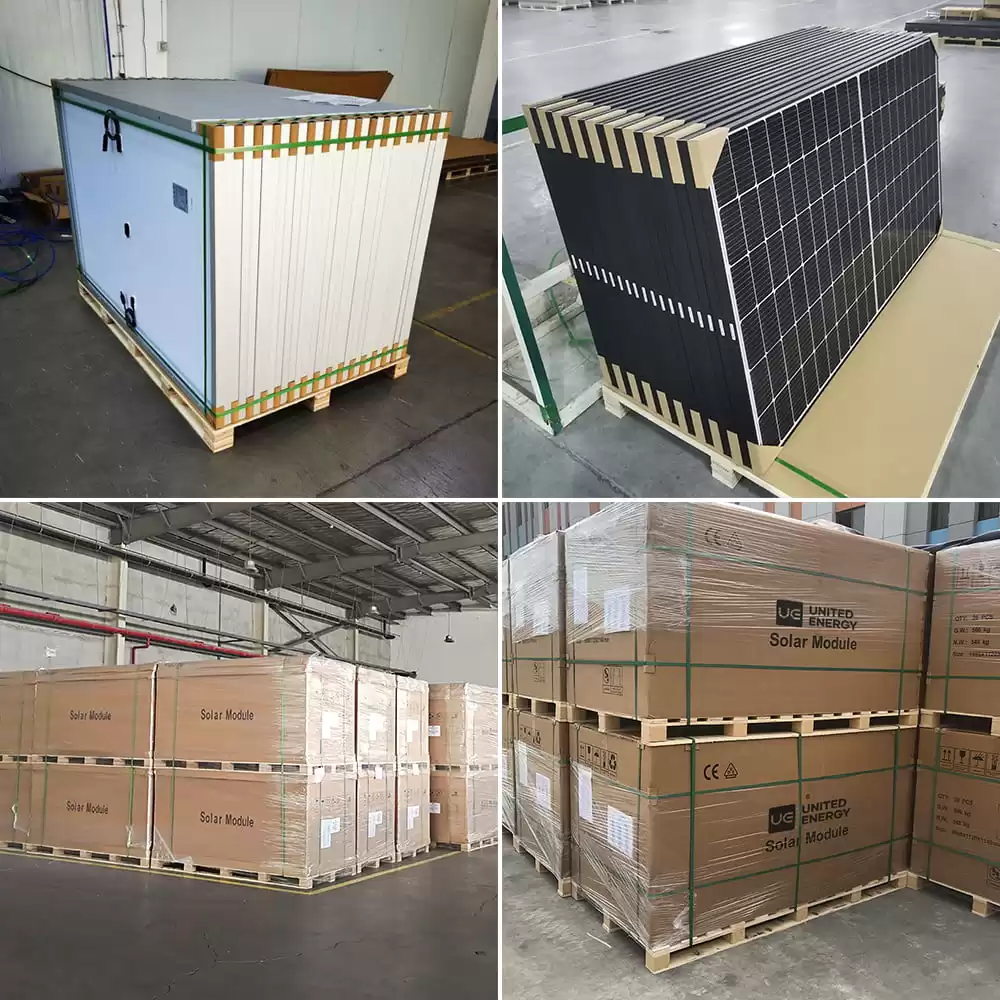

31pcs/pallet. 155pcs/20ft. 780pcs/40HQ ; Shipping normally by sea because of the heavy weight, but we can provide DDP(door-to-door) service if needed.

How long is the Delivery time?

Normally production will takes around 10 workings days, depends on the order quantity.



Our Sales Engineer is 7/24 Online, welcome your Inquiry to offer you more details:
