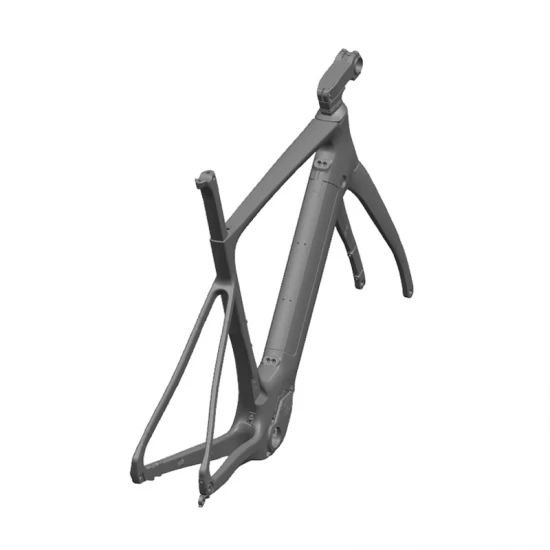

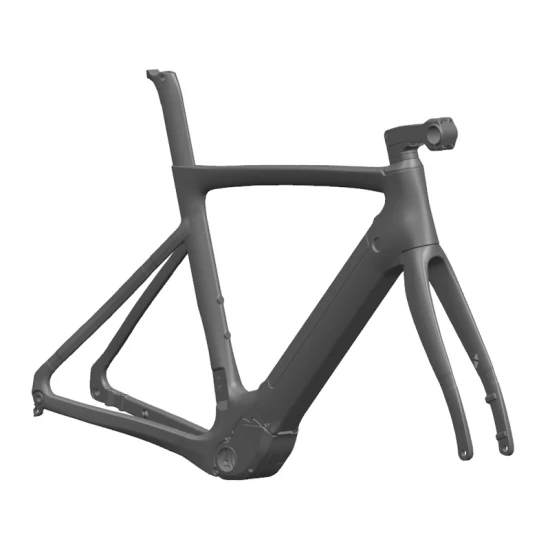

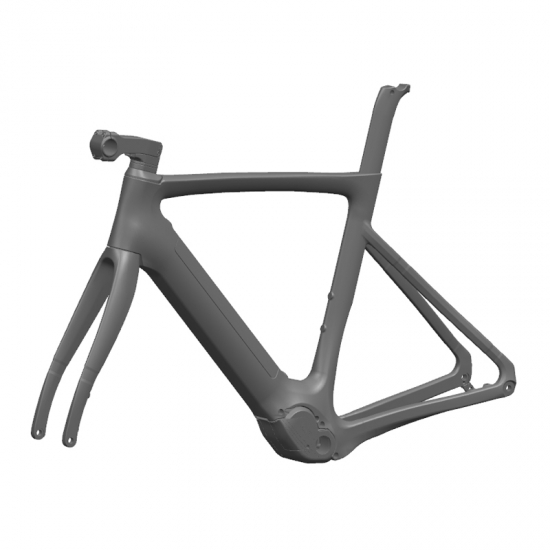

Full Carbon Road Disc Ebike Frameset FOR BAFANG M800 SYSTEM E021

- BAFANG MM G530.200 middle drive system

- Max tire clearance 700*32c

- Front 12*100mm thru axle, rear 12*142mm thru axle

- Front direct mount disc brake mount rear flat mount disc brake

Facebook Twitter Pinterest LinkedIn 分享

E21




E21

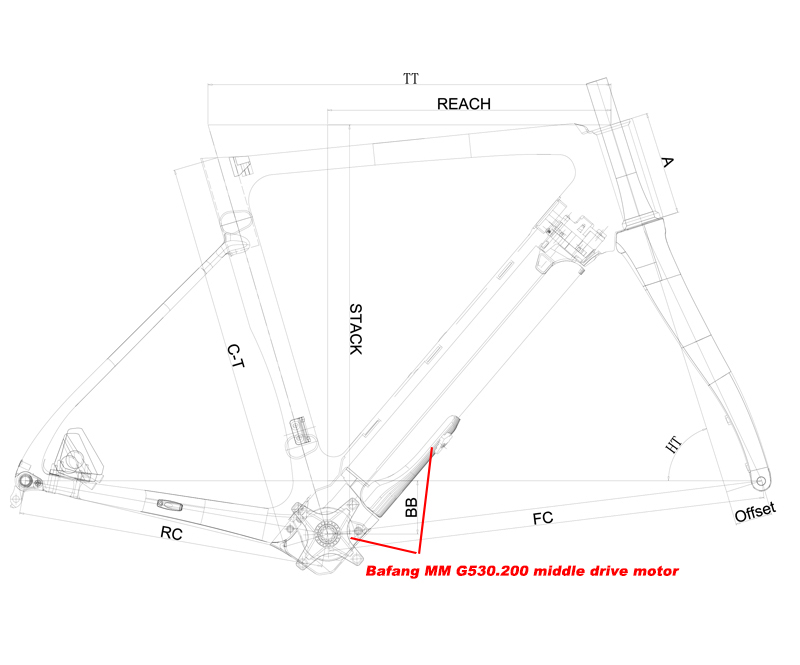

 SIZE
 C-T A Offset TT HT ST BB RC WB FC RD RB POST REACH STACK
480 480 130 50 525 71.5 74 72  415 982.3  582

Inner

Inside

∅31.6

370  531
510  510 130 50 525 71.5 74 72  415 982.8  582  370  531
530  530 140 50 545 72.5 73.7 72  415 996.1  596  382  553
550
 550
 160
 50
 560
 72.8
 73.4
 72
 415
 1001.8
 605
 389
 572
580
 580
 180
 50
 590
 72.5
 72.5
 72
 415
 1009.8
 620
 397
 615

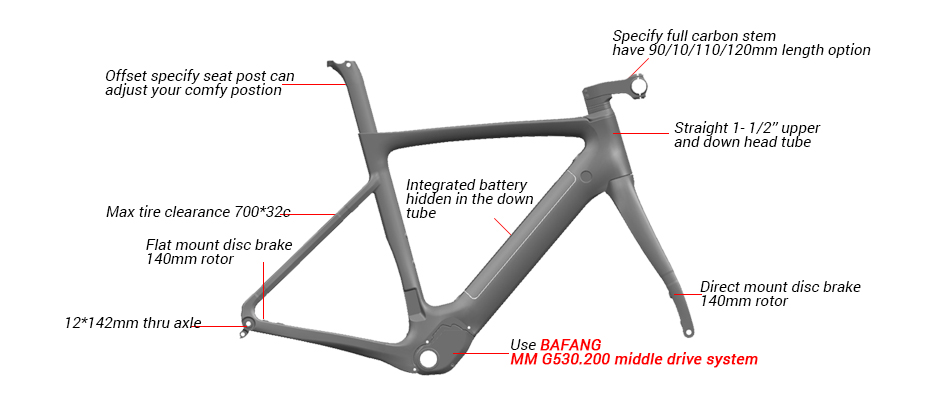

Frame Full carbon road disc ebike frameset with flat mount brake
Material High modulus Toray T700  carbon fiber
Size
 		48, 51, 53, 55, 58
Fork
 YISHUNBIKE specify carbon fork
Headtube Straight 1 1/2'' head tube(upper 52mm lower 52mm)
Stem
 90mm/100mm/110mm/120mm
Weight 1200g/53cm
Seatpost Specify seat post
Motor system BANGFANG MM G530.200 middle system
Max Tire Clearance             700*32c
Brake mount type Shimano flat mount disc brake
Dropout Front 12*100mm TA Rear 12*142mm TA
Groupset Machanical and Di2 compatible
Test Standard
 ISO4210
Warranty  2 years
