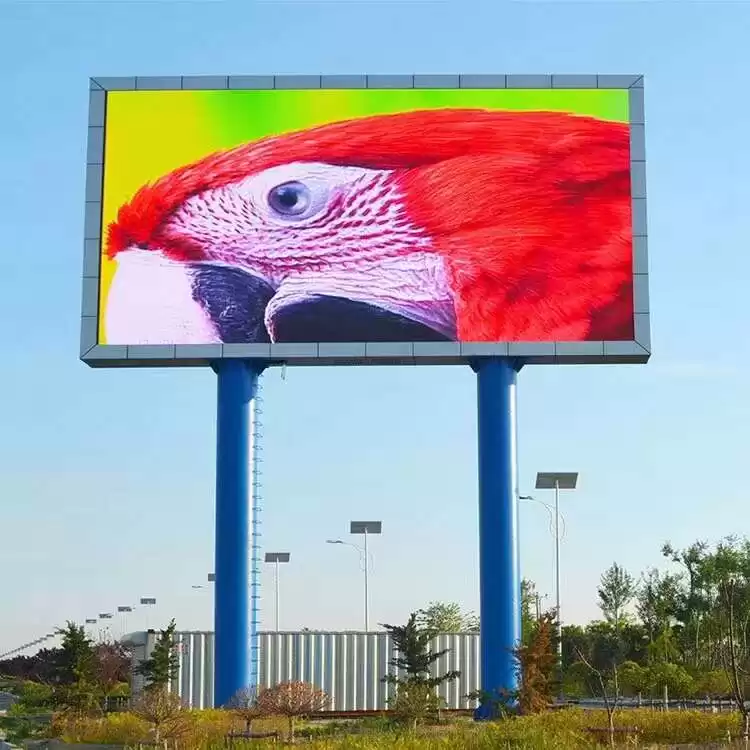

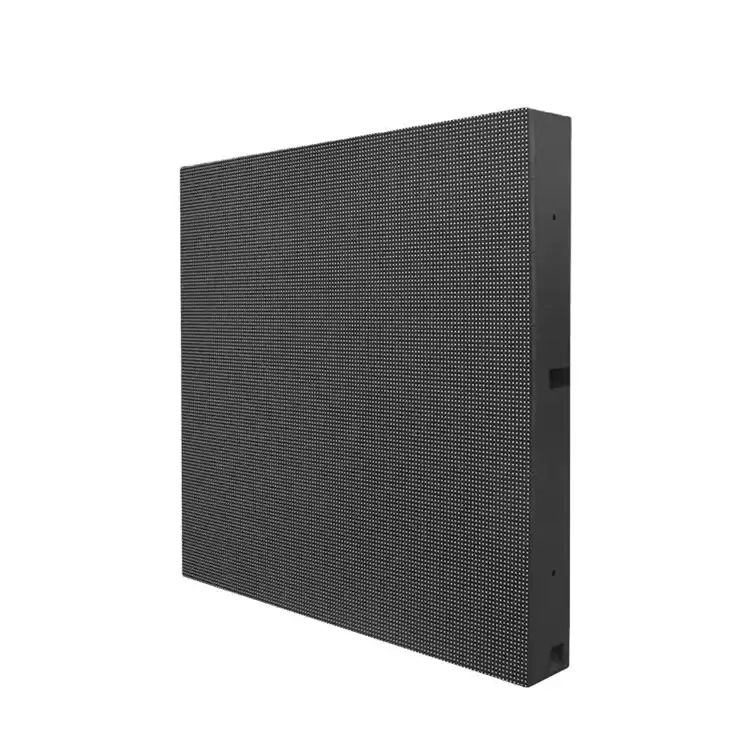

China's finest outdoor LED digital signage billboard
Designed to impress, our LED digital signage billboard boasts a sleek and modern aesthetic, adorned with crystal-clear display panels that ensure vibrant and dynamic visuals.
Its cutting-edge technology enables seamless integration with a variety of media formats, bringing your content to life with impeccable clarity and brilliance.
With its robust construction and weather-resistant features, this billboard proudly withstands the test of time, operating flawlessly even in the harshest of weather conditions.
Rain or shine, your message will shine brightly, capturing the attention of passersby with its mesmerizing brilliance.
Boasting unrivaled flexibility, this remarkable signage billboard offers multiple connectivity options, allowing effortless management and content updates remotely.
Equipped with state-of-the-art software, you can easily tailor your advertising campaigns to target specific demographics and maximize engagement.
We understand the significance of professionalism in the business world, and our LED digital signage billboard exemplifies just that. Its sleek design seamlessly blends in with any outdoor environment,
making it an ideal choice for shopping malls, airports, stadiums, and other public spaces.
Embrace the power of captivating visuals and elevate your brand presence with our China Factory Direct Outdoor LED digital signage billboard.
Take advantage of its cutting-edge technology, robustness, and ease of use to create an immersive advertising experience that will leave a lasting impression.

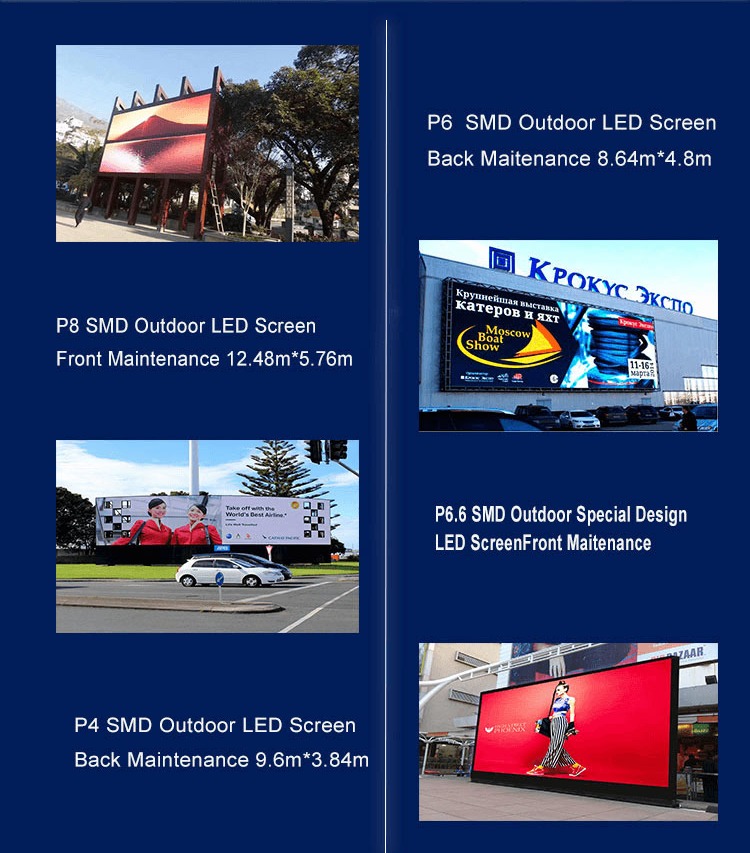

Applications:
Specifications:
|
Model
|
P5
|
P6
|
P8
|
P8
|
P10
|
|
LEDLamp Bead Model
|
Kinglight/Nationstar
|
Kinglight/Nationstar
|
Kinglight/Nationstar
|
Kinglight/Nationstar
|
Kinglight/Nationstar
|
|
Pixel Pitch(mm)
|
5mm
|
6mm
|
8mm
|
8mm
|
10mm
|
|
Pixel Density(Dots/㎡)
|
40000dot/m2
|
27777dot/m2
|
15625dot/m2
|
10000dot/m2
|
|
Pixel Configuration
|
SMD1921
|
SMD2727
|
SMD3535
|
SMD2727
|
SMD3535
|
|
Brightness (CD/㎡)
|
6000-8000cd/m2
|
6000-8000cd/m2
|
7500-10000cd/m2
|
7500-10000cd/m2
|
7500-10000cd/m2
|
|
Grey Scale（Bit）
|
13-16bit
|
13-16bit
|
13-16bit
|
13-16bit
|
13-16bit
|
|
Color Temperature
|
6500-12000K
|
6500-12000K
|
6500-12000K
|
6500-12000K
|
6500-12000K
|
|
Refresh Rate
|
1920Hz-3840Hz
|
1920Hz-3840Hz
|
1920Hz-3840Hz
|
1920Hz-3840Hz
|
1920Hz-3840Hz
|
|
visual angle
|
140°
|
140°
|
140°
|
140°
|
140°
|
|
Interface
|
HUB75
|
HUB75
|
HUB75
|
HUB75
|
HUB75
|
|
Module Dimension
|
320*160mm
|
192*192mm
|
256*128mm
|
320*160mm
|
320*160mm
|
|
Module Resolution (W*H)dots
|
64*32
|
32*32
|
32*16
|
40*20
|
32*16
|
|
Module Weight(G)
|
400g
|
320g
|
260g
|
440g
|
420g
|
|

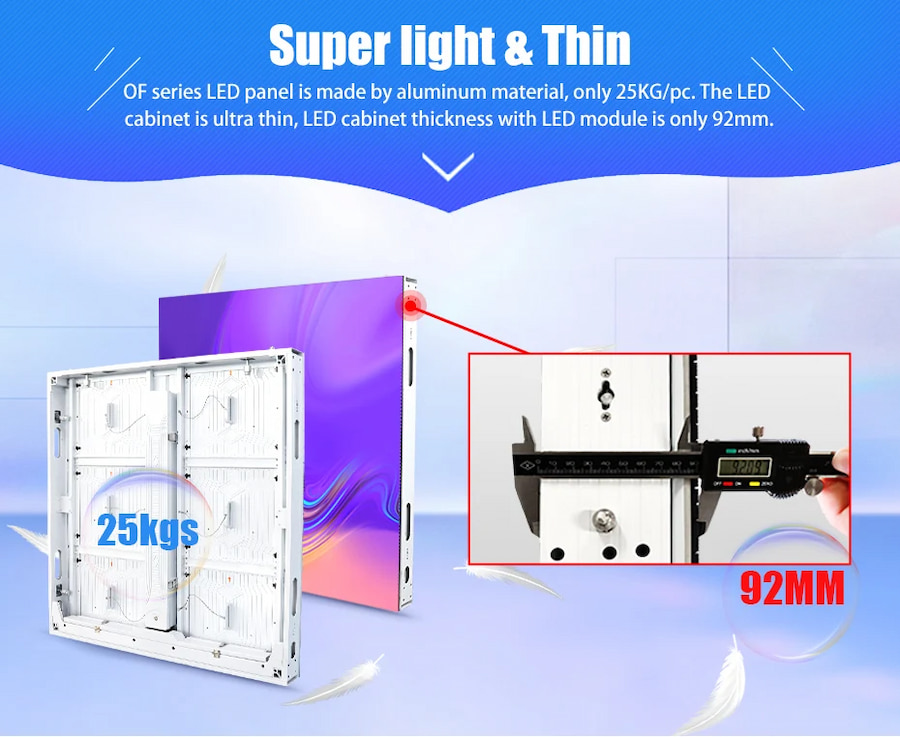

Panel Dimension(mm)
|
960*960*100
|
960*960*100
|
960*960*100
|
960*960*100
|
960*960*100
|
|
Panel Weight(KG)
|
25KG
|
25KG
|
25KG
|
25KG
|
25KG
|
|
Panel Resolution (W*H)
|
192*192
|
160*160
|
128*128
|
120*120
|
96*96
|
|
Input Voltage (AC)
|
AC90－240V
|
AC90－240V
|
AC90－240V
|
AC90－240V
|
AC90－240V
|
|
Working Voltage (DC)
|
DC5V
|
DC5V
|
DC5V
|
DC5V
|
DC5V
|
|
Module Maximum Current (AMPS)
|
7.8A
|
5.3A
|
5.3A
|
7.2A
|
7.8A
|
|
Maximum Power Consumption of Panel(W)
|
500W/m2
|
500W/m2
|
500W/m2
|
500W/m2
|
500W/m2
|
|

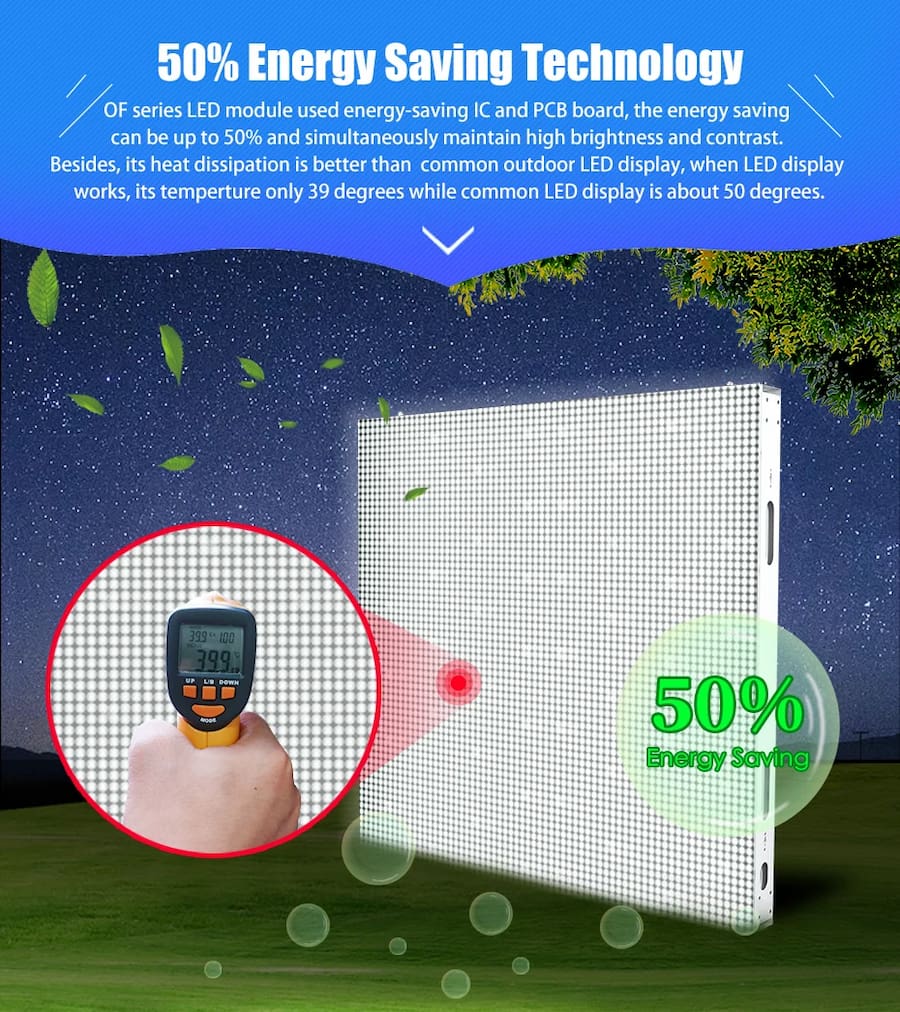

Average Power Consumption of Panel(W/㎡)
|
150W/m2
|
150W/m2
|
150W/m2
|
150W/m2
|
150W/m2
|
|
Use Environment
|
Outdoor
|
Outdoor
|
Outdoor
|
Outdoor
|
Outdoor
|
|

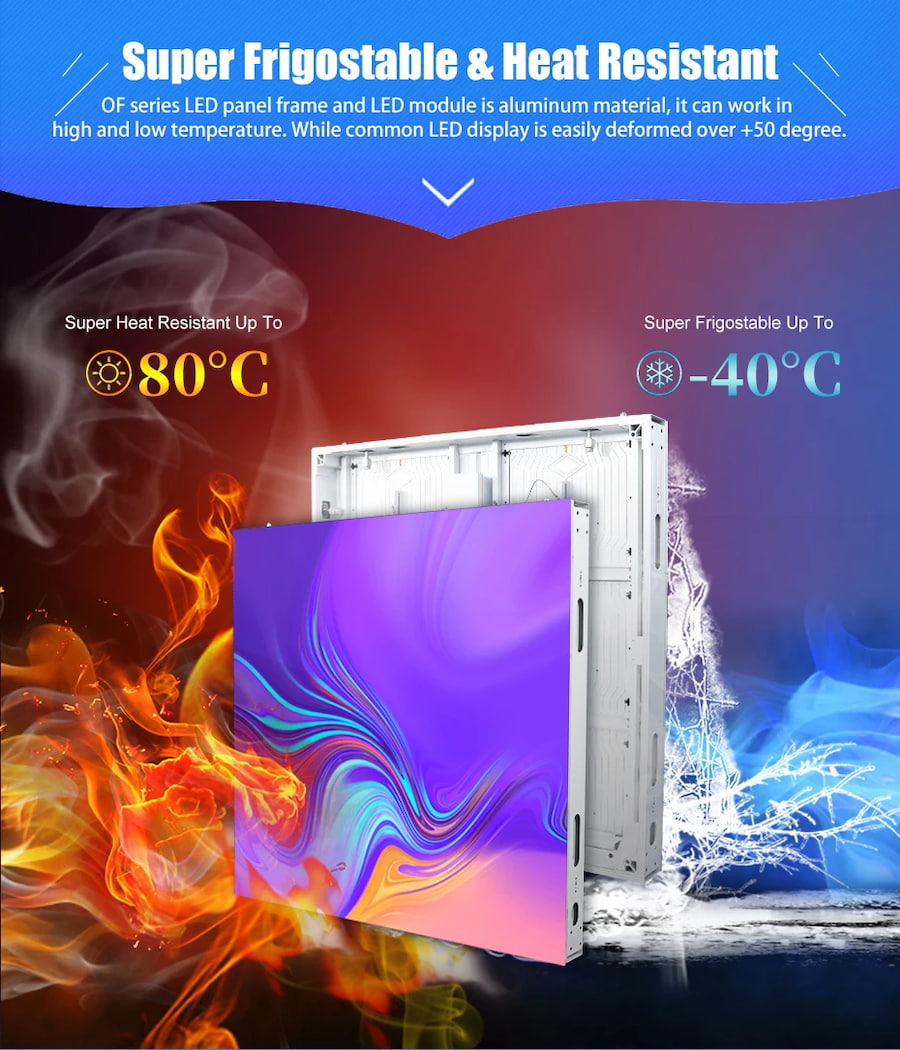

Operating Temperature(℃)
|
-40-80℃
|
-40-80℃
|
-40-80℃
|
-40-80℃
|
-40-80℃
|
|
Operating Humidity(RH)
|
10%-90%
|
10%-90%
|
10%-90%
|
10%-90%
|
10%-90%
|
|

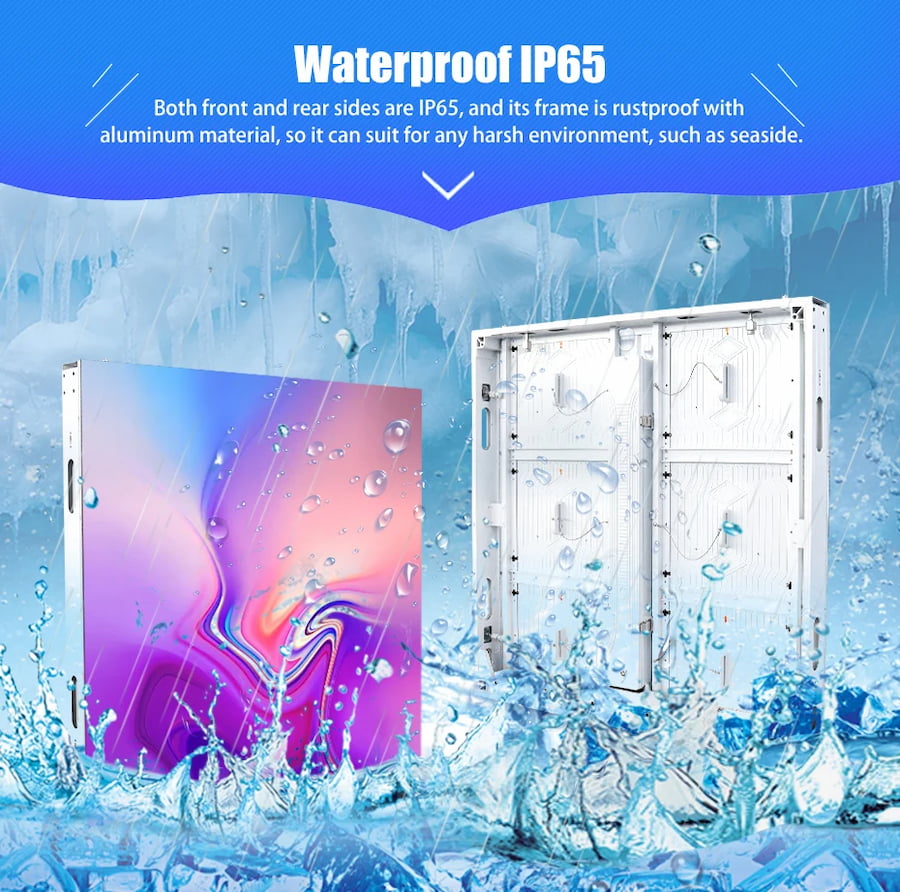

Protection Level
|
IP65/IP65
|
IP65/IP65
|
IP65/IP65
|
IP65/IP65
|
IP65/IP65
|
|

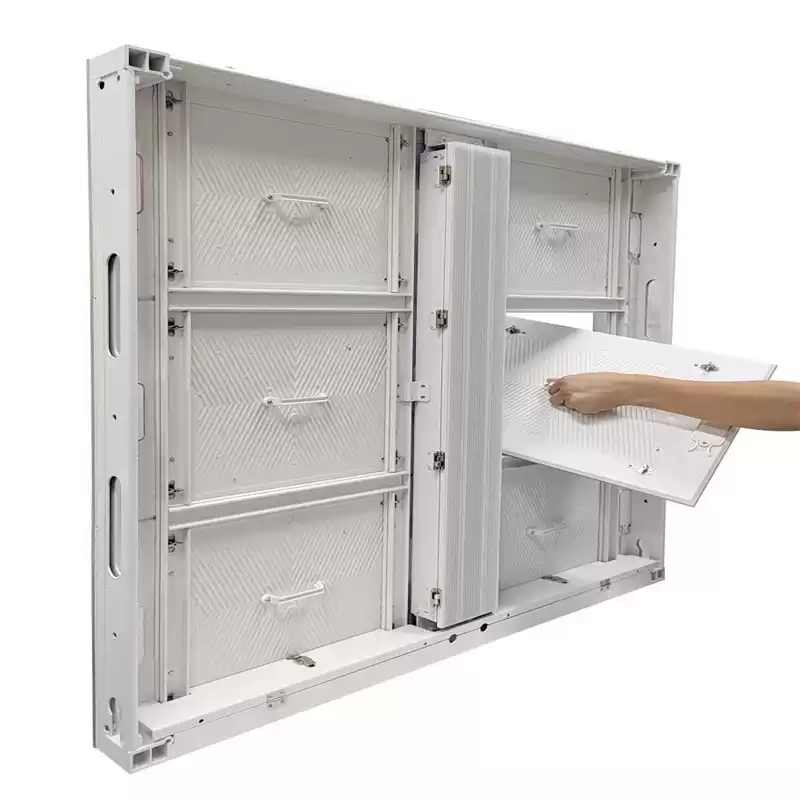

maintain
|
Pre and front maintenance
|
Pre and front maintenance
|
Pre and front maintenance
|
Pre and front maintenance
|
Pre and front maintenance
|
FAQ:
Q1: When is the delivery time?
A1: we will accomplish manufacturing within 10 days after receiving the deposit.
Q2: What is the payment method?
A2: We support a variety of payment methods, the most common is the TT.
Q3: Can it play HD video?
A3: Yes, we can.
Q4:Can I have a sample order for your company products?
A4: Yes, we welcome sample order to test and check quality. one set sample is acceptable.
Q5: What about the lead time?
A5: Sample order needs 10 days ,20 days for order quantity more than 100 units.
Q6: How do you ship the goods and how long does it take to arrive?
A6:We usually ship by DHL, UPS, FedEx or TNT for sample, It usually takes 3-5 days to arrive. Airline and sea shipping also optional for the qty order.
Q7: Is it OK to print my logo on product?
A7: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q8: How to deal with the faulty?
A8: 1.Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
2. we will send the extra parts along with the goods for you About the defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation
Q9: Do you offer guarantee for the products?
A9: Yes, we offer 2-5 years warranty to our products.
