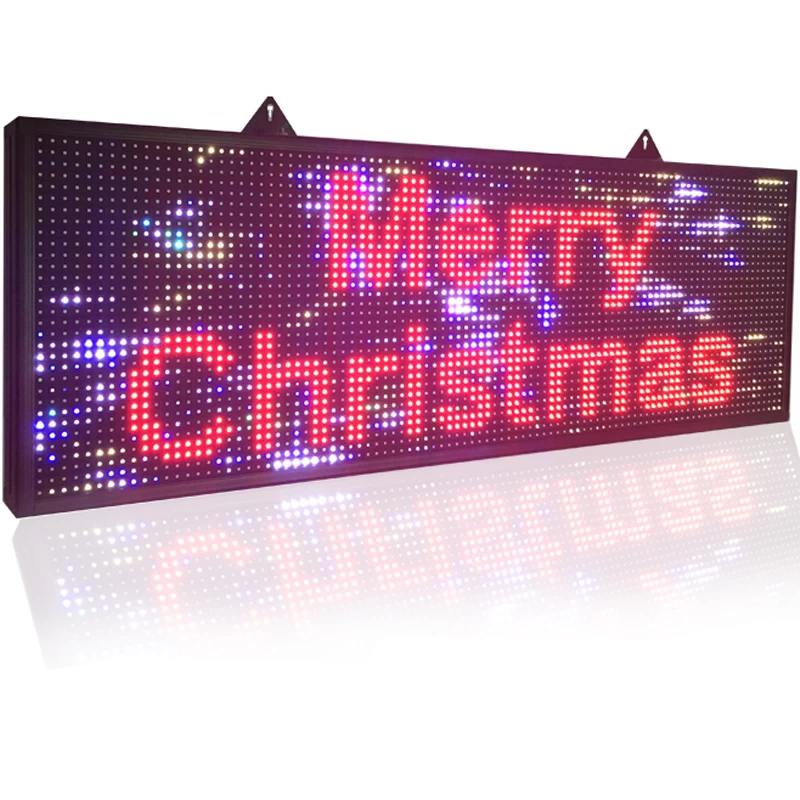

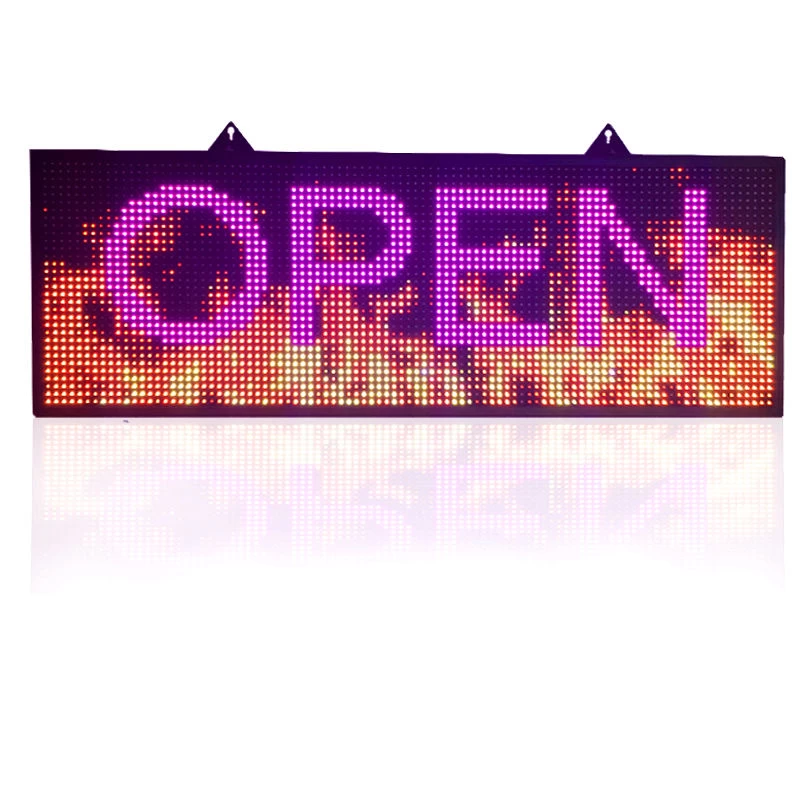

Full Color P10 Outdoor LED Sign Programmable Scrolling

P10 Size is 36x132 cm, 320 x 160 mm per LED module,Display Function:Date,Text, Temperature,Pixel:10mm,Video Display, Image & Text Display, Text Display, Market Display.Light weight die-casting aluminum cabinet.



With enriched industrial experience and knowledge, we are providing an excellent range of LED Scroll Boards. Widely demanded by hotels, restaurants, banks, commercial shops and others, the offered boards are manufactured using high grade inputs and latest technology in compliance and advanced technology. In addition to this, our offered signage boards are quality checked under the supervision of quality controllers, in order to ensure their flawlessness.

Specifications

1. Antiseptic and durable, can be used outdoor in all weather.
2. LED module has easy & simple installation interface and user friendly software to ensure the user
friendly interface of the LED display system.
3. With full aluminum alloy structure for light weight and waterproof advantages, BST outdoor LED display
is an perfect external multimedia LED display system designed for changeable and adverse outdoor
environment.

4.Energy Saving≥50%, Environment Protection

5.Free Back Service Path, Excellent Display Effect



Package including


*LED sign 1 PCS (size 132x36cm / 52x 14 inch)

*Signal connection cable

* Professional installation bracket

*USB with free software and English user manual


Feature & Function

P10 LED Module model
Color RGB
LED Type SMD
Module Resolution W32 X H16
Module Size(MM) W320 x H160
Driving Method 1/4 scan
Led display parameter
Voltage 220V or 110V ±10%
Material Outdoor Aluminum Frame Waterproof (IP45)
Cabinet Size (mm) W1320 x H360 MM (52x14 Inch)
Power Consumption Max (w/set) 100 Watt
Brightness(CD/㎡) ≥5500
Viewing Angle  120º/70º
Theoretic LED Working Life More than 100000 hours
Control Method USB control(network port,WIFI ,optional)
Display function Date, Text, Picture, Logo
