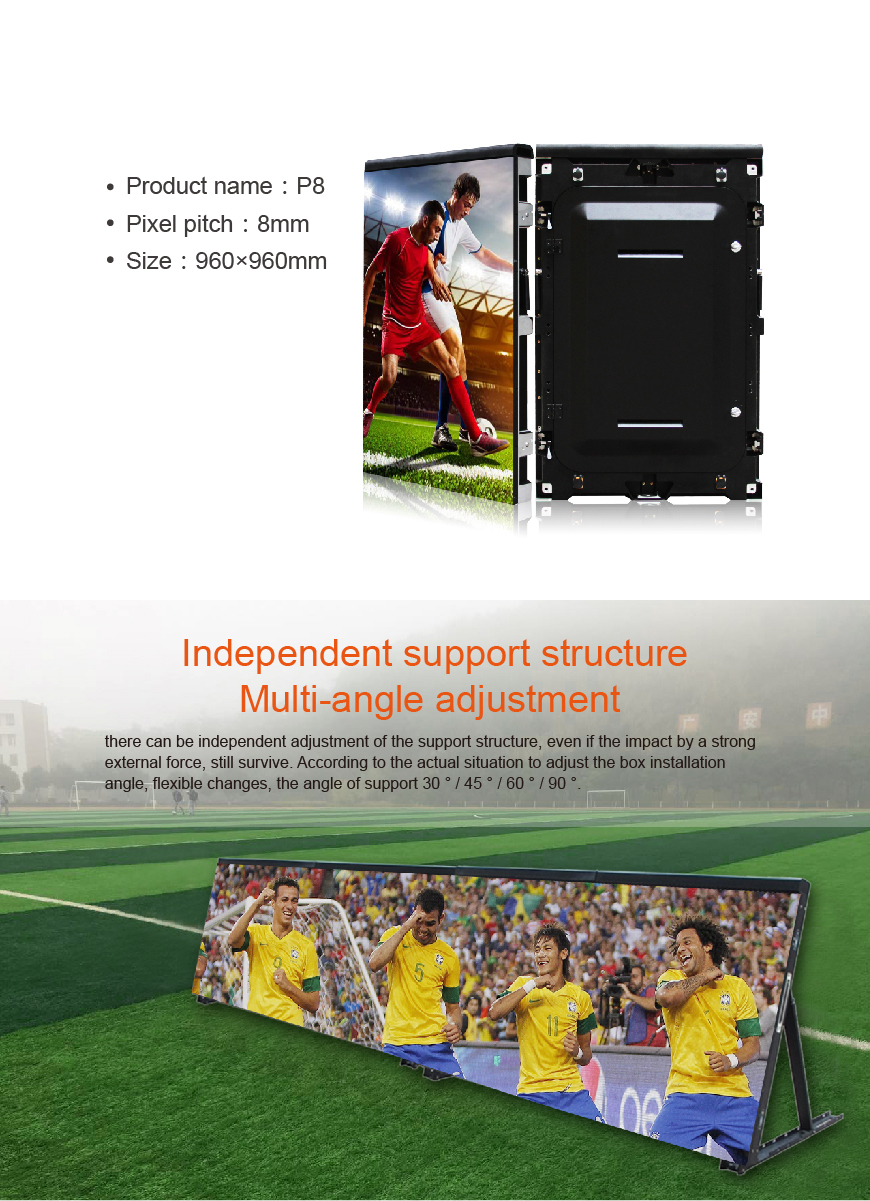

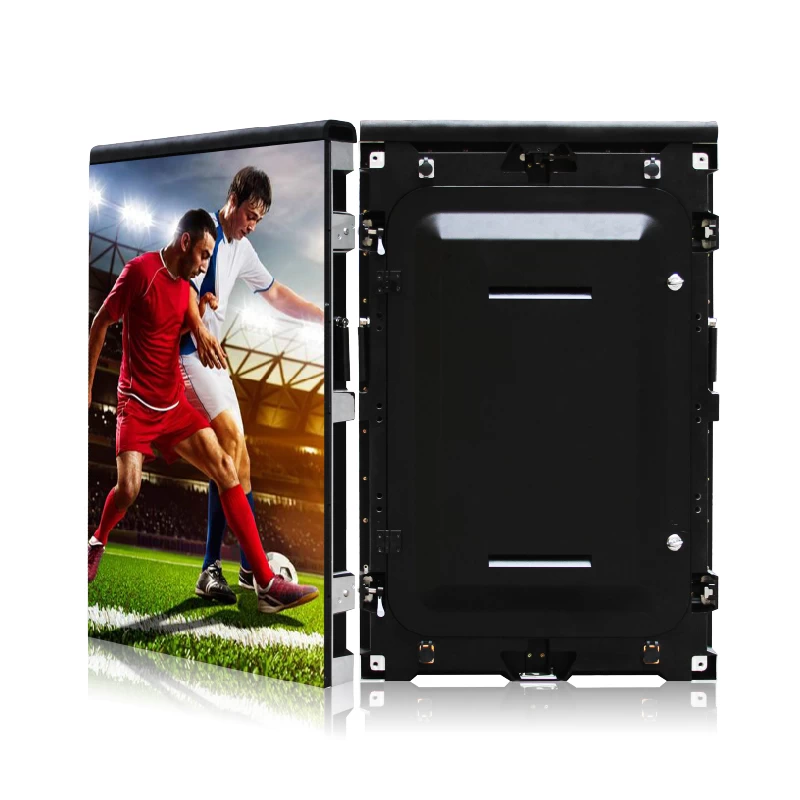

P8 Outdoor Football Stadium Perimeter LED Screen for Fixed Display Advertising
P8 full color outdoor LED Screen for stadium perimeter advertising displaying, with lower consumption, high brightness with more than 6000nits to meet the big football field environment. Big wide viewing angle can respond all the high definition football games image to the audience.
SPECS
Pixel Pitch
|
8mm
|
LED Package
|
SMD3535
|
Pixel Density
|
15,625 dots/㎡
|
Color Configuration
|
1R1G1B
|
Brightness
|
Up to 6000cd/㎡ @ white color
|
Refresh Rate
|

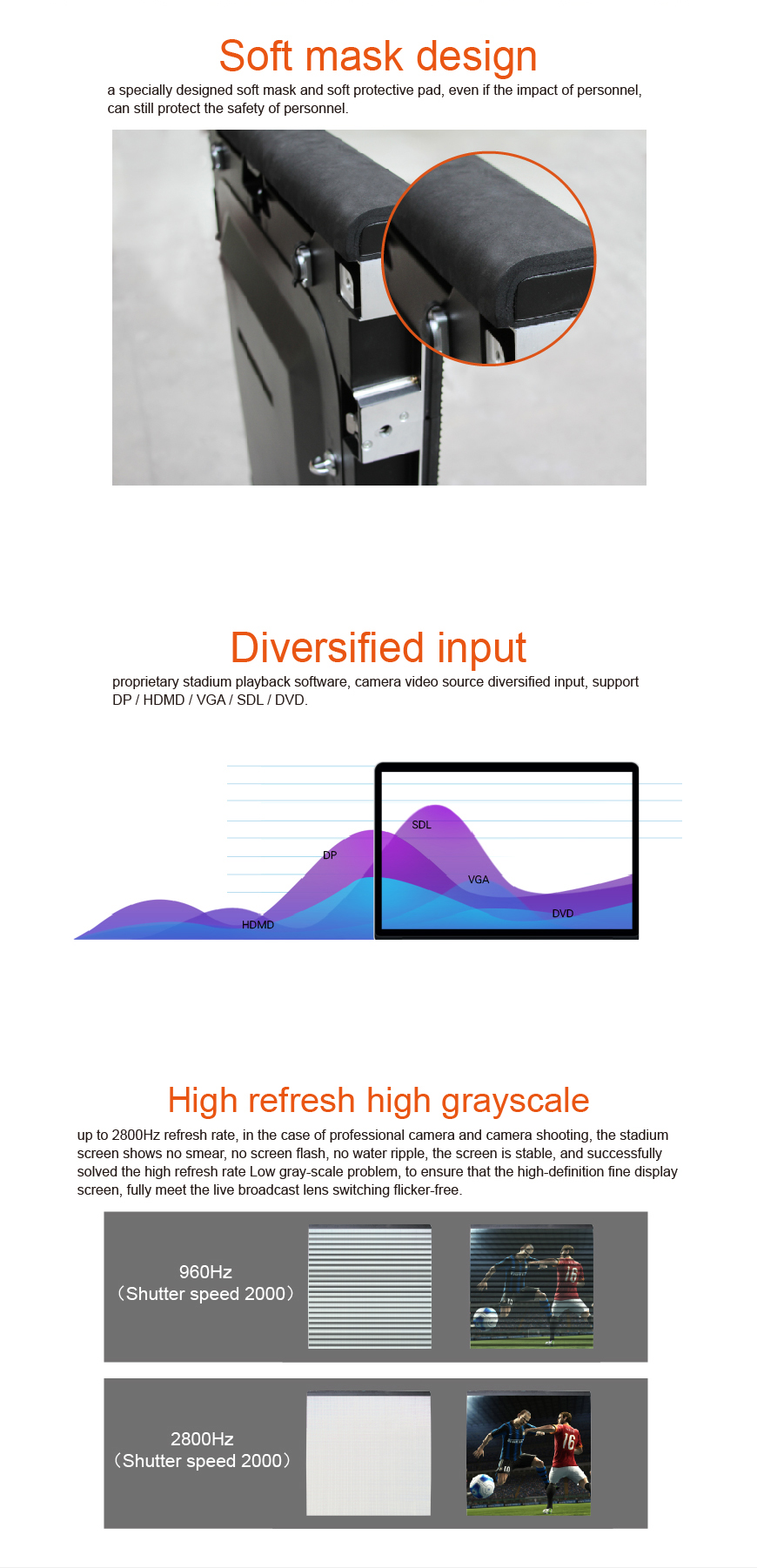

Up to 1920Hz/s, could be adjusted
|
Gray Scale
|
16.7M color (Synchronized)
|
View Angle
|
H:140°, V:120°
|
Module Size
|
320x160mm
|
Cabinet Size
|
960x960mm 640x960mm
|
Cabinet Material
|
Iron/Aluminum/die-casting aluminum
|
Viewing Distance
|
8-100M
|
Drive Mode
|
1/4 scan
|
|
Power Supply
|
AC220V/110V/50 Hz, or manual switch
|
|
Lifespan
|
100,000 hours
|
|
Trouble Free Time
|
10,000 hours
|
|
Working Temperature
|
-20°C + 65°C
|
|
Environment Humidity
|
10% ~ 95%
|
Control System
|
Linsn/Nova
|
