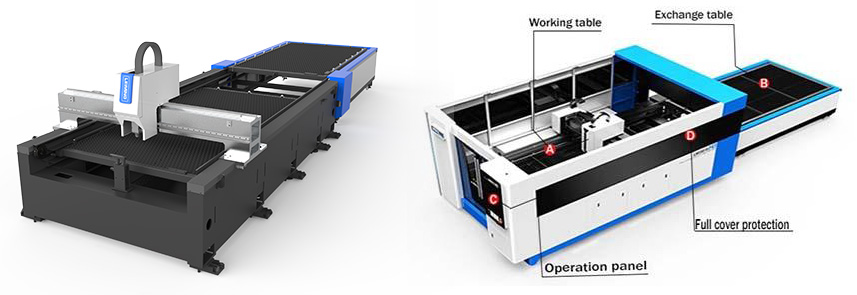

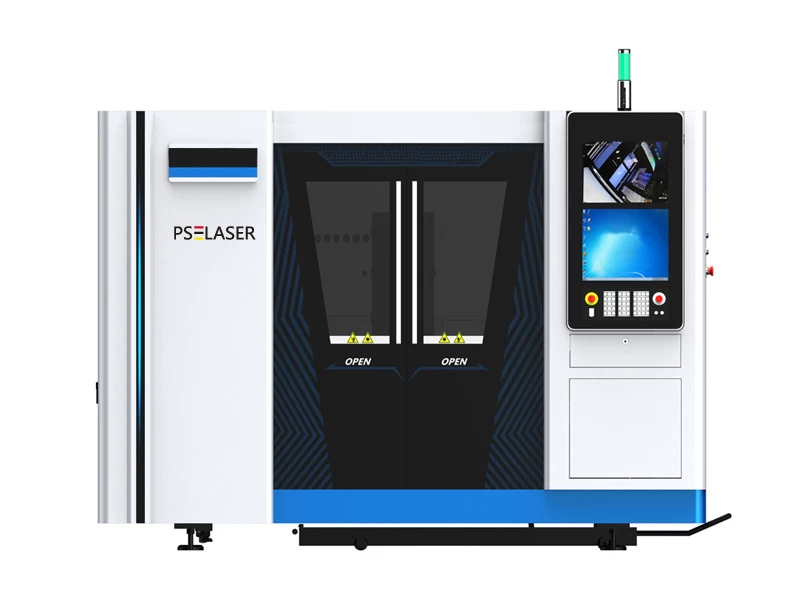

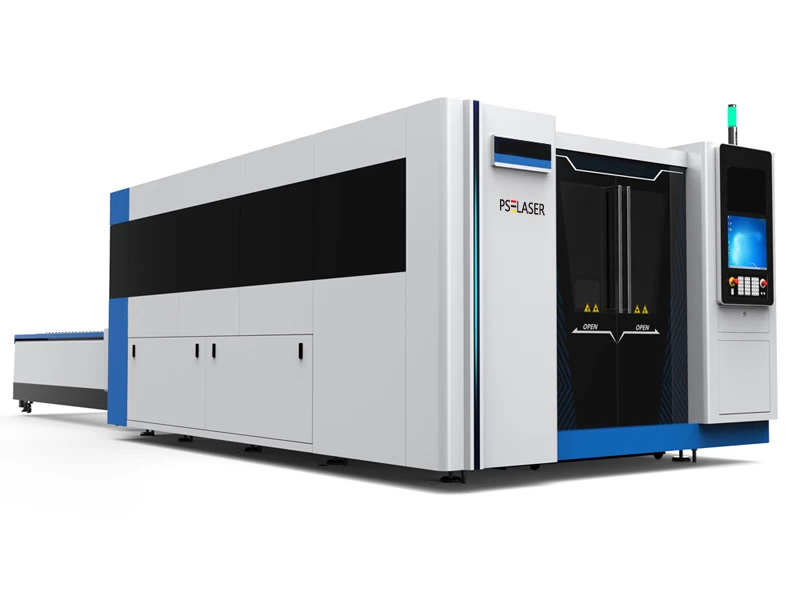

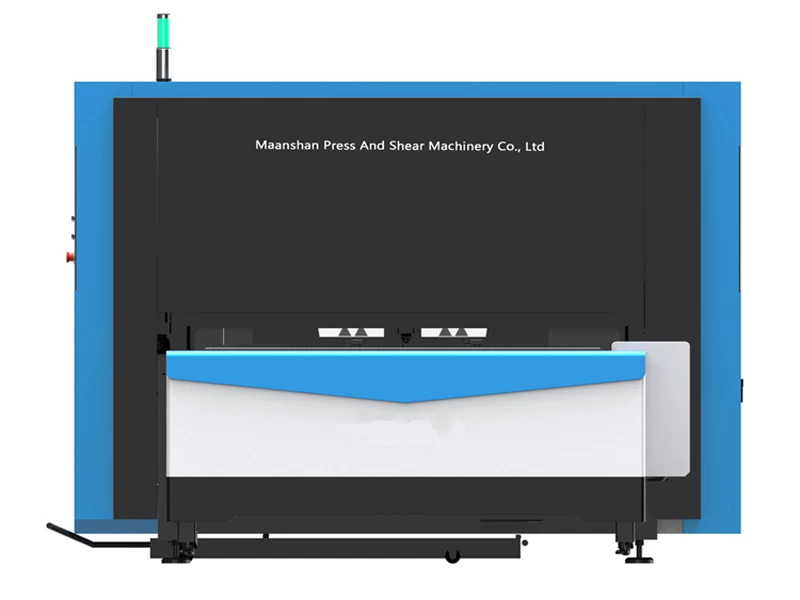

Product Item: Full Cover CNC Fiber Laser Cutting Machine
Configuration List:
|
Fiber Laser Source
|
Raycus/IPG
|
|
Fiber Laser Cutting Head
|
Raytools/WSX
|
|
Servo Drive System
|
Schneider/ Delta
|
|
Liner Guider System
|
Lapping/THK
|
|
Transmit System
|
Dual Rack & Pinion type
|
|
Pneumatic Component
|
SMC/AirTac
|
|
ElectricSystem
|
Schneider
|
|
Motor Reducer
|
Motovario
|
|
Nesting Software
|
Cypcut
|
|
Exhaust Blower
|
Included
|
|
Water Chiller Unit
|
S&A
|
Steel plate welding
Full Cover Laser Cutting Machine use Gantry welding machine tool with high temperature heat treatment and aging treatment to ensure a smooth and high-speed cutting equipment reliability
Cast Aluminum Beam:
Close Type Fiber Laser Cutting Machine With Cast aluminum beam experienced artificial aging treatment before the finishing machining, which makes its hardness level be T6, together with abrasion resistance and oxidation resistance. The beam is very light because of aluminum material, which makes the speed of manufacturing higher.
Fiber Laser Source
1. Fiber Laser Module
2. Low Energy Consumption: Save energy and protect environment
3. Photoelectric conversion rate is up to 25-30%
4. Low electric power consumption, it is only about 20%-30% of traditional CO2 laser cutting machine
5. Lifetime is more than 100,000 hours
6. Almost free maintenance.
Water Cooling system
Water cooling system, the temperature of the refrigeration unit in digital chart shows, while water temperature more than a specified temperature, it will automatically refrigeration; while water temperature below a specified temperature it will automatically stop.
Cutting Parameter:
Product Parameters:
|
Model
|
PS3015
|
PS4020
|
PS6020
|
PS6025
|
|
Working Area (L*W)
|
3000*1500 mm
|
4000*2000 mm
|
6000*2000 mm
|
6000*2500 mm
|
|
Laser Output Power
|
8000w/6000w/4000w/3000w/2000w/1500w/1000w
|
|
X/Y-axis positioning accuracy
|
± 0.05 mm
|
|
X/Y-axis repositioning accuracy
|
± 0.02 mm
|
|
X/Y-axis Max. linkage speed
|
130 m/min
|
Carbon Steel Cutting:
Stainless Steel Cutting:
