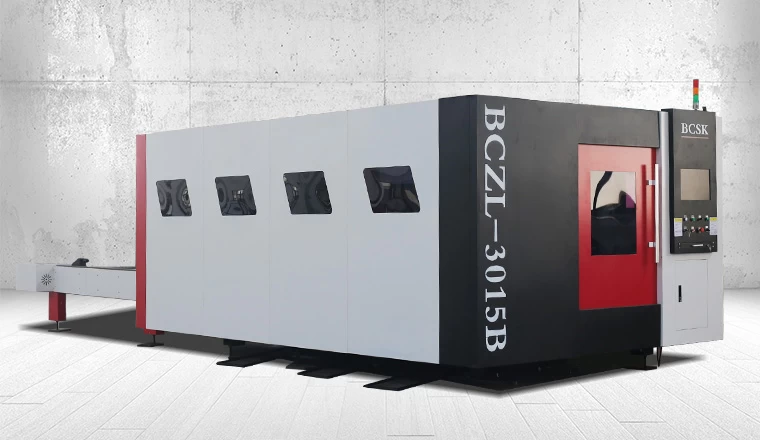

Auto feeding fiber laser cutting machine
Characteristics of our laser cutting machine
1. Fully protective cover reduces laser radiation;
2. Double exchangable tables save workpiece feeding time;
3. Adopt German ALPHA rack,speed reducer,the highest speed is up to 120m/min,and accelerated speed is up 1.5G.
4. Machine tool bed is processed by gantry milling machine and is formed at one time.
5. The whole machne is tempered at high temperature,the internal stress is eliminated with the furnace coling.
6. Using double rack rails,double servo drive structure.
7. Improving the stability and rigidity of the Y axle beam
8. The high precision and high dynamic performance of the Y axle beam movement is ensured.
9. The Y axle beam runs at high speed and smoothly, greatly reducing the consumption of gas.
|
Product Parameters
|
|
Brand and manufacture
|
BCSK LASER
|
Machine Model
|
BCZL-6020
|
|
working area
|
2000*6000mm
|
Laser power
|
Selectable
|
|
Machine weight
|
8500KG packing
|
Fiber laser Generator
|
Max,IPG Brand,nLIGHT,ect
|
|
Laser wavelength
|
1070mm-1080mm
|
Laser Beam quality
|
<0.373mrad
|
|
Worktable
|
Sawtooth with pneumatic easy
moving attachment
|
Fiber Laser cutting head
|
Switzerland Raytools auto focusing
|
|
Focus lens
|
Raytools
|
Working life of fiber module
|
More than 100000 hours
|
|
Motors & Drivers
|
YASKAWA servo motor made in
Japan or other imported
|
Reducer
|
Japan Shimpo
|
|
Guide Rails
|
High accuracy linear brand from
Taiwan
|
Transmit system
|
DUAL drive rack and pinion 4 Focus lens
|
|
Chain system
|
Enclosed high quality
|
Water Chiller
|
Hanli or Tongfei
|
|
Control system
|
Professional laser control
system--Cypcut
|
Position type
|
Red Dot pointer
|
|
Cutting thickness
|
≤5mm(stainless steel)
|
Max. Idle Running Speed
|
100M/min
|
|
≤12mm(carbon steel)
|
|
Geometric Position Accuracy
|
within ±0.08mm/M
|
Max Cutting Speed
|
32M/Min
|
|
Reorientation accuracy
|
within ±0.05mm/M
|
Lubrication system
|
Auto Electrical motored,wholly and sound
|
|
Min. Line Width
|
±0.02mm
|
Power Consumption
|
10-13KW total
|
|
Power supply Voltage
|
380V/50Hz/60Hz
|
Auxiliary gas system
|
Japan SMC series components, dual air inlets,
low pressure piercing , automatic pressure
adjustment and switching
|
|
Auxiliary Gas for cutting
|
Oxygen, Nitrogen, Air
|
Compatible software
|
Autocad, Coreldraw, etc
|
|
Graphic format
|
DXF/PLT/AI/
|
Working method
|
Industrial PC control with console desk and
romote
|
|
Total power protection rating
|
IP54
|
|
|

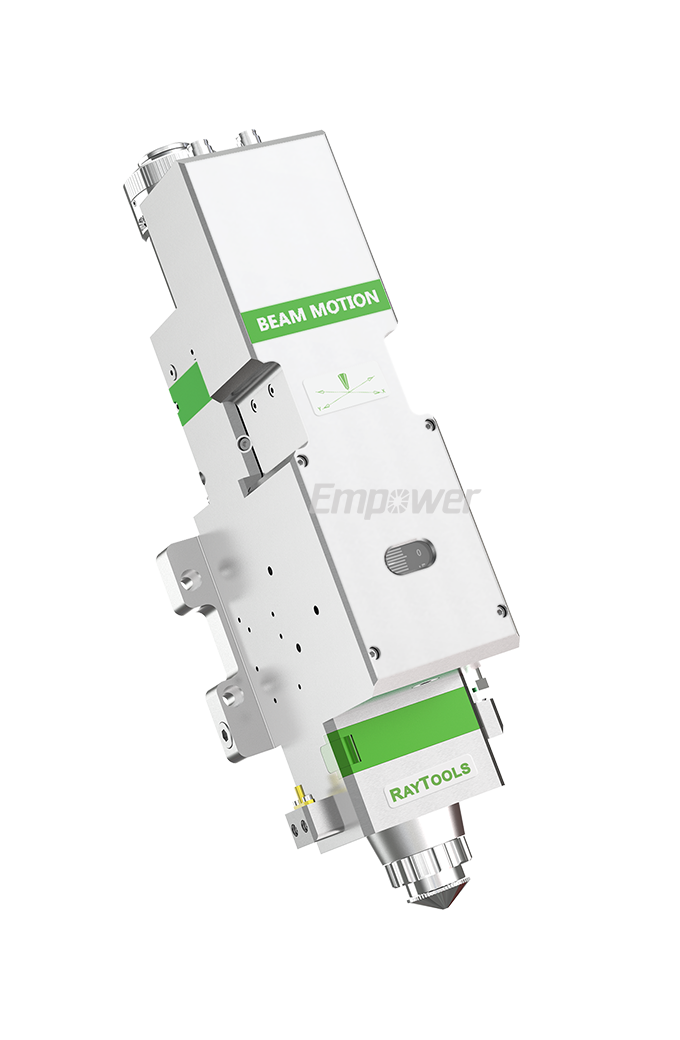

Raytools high precision auto focusing laser cutting head

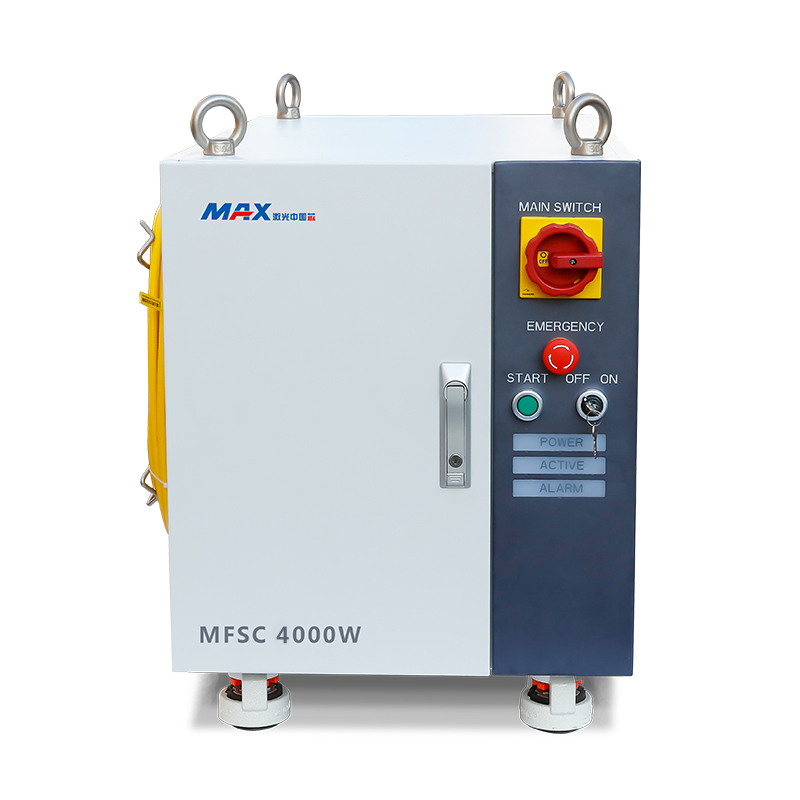

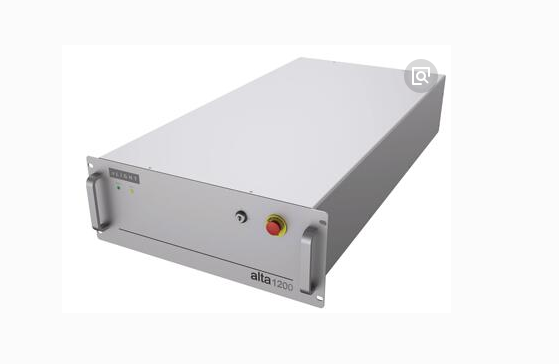

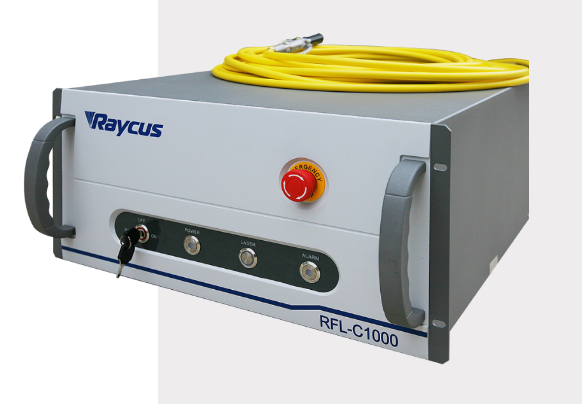

All kinds of laser generator brands can be chosen by you. Our commonly used brands are nLIGHT, IPG, GW, Raycus, MAX, etc.

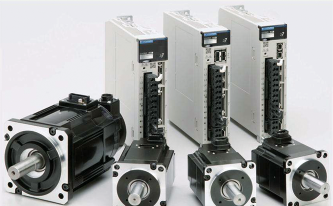

The Japan Yaskawa servo motor and imported transmission system, ensure the precision of operation and reliability of the equipment.
Japan“Shimpo”reducer,3 arc precision, flange connection.or German ALPHA rack,speed reducer
Appicable Industry and Cutting Samples
This machine is widely used in various industries such as advertising decoration,kitchen ware,engineering machinery,steel and iron,automobile,metal plate chassis,air-conditioner manufacturing,metal plate cutting,etc
