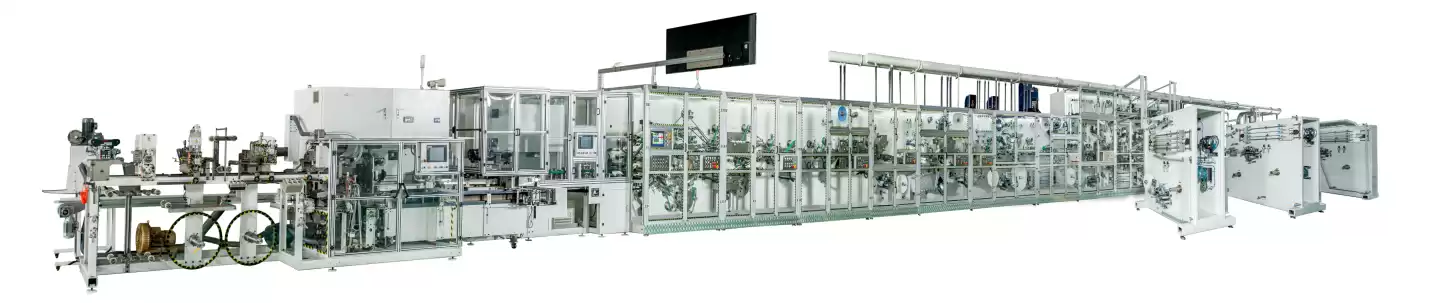

Main Parameter
1、Overall size：30m×6.5m x 4m（for reference only）
2、Machine size：20m ×4.5m ×3.5m（based on the product provided by client）
3、Design speed：1000 pcs per min
4、Work speed：800 pcs per minute
5、Rejection rate：≤2%(excluding scrap caused by hot melt，materials splicing or joint）
6、Power source：380V，50/60HZ（3phase.4lines+ground wire）
7、Machine capacity：290kW approximately
8、Air pressure：0.6-0.8Mpa
9、Machine weight：50Tons approximately
Configuration
1. Servo inverter drive
2. Pulp unwinding stand
3. Cell mill with single in-feeding pulp
4. Interval drum forming unit
5. SAP mixed applicator
6. Core compacting unit
7. Core forming cutting unit
8. Upper and bottom tissue unwinding devices
9. Top NW and laminated back sheet unwinding devices
10. Back release paper unwinding and splitting device
11. Final cutting unit
12. Reject gate
13. Bag type dust collection system
14. Product ordering output device
