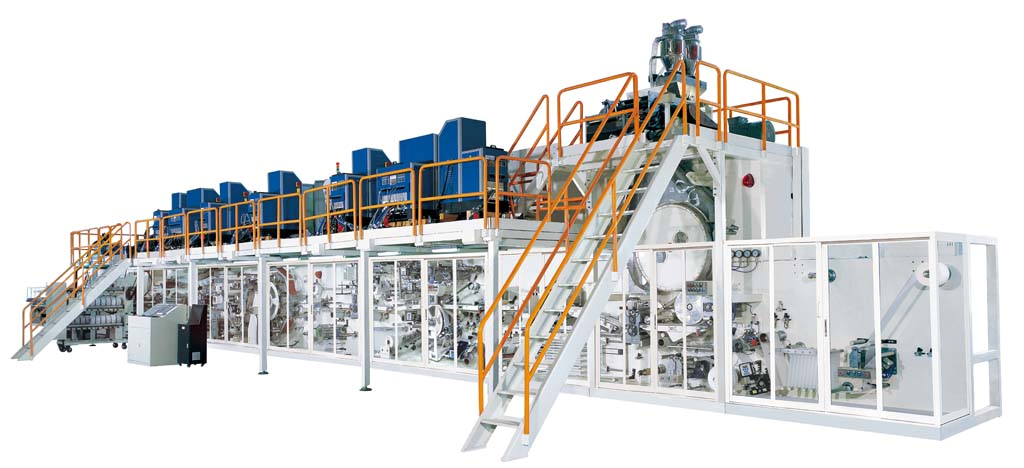

Main Parameter:
1.Volume(million pieces/year) |
40-140 million pieces |
2.Designed Speed |
300pcs/min (M) |
3.Stable Speed |
200pcs /min |
4.Center distance of production line |
The distance between the material center line of the product and the mounting panel of the frame is 300mm. |
5.Passing rate |
≥ 97% (Not include the glue applicator, Auto Splicing) |
6.Power Supply |
3 phase, 5 wires (380v, 50HZ) |
7.Power Installed |
≥400KW |
8.Power Used |
About 350KW |
9.Electric wire |
3×120mm2+1×50mm2+1×25mm2 |
10.Compressed Air Supply |
0.6~0.8Mpa |
11.Compressed Air Absorption |
4000 Nl/min, air circle separate into 3 ways, (Glue/Valve/Machine other position ,separately use air) |
12.Machine Size |
45.0m× 8.0m× 4.0m(L× W× H ) |
13.Working Size |
50m× 11.0 ´5.0m (L× W× H ) |
14.Machine Weight |
about 100t (whole production line) |
15.Machine Color |
SL Green ( confirm with customer) |
16.Machine Direction |
From Right to Left (can be designed as customer’s demand) |
17.Containers |
8´ 40 HQ containers |
Environmental Data |
|
1.Temperature |
10 - 35°C |
2.Humidity |
55% RH ±5 |
3.Noise Level (Measured at a distance of 1 meter) |
≤ 87 dB |

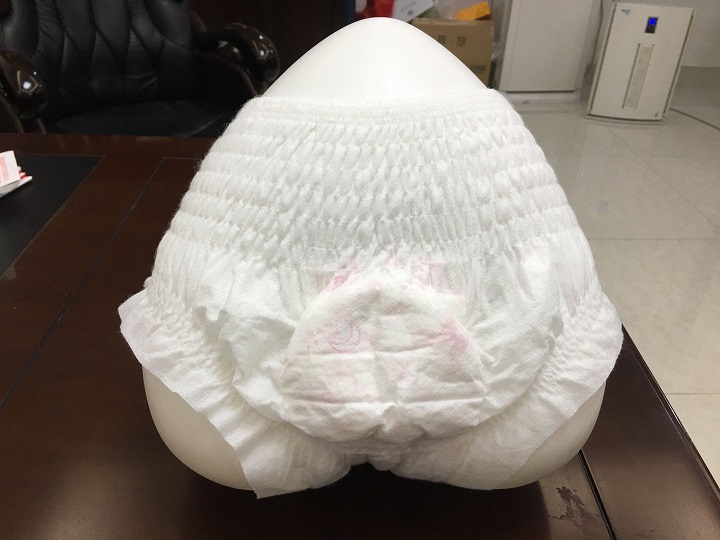

Finish Product Size |
|
M |
L |
Product length/Core length
|
mm |
660/530 |
760/530 |
Fluff Core Size: Length*Width (Fluff crotch width) |
mm |
480*150-(110mm) |
480*150-(110mm) |
Second Core Size: Length*Width |
mm |
280*80 |
280*80 |
Waist height (Front/back) |
mm |
550 |
700 |
Waist elastic front |
Line |
10 |
10 |
waist elastic back |
Line |
13 |
13 |
