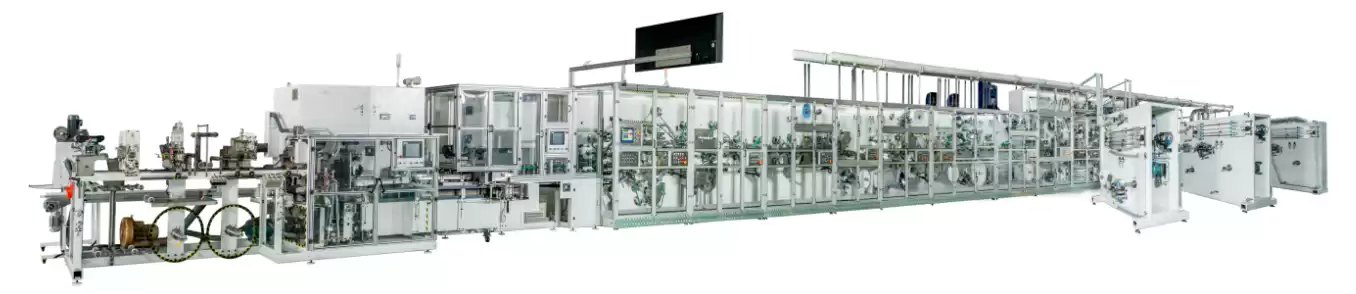

Main Parameter
1、Overall size：40m×8.5m x 4.5m（for reference only）
2、Machine size：30 m×7.5m ×3.6m（based on the product provided by client）
3、Design speed：400 m per minute
4、Work speed：300 m per minute
5、Rejection rate:≤2%(excluding scrap caused by hot melt，materials splicing or joint）
6、Power source：380V，50/60HZ（3phase，4lines+ground wire)
7、Machine capacity：300kW approximately
8、Air pressure：0.6-0.8 Mpa
9、Machine weight：86.5 Tons approximately
Configuration
1、Product structure:upper tissue paper, lower tissue paper,top sheet,cotton core,SAP, PE film
2、Product size：L: 450 mm，W: 600 mm; L: 600 mm, W: 900 mm, to be customized.
3、Program system:Servo driven，intelligent HMI touch screen man-machine interface.
4、Tension system:Tension control with buffer system，automatic web guiding system，to ensure materials stable working at ZERO speed splice.
5、Driven system:Servo drive，digital size change，ensure run synchronously at full process.
6、Safety system:Safety guard for operating side，emergency stop switch，security identifier.
safety pull wire at driven side.
7、Packaging system:Auto stacker（dual push dual exit)and auto bagger to be defined by customer need
8、Web guiding system:Germany BST/USA FIFE.Customized function available

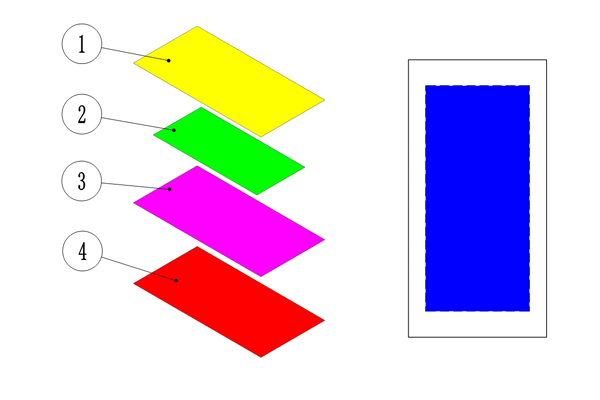

Product structure
|
1.Top sheet non woven
|
|
2.Cotton core(absorbent paper)
|
|
3.Lower tissue paper
|
|
4.Back sheet non woven+ PE film
|
