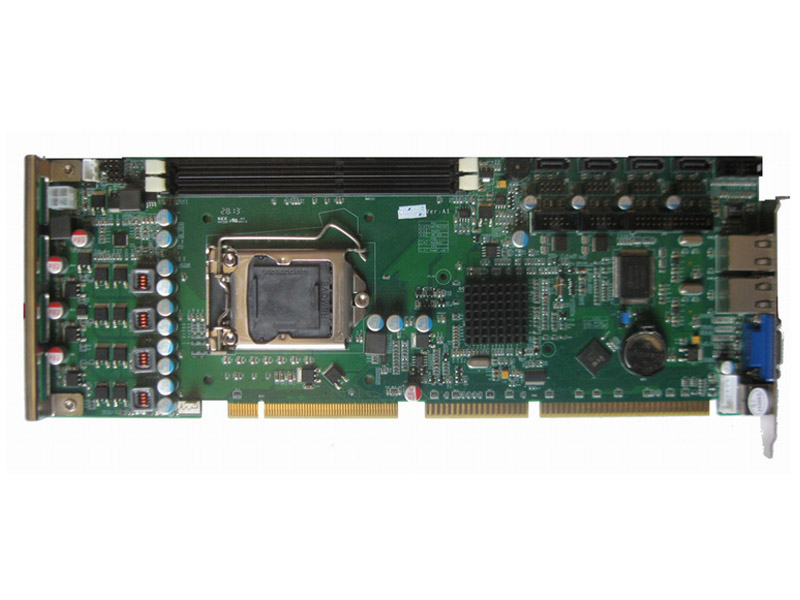

Full size Industrial Motherboard LGA1155 PICMG1.0
Product Introduction
This outstanding multi-function embedded motherboard is integrated with the Intel LGA 1155 architecture Celeron, Pentium, i3 i5 i7CPU, Intel B75 chip to deliver stunning UHD 4K resolution and fast 3-D and video playback for graphics-intensive applications. To ensure stable and reliable operation, the high-performance Intel® Core™-based industrial micro ATX motherboard supports a watchdog timer and hardware monitoring features. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the motherboard provides daily users and DIY PC builders a range of performance tuning options via included software and hardware.
Product Features
■ Support for Intel LGA 1155 architecture Celeron, Pentium, i3 i5 i7CPU, Intel B75 chip
■ Support for 2 DDR3-1066/1333/1666 memory up to 16GB
■ 2LAN 2COM 8USB
■ PICMG1.0 full length
■ LPT pin on board
■ Support for watchdog, diskless startup, network wakeup, power on and timing
System
|
CPU/GPU
|
Support for Intel LGA1155 architecture i7, i5, i3, Pentium, Celeron.
|
|
System on Chip
|
Intel B75
|
|
Memory
|
2×memory slot, supports maximum DDR3 memory to 16GB
|
|
Storage
|
4×SATA
|
|
Sound card
|
Realtek ALC662, supports 5.1 channels
|
|
Ethernet
|
2×Realtek RTL8111E network card chip, PCI-E bus gigabit network card
|
|
Display
|
CPU integrated graphics card
|
|
LVDS
|
VGA
|
|
Double display
|
None
|
|
COM
|
2×COM RS-232
|
|
USB
|
8× USB
|
|
BackplaneI / O
|
2RJ45，VGA，PS/2KM
|
|
BoardI / O
|
2×COM pin，8× USB pin，1× LPT pin，1×front panel pin,，1× buzzer
1× front audio pin，1× CLR_CMOS pin
1× 24PIN ATX power outlet, 1×4-PIN CPU power outlet,
1× CPU fan power supply socket,, 1×system fan power outlet
|
|
Expand
|
PICMG1.0 (PCI bus+ISA bus）
|
|
Specific function
|
Support for watchdog, diskless startup, network wakeup, power on and timing
|
Mechanical & Environmental
|
Power supply
|
ATX
|
Heat dissipation
|
Fan
|
Size(L×W)
|
338mm×122mm
|
|
Working temperature
|
-10~55℃
|
Storage temperature
|
-40~75℃
|
Environmental humidity
|
0~95%air humidity,no condensation
|
|
Packing list
|
ATX-G41V2NA-6 motherboard×1； SATA data line×2； COM line×2； parallel line×1； drive disc×1
|
|
USB line×1； sound card line×1
|
Application area
Industrial control computer, industrial automation, numerical control equipment, etc.
Order information
|
FSB-G41V2A
|
B75 Chip full size card motherboard, double network 2 series 8USB
|
Our Advantages
1. As a professional manufacturer/ OEM Factory and supplier of Mini PC/ motherboard,firewall appliance over 15 years,Affinicate member of intel League.gain greatly supports from intel.And we win our customers with good quality,best service and factory price.
2.Our products are 100% original and have strict QC inspection before shipment.
3.Professional and efficient sales team to serve for you diligently.
4.Sample order is welcomed and will be delivered within 1-3 days.
6.We support Trade Assurance to ensure On-time shipment and product quality.
7.We provide OEM/ODM service according to your requirements.
8.We provide 2 years maintenance warranty for our products.
FAQ
1.Q: What's the Minimum Order Quantity(MOQ)?
A: Just 1 piece is OK.
2.Q: Are you a factory or a trading company?
A: We are one of the professional computer manufacturers located in Shenzhen, China.
3.Q: What about the after-service?
A: Two-year warranty except human error. As for the following 2 years, we can repair it for free, but charge for parts is needed. please contact us at any time when necessary. We besides our professional technicians are at your service.
4.Q: Can you provide DIY/OEM/ODM service?
A: Yes, please advise the CPU, memory, SSD or HDD, WIFI, interface ports and OS, the package box and housing(outer shell)as you wish, prices will be varied according to the quantity and specification.
