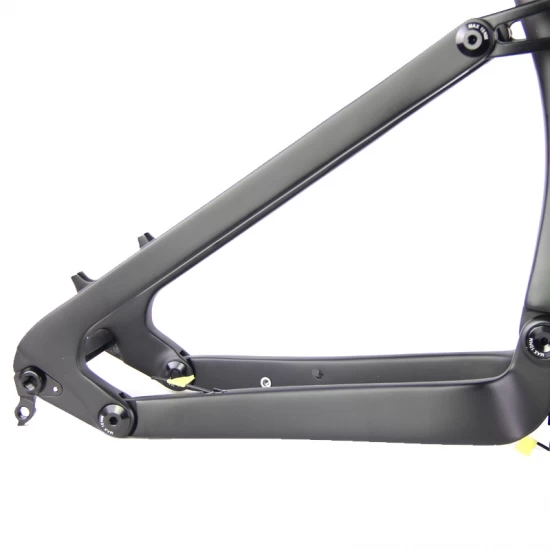

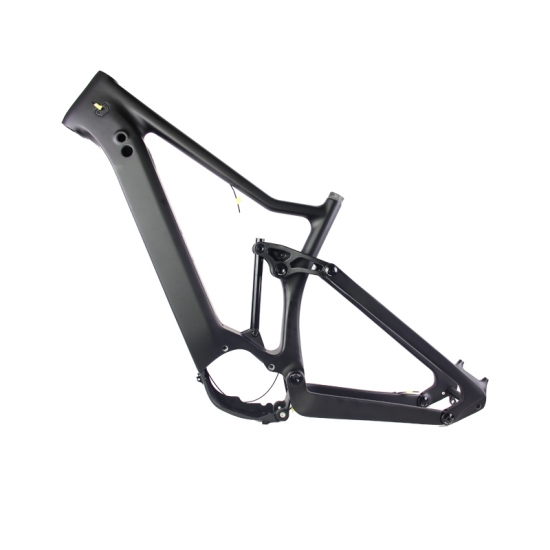

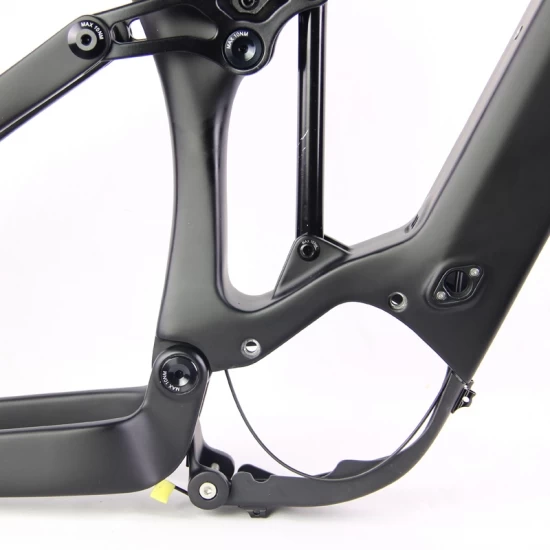

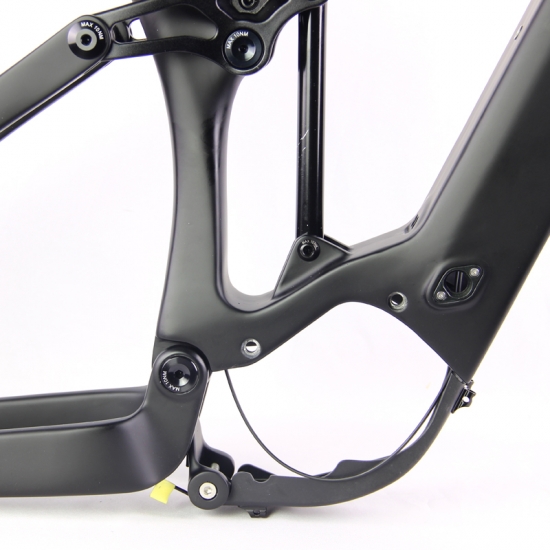

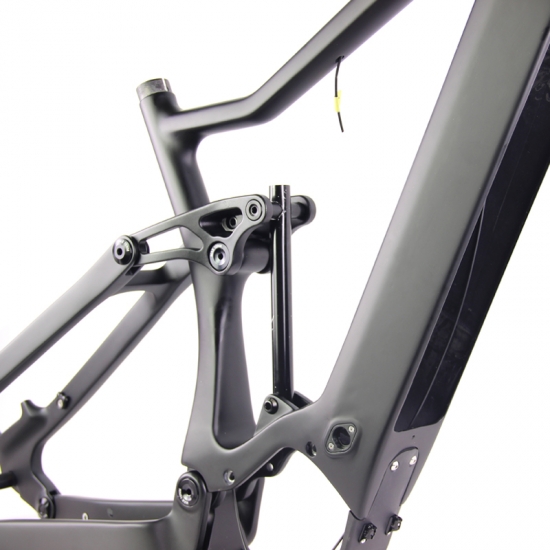

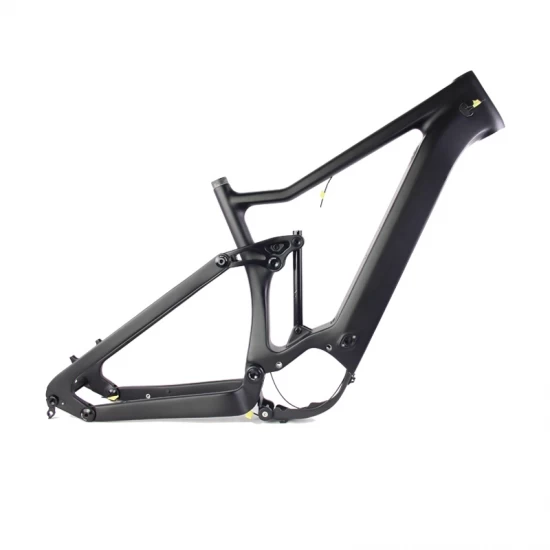

Full Suspension Carbon Electric Mid Drive Ebike Frameset E861
- 27.5 plus full suspension Enduro ebike frameset
- 12*148mm plus thru axle
- Shimano E8000 mid drive unit
- Darfon battery E4C0C-001(504Wh)
- 185*55mm rear shock
- 150mm front travel, 150mm rear travel
E861

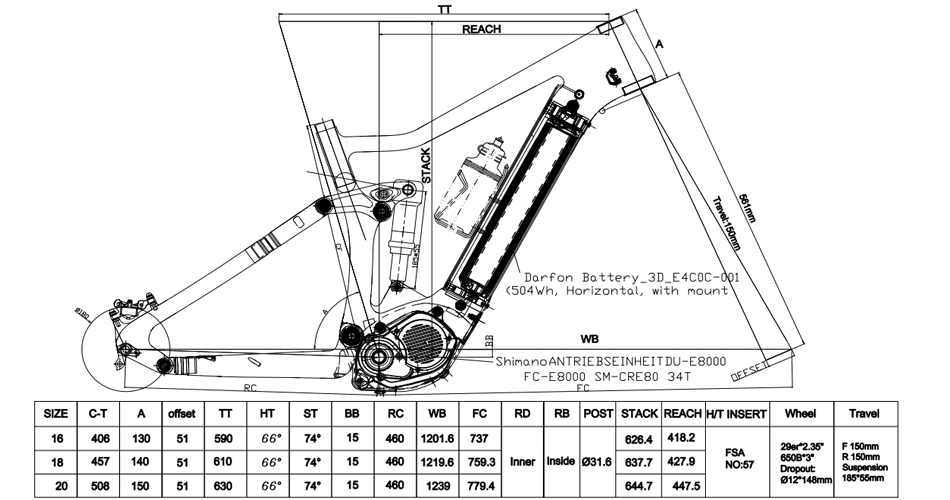

| Frame | Full suspension Enduro ebike mountain bike frame |
| Material |
High modulus Toray T700 carbon fiber |
|
Size |
Small, Medium, Large |
| Headtube |
Tapered 1 1/8 "- 1 1/2"head tube, upper 42mm lower 52mm (Headset standard FSA No.57ACB) |
| Weight | 2900g/Medium |
| Seatpost Diameter |
31.6mm(34.9mm clamp) |
| Bottom Bracket | Shimano steps E8000 drive unit |
|
Battery |
Darfon battery E4C0C-001(integrated inside the down tube) |
|
Chainring set |
SM-CRE80 |
| Max Tire Clearance | 650b*3.0'' and 29er 2.35'' |
| Brake Type | Post Mount Disc brake 180mm |
| Dropout | Thru Axle 12*148mm plus |
| Max Chainring | 34T |
| Test Standard | ISO4210 |
| Warranty |
2 years |
| Travel | 150mm front, 150mm rear |
