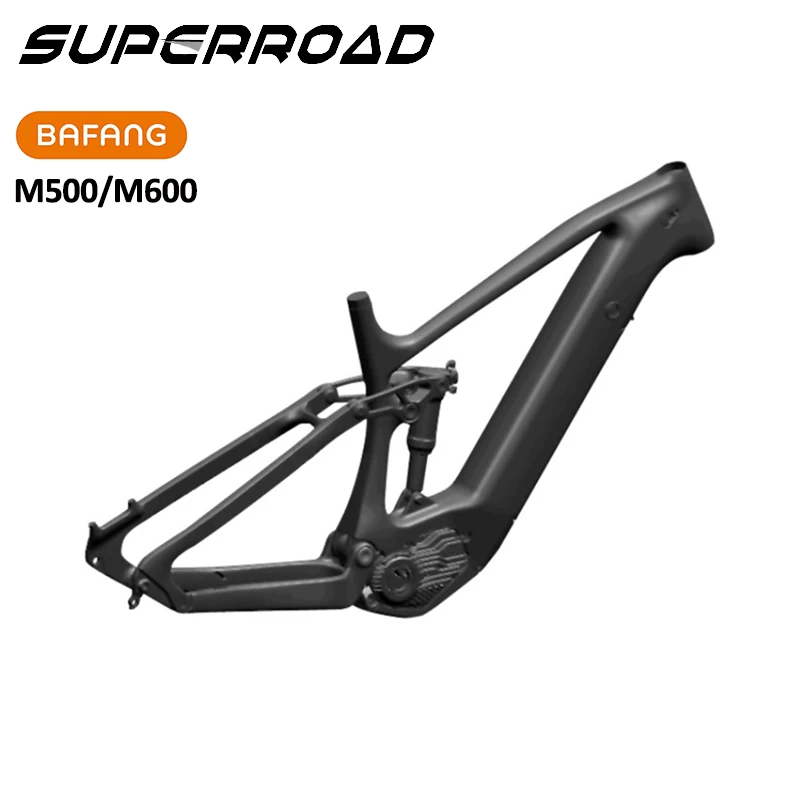

SUPERROAD Full Suspension Mid Drive Enduro Carbon Ebike Frame Fit Bafang M500/M600 Motor
Model: EBM03
Material: Toray Carbon T800
Size: 16''/18''/20''
Head Tube: FSA NO.57 ( Tapered 1 1/8 "- 1 1/2"head tube )
Seat Post: 31.6mm fit 34.9 seat clamp
Cable Routing: Internal Cable Routing
Front Travel: 150mm
Rear Travel: 150mm
Max Tyres: 29er*2.35'' , 27.5er*3.0''
O.L.D: TA 12*148mm
Motor System: Bafang M500 ( 250W 95Nm, Intergrated Hidden Battery)
Bafang M600 (500W 120Nm)
Battery: BTF 03/BTF 04
Max Chainring: 34T
Rear Shock Size: 185*55mm
Weight: 3350+/-30g (18 size)
Cutom Painting: Available
Warranty: 2 Years

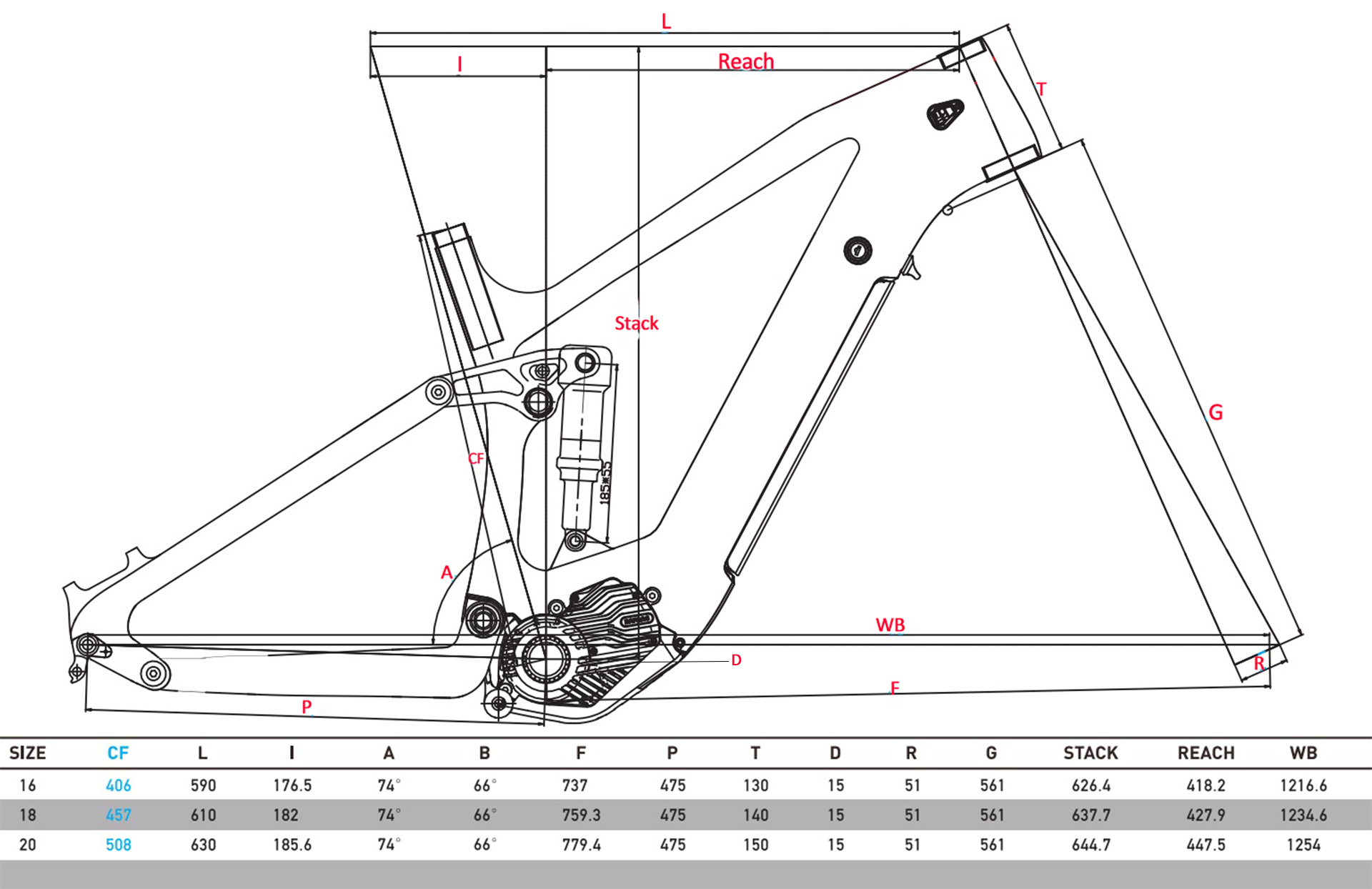

Full Carbon Enduro Ebike Frame Geometric Details:
Mark: CF : Seat Tube Length, L : Top Tube Length, A : Seat Tube Angle, B : Head Tube Angle, F : Front Center, P : Chainstay Length, T : Head Tube Length, D : BB Drop, R : Fork Rake Offset, G : Fork Length , WB : Wheelbase

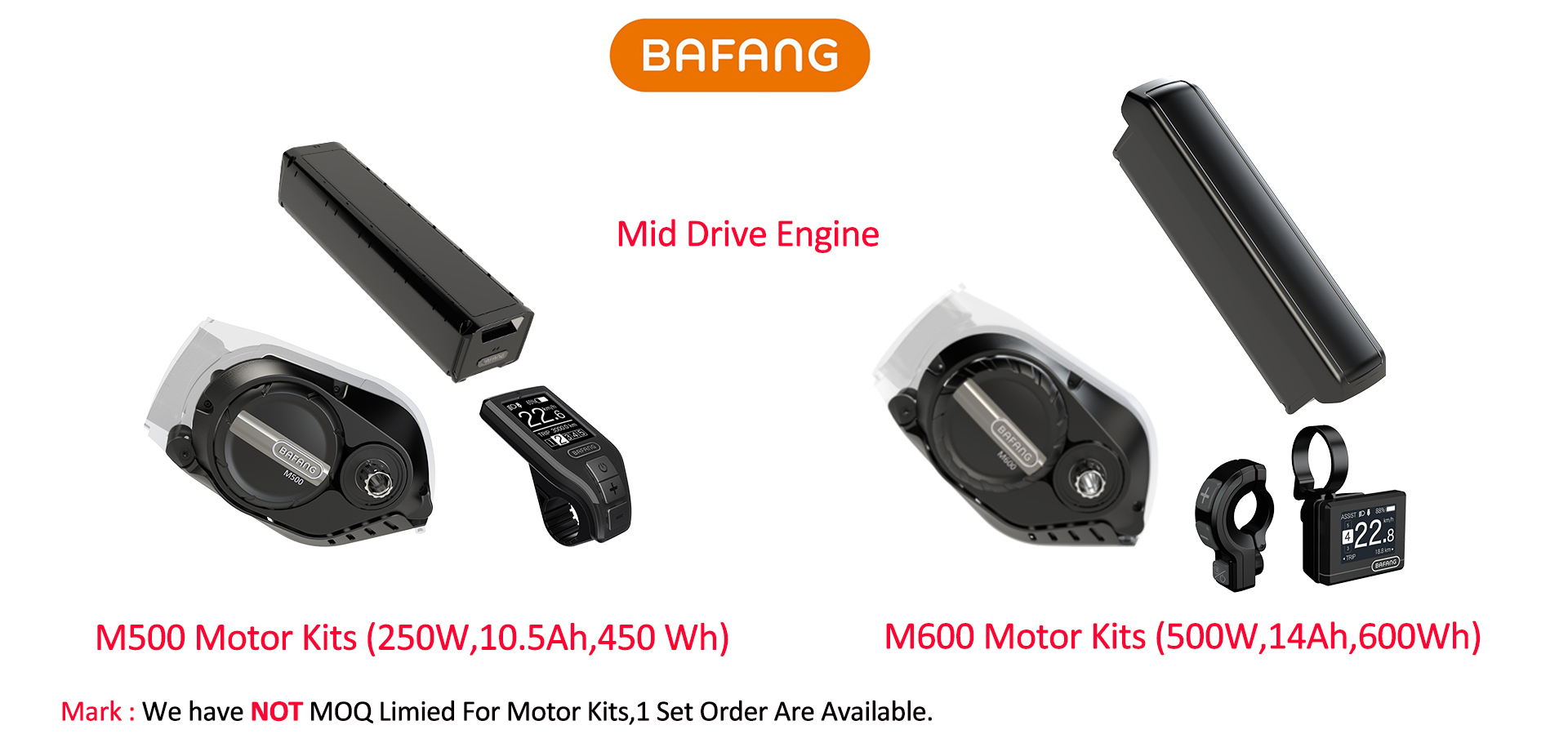

Not Only Frame Set,But Can Also Purchase Motor Kits And Battery Together
