The product description
With the progress of science and technology and industrial production, especially with the development of automobile, motorcycle and household appliances, die-casting technology has obtained extremely rapid development.Longhua die casting machine high technical content, suitable for all kinds of die casting. Longhua die casting machine for import and export inspection - free products.
Product parameters
LH series of standard parameter table (180 t)
|
ITEMS
|
Unit
|
Specification
|
|
HYDRAULIC WORKING PRESSURE
|
MPa
|
14
|
|
CLAMPING FORCE
|
KN
|
1800
|
|
SPACE BETWEEN TIE BARS
|
mm
|
480*450
|
|
Tie Bar Diameter
|
mm
|
￠85
|
|
DIE OPENING STROKE
|
mm
|
380
|
|
INJECTION FORCE(intensify)
|
KN
|
270
|
Plunger launch distance
|
mm
|
130
|
|
Injectionposition
|
mm
|
0 -- 140
|
|
PLUNGER DIAMETER
|
mm
|
￠50----￠70
|
|
INJECTION STROKE
|
mm
|
350
|
Casting pressure (intensify)
|
MPa
|
112/78/57
|
Casting Fiange Protrusion
|
mm
|
10
|
Casting Fiange Diameter
|
mm
|
110
|
|
MAX CASTING AREA UNDER 40Mpa
|
CM2
|
450
|
|
lnjection Weight(Al)
|
Kg
|
2.4
|
|
Die Height(Min--Max)
|
mm
|
200～550
|
|
EJECTOR FORCE
|
KN
|
110
|
|
EJECTOR STROKE
|
mm
|
80
|
|
Motor Capacity
|
Kw
|
15
|
|
Machine Dimensions (L*W*H)
|
m
|
5.22*1.4*2.35
|
|
Referential Machine Weight For Uplifting
|
T
|
6.7
|
|
Oil Tank Capacity
|
L
|
600
|
WE reserve the right to make any technical improvement without further notice

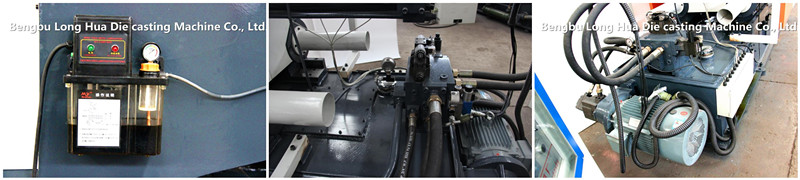

Detail drawing of die casting machine

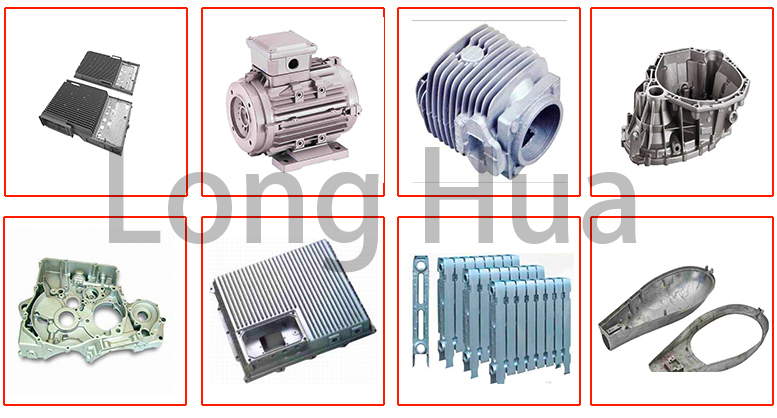

Die casting machine die casting
