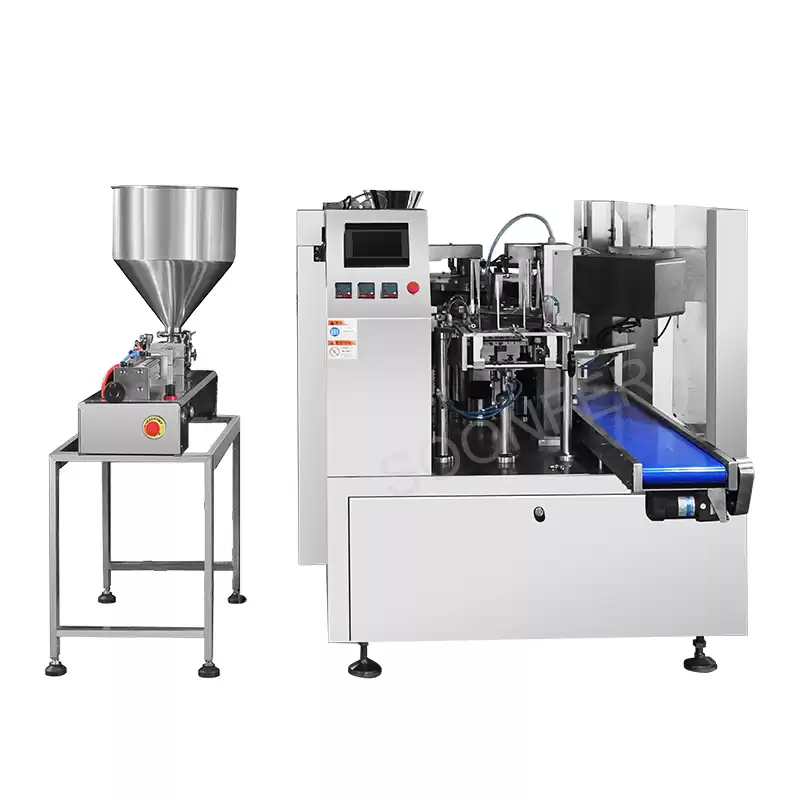

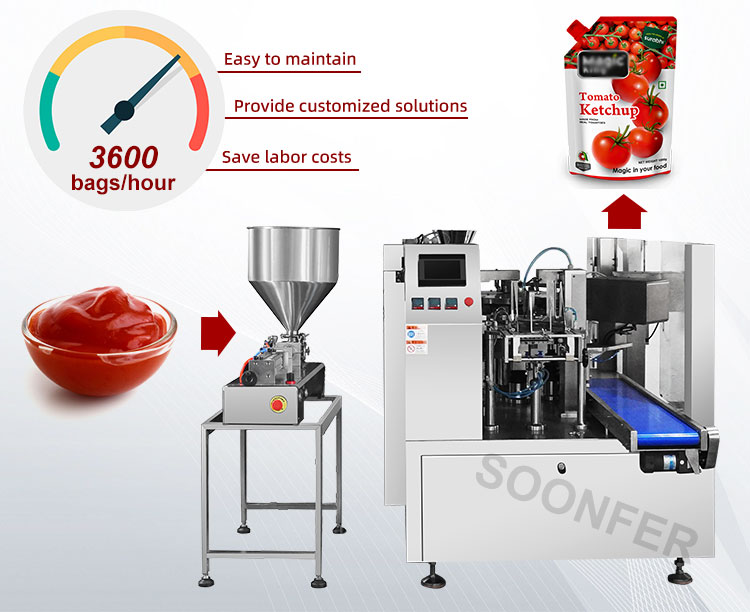

Fully automatic doypack bag liquid bee honey pouch packaging packing machine
Application of liquid doypack pouch packing machine

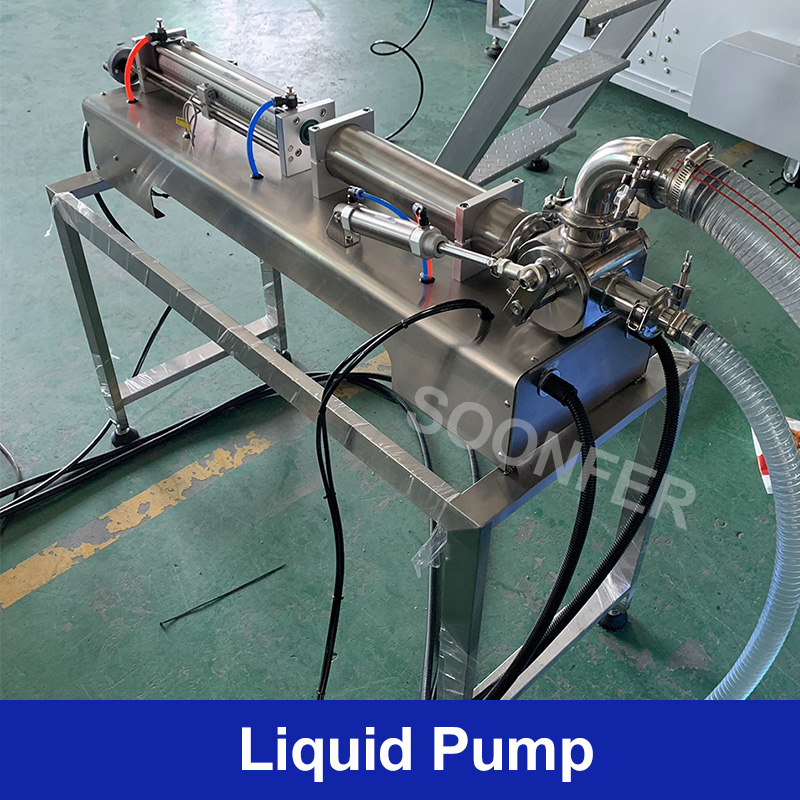

This machine is suitable for liquid products such as food and daily necessities, such as ketchup, seasoning sauce, tartar sauce, edible oil, soy sauce, honey, juice, jam, milk, jelly, sports drink, shampoo, hand soap, shower gel, laundry Liquid etc.
Specification of liquid doypack pouch packing machine
|
Packing speed
|
20-60 bags/min (depending on the weight of the material)
|
|
Measuring range
|
10-1500g (depending on the characteristics of the material)
|
Bag width
|
120-250mm
|
|
Bag length
|
80-360mm
|
|
Film materials
|
PP, PE, PVC, PS, EVA, PET, PVDC+PVC, OPP+composite CPP, etc.
|
|
Power
|
380V, 50/60Hz, 8.5kw
|
|
Gas consumption
|
0.4m³/min
|
|
Dimension
|
3500(L)*1650(W)*1700(H)mm
|
|
Machine weight
|
1300kg
|
Features of liquid doypack pouch packing machine

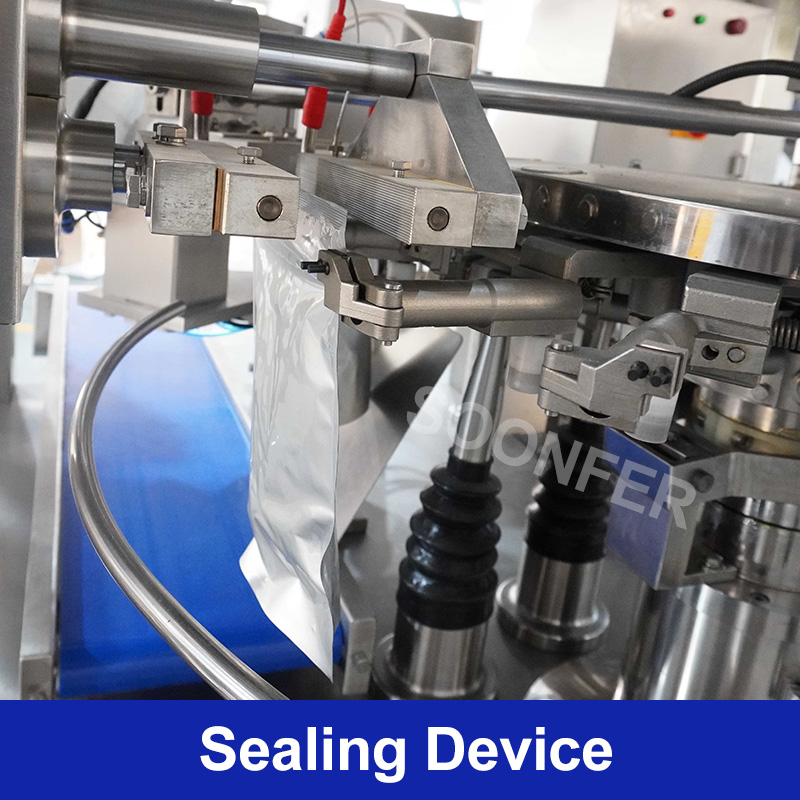

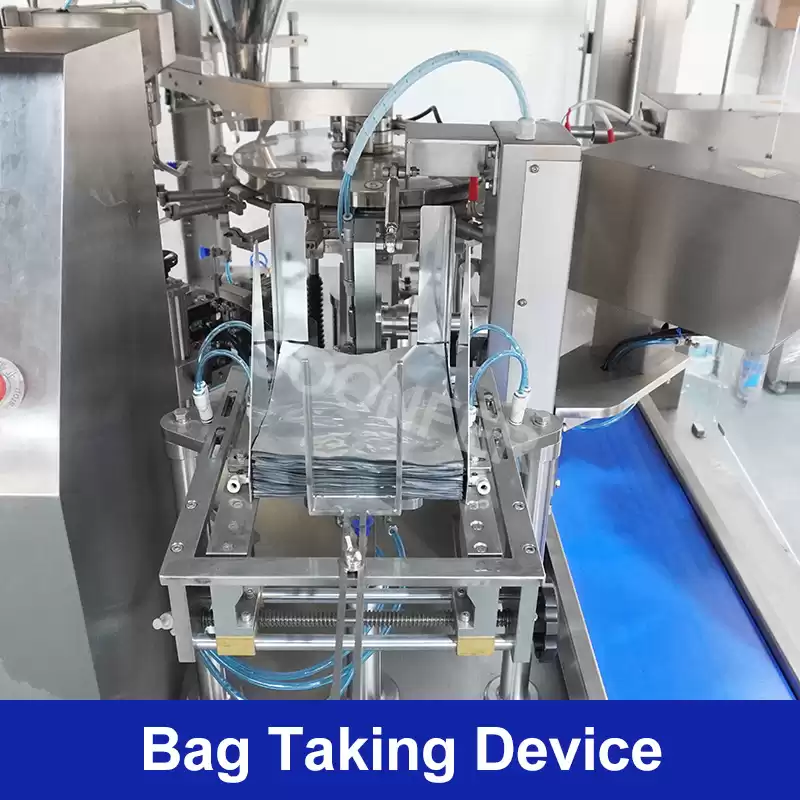

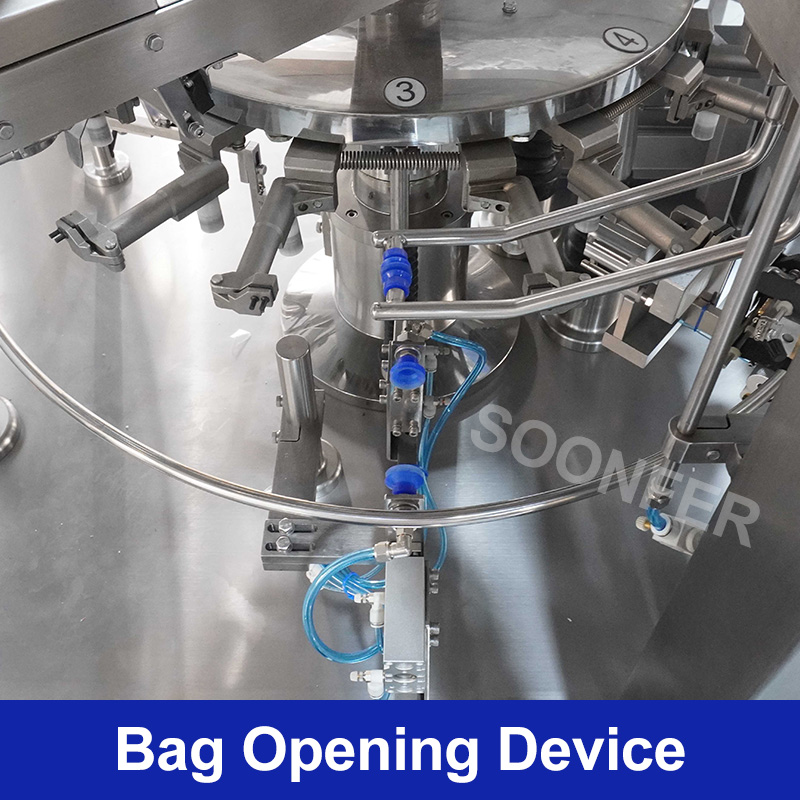

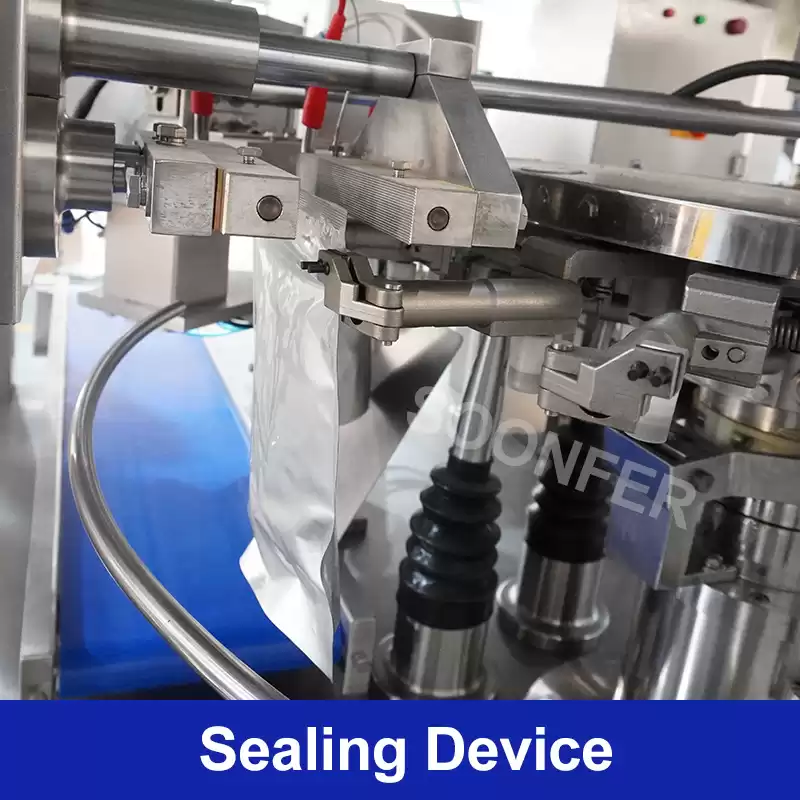

1. 8-station design, can automatically complete a series of processes such as bag taking, bag opening, metering, blanking, sealing, etc.
2. High quality and performance, the frame is made of 1.5mm thickness 304# stainless steel.
3. Intelligent PLC control, fast and stable operation of the machine.
4. The touch screen is used to set packaging parameters, supports multiple languages, and the operation is simple and easy to understand.
5. With electric eye detection function, automatic stop operation without bag.
6. The host adopts a new frame design, which occupies a small area and is easy to detect and maintain.
7. Independent temperature PID controller.
