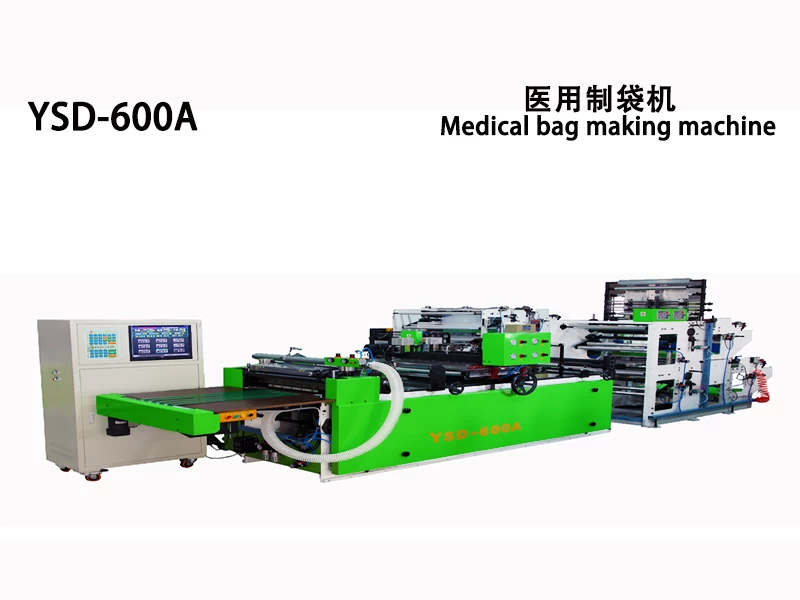

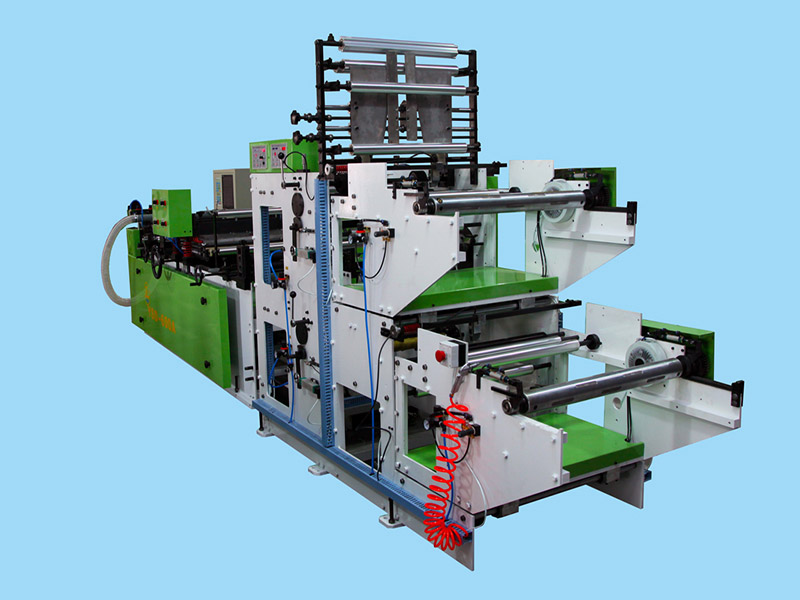

YSD-600A Fully Automatic Medical Bag Making Machine
Application:

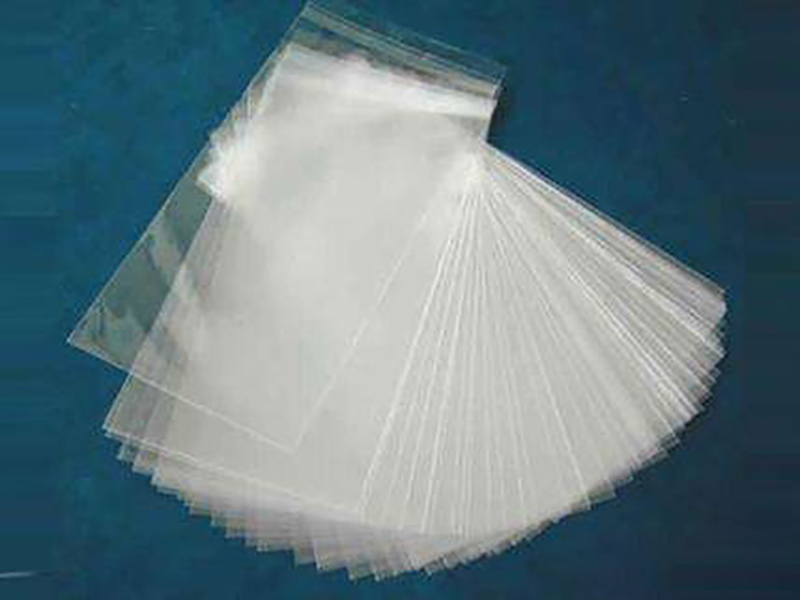

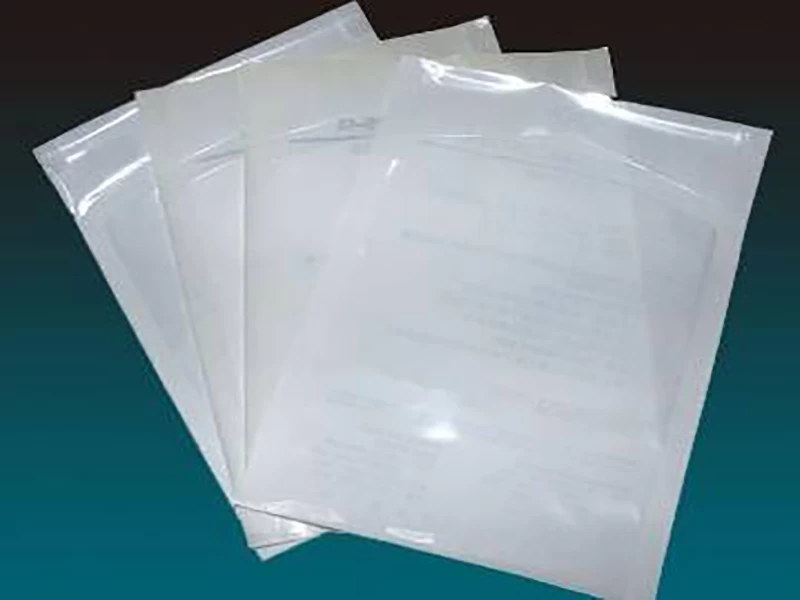

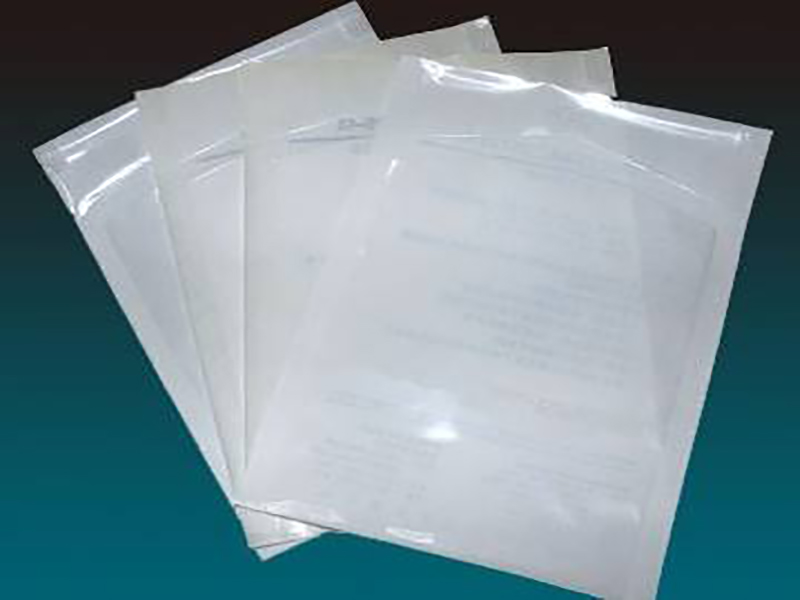

The YSD-600A medical bag making machine is widely used to make sorts of bags for health care industry. Concentrating on intactness and clearness of medical bag products, the machine is designed with high-accuracy parts to ensure operation run smoothly.
Features:
●YSD-600A medical bag machine is equipped with the latest discharging device with dual stations, automatic deviation correction for upper and lower with magnetic powder tension, pneumatic balance tension, imported photoelectric tracking device and servo motor to control fixed length.
●Controlled by industrial computer, the machine shows parameters by CRT and adjusts speed through imported frequency converter. It adopts synchronous control between discharging analog quantity control and host analog quantity control, also uses automatic punching device and utilizes skills of single or secondary heat sealing and impressed characterized by high accuracy and speed.

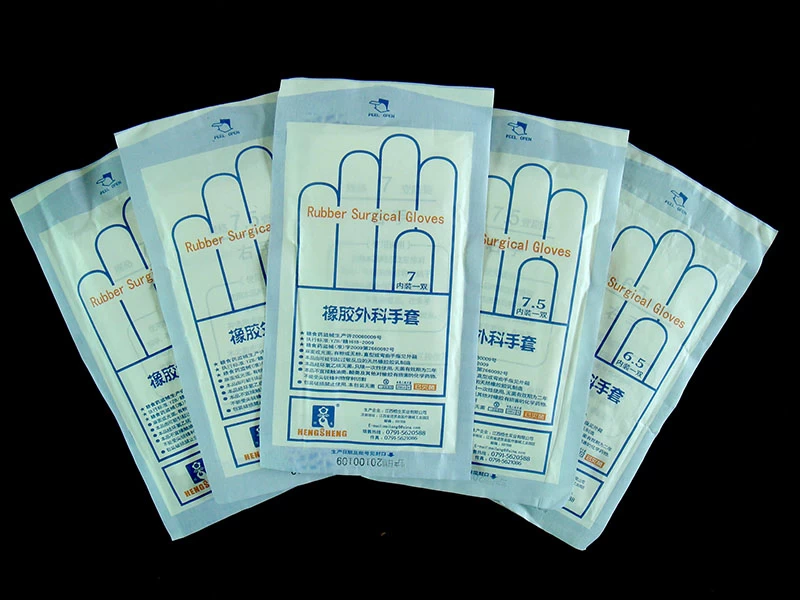

●Pressure will be controlled by heavy-duty spring device. The machine is the ideal facility to produce medical packing bag & paper, paper plastic and heat-sealing (stand-up) flat bag.
Main Parameter
|
Bag-making speed
|
Max speed: 30-130 pcs/min
|
|
Bag-making length
|
30-600mm
|
|
Bag-making width
|
Max width: 600m
|
|
Unwinding diameter
|
MaxΦ700mm (double discharge)
|
|
Bag-making precision
|
≤±1mm
|
|
Temperature control
|
0-400℃
|
|
Total power
|
25kw
|
|
Weight
|
3800kg
|
|
Dimension
|
6000*1250*1500mm
|
Technical parameter of prototype:
|
Bag-making speed
|
30-130 pcs/min (may range by material sorts and cutting length)
|
|
Range of film size
|
Max width: 620mm, max diameter:￠700mm
|
|
Bag size
|
Width: 75-600mm, length: 30-600mm
|
|
Machine dimension
|
Length*width*height: 6000*1200*2200mm
|
|
Weight
|
3800kg
|
