advanced core patented technology
|
|
high stability, optimize the mechanism structure
|
|
long life, longer than 10 million times
|
|
accurate & fast detection
|
|
|
|
|
|
|
|
|
|
IP65
|
|
high temperature resistance
|
|
low temperature resistance
|
|
condensation resistance
|
|
|
|
|
|
|
|
|
|
modular design, easy maintenance
|
|
high compatibility, high integration
|
|
unattended
|
|

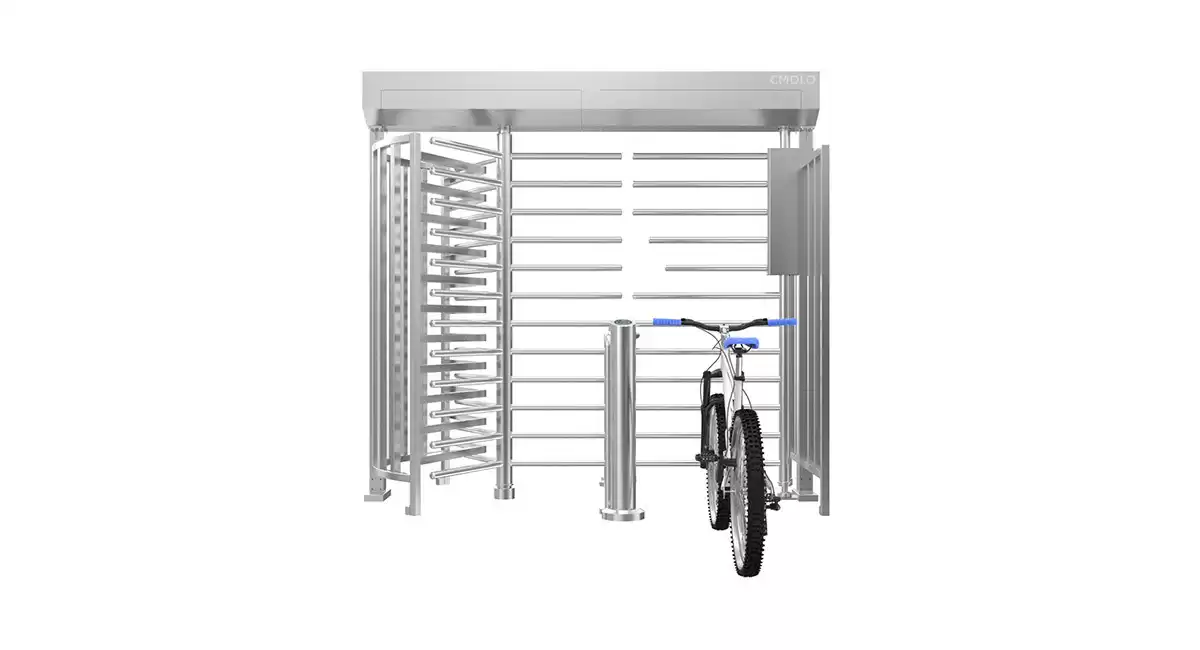

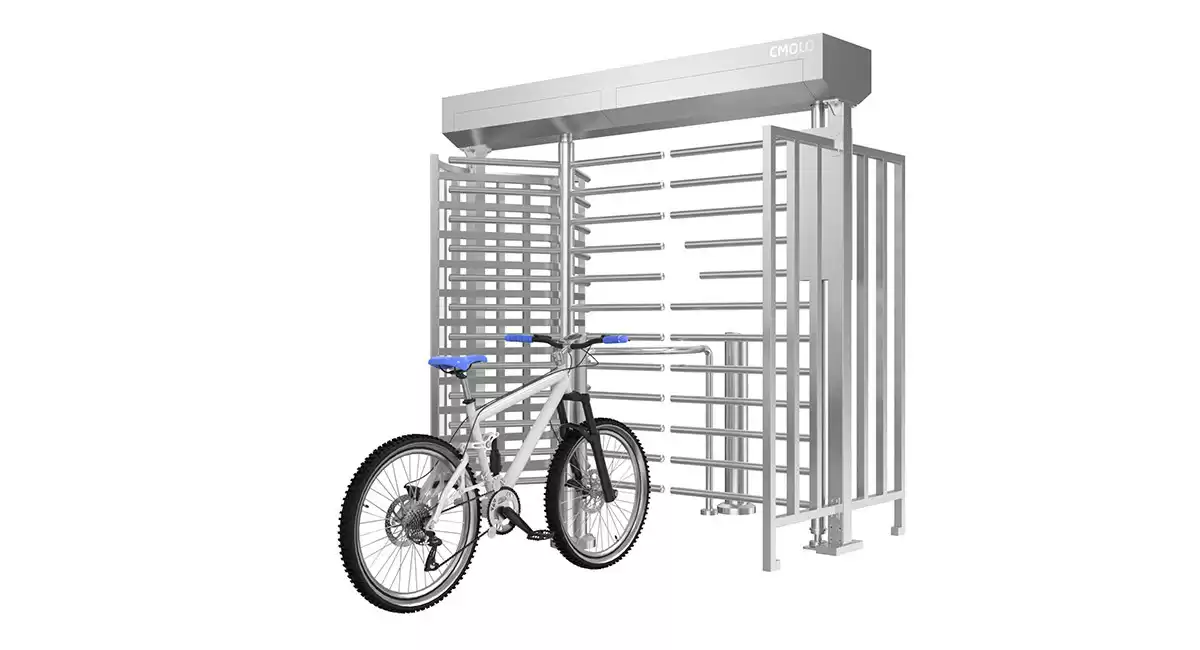

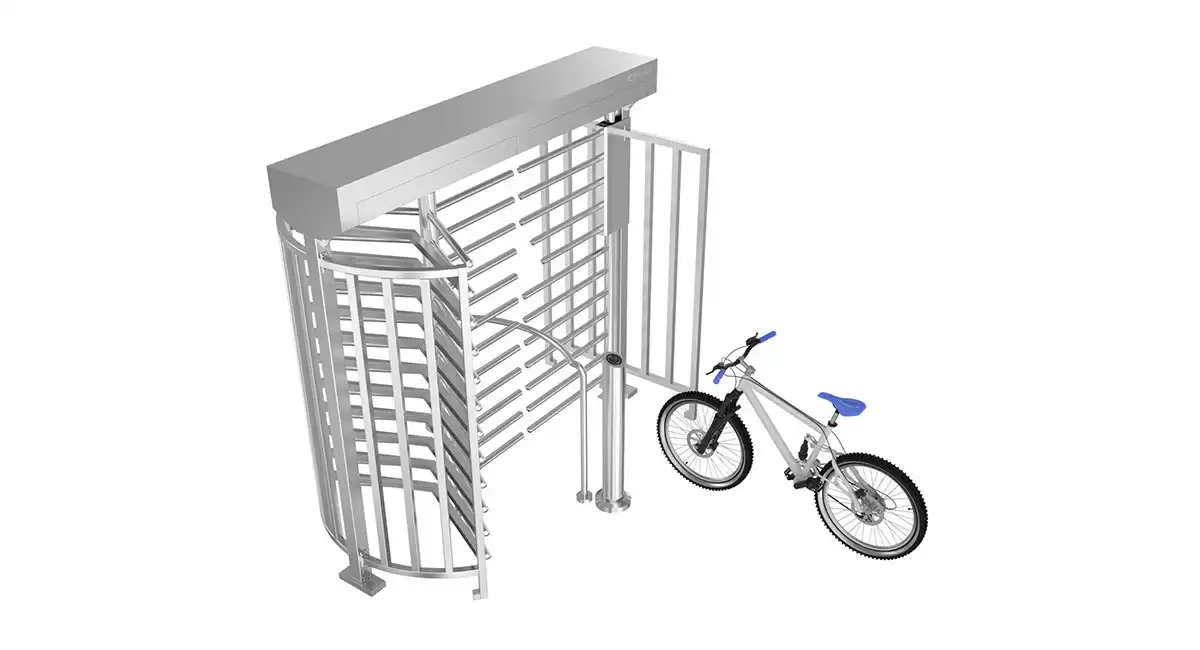

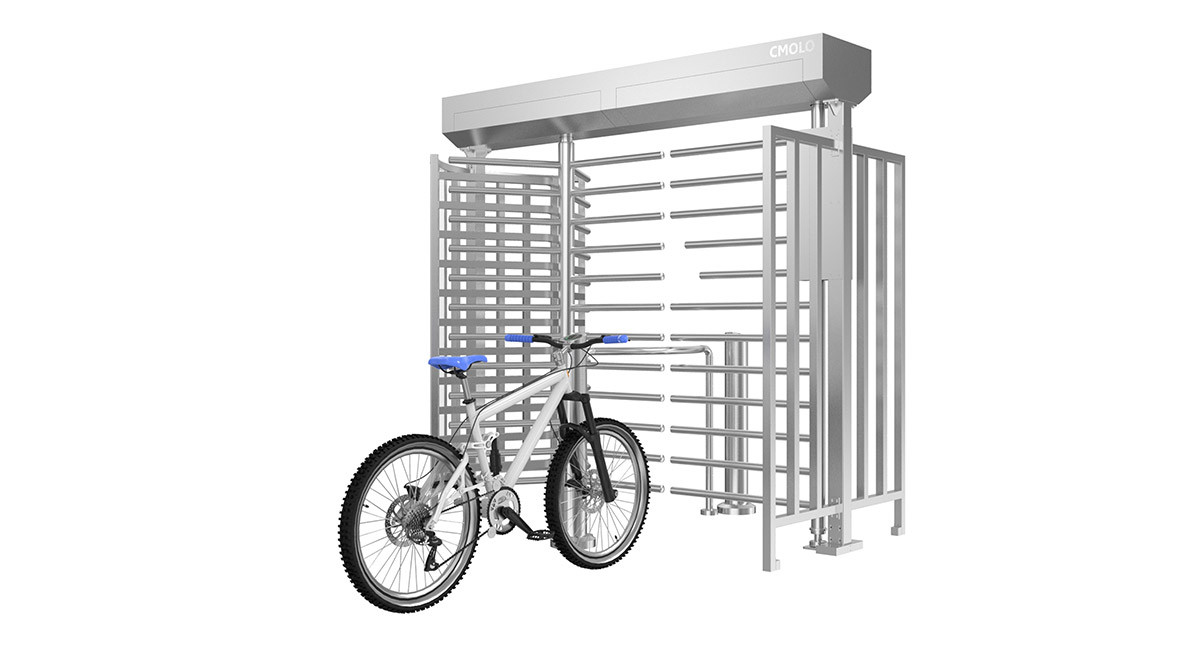

shared by pedestrian & vehicle
|
Advanced & Intelligent Full Height Turnstile Core Technology
Strong mechanism structure
The lossless modular mechanism structure independently developed by CMOLO and the full CNC processing technology ensure the high precisioneach module of the mechanism; the mechanism adopts secondary transmission mechanical structure, and the transmission ratio of gear are accurate, efficient and stable, which can precisely control the rotation angle of the rotation column and reduce the loss to ensure the reliability of the mechanism, and enhance the service life of the mechanism.
Core logic algorithm
The turnstile adopts advanced servo control system and DSP+ARM motor control technology, combined with CMOLO's original motor control algorithm, to achieve precise control and positioning of the obstacle.
Arm state monitoring
The closed-loop feedback control system is used to monitor the movement state of the arm, which can sensitively detect behaviors that threaten the safety of the passage, such as illegally hitting arm and reverse passages, and then issue warnings in the form of sound and light, and can be linked with other security systems.
Long service life
The mechanism and control system of the fully-auto pedestrian & vehicle shared full height turnstile have passed 10 million life tests.
Strong anti-tailgating ability
The mechanical anti-tailgating design is adoptedto effectively control only one person at a time.
Prevent reverse passage
When a legal door opening signal is received in a certain direction, within the allowable passage time, pedestrians entering the passage from the opposite direction and pushing the arm will be regarded as reverse passage, and the arm in this direction will be locked to prevent pedestrians from passing in the opposite direction.
All-around Pedestrian Safety Protection
Turnstile opens when power failures
With the industry's advanced mechanical structure created by CMOLO, full height turnstile system will unlock the arms to be pushed freely, so as to evacuate pedestrian.
Emergency open
Equipped with emergency escape control device, full height turnstile system will automatically unlock the arms to evacuate pedestrian in the event of emergencies.
Anti-electric shock
All electric modules are designed to operate under the safety voltage of 24V, and configured with residual current protective device to prevent pedestrian being injured by electric shocks.
Customization
| Appearance |
Cabinet size, material and surface treatment process etc. of turnstile can be moderately customized. |
| System integration |
Integrate with access control system, human body temperature measurement system, ticketing system, time attendance system, visitor system etc.
Integrate with QR code, face, fingerprint, ID/IC card, passport identification system etc.
Integrate with card collection system, and customize card collection device.
|
| Constant Temperature System |
Under the low temperature environment, a constant temperature system can be installed inside the turnstile.
|
