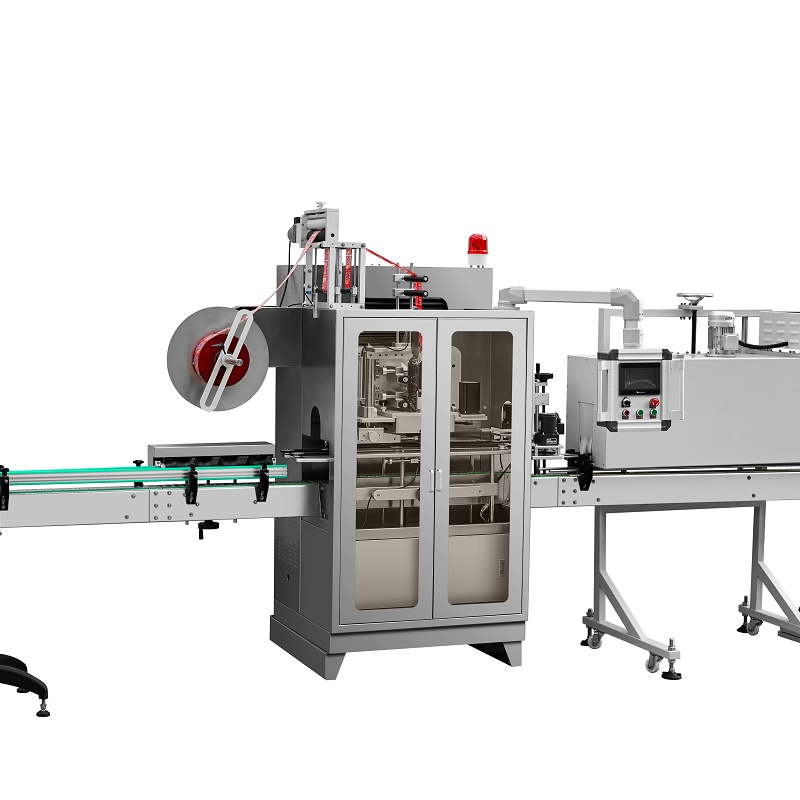

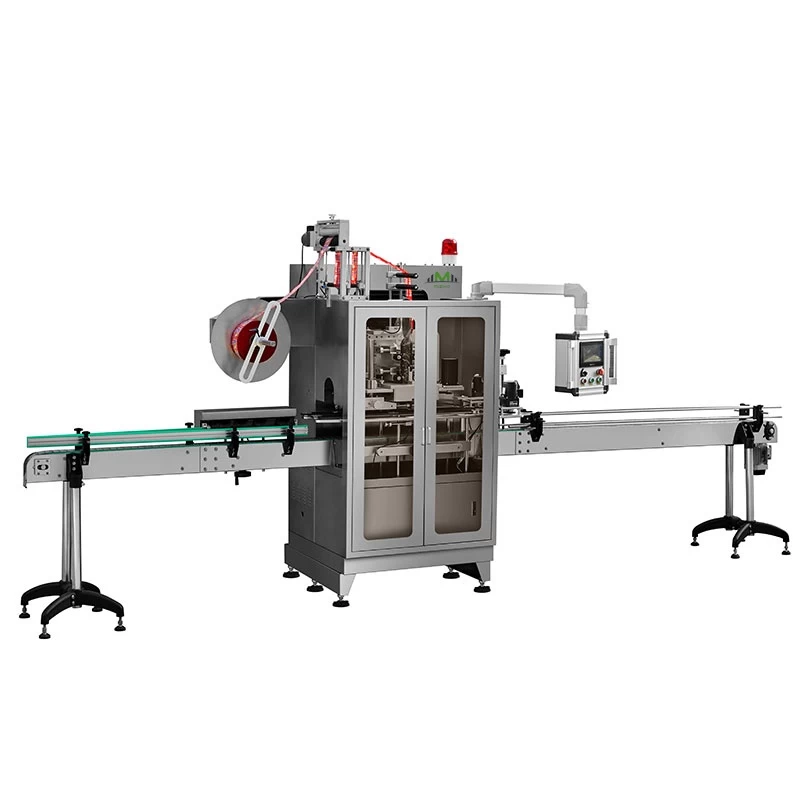

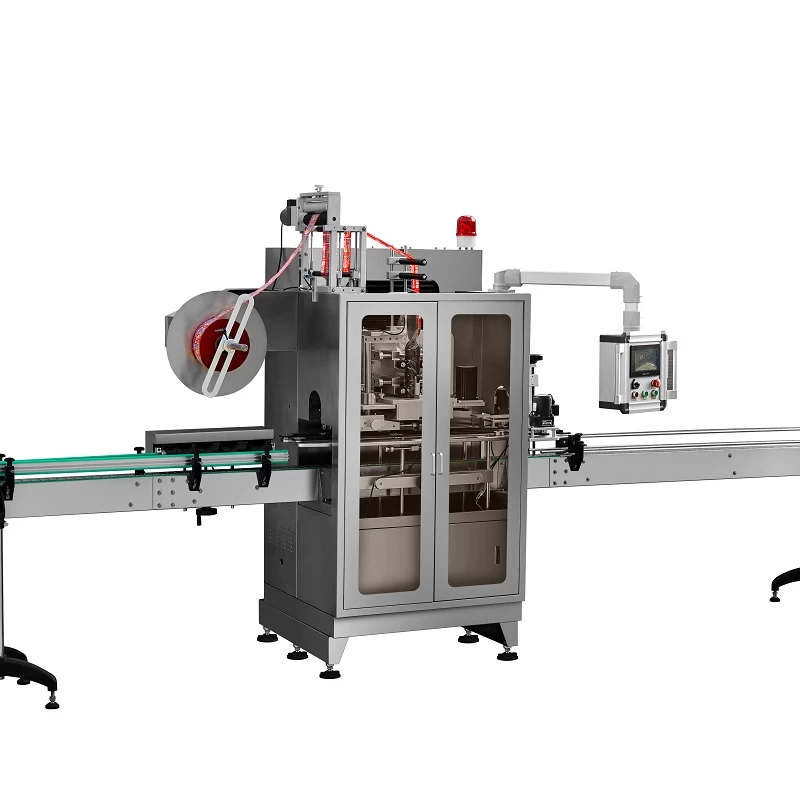

Fully automatic shrink sleeve labeling machine for bottles

This Automatic Labeling Machine series for shrink sleeve labeling machine. It have two side labeling for your choose, round,flat, one -two-three-four side , samll bottle, large bottle Mainly for the packing line,washing,filling capping, labeling, carton box packing and then for bottle labeling machine.





Fully automatic shrink sleeve labeling machine for bottles

Customized And OEM Service Available

 Sleeve Label Shrinking Machine

Product Description:


Fully automatic Shrink Sleeve Labeling Machine its whole line can be adjusted production automatically or manually which can easily be fitted and used in conjunction with other product lines.

Bottle Labeling Machine it uniquely designed blade holding seat which need not be replaced. Changing blade is fast and easy.


I. Technical Parameters


Name

Technical Parameters





Auto sleeve labeling machine

Mode

MZH-LS-150

Speed

6000BPH

Main machine’s size

1000*860*1800(L*W*H)mm

Machine’s body &weight

SUS304, 500KGS




Electrical power

AC3-PHASE 380V

Input power of machine

3.5KW

Diameter of bottle

¢25-125mm

Bottle height

Max350mm,special can be designed

Thickness of shrink label

0.035-0.13mm(pvc,pet.ops)

Hot shrink tunnel

Machine size

1603*1009*2056mm

Tunnel size

1500*500*400mm

Sealing speed

8000-12000bph

Machine’s body, weight, Power consume

SUS304. 250KGS

voltage

AC3-PHASE 380V 50Hz

Gross weight

250 kgs

Suitable material

POF/PVC/PET

Power

18KW



II. Electrical appliances


No.

Name

Brand

Producing area

1

Touch screen

NB-TW01B

Taiwan

2

PLC

Omron CP1L

Japan

3

Inverter

Omron

Japan

4

Button

Schneider

French

5

Relay

Omron

French

6

Electromagnetic contactor

Schneider

French

7

Current protector

Schneider

French

8

switch

Schneider

French

9

bearing

NSK

Japan

10

Sensor

Sick

Germany

11

Servo motor

Panasonic

Japan

12

Gear motor

GPG motor

China
