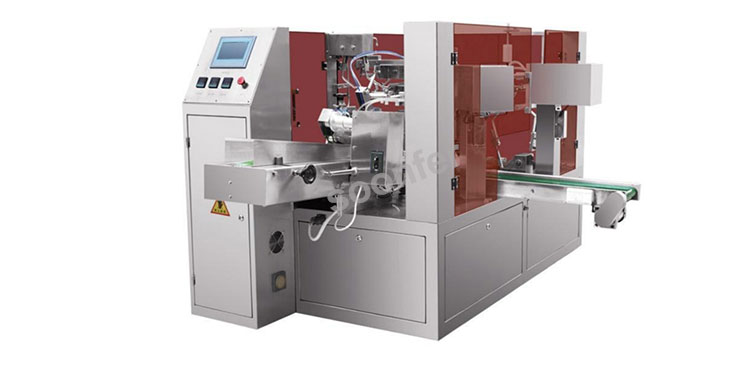

Fully automatic zipper doypack pouch liquid milk juice premade bag packaging packing machine
Application of doypack liquid packing machine
Doypack liquid packing machine can pack detergent, rice wine, soy sauce, rice vinegar, fruit juice, beverage, tomato sauce, peanut butter, jam, chili sauce, bean paste etc.

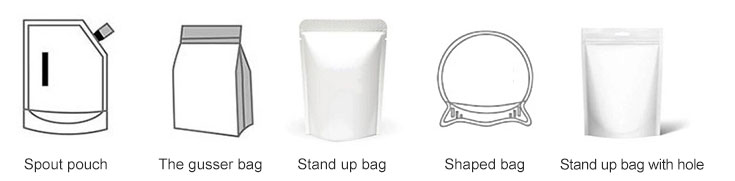

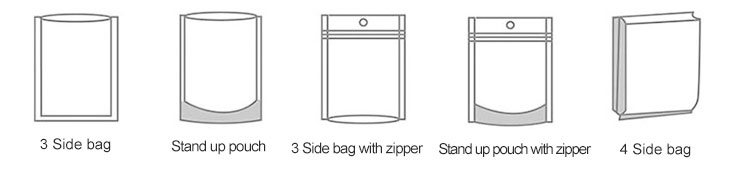

Bag type of doypack liquid packing machine
All type of heat sealable performed side seal bags,block bottom bags,zip-lock recloseable bags,stand-up pouch with or without spout,paper bags etc.
Specification of doypack liquid packing machine
Bag Size
|
Width:80-210mm, Length:100-300mm
|
Filling Volume
|
5-2500g (Depending on type of products)
|
Capacity
|
30-60bags/min (The speed depends on type of products and packaging material used) 25-45bags/min (For zipper bag)
|
Package Accuracy
|
Error≤±1%
|
Total Power
|
3.6KW
|
Weight
|
1400KGS
|
Compress Air Requirement
|
≥0.8m³/min supply by user
|
Accessory device
|
Automatic Auger Filler, Volumetric Cups Filler Etc.
|
Features of doypack liquid packing machine
1.Automatic checking system can check bag situation, filling and sealing situation.
2.Automatic rotary packing machine adopt precision indexing device and PLC to control each action and working station to make sure the machine operates easily and does accurately.
3.state-of-the touch screen electric control system.
