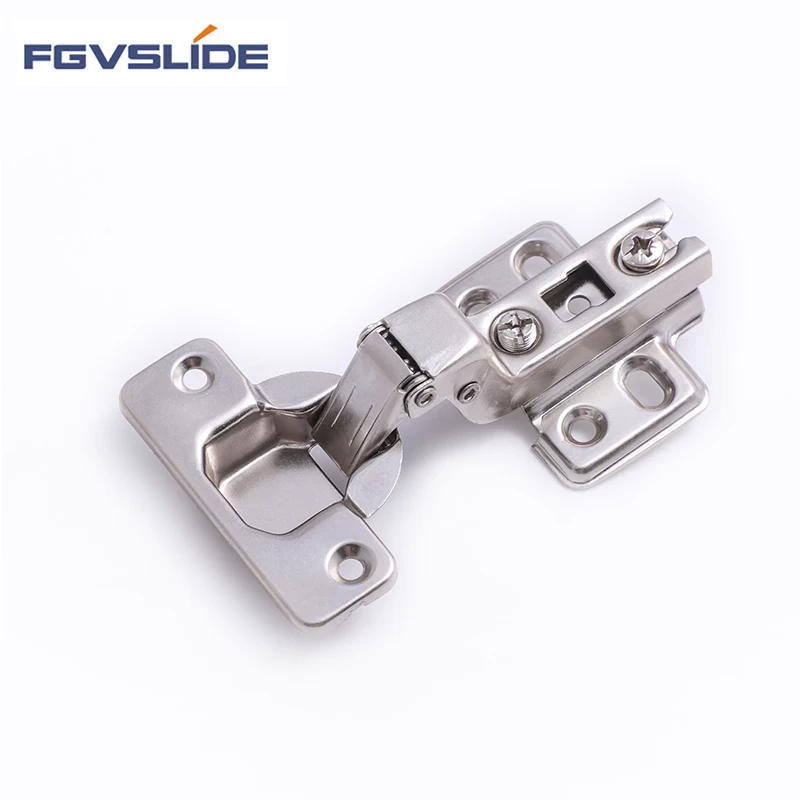

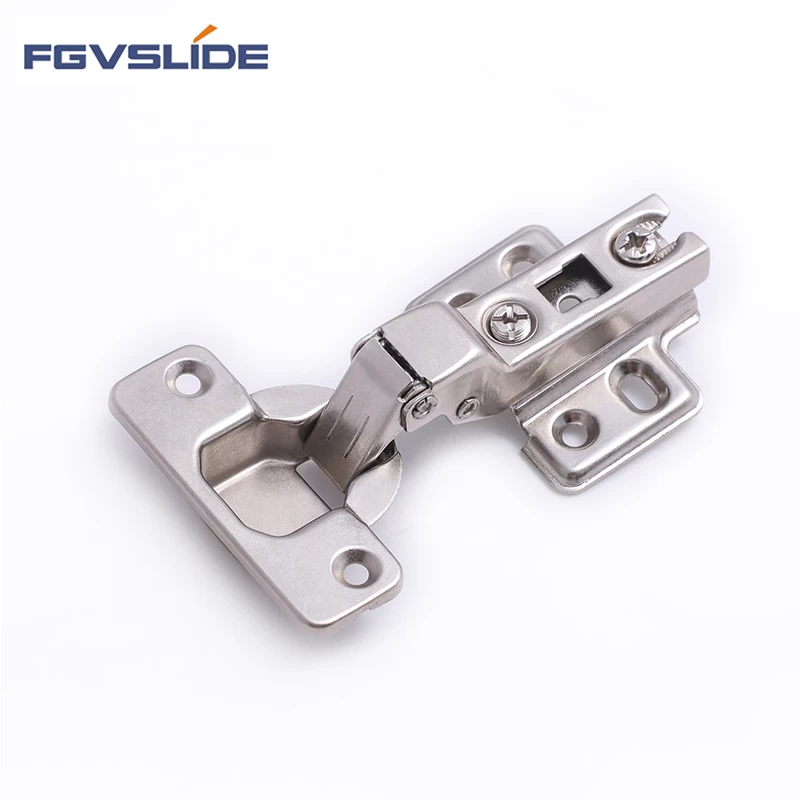

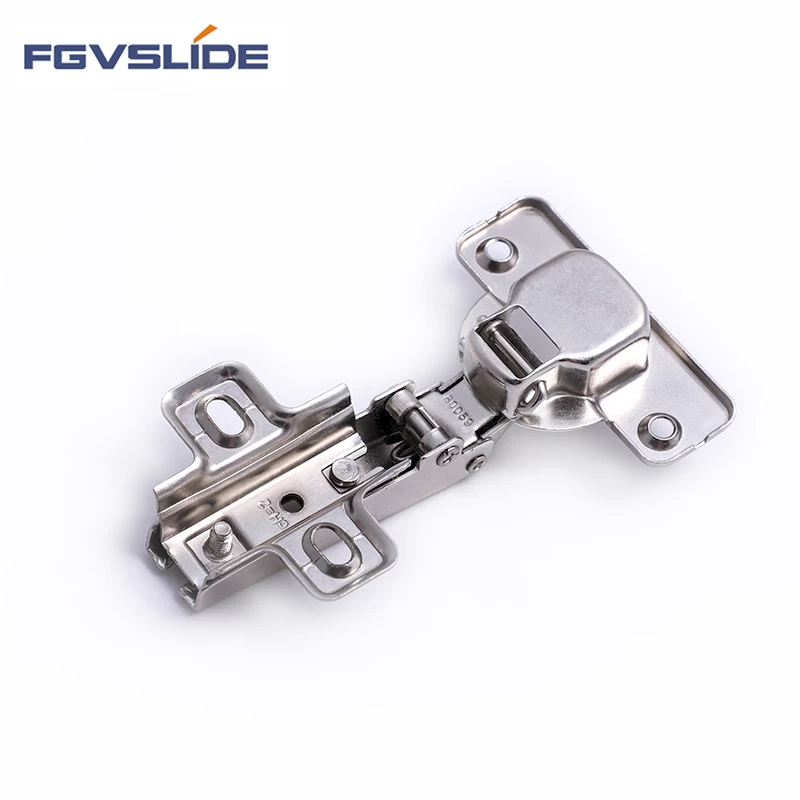

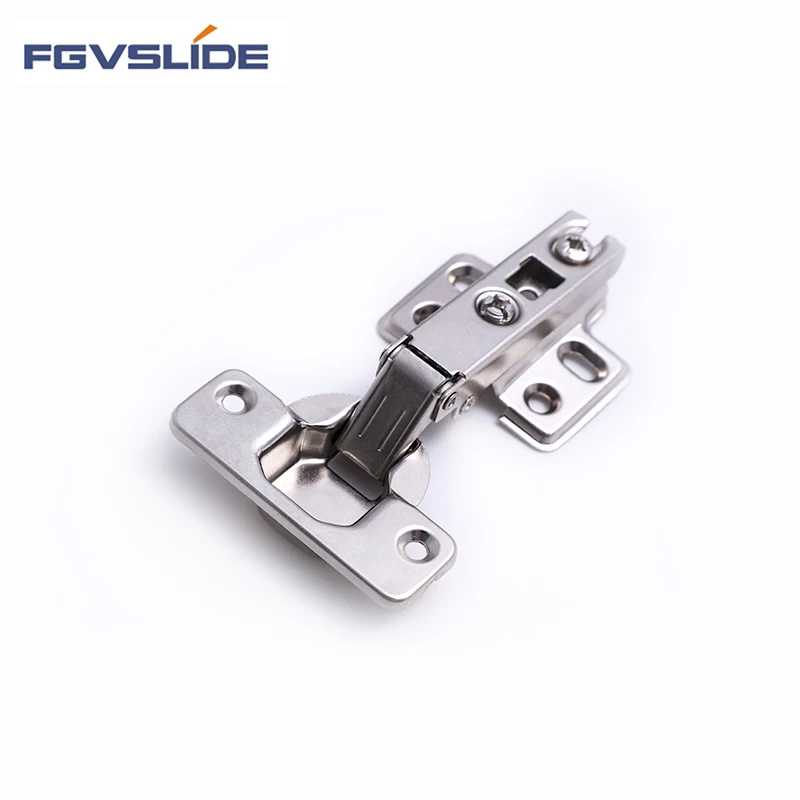

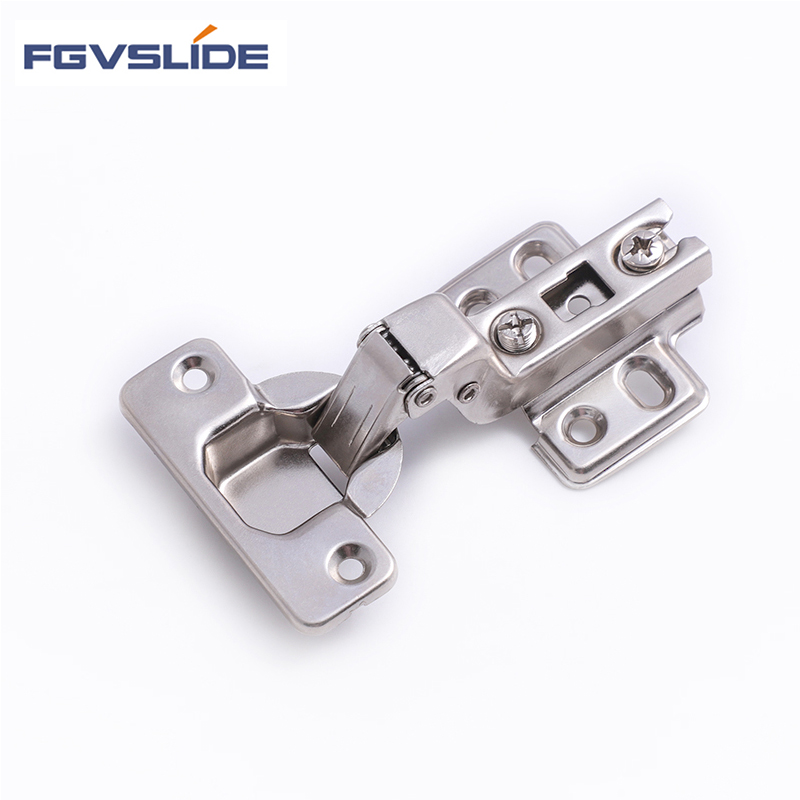

Furniture hardware 35mm Full Overlay Self Close Cabinet Hinge
1. Designed for frameless cabinet doors, it helps to save space in tight cabinets to improve kitchen convenience.
2. Crafted with a 35mm hinge cup and 110° degree opening angle it’s easier to open doors to suit your kitchen needs.
|
Material
|
steel
|
Cup drilling depth
|
11.3mm
|
|
Recommended plank thickness
|
14-23mm
|
Cup fixed
|
wood screws φ3.5*14mm
|
|
Opening angle
|
110
|
Face panel(k) measurement
|
3-7mm
|
|
cup diameter
|
35mm
|
Available cup holes distance
|
φ45,φ48,φ52
|
