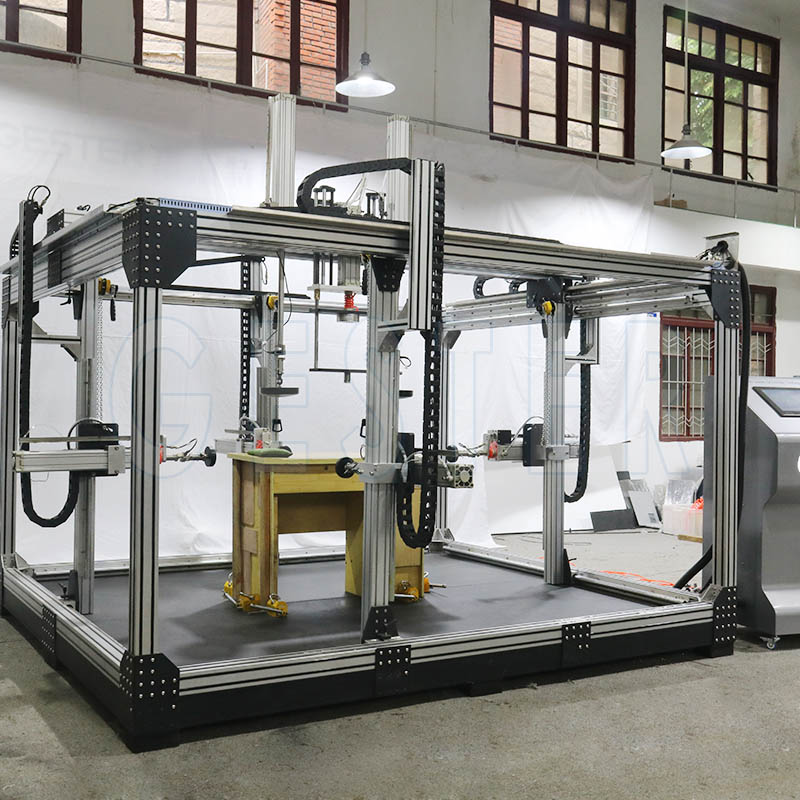

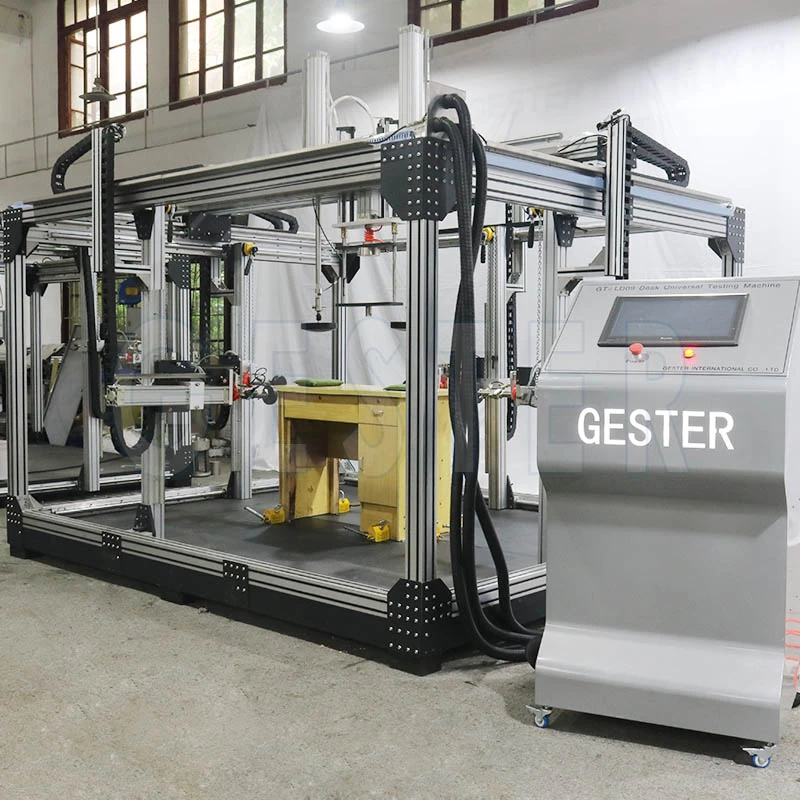

Furniture Universal Testing Machine GT-LA10

Applications:

Furniture Universal Testing Machine is used for testing the mechanical properties of tables , desks ,beds. Can perform the horizontal static load ,vertical static load,  impact test and durability test.

Feature

1. The machine adopts frame structure design. The frame is made of high quality industrial aluminum, beautiful and generous.
2. Up to 8 sets of cyclinders installed, one set on each side, three on top frame, and one reserved. All cylinders can be adjusted up and down, frontward and backward to cover all mounting surfaces. The eight sets of cylinders can execute joint or independent operation.
3. The bottom fixed block is free to adjust the position to accommodate different specifications of the sample.
4. PC controller to control the actions of the instrument; the operation is intuitive and simple.
5. Using the precision pressure regulating valve to adjust the pressure to change the loading force value; high precision force sensor sense the force value immediately; each load group adjusts the control individually; the loading force is stable and reliable.
6. Removable loading pad, can easily change the different loading pad to meet the different test requirements.

Tables & Desks&Storage Units:

EN1730-2012 Section 6.2, 6.3, 6.4,6.5, 6.6, 7.2, 7.3 ,
BS EN 15372-2016 Test1, Test2,Test3,Test5, Test6,Test8,Test10,
AS NZS 4610.3-1999 Annex B,D,E,G,N,P,R
AS NZS 4442-1997 Annex A,B,H,J
EN527-3, EN581-3,
GB/T 10357.1,
BIFMA X5.5 - 2014,
BIFMA X5.6 - 2010,
BIFMA X5.9 - 2012

Bed:

EN 1725 Section 7.3, 7.4, 7.5, 7.6 ,7.7
EN 747-2 Section 5.4,5.5,5.6.1,5.7,5.8
