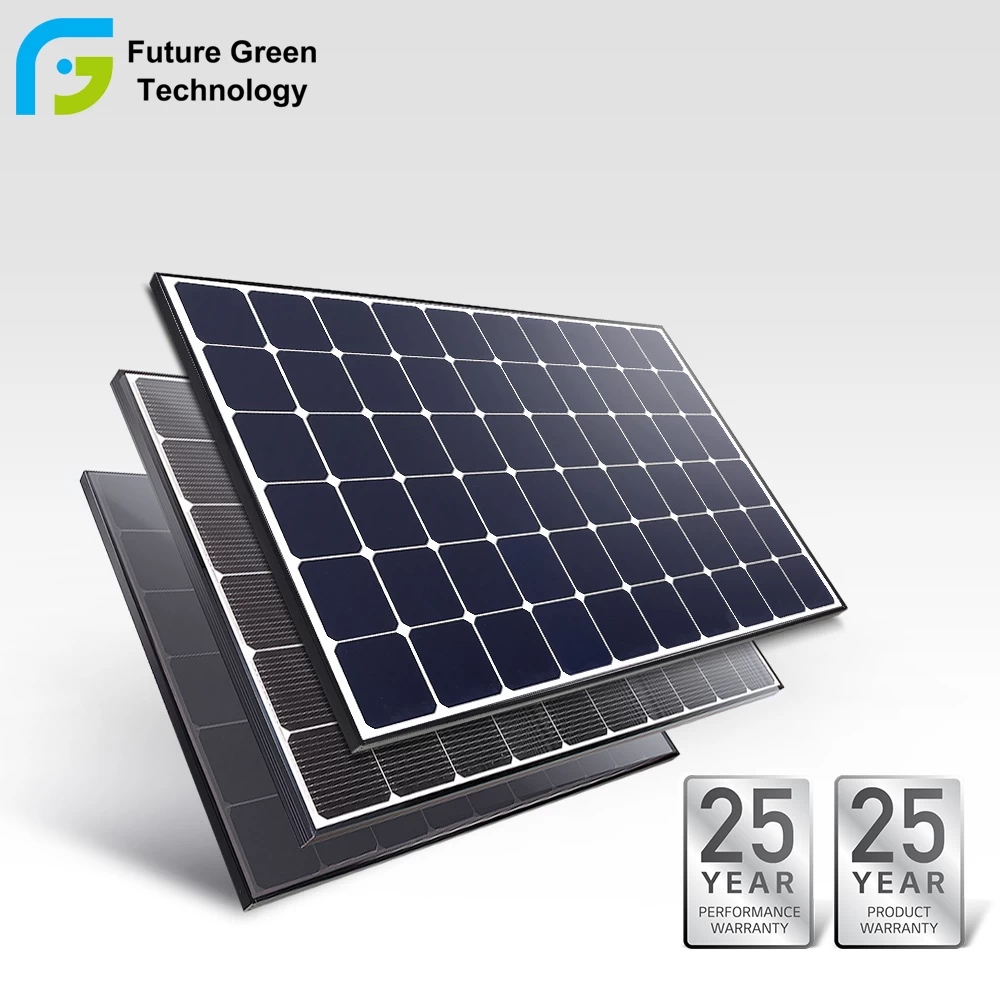

Future Green 400W Mono Crystalline Silicon Solar Panel
Solar Panel Details:
Welcome to our website for details :www.futuregreenbattery.com !!
In well-protected carton or wooden box with pallets.
375W-400W 1979mm*1002mm*40mm per piece
27pcs per pallet, 324pcs fill into 20GP, 648pcs fill into 40HQ.
|
ELECTRICAL DATA @ STC
|
FGET- 375
|
FGET-380
|
FGET-385
|
FGET-390
|
FGET-395
|
FGET-400
|
|
Peak Power Watts-PMAX (Wp)*
|
375
|
380
|
385
|
390
|
395
|
400
|
|
Power
Output Tolerance-PMAX (W)
|
0/+5
|
0/+5
|
0/+5
|
0/+5
|
0/+5
|
0/+5
|
|
Maximum Power Voltage-VMPP (V)
|
40.0
|
40.1
|
40.3
|
40.5
|
40.7
|
40.9
|
|
Maximum Power Current-IMPP (A)
|
9.39
|
9.47
|
9.55
|
9.62
|
9.70
|
9.79
|
|
Open Circuit Voltage-VOC (V)
|
48.5
|
48.6
|
48.8
|
48.9
|
49.1
|
49.2
|
|
Short Circuit Current-ISC (A)
|
9.9
|
10.0
|
10.0
|
10.1
|
10.2
|
10.3
|
|
Module Efficiency ηm (%)
|
19.3
|
19.6
|
19.8
|
20.1
|
20.3
|
20.6
|
|
*
Measuring tolerance: ±3%
|
|
|
|
|
|
|
|
Case Studies
|
>>View More>>
|
|
|
|
|
|
CRRC 5kw
Project: CRRC Super Capacitor Test
Capacity: 5kW
Type of Module: FGET Multicrystalline 265Wp
Date of Completion November 2017
Owner: CRRC Cooperation Ltd.
Installer: FGET
|
30kw System Replace
Owner: CRRC Cooperation Ltd.
Project: CRRC Solar System replace
Capacity: 30kW
Type of Module: FGET Multicrystalline 265Wp
Date of Completion November 2016
Installer: FGET
|
Burkina Faso 5kw
Project: Burkina Faso 5kw
Capacity: 5kW
Type of Module: FGET Multicrystalline 250Wp
Date of Completion: March 2017
Owner: Yacouba Zongo
|
|
Packing & Delivery
|
>>View More>>
|
|
|
|
|
|
Carton Packing
20, 10 or 4 pieces in one carton for batteries smaller than 12V24AH, one in one carton for larger batteries.
|
Batteries Layer
Load Lead acid batteries 3-5 layers high with cardboard between each layer, and stretch wrap. Make sure to catch the top of the pallet to help anchor it.
|
Fumigation Free Tray
As Lead Acid batteries are very heavy, we all use fumigation free tray to transport them.
|
|
Our Certification
|
|
>>View More>>
|
|
|
|
|
Company Certificate
Commitment to quality, consistency, innovation and service is taking the Company through a steady growth in the competitive market.
|
ISO Certificate
SGS ISO9001 quality management system certificate, ISO14001 environment system certificate
|
MSDS & Transport
Our batteries have UL and CE approvals. MSDS and Report for Safe Transport of Goods.
|
Our Services:
Samples and OEM, Warranty and After-Sale Service:
Sample can be provided for quality testing
-
OEM Welcomed
-
Warranty:5 years for solar panel, 2 years for controller/inverter/battery.
-
After-Sale Service: 24 Hour-Hot Line for Consultancy and Technical Support
