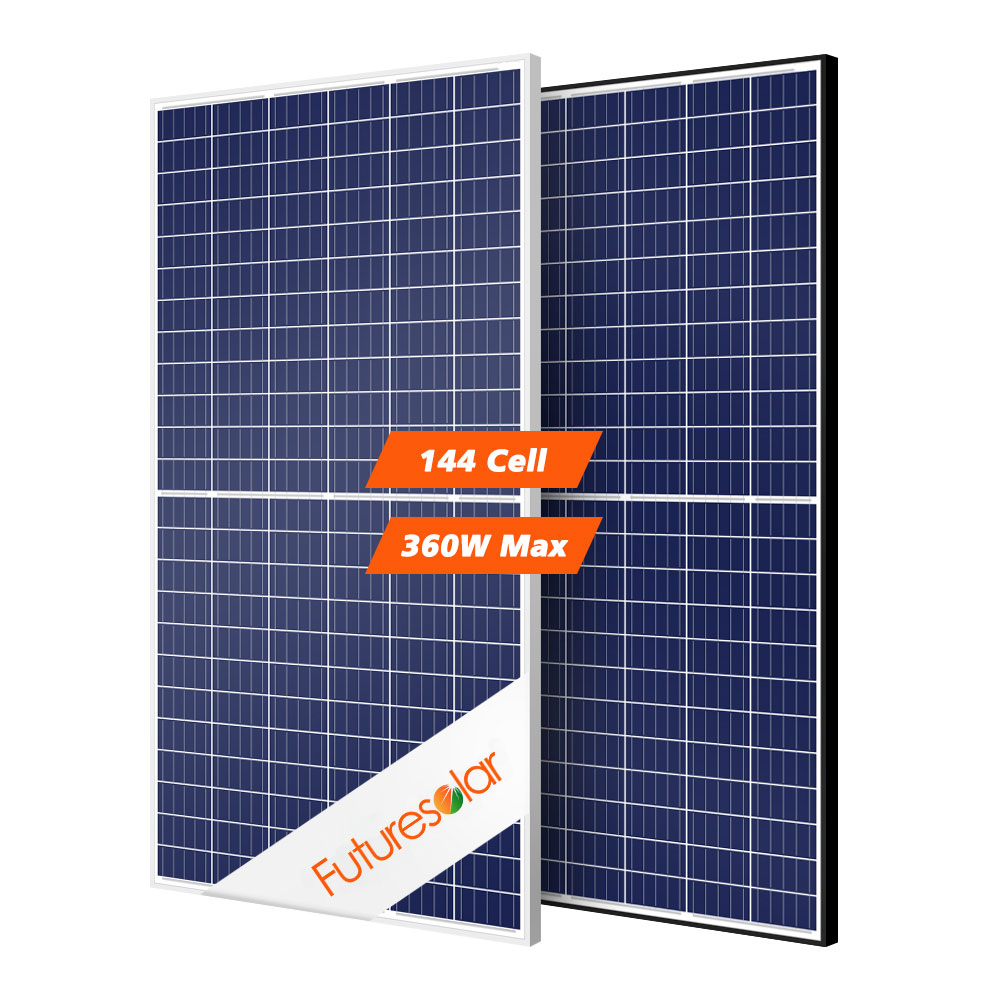

Futuresolar Grade A 5bb black frame poly solar cell panels 340w-360w

Free Anti-Dumping Tariffs to North America market

Black Frame panel available


  • Number of Cells72Cells

Futuresolar Grade A 5bb solar panel poly 340w 345w 350w 355w 360w

This pid free high efficiency Futuresolar half-cut poly solar cell solar panel is the best choice for your roof-top home and commercial solar system to decrease electric bill with low costs.

Poly roof panel price competitive by Futuresolar mass production control



Module
FSMxxxP-72H xxx = Peak Power Watts
Peak Power Watts(Pmax/W)
340
345
350
355
360
Power Output Tolerance(W)
0~+5
Maximum Power Voltage(Vmp/V)
38.9
39.0
39.2
39.4
39.6
Maximum Power Current(Imp/A)
8.74
8.86
8.94
9.02
9.10
Open Circuit Voltage(Voc/V)
46.2
46.4
46.6
46.8
47.0
Short Circuit Current(Isc/A)
9.35
9.43
9.51
9.59
9.67
Module Efficiency(%)
17.2
17.4
17.7
17.9
18.2



STC:Irradiance 1000W/m2,Cell Temperature 25°C,Air Mass AM1.5.

*Measuring Tolerance: ±3%.




Detail
solar glass


Glass


> Antireflective glass
> Translucency of normal luminance is increased by 2%

> Module efficiency is increased by 2%

> Self-cleaning function
> Service life is as long as 25 years (30 years optional)



Solar Cell


> High Efficiency PV Cells

> Appearance Consistency
> Color sorting ensure consistent appearance on each module
> Anti-PID


solar cell poly
aluminum alloy frame

Frame


> Conventional frame

> Silver or black frames are optional
> Boost bearing capability and prolong service life
> Serrated-clip design tensile strength
> Seal-lip designglue injection


Junction box


> Conventional standalone edition and engineering custom edition

> Quality diode ensures module running safety
> IP67 protection level
> Heat dissipation
> Long service life


IP67 junction box

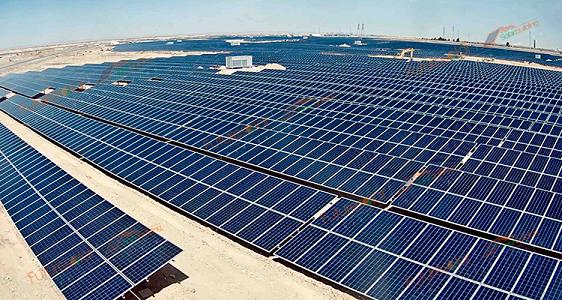

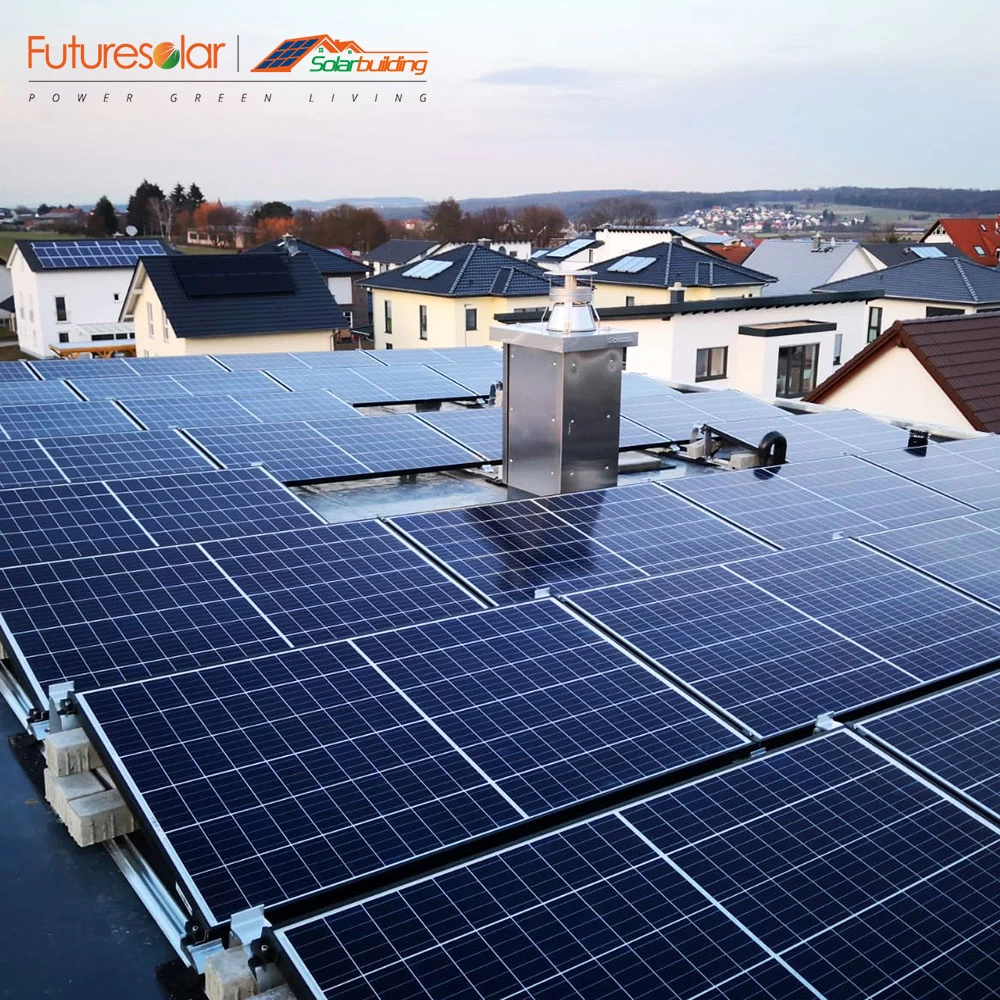

Projects
