Overview
Brand: Nokia

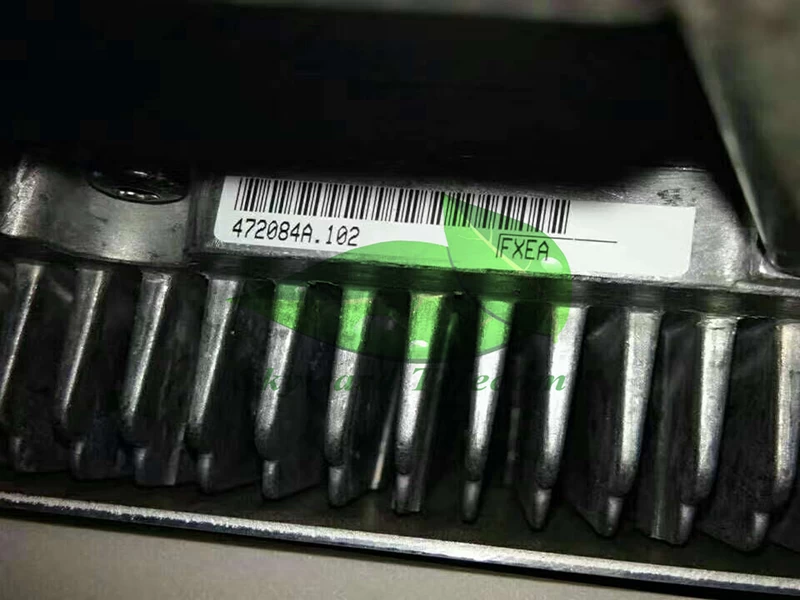

Product Number: 472084A
Model: FXEA
Discription: NSN Flexi Multiradio RF Module 472084A FXEA (1800MHz 18TRX); GSM 1800 70W
Flexi RF Module Triple (FXxx)
The Flexi Multiradio Radio Frequency Module (FXxx) or RF Module, is a 3-branch multicarrier,multi-standard radio transceiver module. The module consists of three independent branches, capable of transmitting and receiving signals of multiple radio technologies concurrently:
-
Up to 6 GSM carriers with 400 KHz minimum carrier separation
-
Up to 4 WCDMA carriers with 4.6 MHz minimum carrier separation
-
Multi-carrier LTE signal with 1.4 MHz, 3 MHz, 5 MHz, 10 MHz, 15 MHz, 20 MHz, and 35 MHz carrier bandwidth
-
Multi RAT operation with combination of GSM, WCDMA, and LTE
The RF Modules FXDA, FXDJ, FXEA, FXCA, and FXFA/ FXFB are referred to as 70W RF Module variants. RF Modules FXEB and FXDB are referred to as 90 W RF Module variants. Each branch consists of a transmitter and two receiver chains. FXxA and FXFB (70W) variants have front end software tunable filters (STuF). 90 W RF Module variants have fixed full band filters. FXxx is a 3U high module with an integrated, replaceable 3-fan assembly for module cooling. The supported functions are:
-
Chaining up to three RF Modules with OBSAI RP3_01
-
2-way receive diversity in the receiver chains
-
Integrated antenna line supervision
-
MHA, Antenna Hopping, EGPRS2, and VAMOS support
-
Digital and control circuitry, optical interface, DC/DC power conversion, and other necessary functionalities
-
Integrated DC line OVP, Class II rated to 5kA pulse (FXFB, FXDB/FXEB)
-
Remote Electrical Tilt (RET) support (FXFB, FXDB/FXEB)
RF Module frequency range and bandwidth (Cont.)
|
RF Module variant
|
TX frequency range [MHz]
|
RX frequency range [MHz]
|
DL instantane ous bandwidth [MHz]
|
UL instantaneous bandwidth [MHz]
|
DL filter bandwidth [MHz]
|
UL filter bandwidth [MHz]
|
|
RFM 3x60 W 1800 MHz FXEA
|
1805-1880 1
|
1710-1785
|
25
|
30
|
30
|
30
|
