Technical Data
Sample Size 440 x 550 [mm] (17'' x 21'')
Max. Radioscopic Area 310 x 310 [mm] (12'' x 12'')
System Dimensions (W/D/H) 1000 x 1050 x 2200 [mm]
System Weight 1450 kg

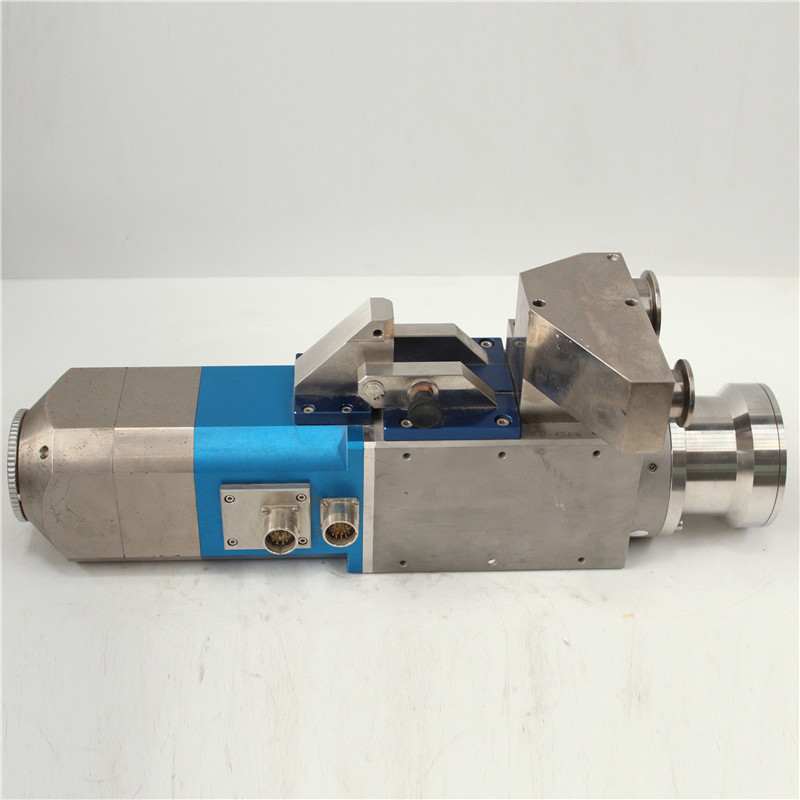

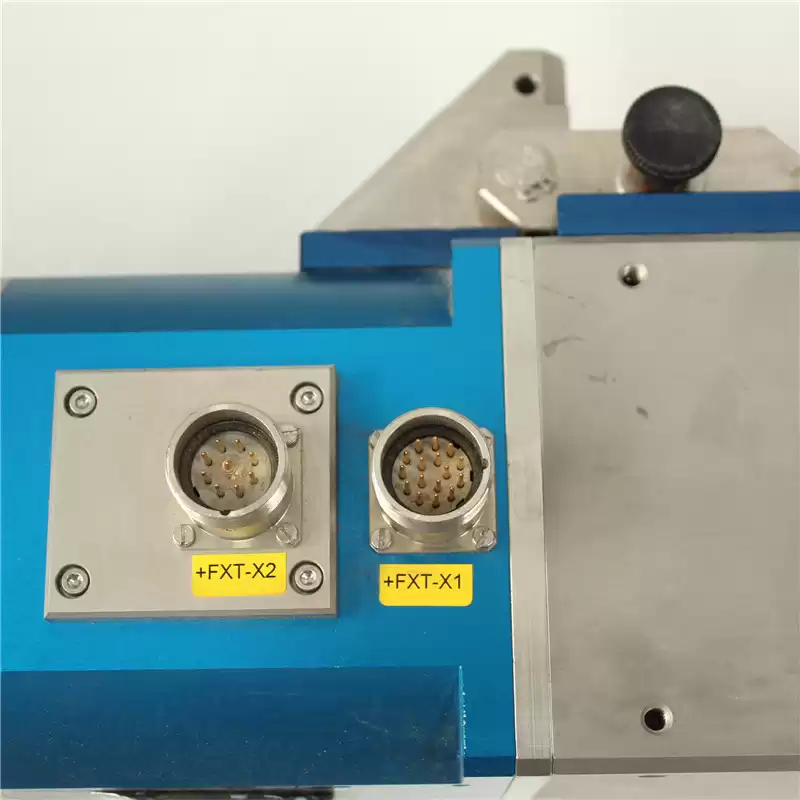

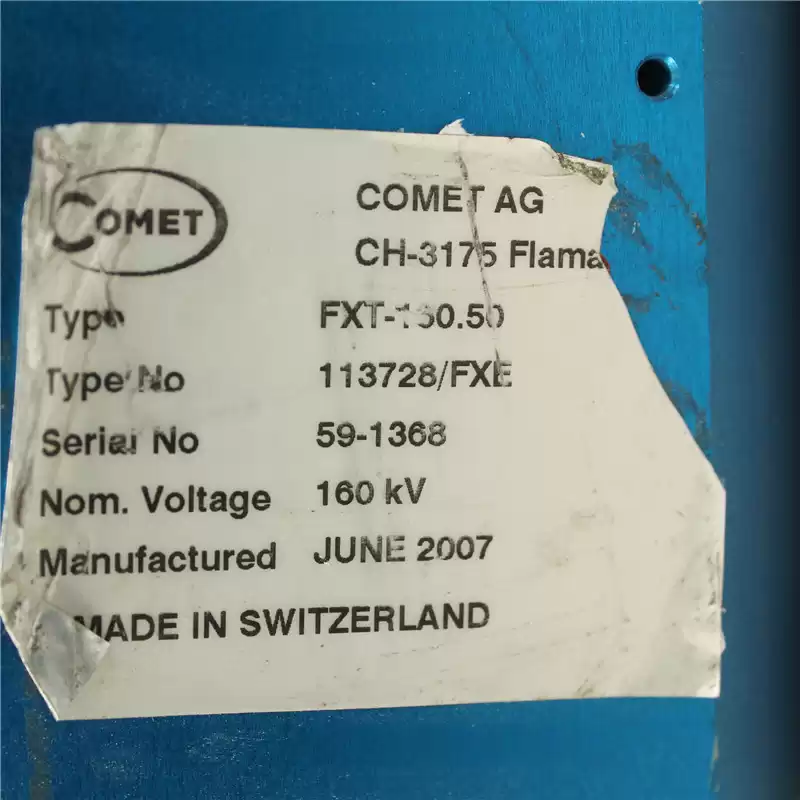

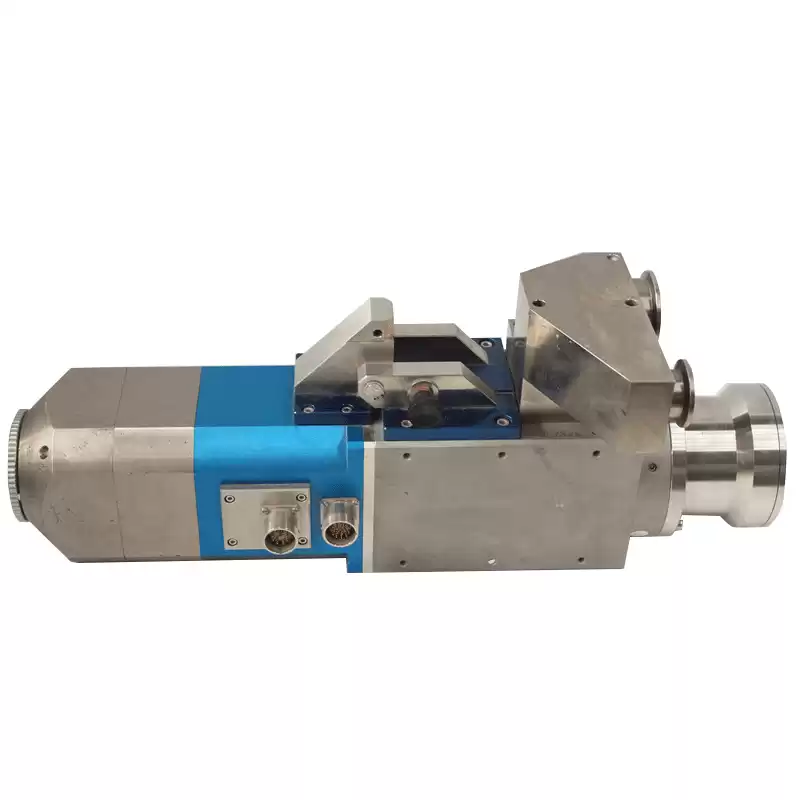

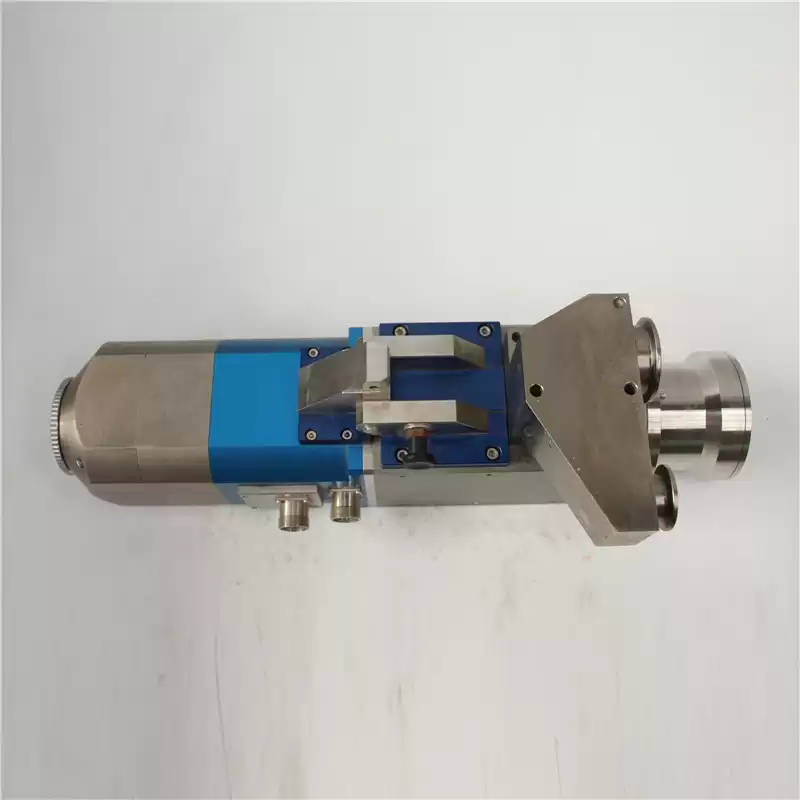

FeinFocus X-ray Tube FXT-160.50 Microfocus or FXT-160.51 Multifocus, 20 - 160 kV voltage range
Detector Active Area 1004 x 620 px (Flat-panel detector 1308), 1004 x 1004 px (Flat-panel detector 1313), 1276 x 1276 px (Flat-panel detector 1616)
Pixel Pitch 127 µm
Bit Depth 16 bit
Oblique Viewing +/- 70° (140°)
3D Modes Laminography (micro3Dslice), CT QuickScan, QualityScan
