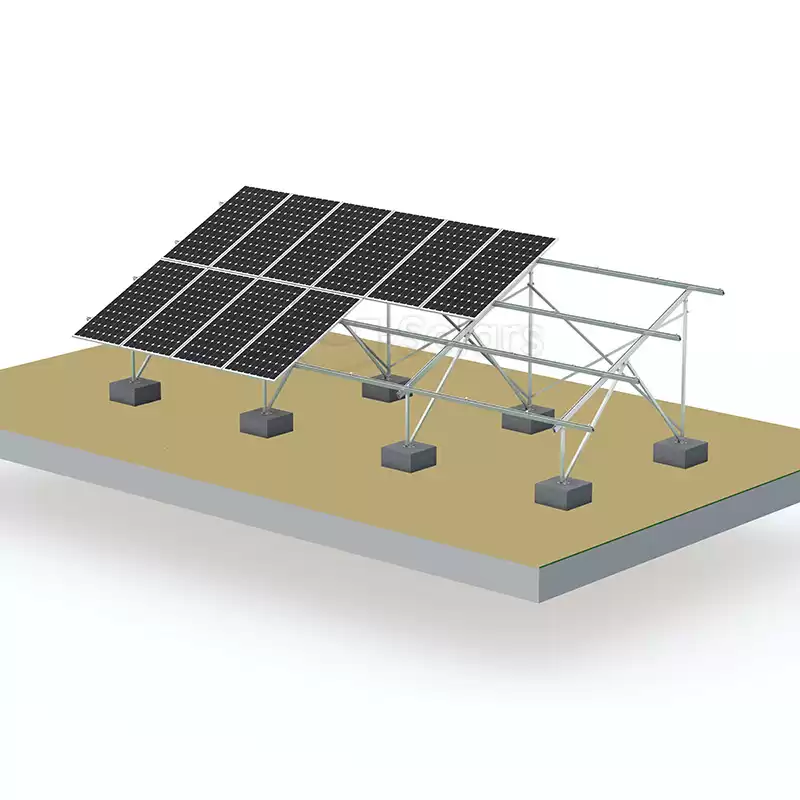

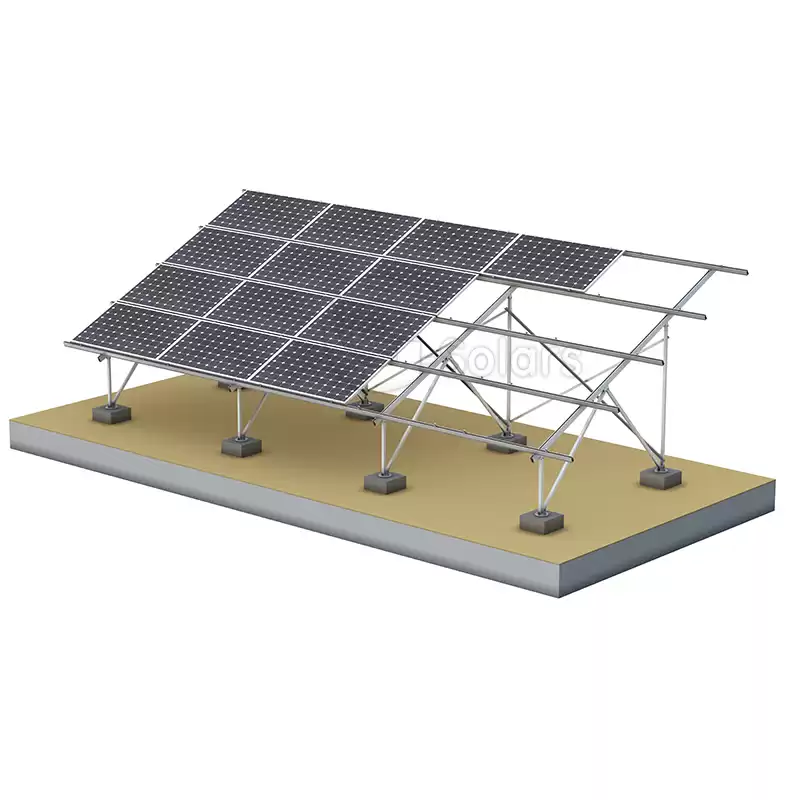

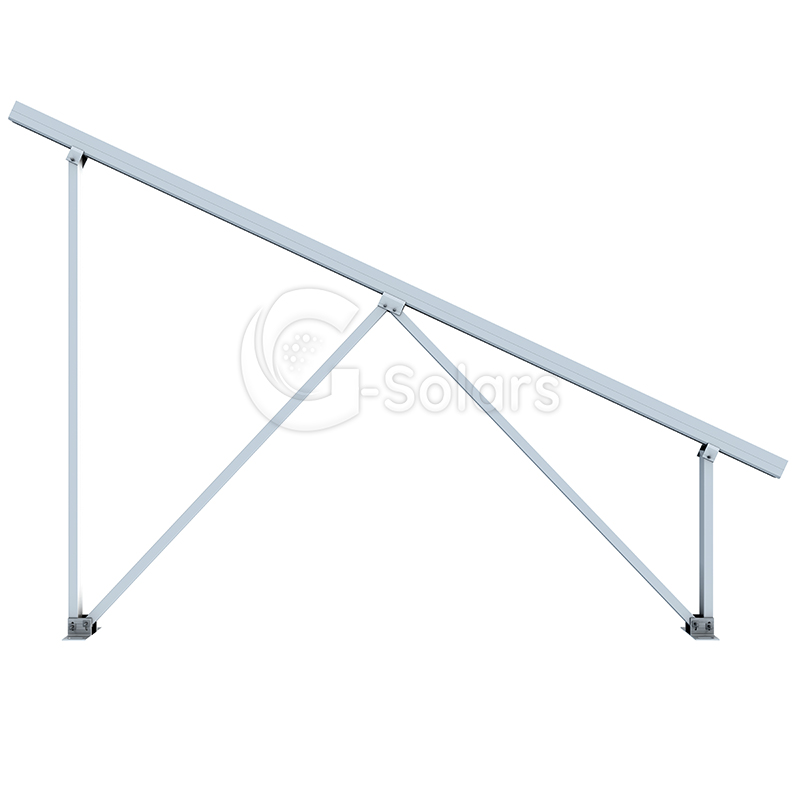

Solar Panel Concrete Mounting Bracket Structure
A concrete solar ground system offers several advantages, which contribute to its popularity in certain solar installations.
1.Stability and Durability: Concrete footings provide a stable and strong foundation for the solar array, ensuring that it can withstand various environmental conditions, including wind, snow, and seismic activity.
2.Flexibility in Site Selection: Ground-mounted solar systems with concrete foundations can be installed on a wide range of terrains, including uneven or sloped surfaces. This flexibility allows for the utilization of spaces that may not be suitable for other mounting options, such as roofs or limited roof space applications.
3.Simplified Installation and Maintenance: Concrete solar ground systems are relatively straightforward to install compared to other mounting options.
4.Cost-Effectiveness: Concrete is a widely available and cost-effective material, making it an economical choice for solar ground systems.
Technical Data
| Product Name |
Solar Panel Concrete Mounting Bracket Structure
|
| Material |
Aluminum & Stainless Steel |
| Standard |
AS/NZS 1170, ASCE 7-10, JIS2017 |
| Wind Load |
60 m/s |
| Snow Load |
1.4 Kn/m2 |
| Applicable Module |
Framed or Frameless |
| Module Orientation |
Portrait or Landscape |
| Surface Treatment |
Anodized |
| Application |
Asphalt shingle roofs, shingle roofs, and metal roofs |
| Dimensions |
Customized |
| Color |
Natural or Black Anodizing |
Details

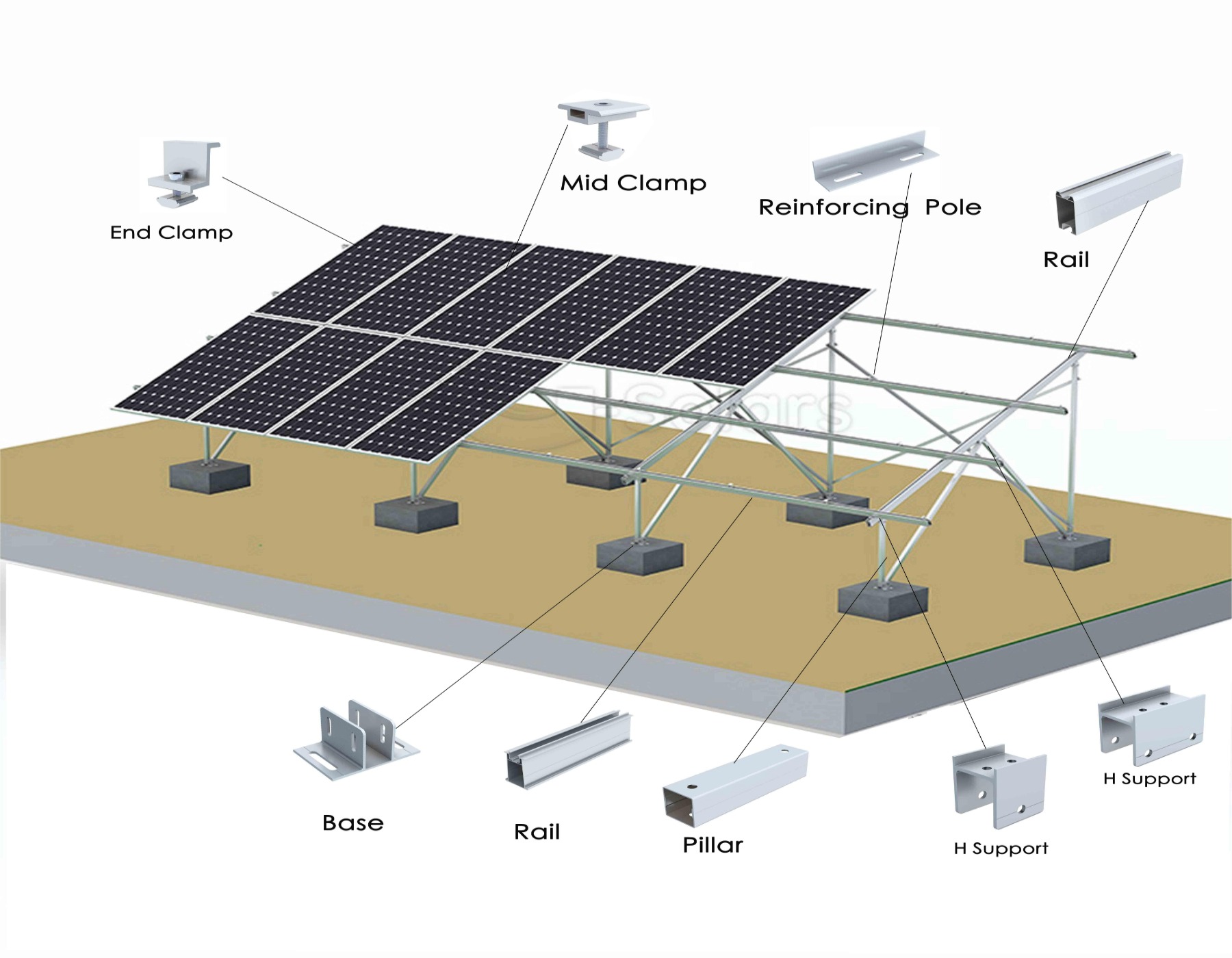

Components

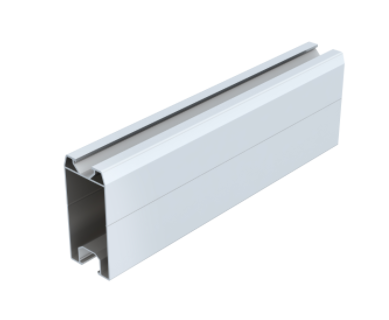

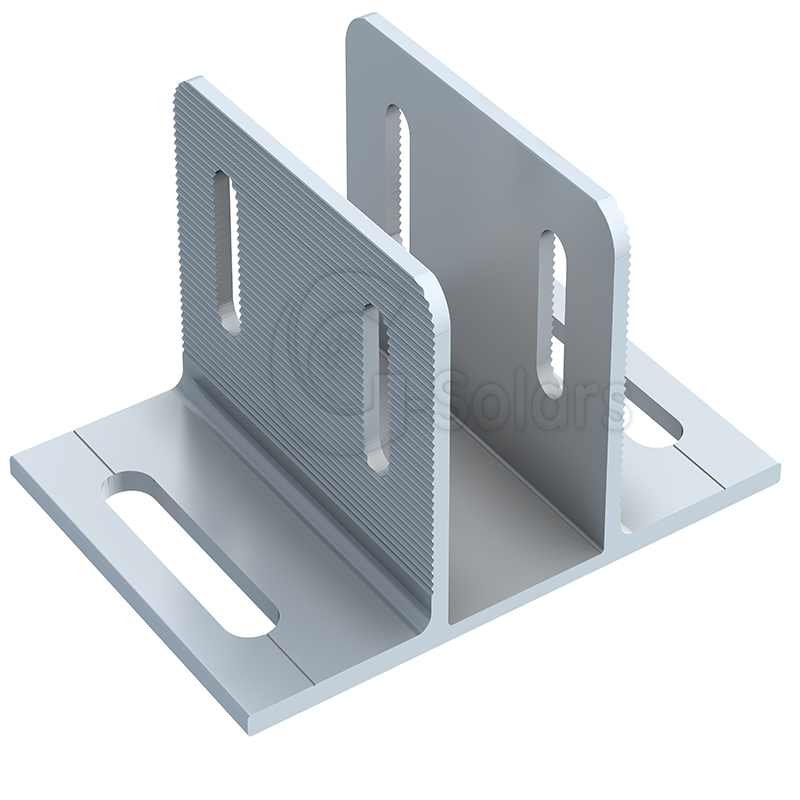

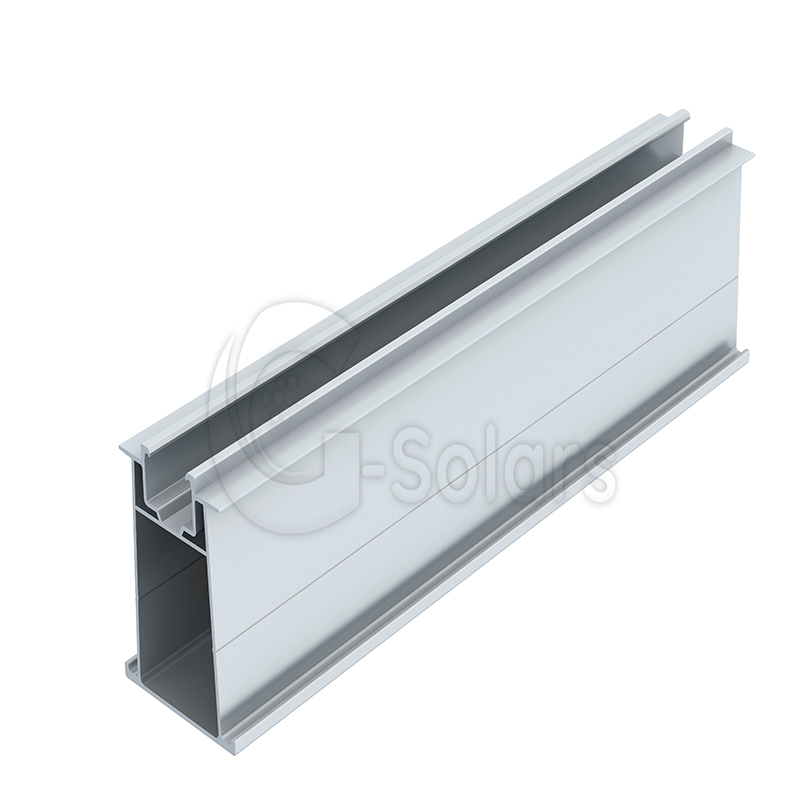

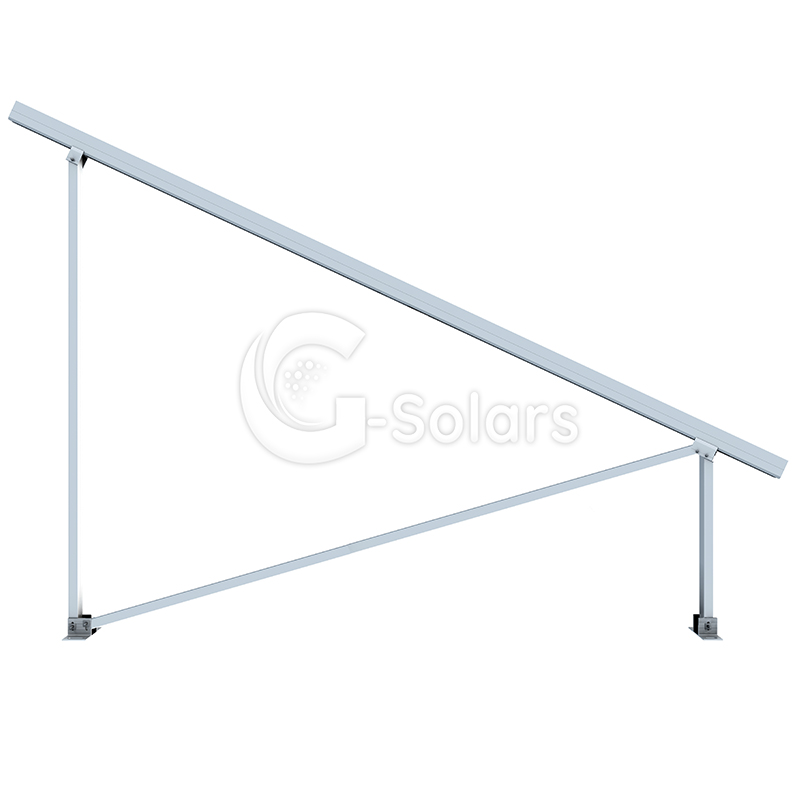

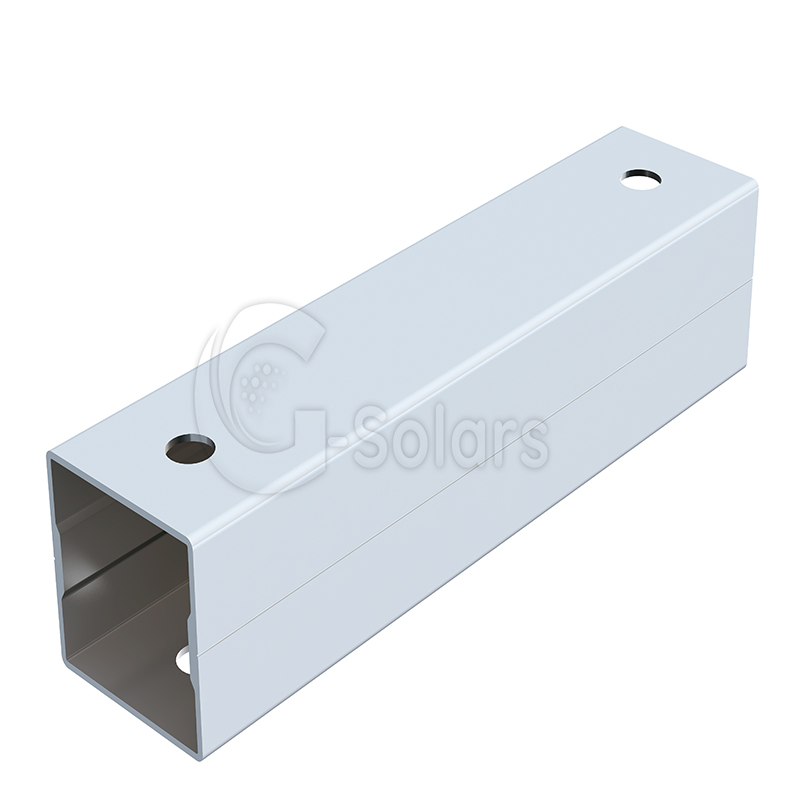

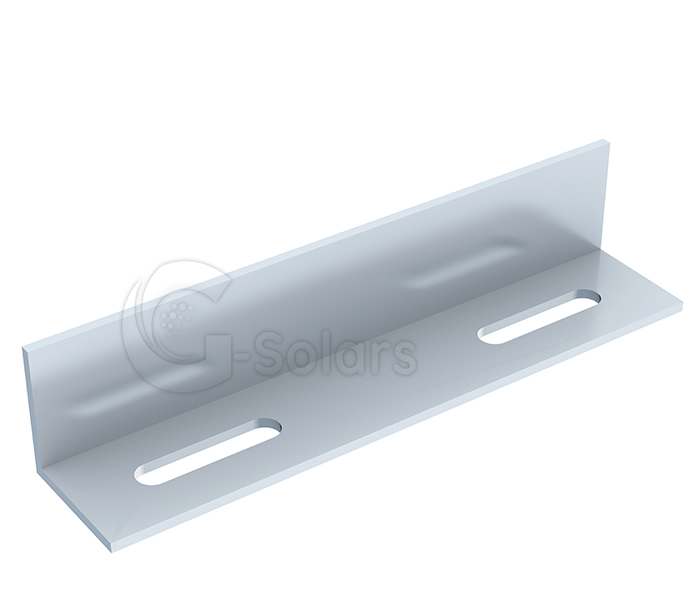

Rail GS-GM-01 Beam GS-GM-02 Pole Support GS-GM-03 Inclined Cros GS-GM-05 Base GS-GS-06

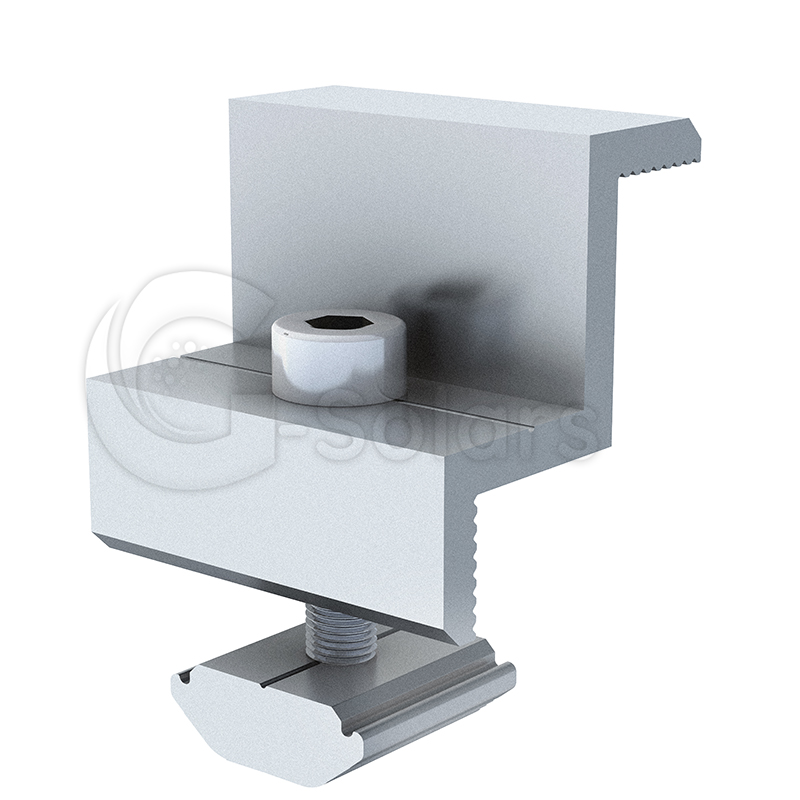

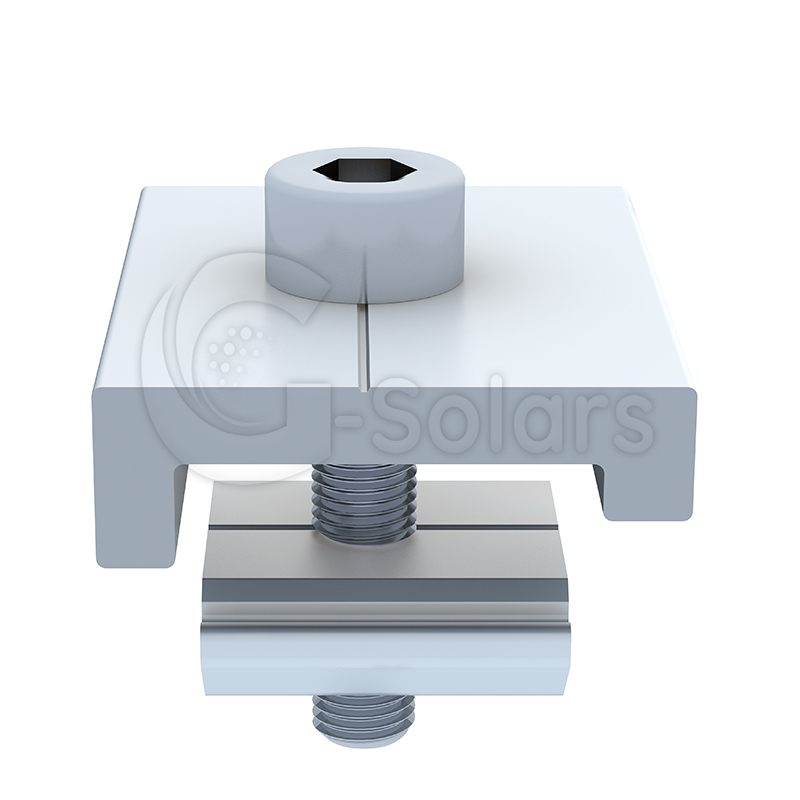

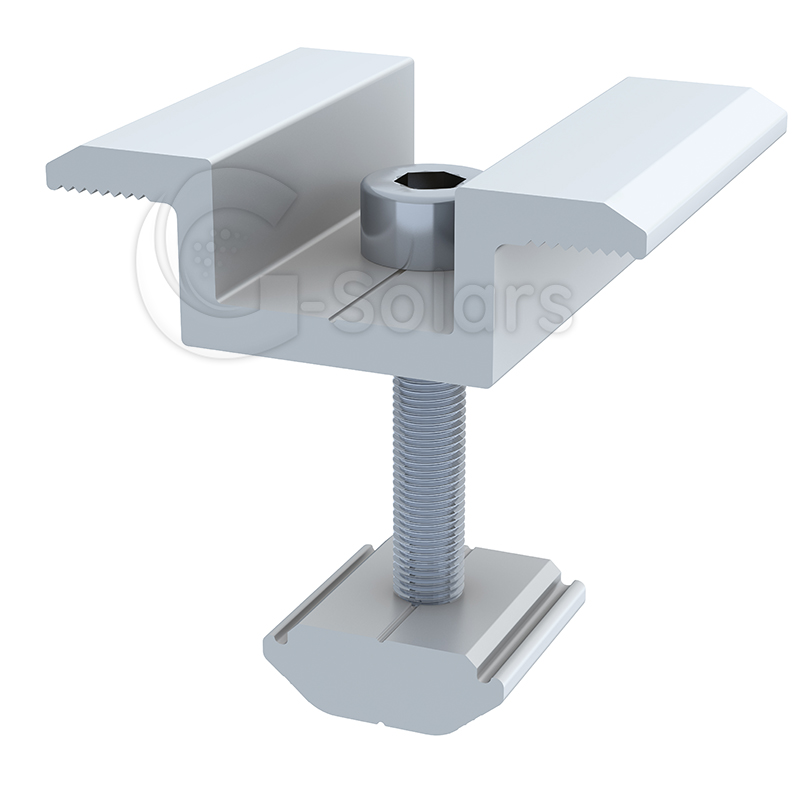

Rail Clamp GS-FC-01 End Clamp GS-EC-02 Mid Clamp GS-MC-B GS-NP GS-WP

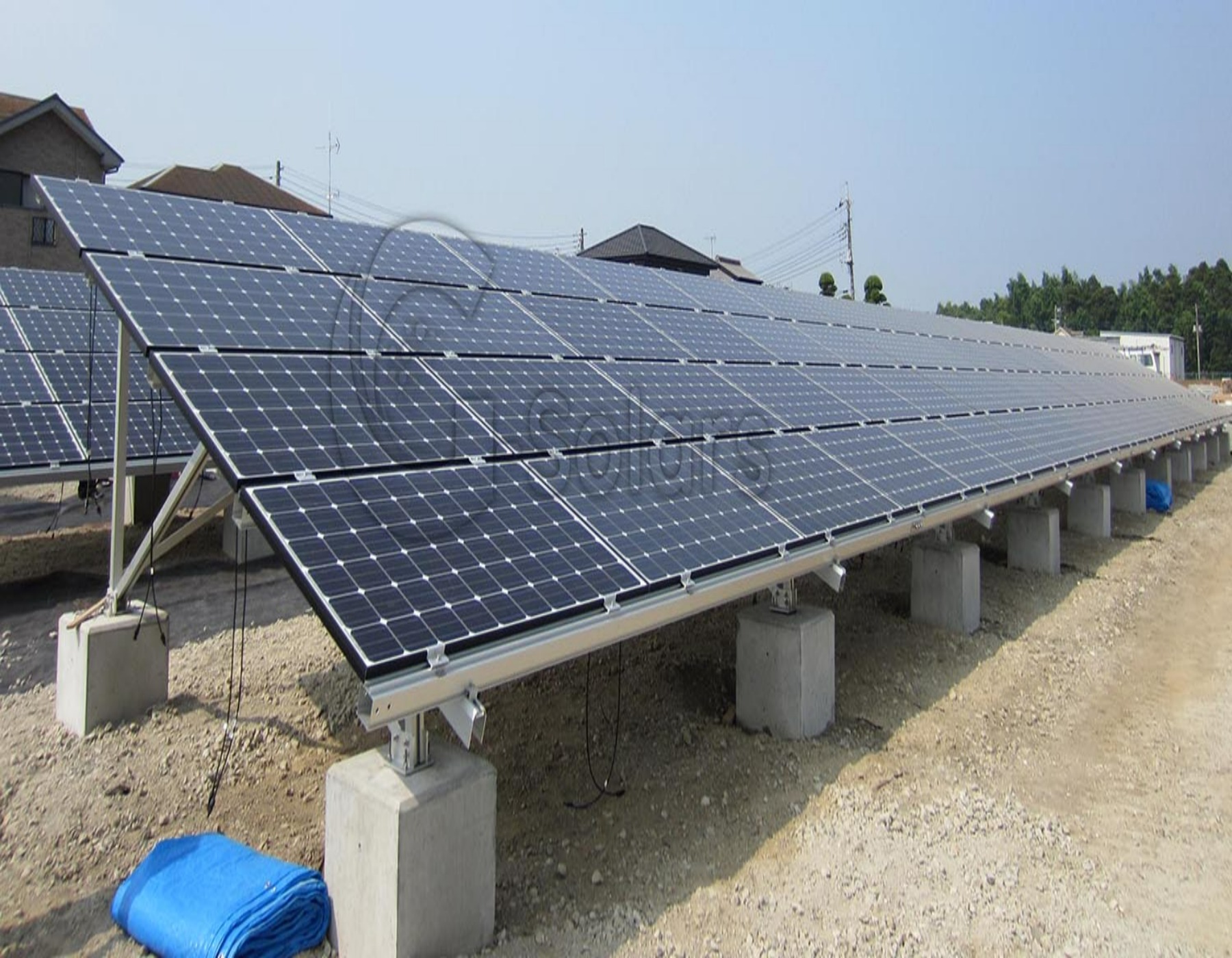

Project Cases
Reasons to choose G-Solars?
1. We can support OEM and distribute our products at preferential prices. We are one of the top 5 integrated manufacturers of aluminum solar brackets in China.
2. All parts are anodized – Comes with a 10-year warranty and 25-year service life.
3. We have more than 10 years of experience in the field of solar brackets and will continue to innovate and design better products.
4. We also have a manufacturing factory in Malaysia, which brings more convenience to customers in anti-dumping countries.
