Ground Solar Mounting System
1.Support Structure: The support structure forms the backbone of the ground mounting system and typically consists of steel or aluminum frames and beams. These structures are designed to withstand wind, snow, and other weather conditions while securely holding the solar panels in place.

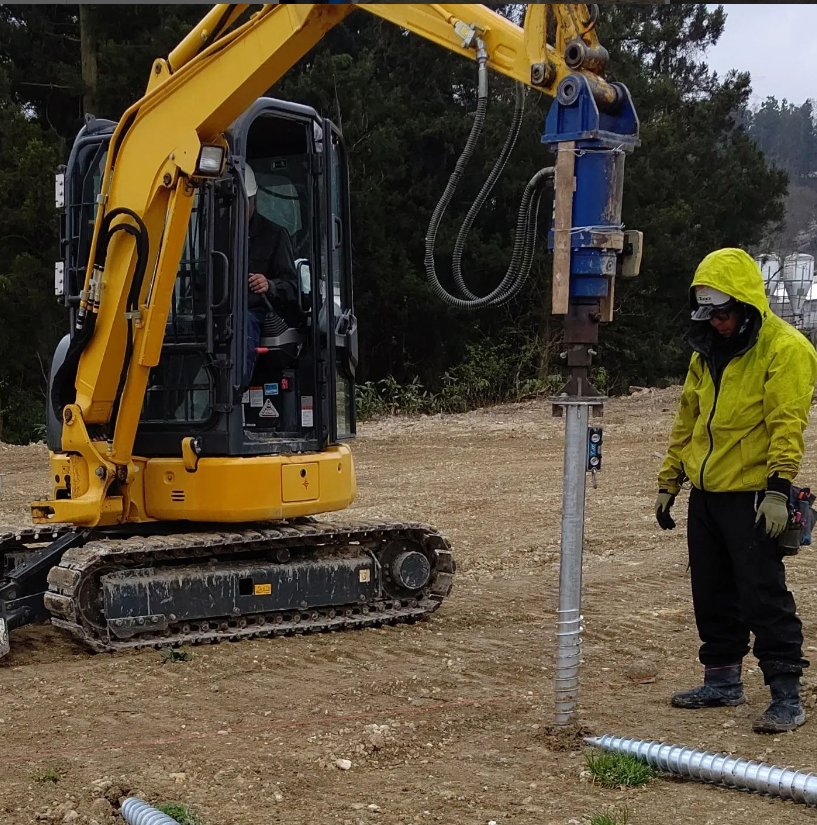

2.Pile or Foundation: The mounting system requires a secure foundation to anchor the support structure to the ground. This can involve various methods such as concrete footings, ground screws, or driven piles. The choice of foundation depends on factors such as soil conditions, site characteristics, and specific engineering requirements.

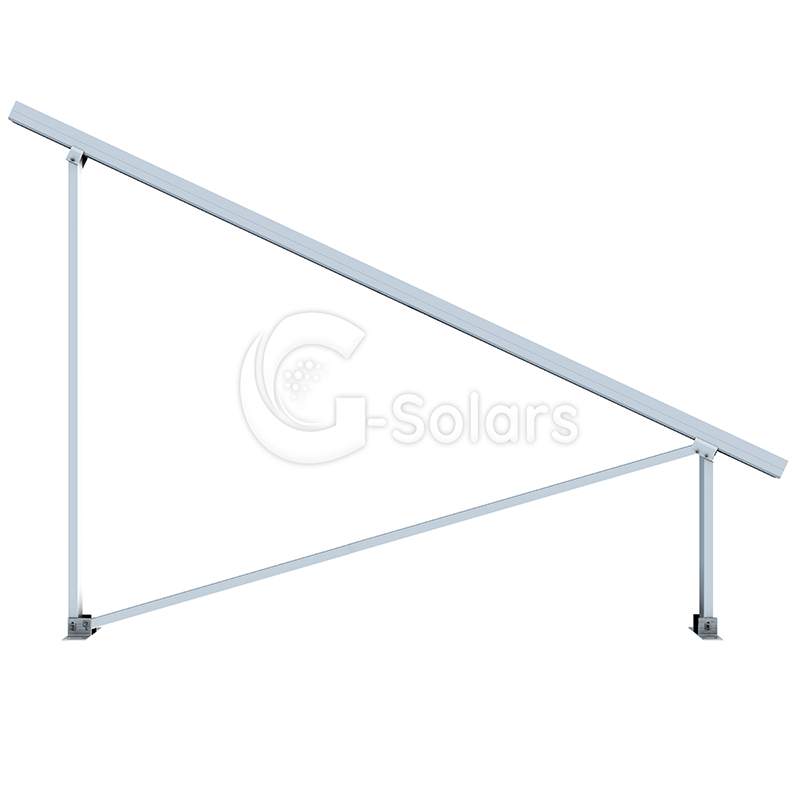

3.Tilt Angle and Orientation: Ground mounting systems often allow for adjustable tilt angles and orientation of the solar panels to optimize their positioning for solar energy generation. The tilt angle can be adjusted according to the latitude of the installation site to achieve the optimal tilt for capturing sunlight.
4.Ground Clearance: Sufficient ground clearance is provided between the bottom of the panels and the ground to allow for maintenance activities, such as cleaning or inspections. The clearance is also important to prevent shading and optimize the performance of the solar panels.
Technical Data
| Product Name |
Ground Solar Mounting System
|
| Material |
Aluminum & Stainless Steel |
| Standard |
AS/NZS 1170, ASCE 7-10, JIS2017 |
| Wind Load |
60 m/s |
| Snow Load |
1.4 Kn/m2 |
| Applicable Module |
Framed or Frameless |
| Module Orientation |
Portrait or Landscape |
| Surface Treatment |
Anodized |
| Application |
Asphalt shingle roofs, shingle roofs, and metal roofs |
| Dimensions |
Customized |
| Color |
Natural or Black Anodizing |
Details
Components

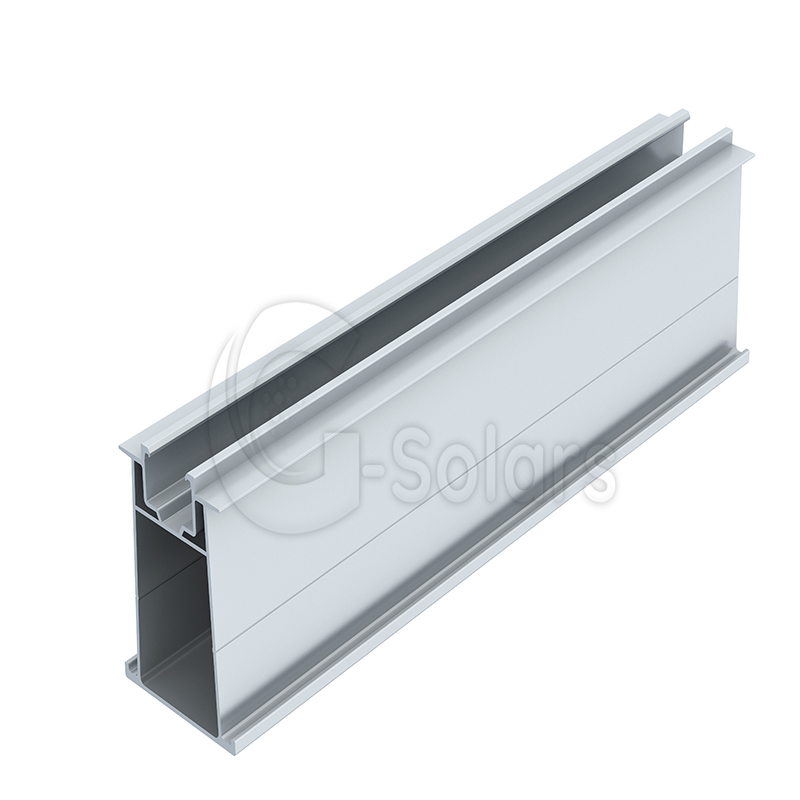

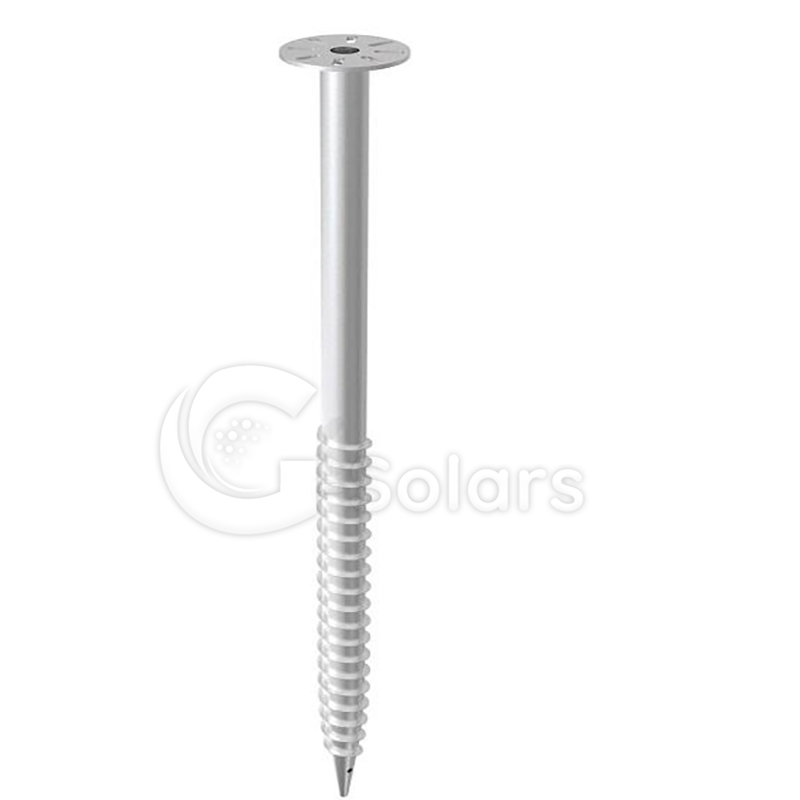

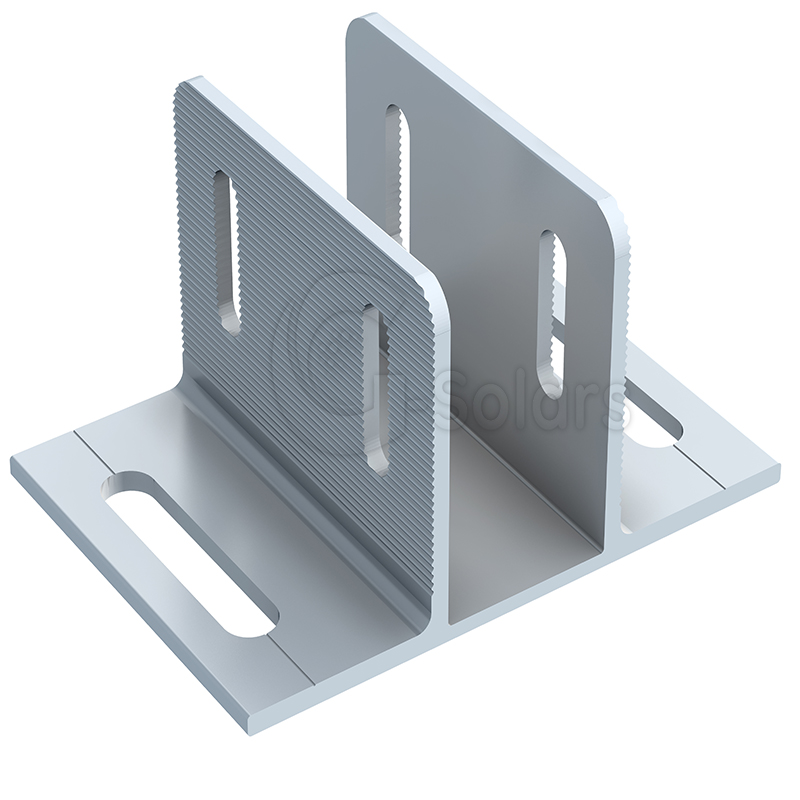

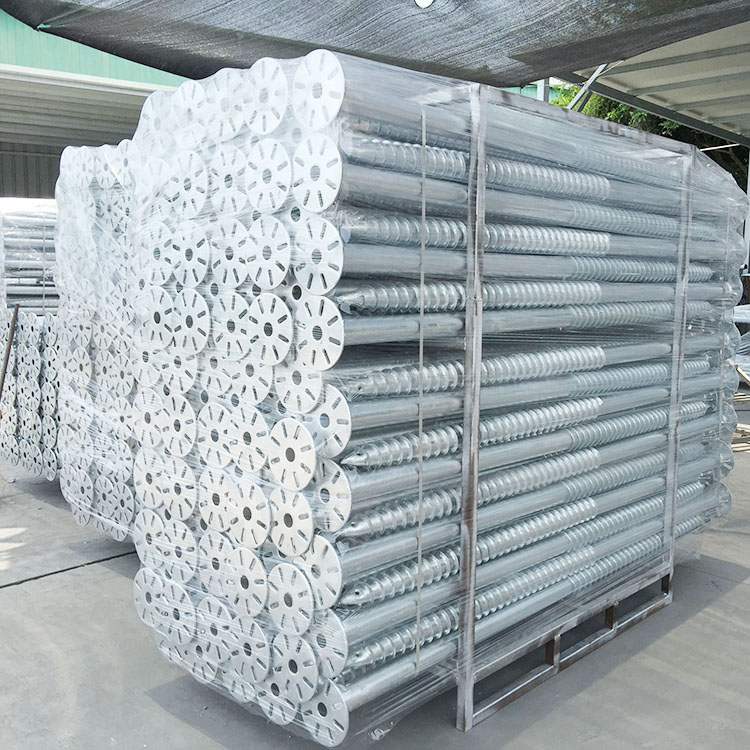

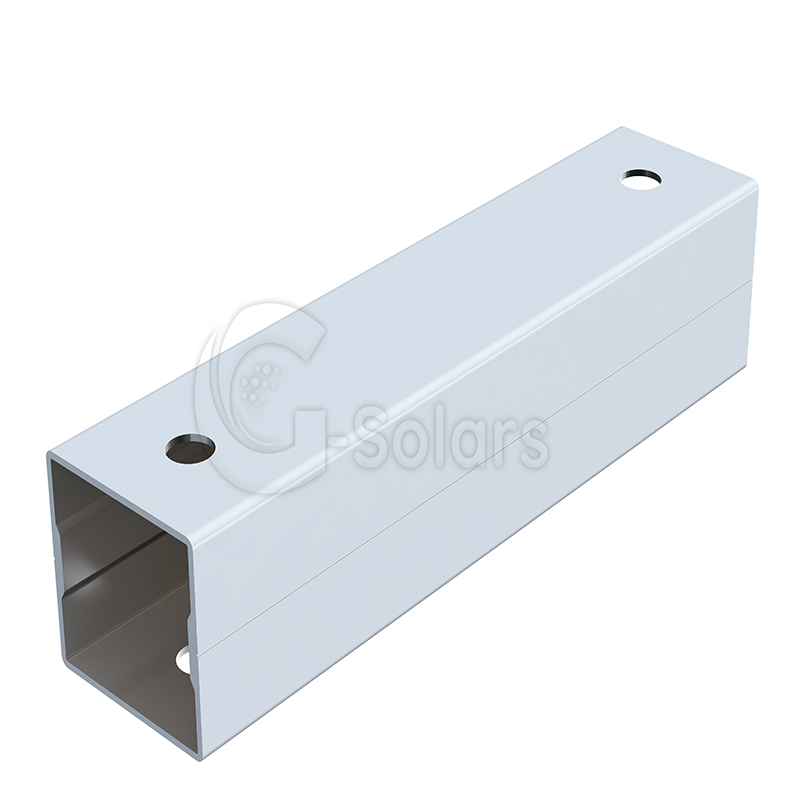

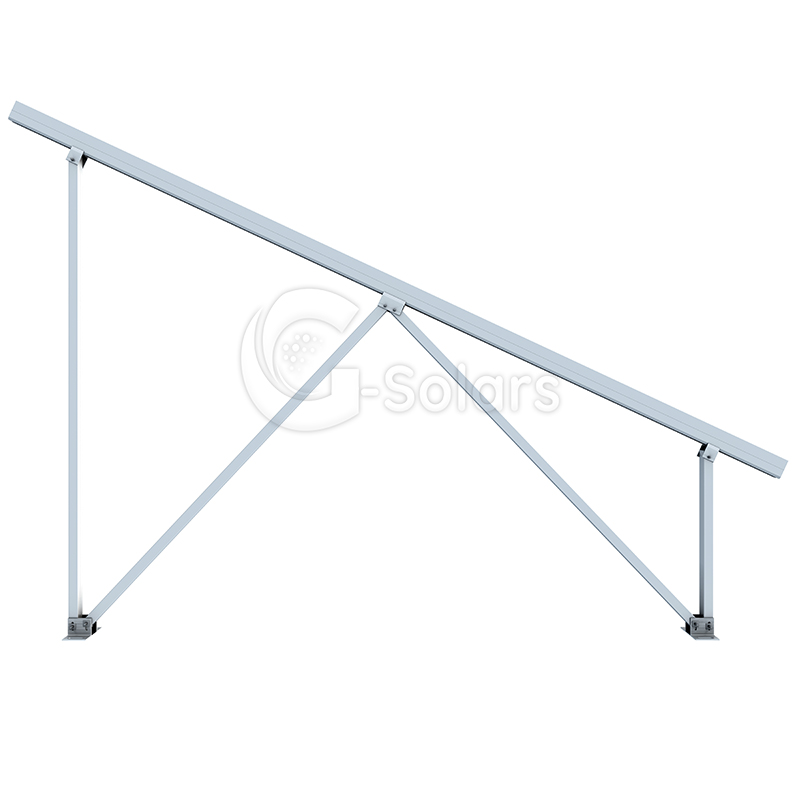

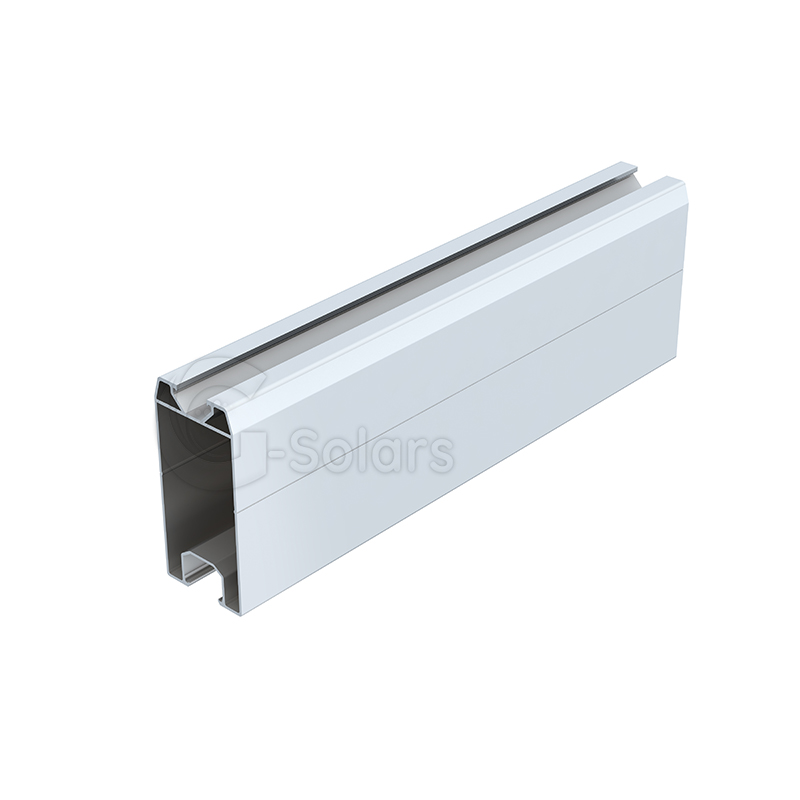

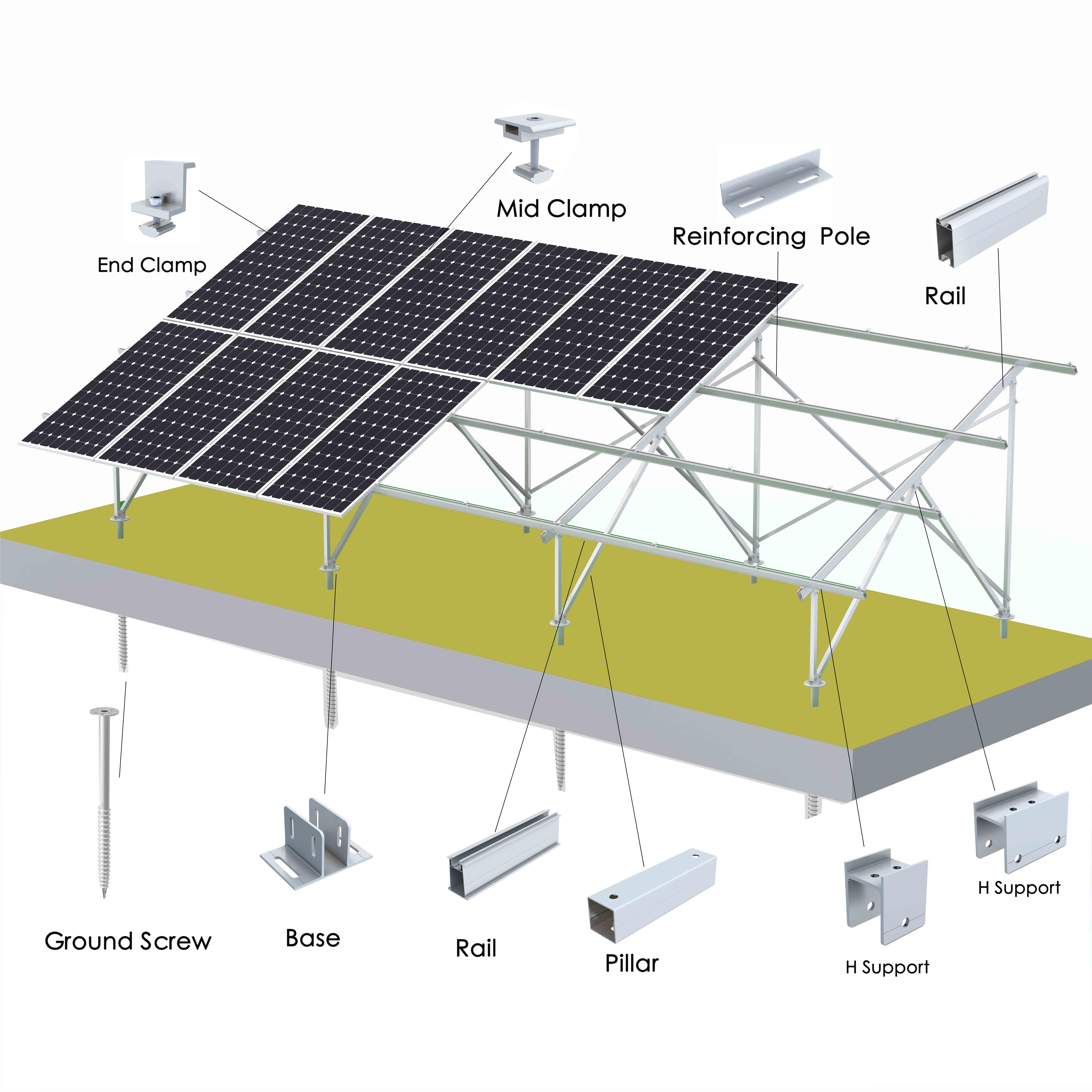

Rail GS-GM-01 Beam GS-GM-02 Pole Support GS-GM-03 Ground Screw GS-GM-04

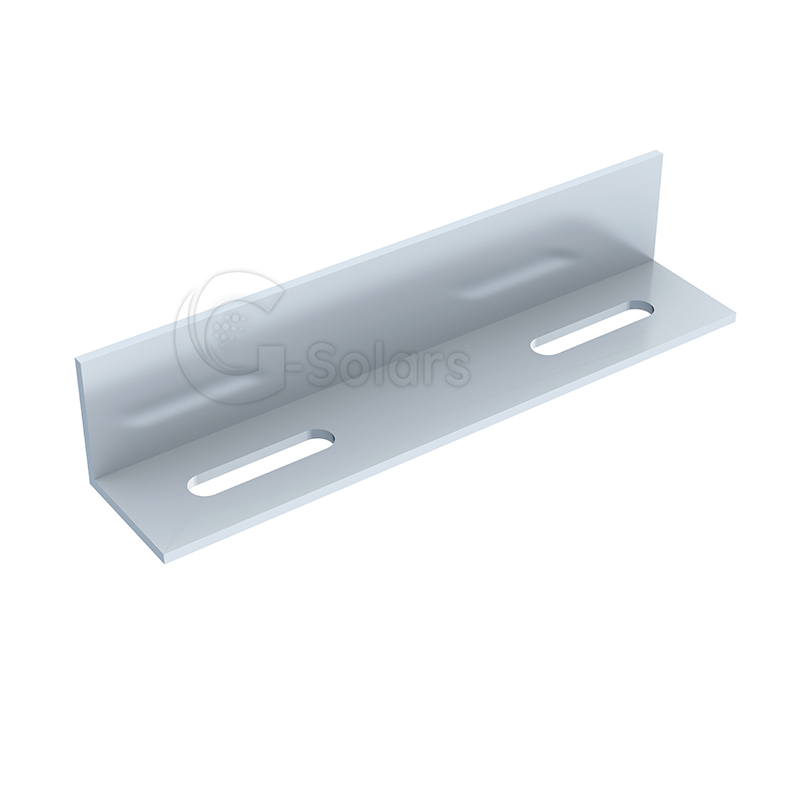

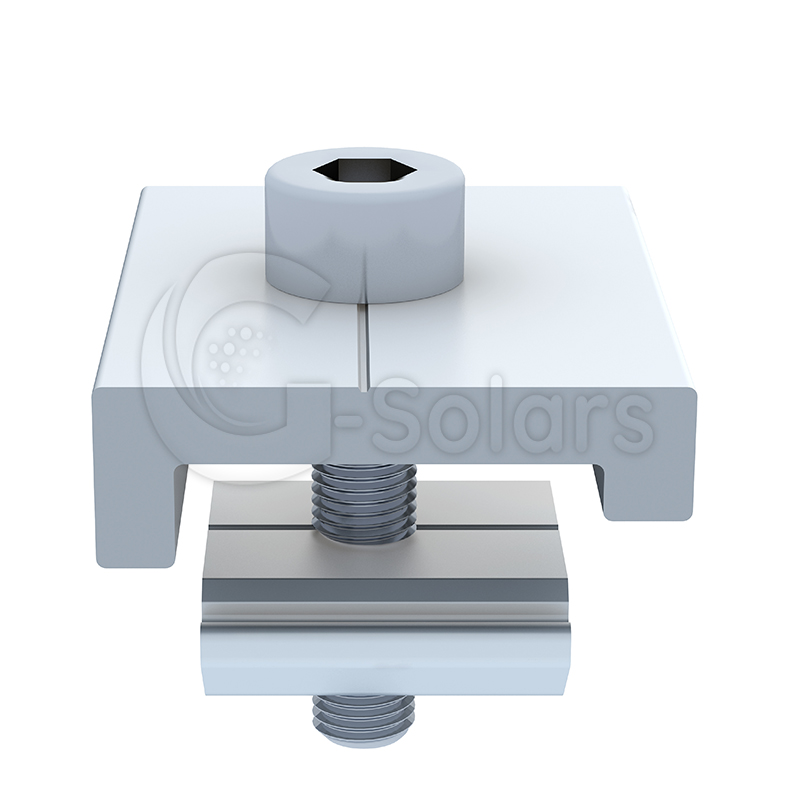

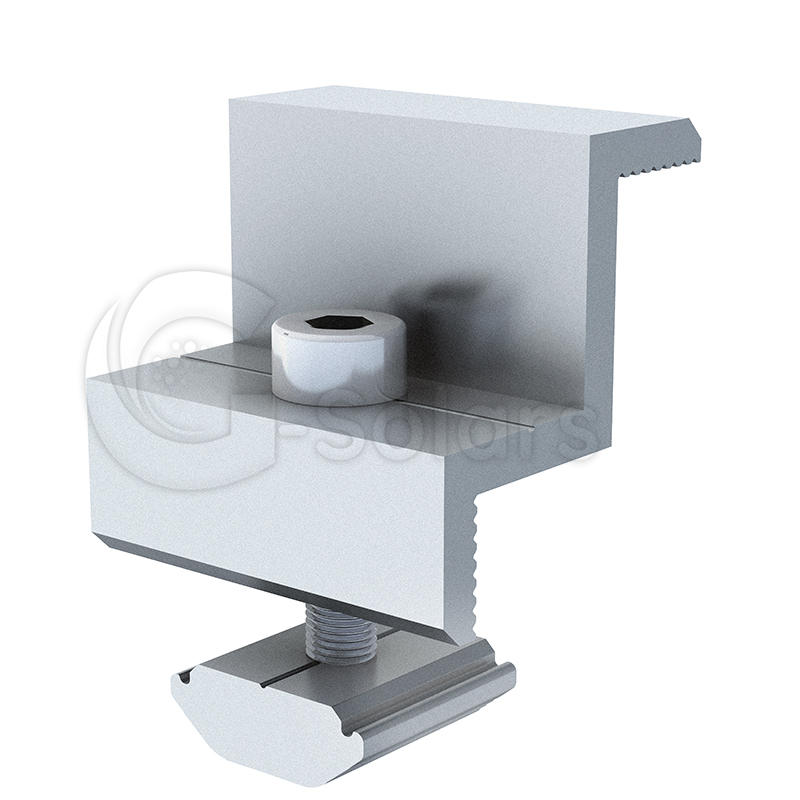

Inclined Cros PVM-GM-05 Base GS-GS-06 Rail Clamp GS-FC-01 End Clamp GS-EC-02

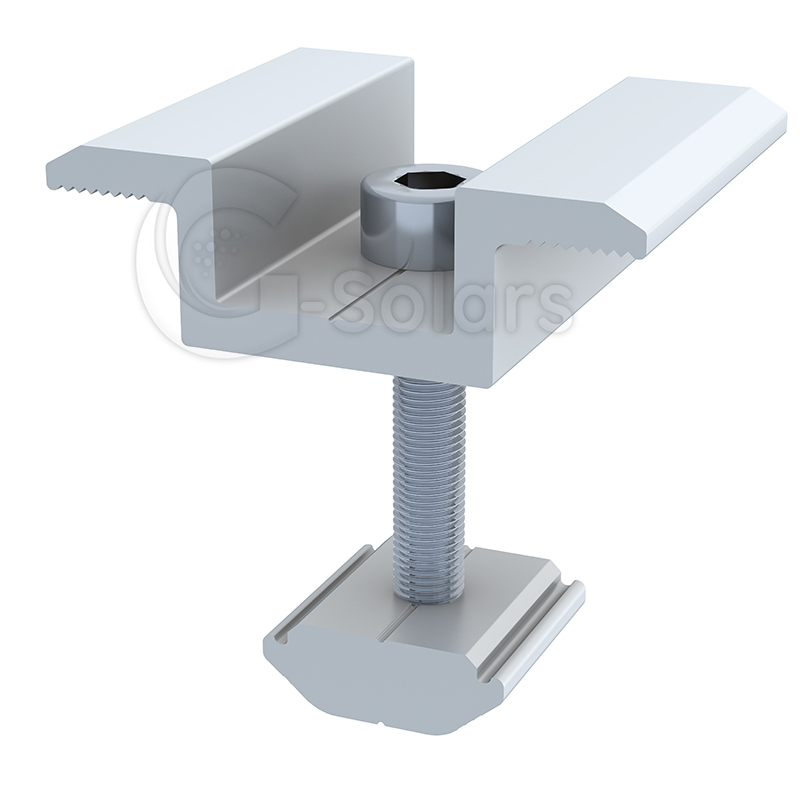

Mid Clamp GS-MC-B GS-NP GS-WP

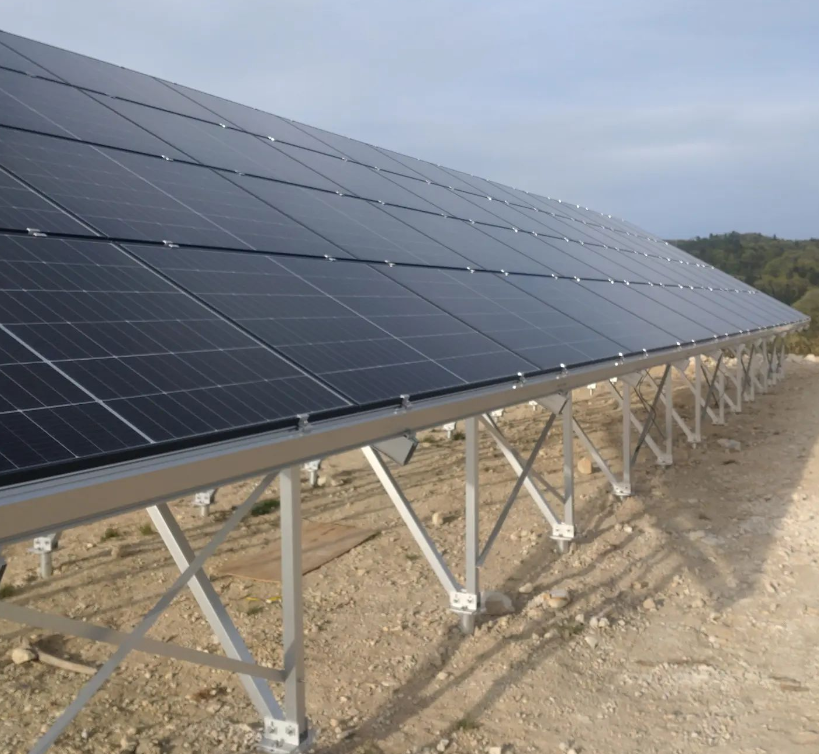

Project Cases
Production Process
Reasons to choose G-Solars?
1. We can support OEM and distribute our products at preferential prices. We are one of the top 5 integrated manufacturers of aluminum solar brackets in China.
2. All parts are anodized – Comes with a 10-year warranty and 25-year service life.
3. We have more than 10 years of experience in the field of solar brackets and will continue to innovate and design better products.
4. We also have a manufacturing factory in Malaysia, which brings more convenience to customers in anti-dumping countries.
