Deck flooring slab highlights
☆ Construction speed of bondek slab: The erection results could save 40-60% labour cost;
☆ Available range: This metal deck can be workable for most of floor support systems;
☆ Available thickness: 0.75 ~ 1.50mm is available;
☆ Fireproof performance: Steel deck was fire tested and qualified for a rating of 120 minutes;
☆ Structural decking sheets were assessed and certified complying with ISO 9002 Quality Management Systems.
Steel floor decking use
☆ As roof deck for buildings to the section of the roof onto which everything else is placed. As such it needs to be strong enough to hold the weight and durable enough to cope with some load;
☆ As floor deck for multi-story building,to support the whole load of each floor.

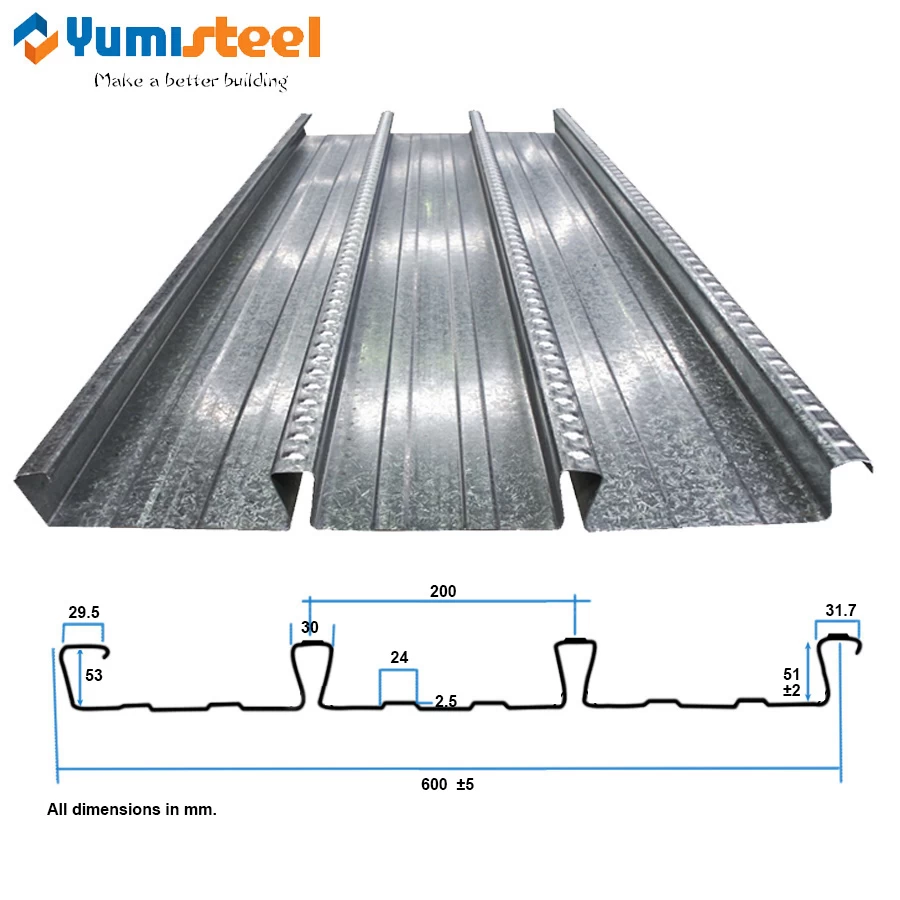

Composite corrugated floor decking specifications
|
Model NO.
|
YX51-200-600
|
|
Rib height
|
51 mm
|
|
Rib distance
|
200 mm
|
|
Modular width
|
600 mm
|
|
Feeding width
|
1000 mm
|
|
Material
|
Galvanized / Galvalume steel
|
|
Thickness
|
0.75 ~ 1.50 mm
|
|
Steel material
|
High strength galvanized steel sheets
|
|
Material standards
|
Q235, Q345, Q355, G550
|
|
Zinc coating
|
120 ~ 275 g/m²
|
|
Length
|
Max 5.95 meters for 20FT container;
|
|
|
Max 11.95 meters for 40FT container.
|
Concrete slab steel deck technical data
☆ Sectional properties:
|
Thickness
|
Yield Strength(MPa)
|
Tensile strength (N/mm²)
|
Weight
|
I(cm4/m)
|
I(cm3/m)
|
|
(mm)
|
(KG/M²)
|
|
0.75
|
≥345
|
300
|
6.18
|
47.98
|
12.5
|
|
0.9
|
≥345
|
300
|
7.66
|
63.5
|
15.32
|
|
1
|
≥345
|
300
|
8.14
|
64.08
|
16.69
|
|
1.2
|
≥345
|
300
|
9.71
|
76.9
|
20.03
|
Note:This is calculated by standards Q345,we can also calculated by other standards.
☆ Span tables:
|
Deflection Limited = L/130
|
|
Span type
|
Single spans(mm)
|
Two spans(mm)
|
Three spans(mm)
|
|
Slab THK
(mm)
|
Bondek THK(mm)
|
0.75
|
0.9
|
1
|
1.2
|
0.75
|
0.9
|
1
|
1.2
|
0.75
|
0.9
|
1
|
1.2
|
|
110
|
2400
|
2630
|
2700
|
2950
|
2890
|
3200
|
3390
|
3650
|
3020
|
3310
|
3500
|
3700
|
|
120
|
2330
|
2520
|
2630
|
2800
|
2810
|
3160
|
3310
|
3590
|
2970
|
3280
|
3390
|
3660
|
|
130
|
2280
|
2390
|
2570
|
2760
|
2740
|
3050
|
3230
|
3480
|
2900
|
3130
|
3310
|
3530
|
|
140
|
2220
|
2480
|
2520
|
2700
|
2680
|
2970
|
3160
|
3370
|
2850
|
3080
|
3290
|
3480
|
|
150
|
2180
|
2370
|
2460
|
2650
|
2620
|
2950
|
3100
|
3310
|
2760
|
2970
|
3150
|
3390
|
|
160
|
2130
|
2290
|
2420
|
2520
|
2570
|
2870
|
3040
|
3240
|
2710
|
2890
|
3090
|
3210
|
|
170
|
2090
|
2280
|
2370
|
2490
|
2510
|
2780
|
2990
|
3150
|
2590
|
2800
|
3020
|
3180
|
|
180
|
2040
|
2250
|
2330
|
2400
|
2460
|
2720
|
2940
|
3100
|
2480
|
2780
|
2890
|
3100
|
|
200
|
1970
|
2160
|
2300
|
2370
|
2370
|
2660
|
2890
|
3060
|
2390
|
2710
|
2850
|
2950
|
|
220
|
1850
|
2120
|
2260
|
2300
|
2260
|
2580
|
2850
|
3000
|
2300
|
2590
|
2770
|
2840
|
For more technical data,you can download our catalog.Thank you.
Composite decking products renderings
Packing & Delivery:
☆ Packing:
Seaworthy packing standards:
Packed with moisture-proof kraft paper.
☆ Delivery:
Delivery time for small order with stock material: 7-10 days ;
Delivery time for special requirement,coating types and thickness: 15-25 days ;
Delivery term: FOB/CIF/CFR/DDP is available;
We can find good forwarder for customers or accept appointed forwarder from customers.
