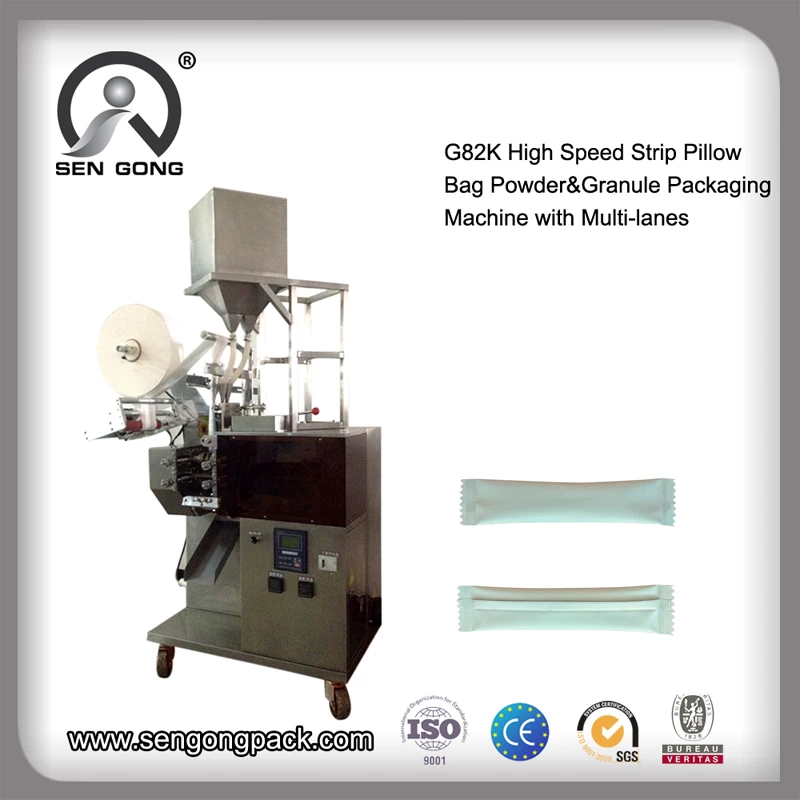

G82K Full-automatic coffee bag making packing machine

Granule&Powder Packaging Machine with Multi-lanes,powder sealing machine


Facebook Twitter Pinterest LinkedIn 分享





Application:

It is suitable for packing products;with granule or powder shape.

Features:
1.It is specially designed for automatic multi-line stick type powder or granule filling and packaging.Put the film roll to be used on the machine,the film would be split into lanes and;made into long tubular bags, and products measurement, filling and packaging can be performed automatically.
2.The operation is simple and reliable, bag length and bag width can be easily adjusted. Optical control is precise. With skateboard type metering device, the;filling volume of each lane is adjustable. The machine is suitable for mass production of bulk products.

Technical data:

Type: High Speed Packing Machine Series
Product model: G82K
Product name: G82K Full-automatic  coffee bag making packing machine
Bag type: Center sealing
Bag length: 50~170mm
Bag width: 11~65mm
Weighing system: Metering disc device / Skateboard type metering device
Qty. Of lines: 2~12 lines (Metering disc device: 4 lanes; Skateboard type metering device: 2~12 lanes.)
Bag size: L:40~110mm, W:30~80mm
Packing speed: 25~50bags/min(the actual speed depends on the size of products, packing material,etc.)
Filling range: 0.5~50cc (the filling range depends on the feeding device and product properties.)
Max. film width: 350mm
Max. film roll diameter: Φ400mm
;
