Construction Heavy duty Hino tipper trucks for sale
Applications:

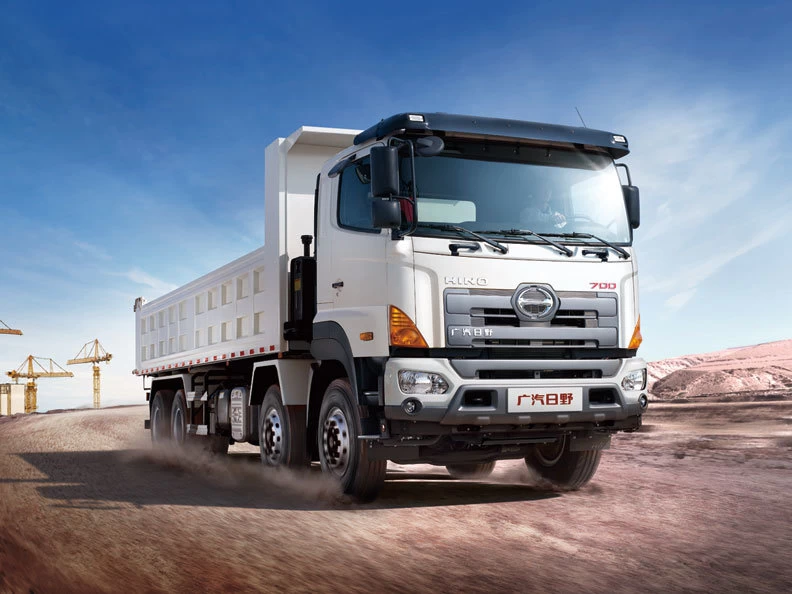

GAC HINO700 heavy tipper trucks(also called heavy duty 12wheels Hino tipper truck, 30tons hino dump trucks, HINO sand dump truck, 20 cubic meters Hino tipper dump truck, 8x4 drive 40tons hino dumper vehicle) is designed for both overseas and domestic high end heavy truck markets. In order to prevail over its rivals in the global competition, key components of the tipper truck are designed in close collaboration with top suppliers in the world.
Powerstar HINO dump truck is manufactured using the cutting-edge technology and components in the world such as WABCO double-cylinder air compressor, brake valve, HYVA front hydraulic system, etc.
Key Features:
---- Hino heavy duty chassis, perfect performance
---- HINO P11C engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Payloading from 20ton to 100 tons.
---- Easy operation and easy maintenance.
---- Virious types of tipper body are available.
Specifications:
|
2019 Brand new 12 wheelers HINO Tipper Dump Truck (40 tons)
|
|
General
|
Vehicle Brand
|
POWERSTAR
|
|
Chassis Brand
|
HINO
|
|
Overall Dimension
|
10800 * 2500 * 3580 mm
|
|
GVW / Kerb Weight
|
35,000kg / 13,200kg
|
|
Cab
|
Cab Capacity
|
3 persons allowed
|
|
Air Conditioner
|
Heating/cooling air conditioner
|
|
Engine
|
Fuel Type
|
Diesel
|
|
Engine Brand
|
HINO P11C-UJ
|
|
Power
|
350 HP (258 KW)
|
|
Displacement
|
10520 ml
|
|
Emission Standard
|
Euro 3 or 4
|
|
Chassis
|
Drive Type
|
8X4, (left hand drive)
|
|
Transmission
|
RT-11509C 9 speed levers with 1
reverse
|
|
Wheelbase/No. of axle
|
3640+1410 mm / 3
|
|
Tire Specification
|
11.00R20
|
|
Tire Number
|
10 tires and 1 spare tire
|
|
Max Speed
|
95 km/h
|
|
Paint
|
Metallic paint
|
|
Superstructure
|
Pay loading capacity
|
40 Tons
|
|
Cargo body
|
7500*2300*1500
|
|
Thickness of cargo body
|
Bottom 8mm
Side 6mm
|
|
Cylinder type
|
T Type or Domestic 180 or HYVA 150
|
|
Lifting system
|
Middle or Front
|
|
Control
|
in the cabin
|
|
Color & LOGO
|
Accroding to wish
|
|
All standard accessories: All steel body with drop sides. Auto release removable trilgate.
Ladder, warning lights, PTO
fire extinguisher, basic tool kit, English manual……
|
|
Optional
|
** Back alarm and Camera can be equipped.
** Other tipper body can be choose.
** Other material and plate thickness can be choose.
|
---- SGS, BV, CONTECNA, CE Qualified.
---- Local engineer training support.
 |
|
 |
|
 |
| Special U-shape body |
|
Rear door safety hook |
|
Rear door top lug hooks |
 |
|
 |
|
 |
| Reinforced dumper body |
|
T-type hydraulic cylinder |
|
Mining body |
| |
|
|
|
|
---- 12 months FREE parts.
---- Factory genuine parts supply.
---- 7 days to worldwide by DHL.
| Operation Manual |
Chassis parts |
Maintenance Tools |
---- 15 years experiences Design & Export.
---- 100% customer made trucks.
---- Fast delivery assurance.
---- Service more than 60 countries.
---- Professional guidance on your importing documents.
---- CO, FORM E, FORM P, Pre-shipping Inspection...
---- Maximize save your sea freight.
---- Professional guidance on your importing documents.
---- Safety, Quickly, Timely
---- Quickly ship to worldwide.
---- Color and LOGO can be wished.
