United Energy founded in 2009, National high-tech enterprise,focus on solar panel R&D obtained more than 100 patents.
Quality is the Company Culture of UNITED ENERGY!
1. Smart Soldering-Uniform smart soldering increases the power and efficiency of the module,and improves the power load capacity
2.Gallium-doped technology overcomes LID degradation and guarantees the long-term power generation of the module.
3. Smart Module Packaging and Logistics-Smart module packaging solutions are used to achieve high reliability,low-cost transportation and logistics.
4. Superior Warranty-12 years products warranty 25 years linear power output warranty
Electrical Specification
| Model Number |
UE540M-72H |
UE545M-72H |
UE550M-72H |
UE555M-72H |
UE560M-72H |
| Maximum Power (Pmax/W) |
540 |
545 |
550 |
555 |
560 |
| Open Circuit Voltage (Voc/V) |
49.44 |
49.54 |
49.64 |
49.74 |
49.84 |
| Short Circuit Current (Isc/A) |
13.86 |
13.93 |
14 |
14.07 |
14.14 |
| Voltage at Maximum Power (Vmp/V) |
40.72 |
40.81 |
40.9 |
40.99 |
41.08 |
| Current at Maximum Power (Imp/A) |
13.27 |
13.36 |
13.45 |
13.54 |
13.64 |
| Efficiency(%) |
20.9 |
21.09 |
21.29 |
21.48 |
21.67 |
Core Technologies Of United Energy Solar Panel
1. Multi-busbar cell technology
With MBB PV cell technology, UE panels identify 10 / 11 busbar as the best solution by taking comprehensive account of solar cell efficiency, production yield and cost.
2. Ideal choice for utility and commercial scale projects by reduced BoS and improved ROI
3. Max power 560w which exceed most of china suppliers.
4. Superior Warranty-12 years products warranty 25 years linear power output warranty
5. Full set of safety certification and regulation, meet certificate requirements in most of the countries.
FAQ：
What watts of this panel?
Mono 540w 545w 550w 560ww solar panel

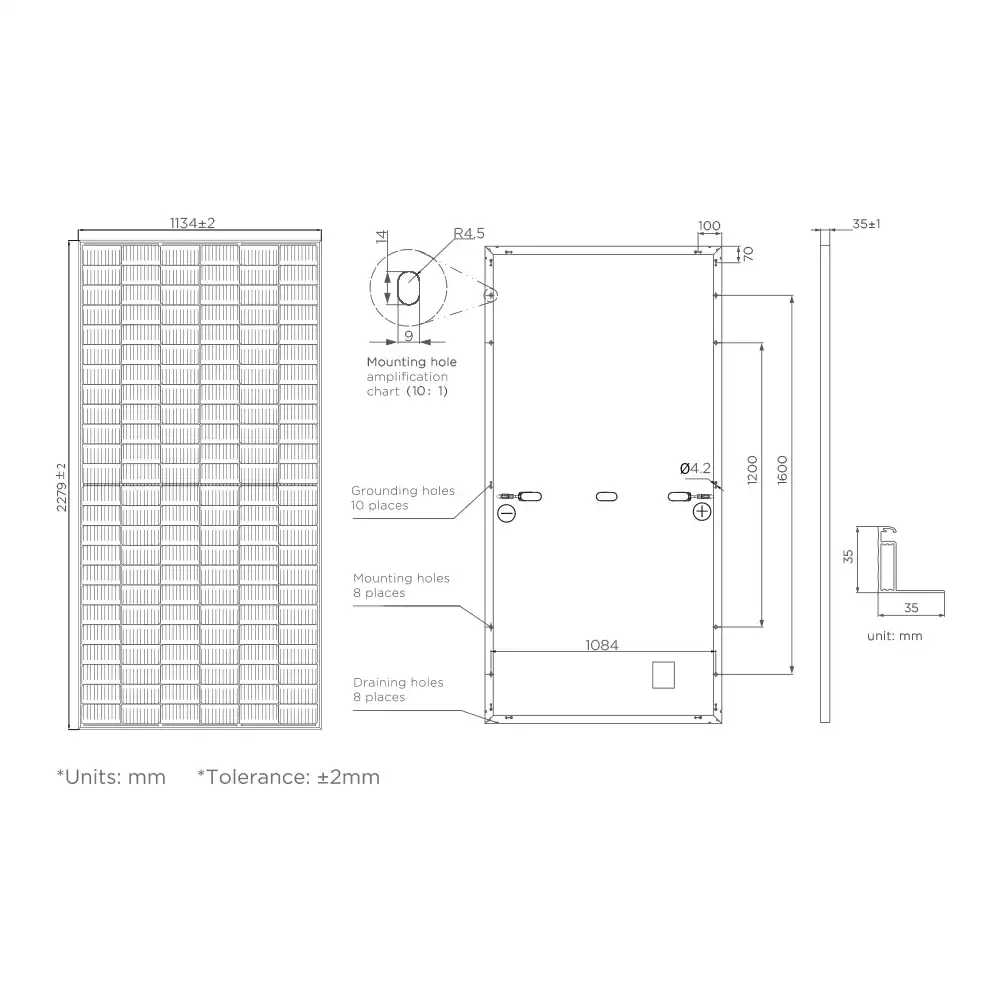

What dimension of this panel?
2279*1134*35mm

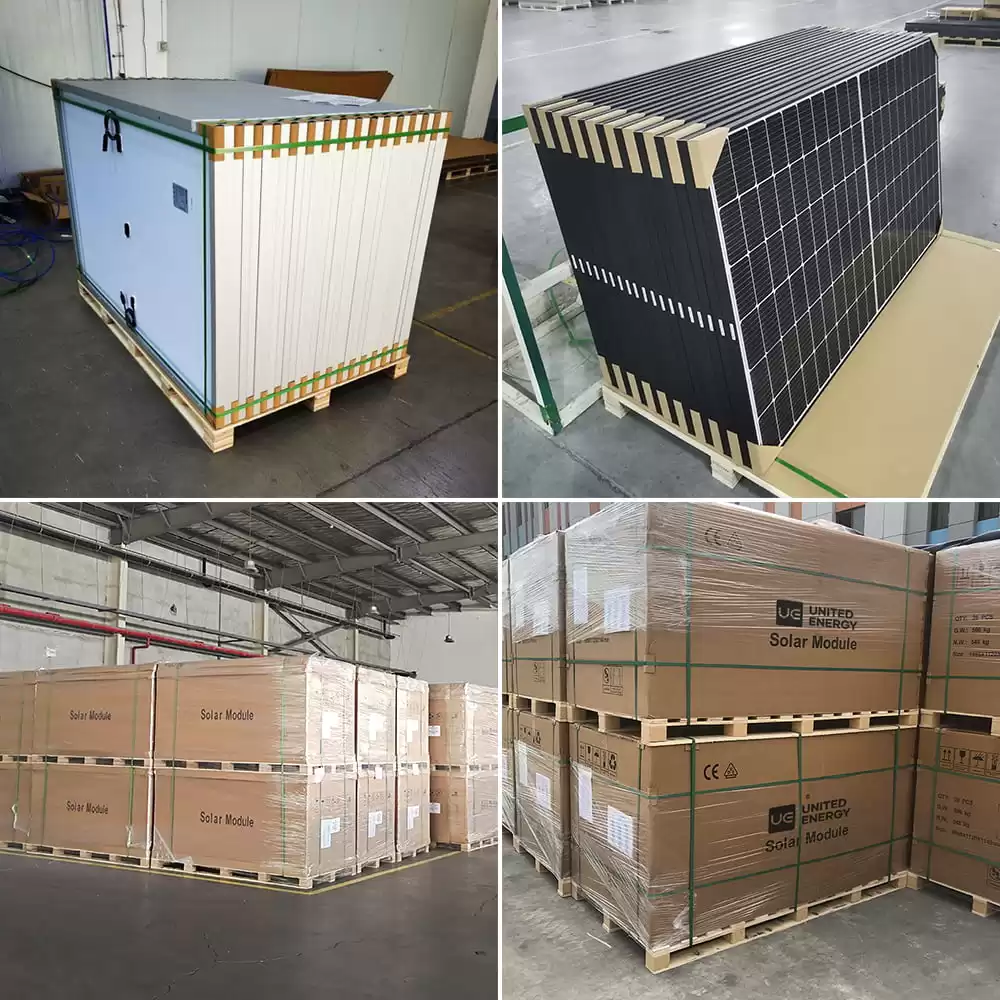

How much is the loading quantity and shipping method?
31pcs/pallet ; 155pcs/20GP ; 620pcs/40HQ; Shipping normally by sea because of the heavy weight, but we can provide DDP(door-to-door) service if needed.
How long is the Delivery time?
Normally production will takes around 10 workings days, depends on the order quantity.
