Tensile Galvanised steel. They are primarily used to provide lightweight, economical, efficient roofing and cladding support systems for framed structures. Our hot dip galvanized purlins are available in a range of
different sizes and configurations.As the purlins are pre-punched in our factory, they are quick to install and suitable for both insulated and uninsulated roofs and walls.

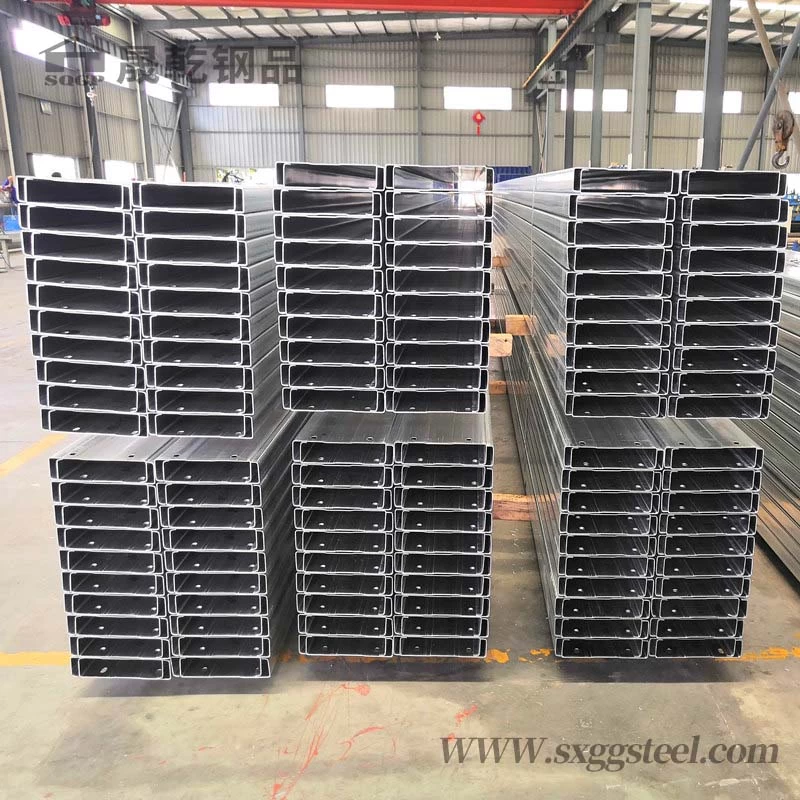

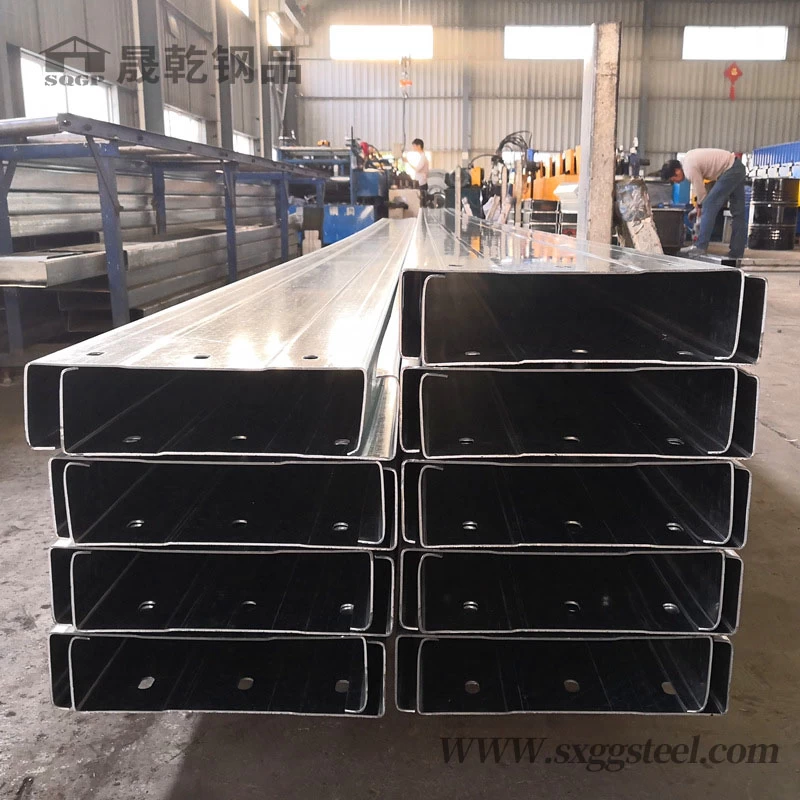

C purlin & Z purlin (steel channel) product description
Features:
1.Manufactured from high tensile galvanized steel
2.Despotic C & Z section steel , Z section steel is roll- formed from galvanized steel,specification to be complete.
3.Make from quality raw material.
4.Pre-punched holes based on detail design.
5.Complete assessories package available.

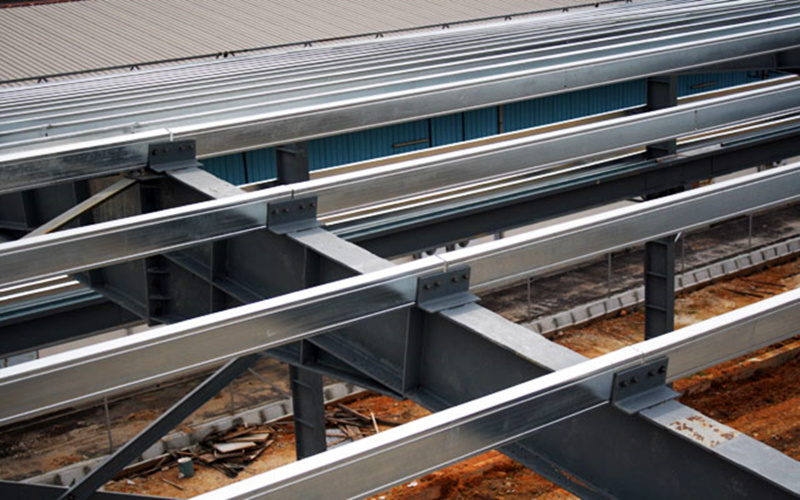

6.C purlin, Z purlin and H beam are widely used in factory buildings,large span bridges,gymnasiums and portable houses.
7.C purlin may be used in single spans and continuous spans in multi-bay buildings.
8.We can make adjustment to meet your inquiries as we can do.
C purlin sectional size range
|
Model NO.
|
H×B1×B2×C(mm)
|
Thickness(mm)
|
Hole distance(mm)
|
Length(m)
|
C80
|
80×40×40×15
|
2.0-3.0
|
No holes
|
The length can be customized,but can't be longer than11.8m.
|
C100
|
100×50×50×20
|
2.0-3.0
|
40
|
C120
|
120×50×50×20
|
2.0-3.0
|
Adjustable
|
C140
|
140×50×50×20
|
2.0-3.0
|
Adjustable
|
C160
|
160×60×60×20
|
2.0-3.0
|
Adjustable
|
C180
|
180×60×60×20
|
2.0-3.0
|
Adjustable
|
C200
|
200×60×60×20
|
2.0-3.0
|
Adjustable
|
C220
|
220×70×60×20
|
2.0-3.0
|
Adjustable
|
C250
|
250×70×70×20
|
2.0-3.0
|
Adjustable
|
Remark:
|
1)H,B1,B2,C,please refer to the picture above to check,thank you.
2)Because of the container size,the lenth can't be more than 11.8m.
|
