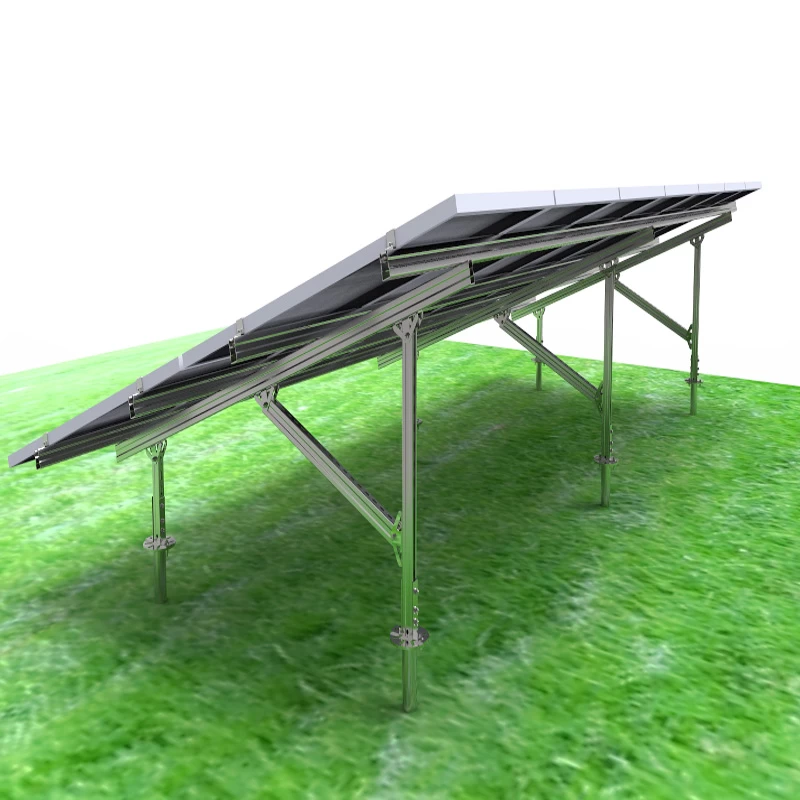

solar module mounting structure can hold the wind speed up to 60 m/s. It is cheaper than aluminum ground mounting system,more suitable for suburb area.
Technical Parameters
|
Installation Angle
|
20°
|
|
Wind Load
|
60m/s
|
|
Snow Load
|
1.6KN/m2
|
|
PV Modules
|
Framed,unframed
|
|
Module Orientation
|
Landscape
|
|
Standards
|
AS/NZS 1170
|
|
|
DIN 1055
|
|
|
JIS C 8955：2011
|
|
|
International Building Code IBC 2009
|
|
|
California Building Code CBC 2010
|
|
Material
|
Al6005-T5(Anodized)
|
|
Color
|
Silvery or according to customer requirements
|
|
Warranty
|
12 years
|
Advantage
High strength,anti-uv,high frequency insulation(design standard:JIS C 8955:2011,GB 50009-2012,IBC 2009,CBC 2010);
Chemical resistance&weatherablity(certificate:AS/NZS 1170,MCS,CSA etc);
Max wind speed: up to 60m/s;
Material: Al 6005-T5;
Anti-corrosive: anodized;
Warranty: 12 years;
Duration: 25 years.

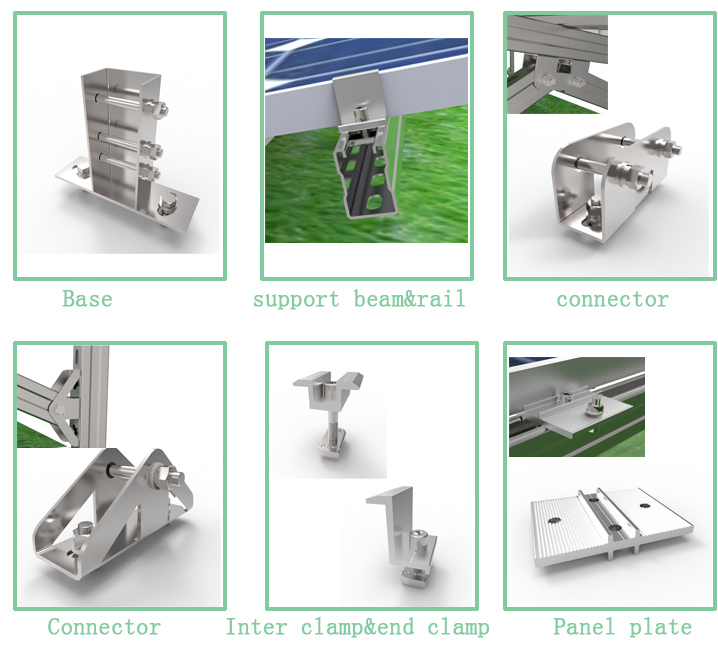

Component photos

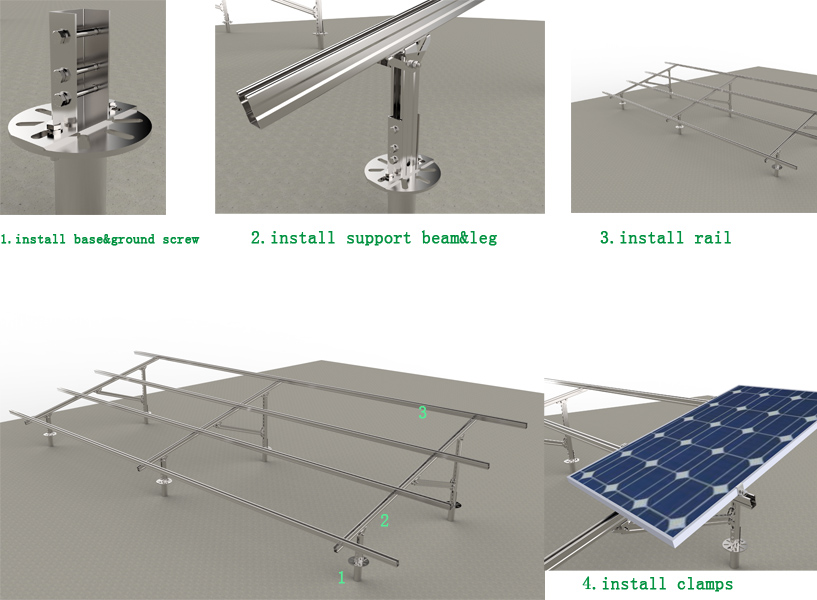

Installation steps:4 steps:
1.install base&ground;
2.install support beam⋚
3.install rail;
4.install clamps.

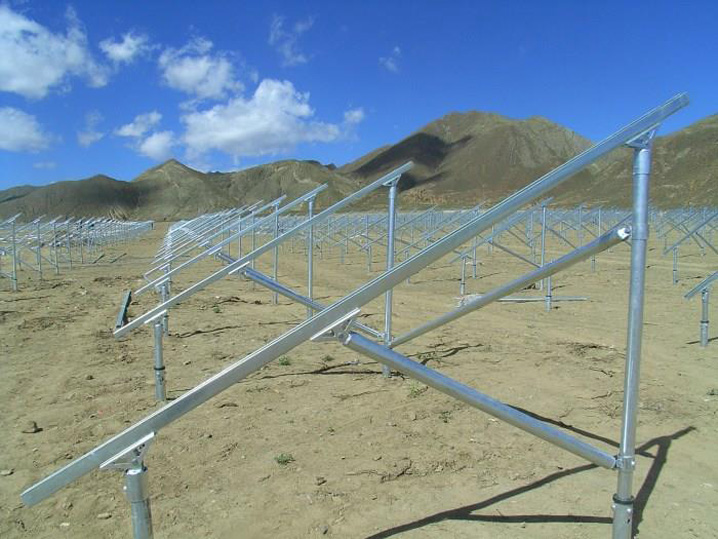

Installation photos
