Galvanized Open Type Decking Floor Series
Product Introduction:
Wiskind open type decking floor series have many types, such as YX75-200-600, YX76-344-688.
|
Product Name
|
Galvanized Closed Type Decking Floor Series
|
|
Type
|

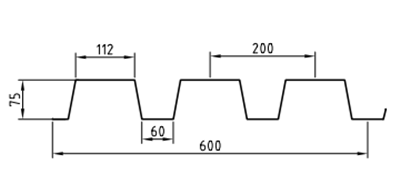

YX75-200-600
|

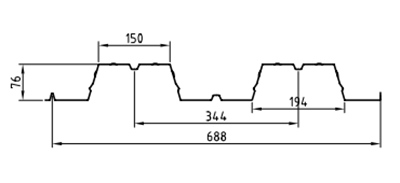

YX76-344-688
|
|
Thickness(mm)
|
0.8
1.0
1.2
|
0.8
1.0
1.2
|
|
Weight(kg/m2)
|
10.45
13.08
15.7
|
9.13
11.41
13.69
|
|
Section Inertia(cm4/m)
|
127.5
158.2
190.1
|
119.5
148.2
180.1
|
|
Section Resistance(m3/m)
|
33.34
41.69
50.04
|
28.54
35.68
42.83
|
|
Effective Width(mm)
|
600
|
688
|
Product Advantages:
1.The composite floor bearing plate bears the construction load during the construction phase, works with the concrete in the use stage, bears the use load, and gives full play to the characteristics of the steel and concrete materials.
2.It has many features. Such as, light weight, high strength, strong rigidity, simple construction and standardized production at the factory.
