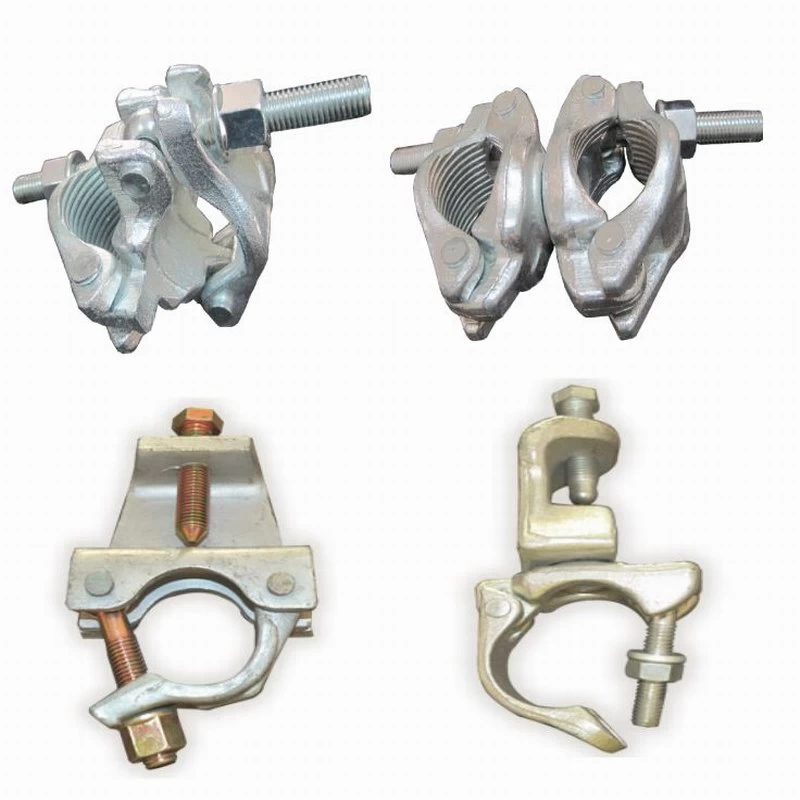

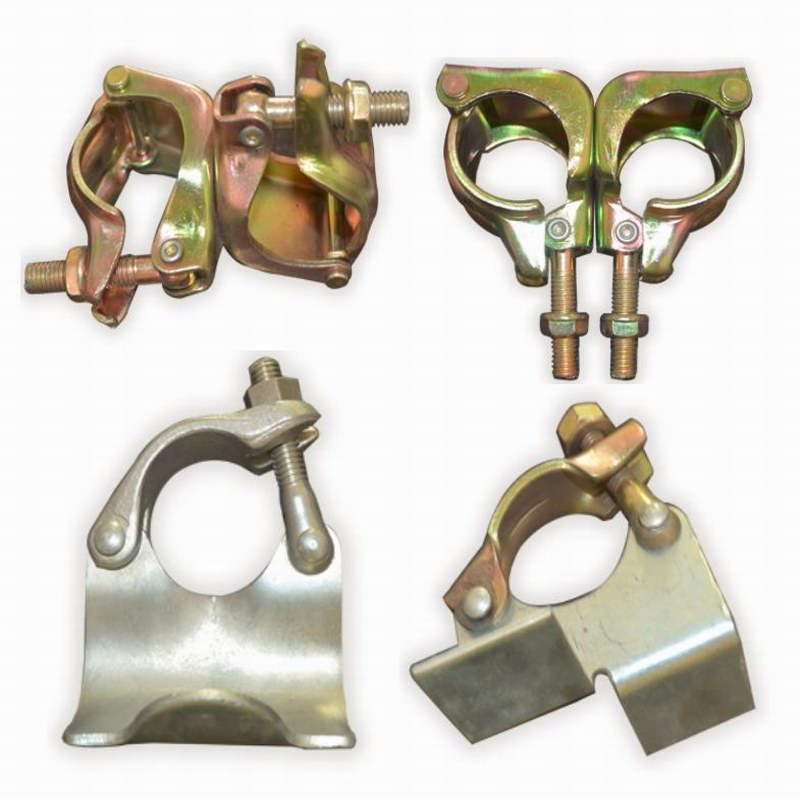

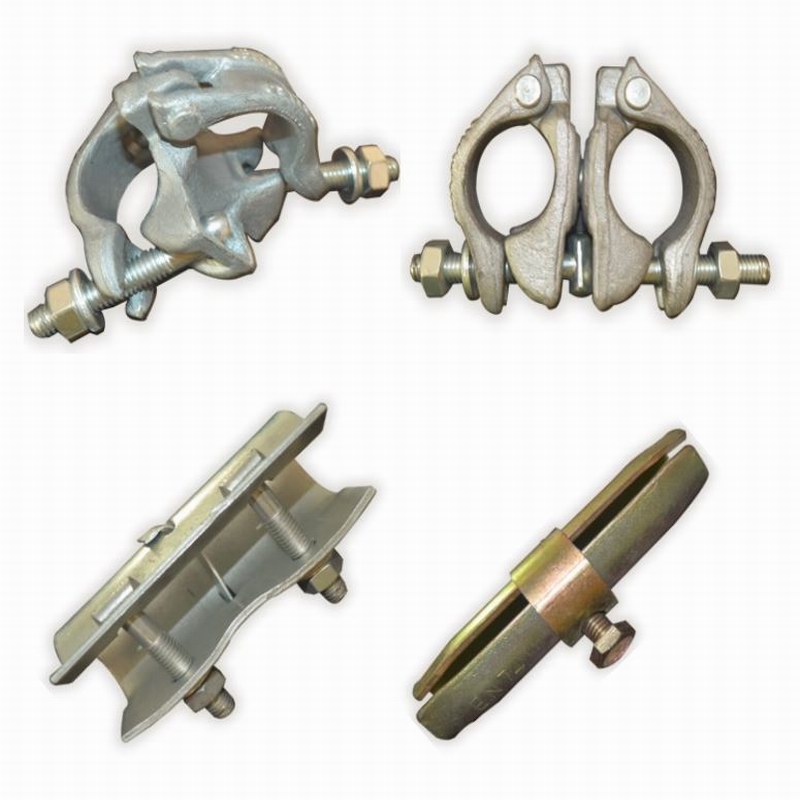

Galvanized Scaffolding Double Couplers

Scaffolding Couplers are the fittings for fixing and stabilizing the steel tubular scfolding.

Simple, orthogonal, sviwel,fixed couplings for worksite barrier, couplings for beams and many other types.

We supply various types of BS1139 / EN74 / AS 1576 / ANSI Standard forged or pressed Double Coupler, Swivel Clamp, Beam Clamp Girder, Sleeve Coupler, Putlog Coupler, Board  Clamp...



Facebook Twitter Pinterest LinkedIn 分享

Scaffolding Couplers

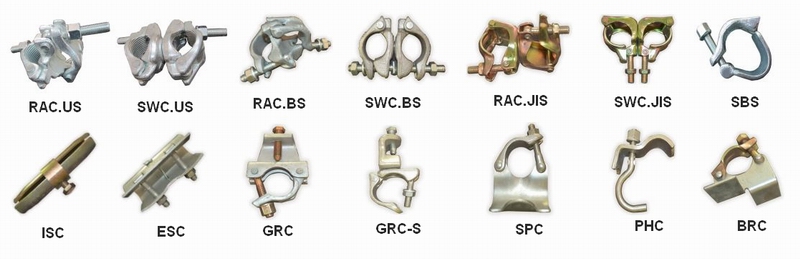

Code Description Weight(kg) Weight(lbs)
RAC.US Forged Right Angle Coupler (US) 1.52  3.35
SWC.US Forged Swivel Coupler  (US) 1.80  3.97
RAC.BS Forged Right Angle Coupler (BS) 1.10  2.43
SWC.BS Forged Swivel Coupler  (BS) 1.20  2.65
RAC.JIS Pressed Right Angle Coupler (JIS) 1.10  2.43
SWC.JIS Pressed Swivel Coupler  (JIS) 1.20  2.65
SBS Side by Side Clamp 1.30  2.87
ISC Internal Sleeve Coupler 0.70  1.54
ESC External Sleeve Coupler 1.20  2.65
GRC Fixed Gravlok Coupler 1.75  3.86
GRC-S Swivel Gravlok Coupler 1.80  3.97
SPC Single Putlog Coupler 0.80  1.76
HPC Half Putlog Coupler 0.60  1.32
BRC Board Retainer Clamp 0.65  1.43

Surface Treatment: Hot Dip Galvanized, Electric Galvanized
